Buy 3 Axis Cartesian Robot Drive 3D Printable CNC Plotter 3D print model

Name: 3 Axis Cartesian Robot Drive 3D Printable CNC Plotter 3D print model
Brand: brevin-banks
SKU: 713955
Price: 14.99 USD
Availability: InStock

$14.99

License: Royalty Free No Ai

author:

brevin-banks

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «brevin-banks». CGhub does not claim copyright ownership over the content used.

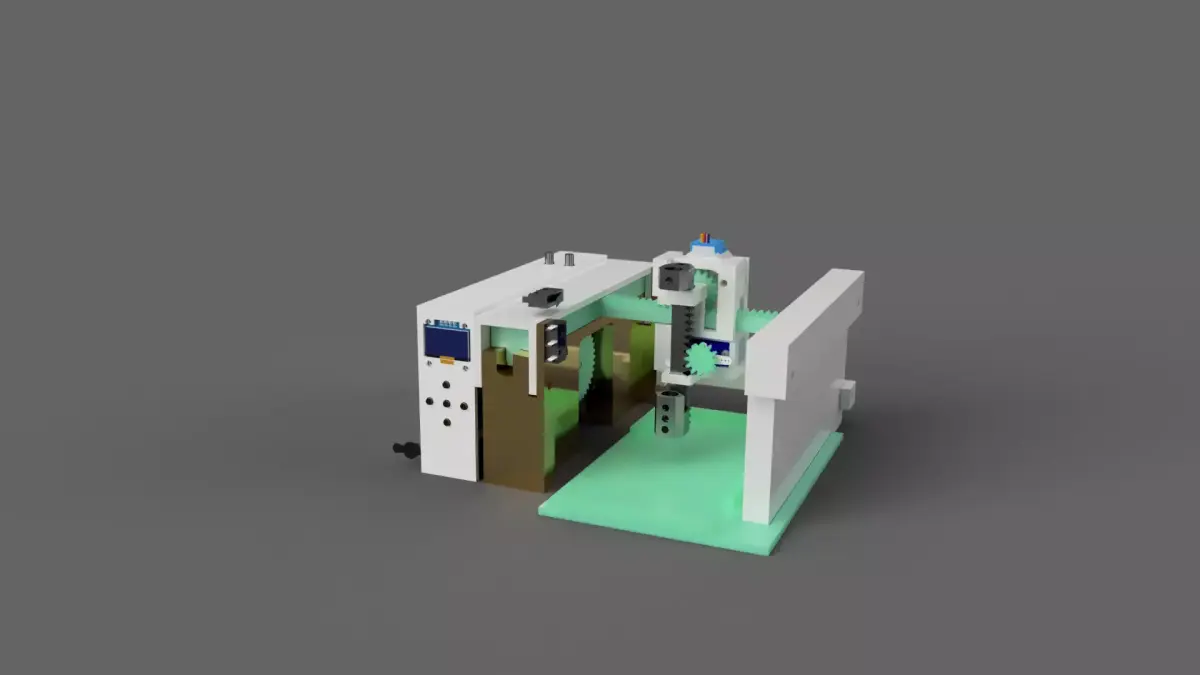

Fully parametric 3D model set for a compact 3-axis Cartesian robot designed for small-scale CNC, plotting, and light automation tasks. The design uses rack and pinion drives on all three axes for precise, repeatable linear motion without belts.

Key features:

Printable on a standard 200×200 mm (8×8") build plate (e.g., Ender 3).

Interchangeable end-effector mount for pens, X-Acto knives, and other small tools.

Designed for 28BYJ-48 stepper motors (2048 steps/rev) with ULN2003 driver boards.

Travel range: ~5x8x1" (127×203×25 mm).

Sturdy frame design with vibration-resistant fasteners.

All rack and pinion parts generated in Fusion 360 using FM Gears add-on.

This model is ideal for hobbyists, educators, and makers looking to build a low-cost desktop automation platform for drawing, engraving, or light CNC operations. All parts are modeled with printability and assembly in mind.

Formats included: STL, STEP, F3D (Fusion 360), plus assembly diagrams.

See more at https://brevinbanks.github.io/Robot3AxisMachine
