Publication date: 2016-07-31

Buy 315L B3 Left 2 Pole IEC electric motor - 3D CAD model 3D model

$3

License: Royalty Free

author:

electricmotors

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «electricmotors». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $3 Add to Wishlist
  • Description
  • Formats

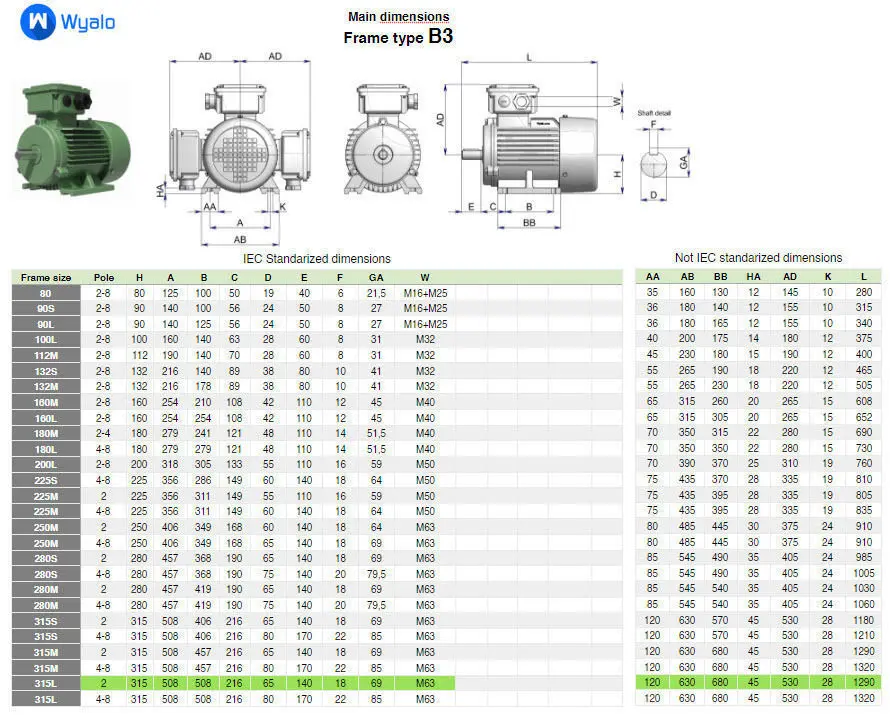

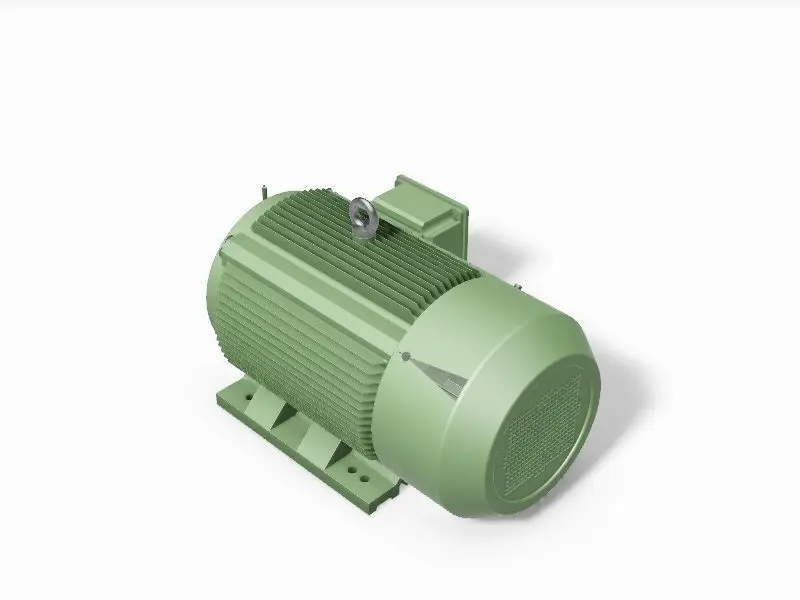

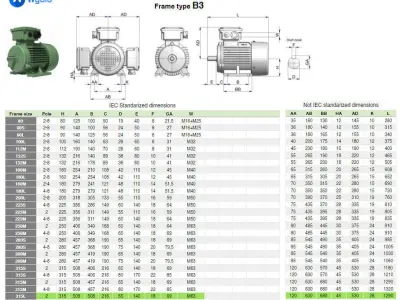

Electric motor IEC 315L B3 - IM1001 (foot mount)
2 Pole

■ 160 kW - 3000 r.p.m. (2 pole)(215 Horse Power )
Terminal box position = left


Is this not the type of motor you need?

Click here for our 3 step motor-selection tool and download the right CAD model in less than a minute...
STP (STEP, filesize: 5.84 MB), DWG (AutoCAD, filesize: 1.82 MB), IAM (Autodesk Inventor, filesize: 5.53 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Other

Tags

Cad model Electric motor Iec motor Induction motor Step file Industrial Machine Industrial machine Electric motor cad
