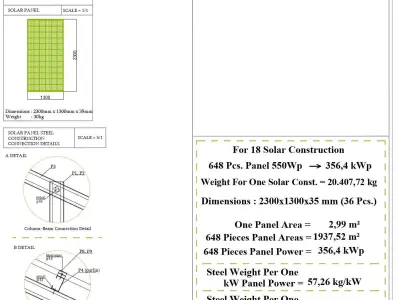

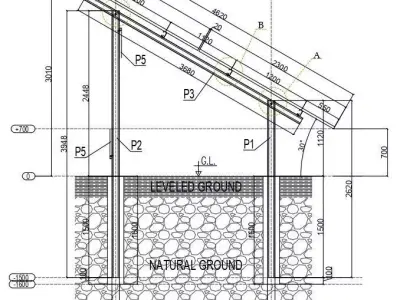

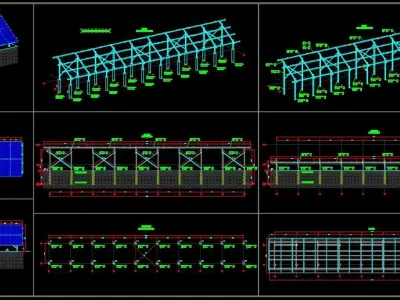

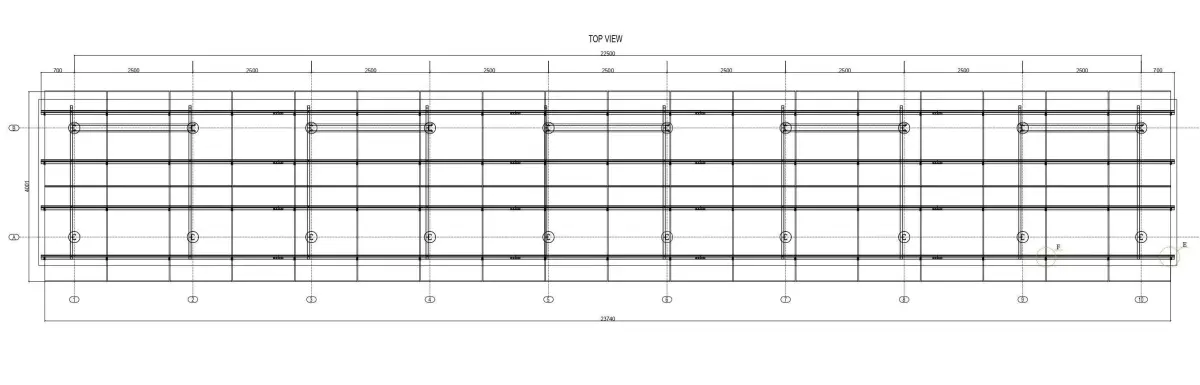

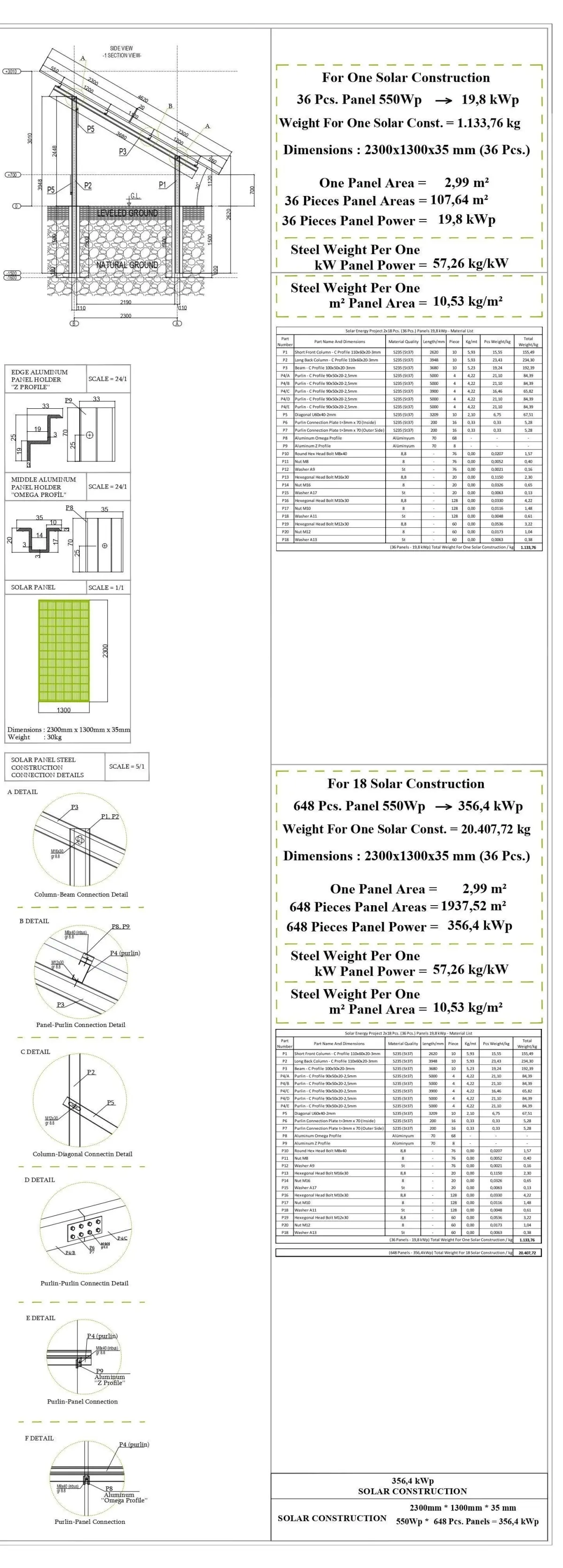

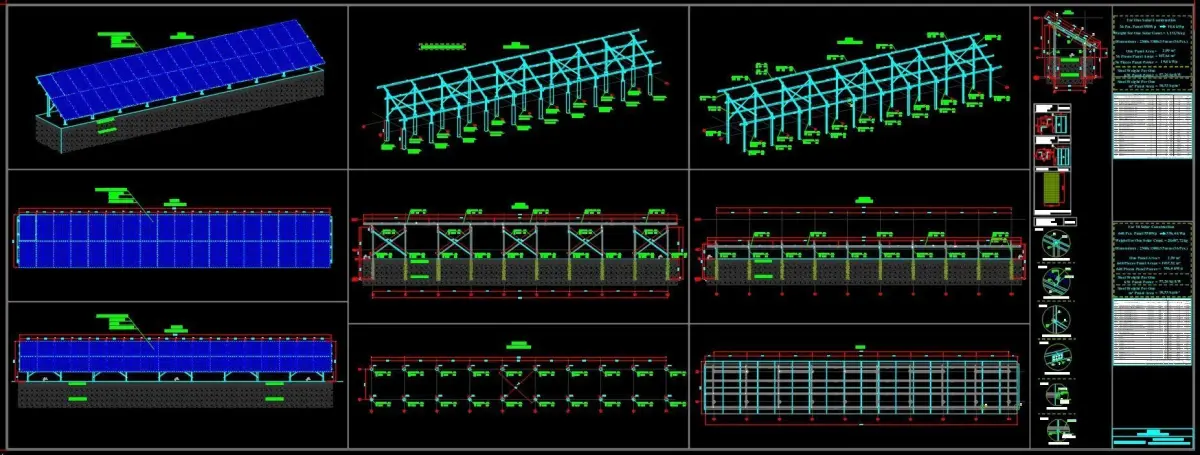

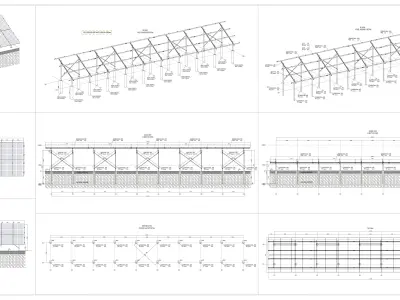

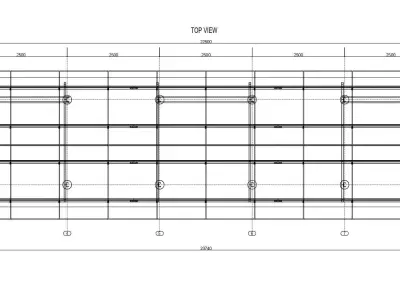

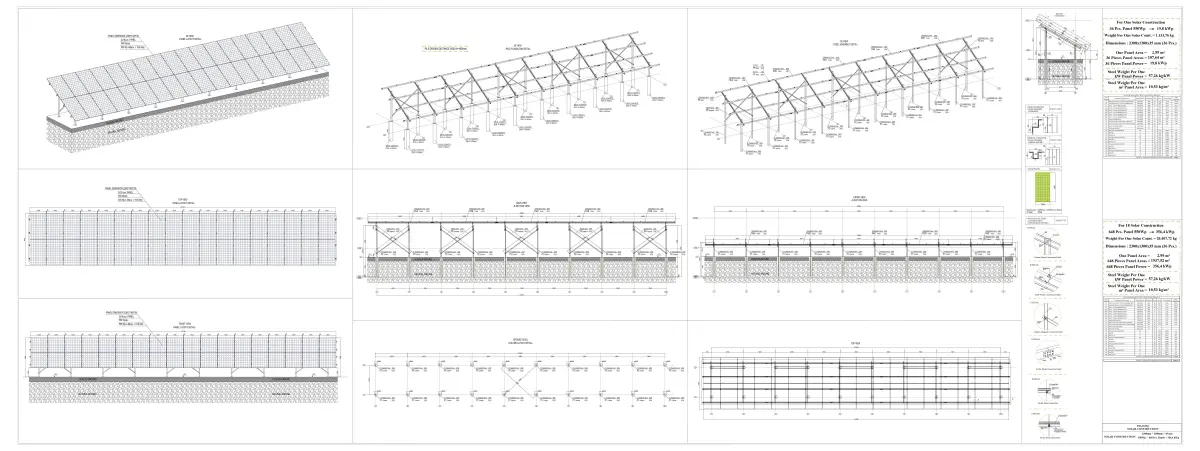

356 kWp Solar Project Type 9

Static Steel Fabrication Project

2x18 Vertical Panel Layout

Ground Connection Type; With Concrete Friction Pile

Concrete Friction Pile Dimensions : Ø240 mm H= 1600 mm

Distance of Columns Below Ground 1500 mm.

Panel Dimensions : 2300 x 1300 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 19,8 kWp power in 1 hour

The system consists of 10 axles and the distance between each axle is 2500 mm.

Distance between two columns 2300 mm.

Horizantal angle of panel 30°

The closest distance of the panels to the floor 700 mm.

Prepared With AutoCAD Version 2021
