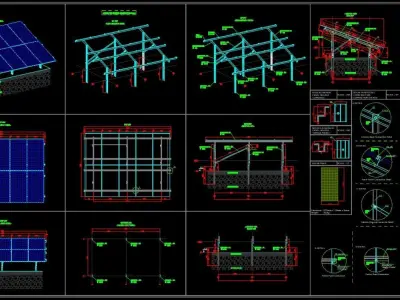

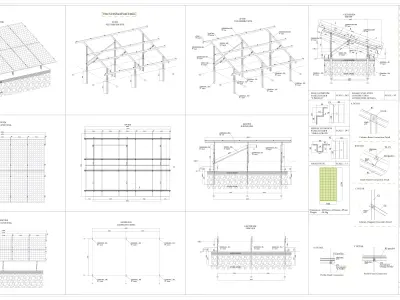

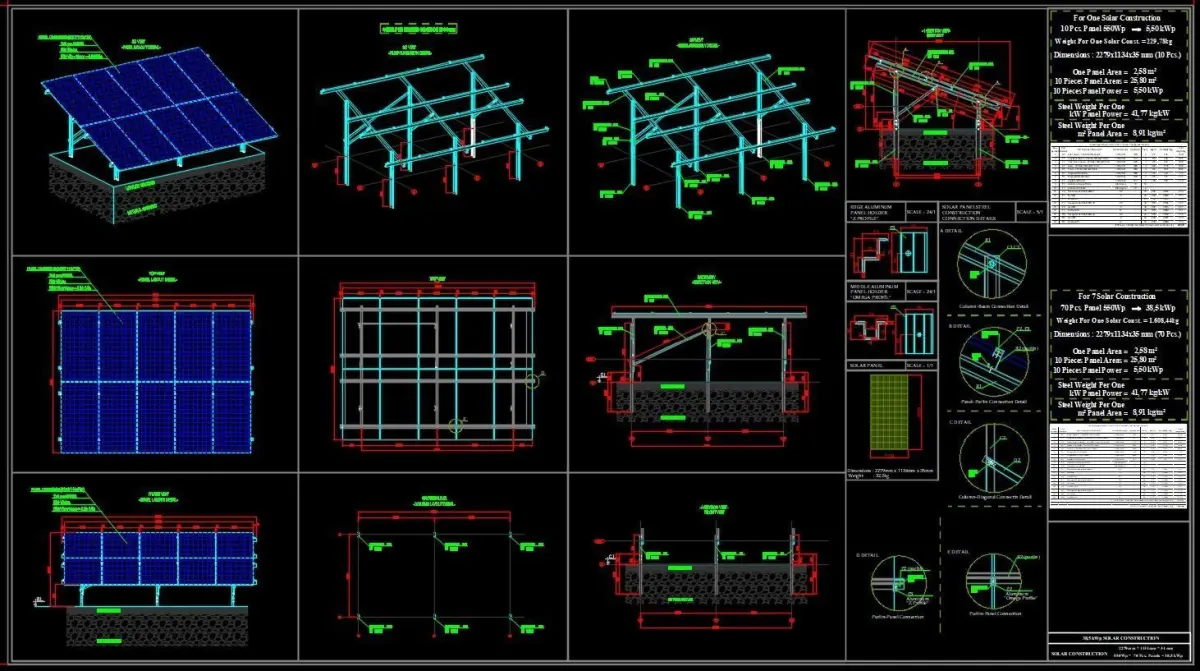

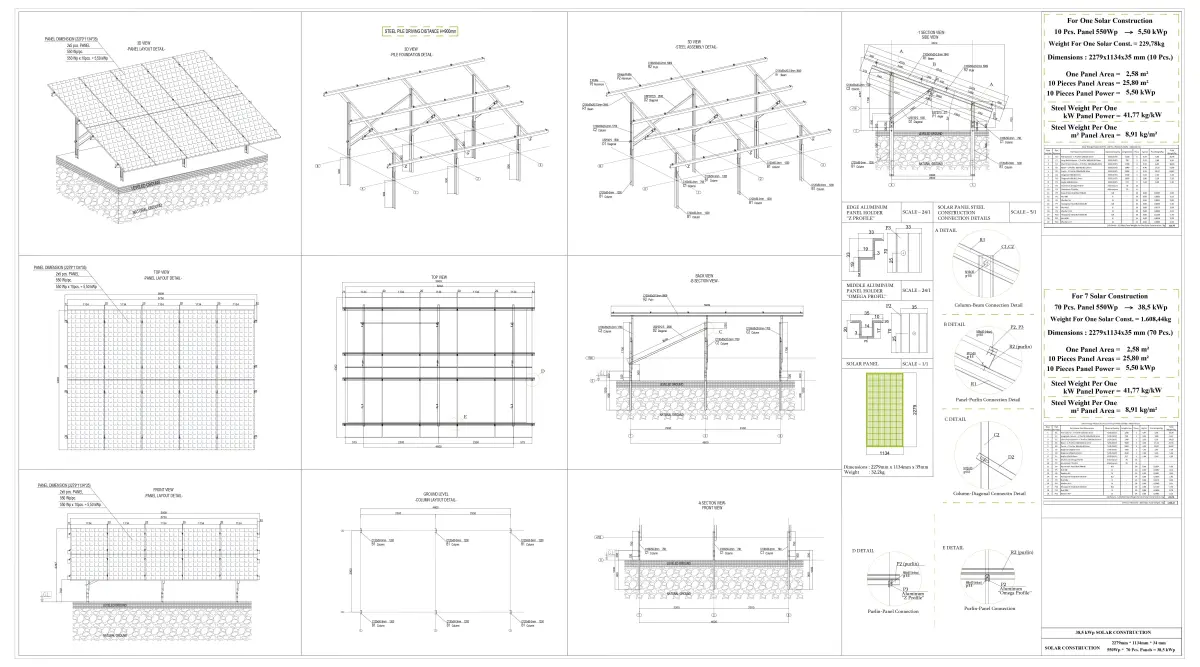

38,5 kWp Solar Project Type 12

Static Steel Fabrication Project

2x5 Vertical Panel Layout

Ground Connection Type; Steel Driven Column

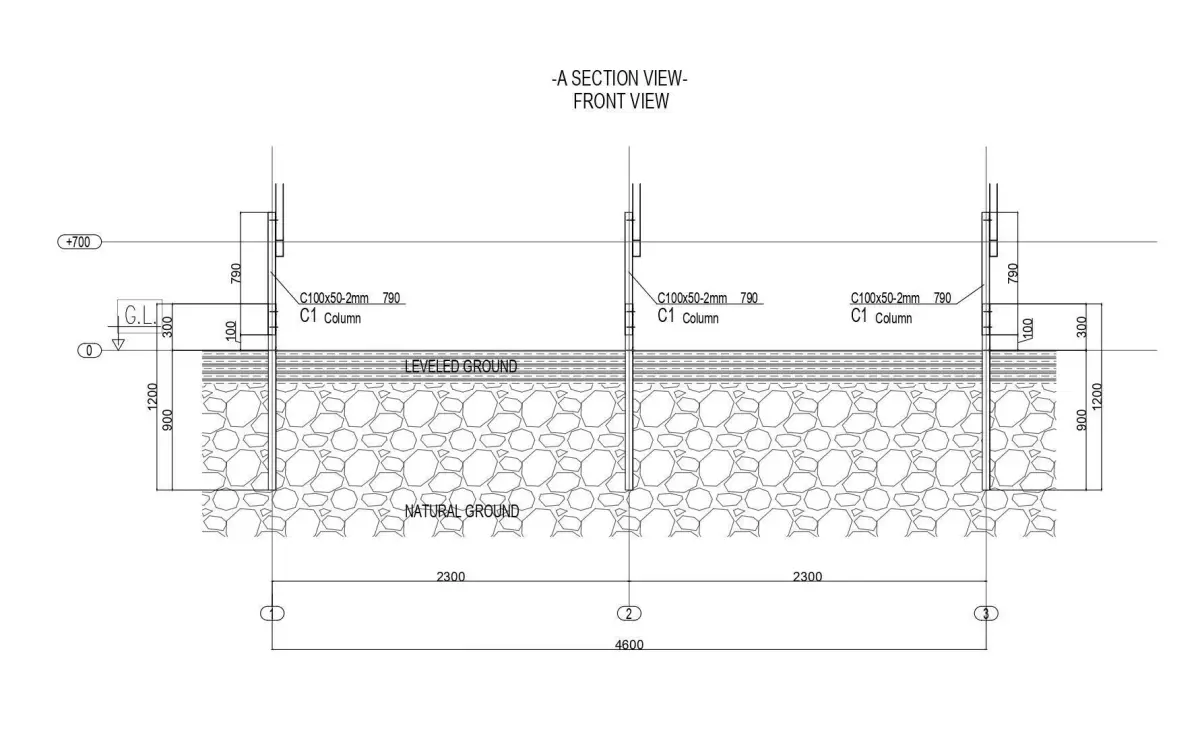

Distance of Columns Below Ground 900 mm.

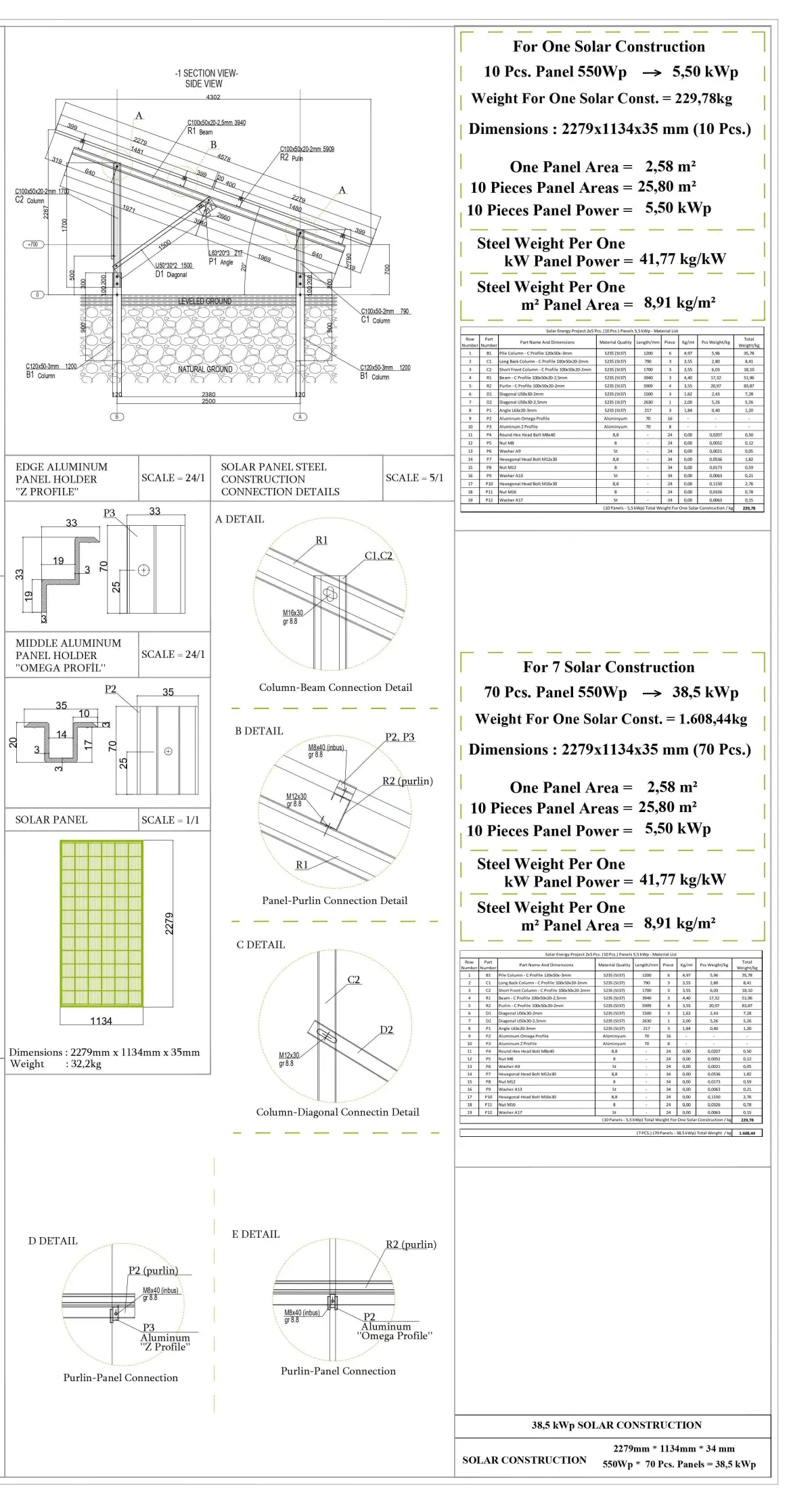

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 5,5 kWp power in 1 hour

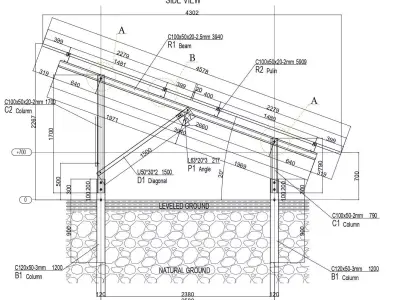

The system consists of 3 axles and the distance between each axle is 2300 mm.

Distance between two columns 2500 mm.

Horizantal angle of panel 20°

The closest distance of the panels to the floor 700 mm.

Prepared With AutoCAD Version 2021

Native Formats: DWG (AutoCAD, filesize: 822 KB) Exchange Formats: DXF (DXF, filesize: 5.28 MB), PDF (PDF, filesize: 591 KB)
