3D Lattice Structures 3D print model

License: Royalty Free No Ai Html

author:

rachidsw

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «rachidsw». CGhub does not claim copyright ownership over the content used.

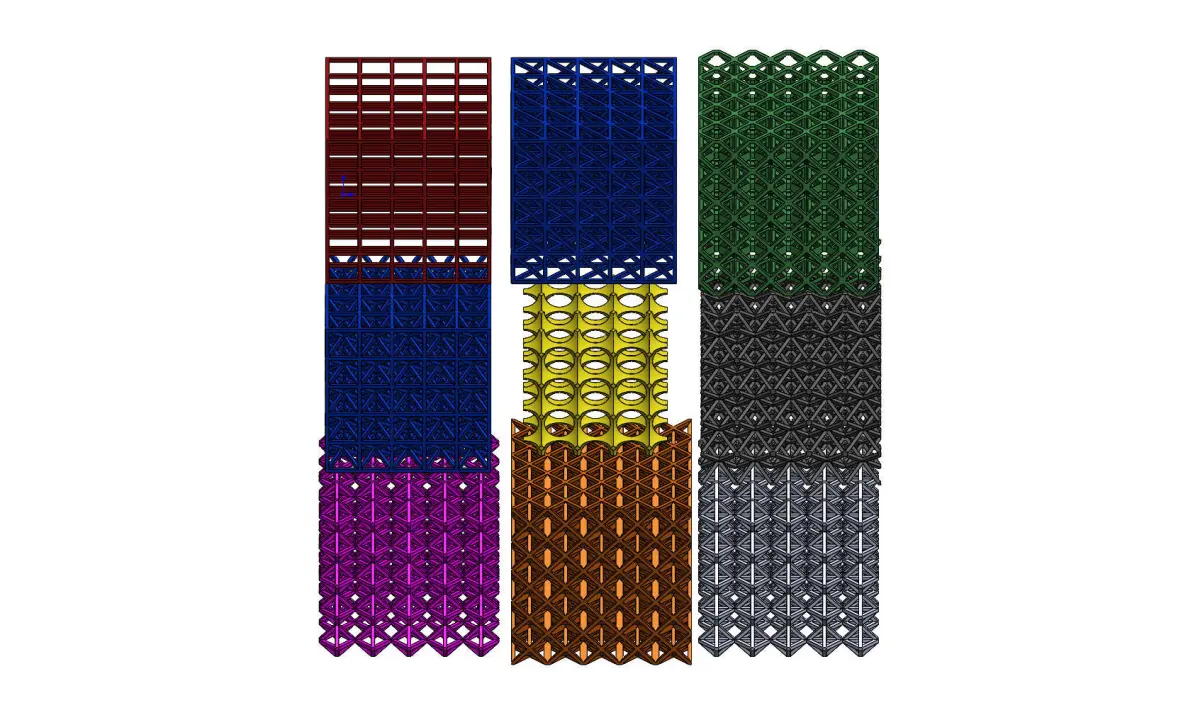

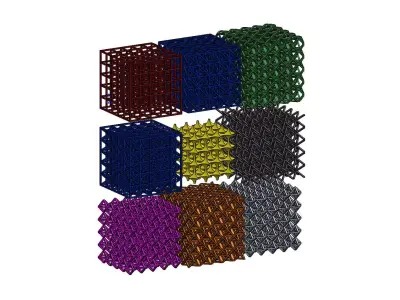

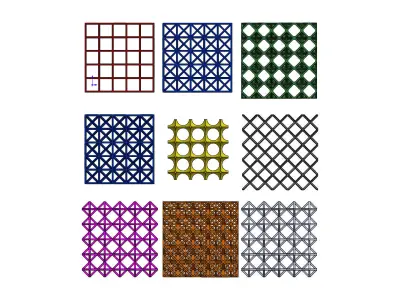

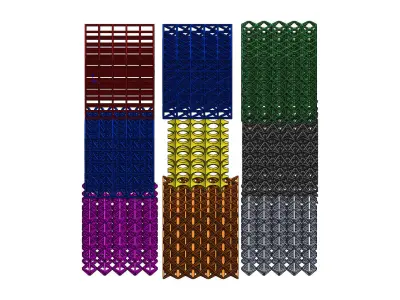

9 variations of 3D Lattice Structures for 3d printing and FEA analysis.

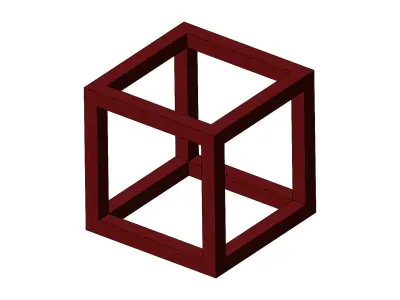

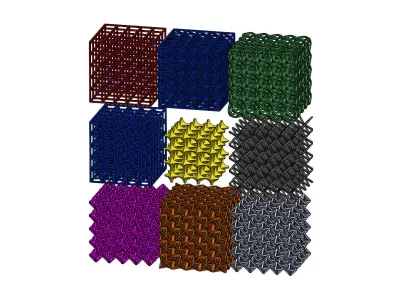

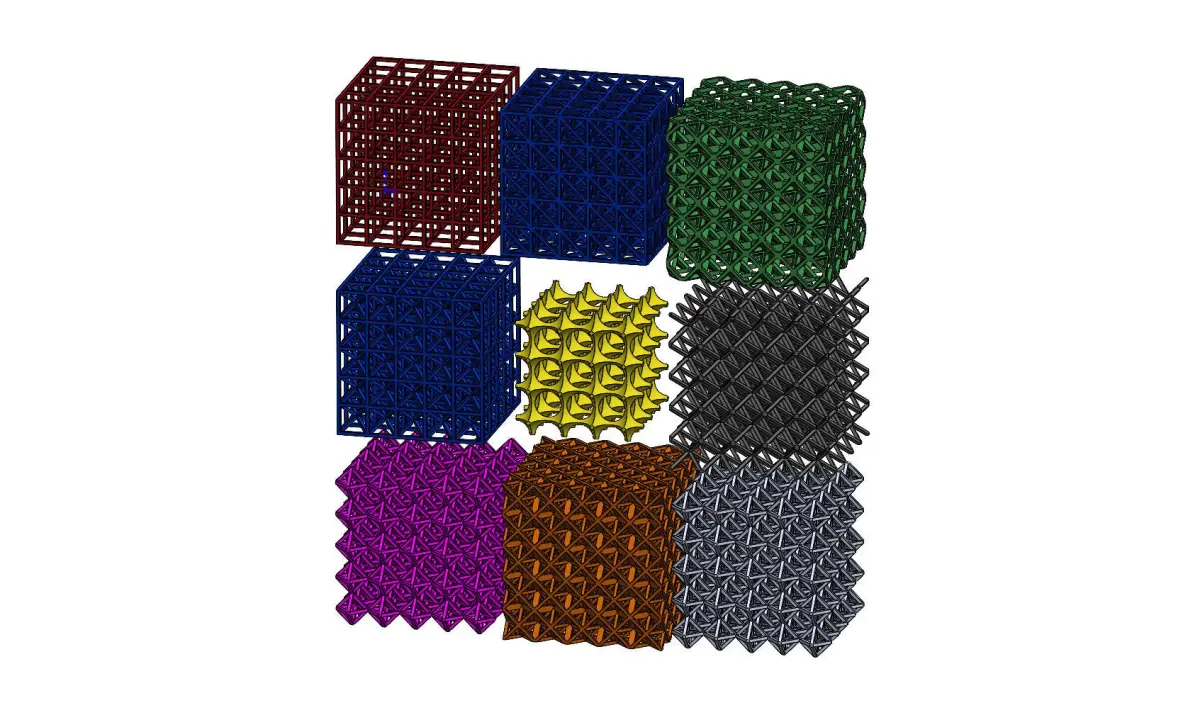

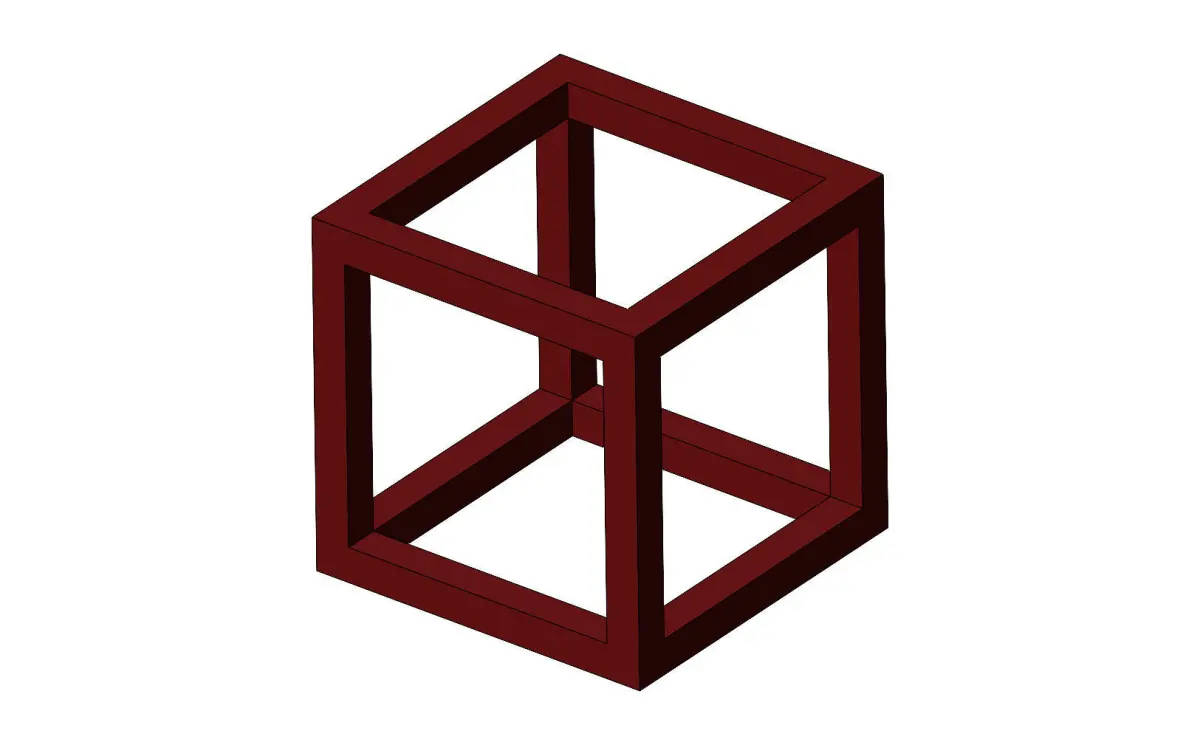

The model provides a 3d geometry to be used in finite element analysis of basic mechanical properties and medical scaffolding simulation.Each type of lattice strcturs has 2 files, the first is a single motif and the second one is 5motifx5motifx5motif cube.the size of the patterned motif is 10mmx10mmx10mm cube with the general thickness of 1mm for all the designs. To be used for educational purposes and 3d printing applications.Ideal for use in medical teaching environments.

The model is provided in three formats : STL, STEP, IGES and OBJ.If you require a bespoke design, please contact us to discuss your requirements

Please contact us for any inquiries and modifications.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 0
Vertices: 0
Geometry: Unknown

Tags

Lattice Structures Math Scaffolding Simulation Medical Mechanical Properties Architecture Bone Tissue Topology Material Education Implant Science Engineering Printing Printable Fea
