3D Model Engine Cylinder Block with Piston Assembly 3D model

License: royalty_free_no_ai

author:

vhandirahmadan

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «vhandirahmadan». CGhub does not claim copyright ownership over the content used.

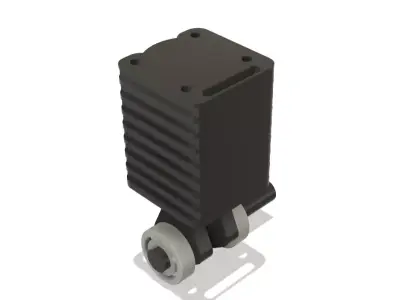

A detailed CAD model of an air-cooled engine cylinder block complete with piston and connecting rod, designed for mechanical visualization, simulation, or educational purposes.

Key Features:

Finned Cylinder Block: Designed for heat dissipation, suitable for small single-cylinder engines or air-cooled applications.

Precision Piston: Includes ring grooves and pin slot details for realistic assembly.

Connecting Rod Assembly: Attached to the piston via a realistic joint, ready for motion or simulation analysis.

Applications:

Mechanical engineering education

Thermodynamic or motion simulation (FEA/CFD)

Engine concept development or prototyping

Design by Veldi Handi Rahmadan

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 0
Vertices: 0
Plugins used
Geometry: Unknown

Tags

Machinery Engineering Engine Piston Cylinder Block Combustion Automotive Mechanical Cad 3dmodel Fusion360 Aircooled Industrial Machine Industrial machine
