3D Print Double Bolt Free 3D print model

Description

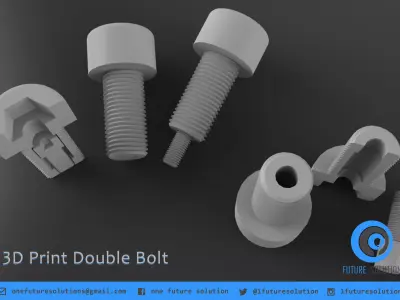

3D Print Double Bolt

Modeled with SolidWorks 2014

Rendered with KeyShot 5

File Types : .SLDPRT, .IGS, .OBJ, .STL.

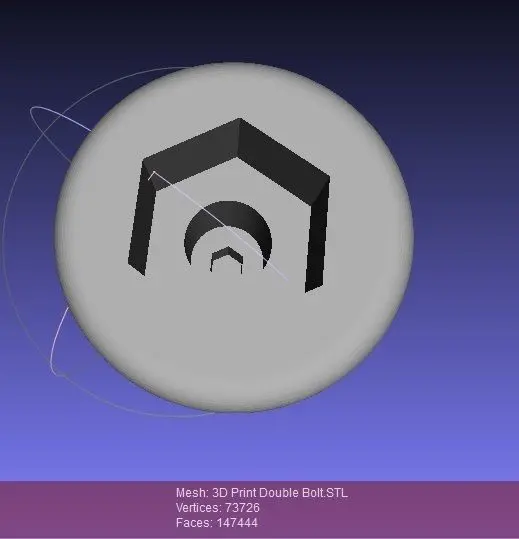

Vertices : 73726

Polygons : 147444

In many products at manufacturing world commonly use many fastener (bolt). Much of them use more than one bolt in one product to get assembly.

When product designer create a product, they must create some hole in many position to place the many different size of bolt. Sometimes make the product looks bad with many bolts and bolts hole (crowded hole for different bolt size).

With 3D Print Double Bolt, we can help them to reduce the hole position to make product more good look without forget the function of the bolts.

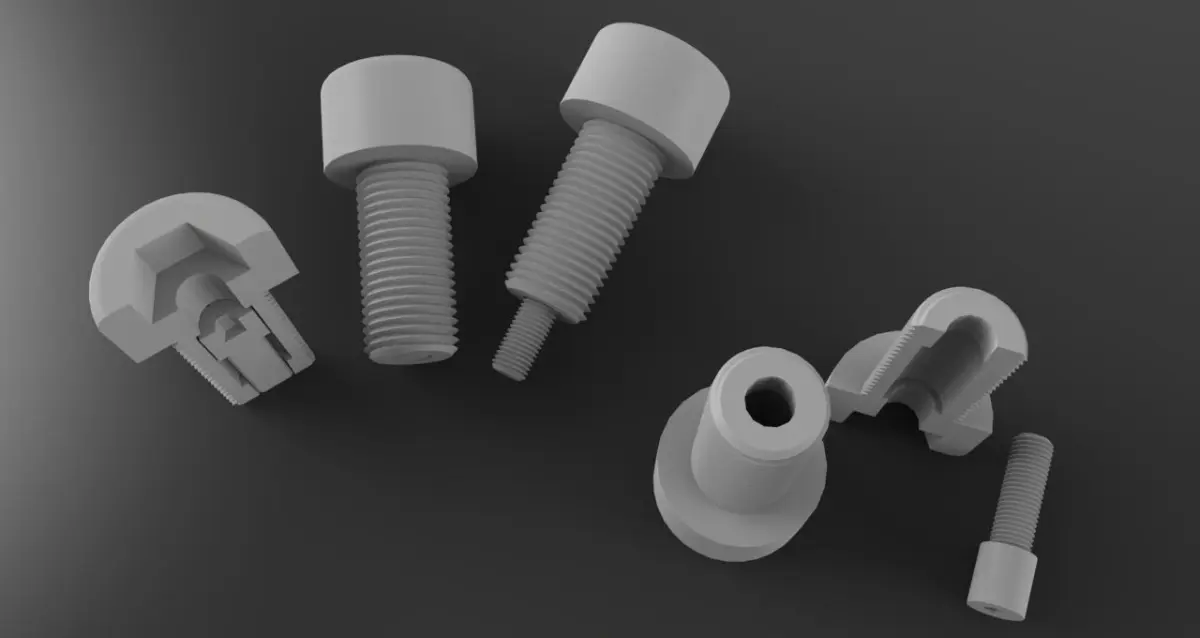

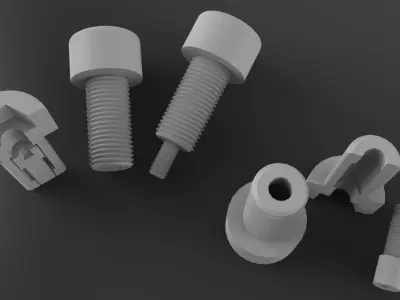

This submission I use M10 and M4 ISO to combined into one product with 3D Printing Technology (this is just sample for main idea, we can use any bolts to combine, not only M4 & M10).

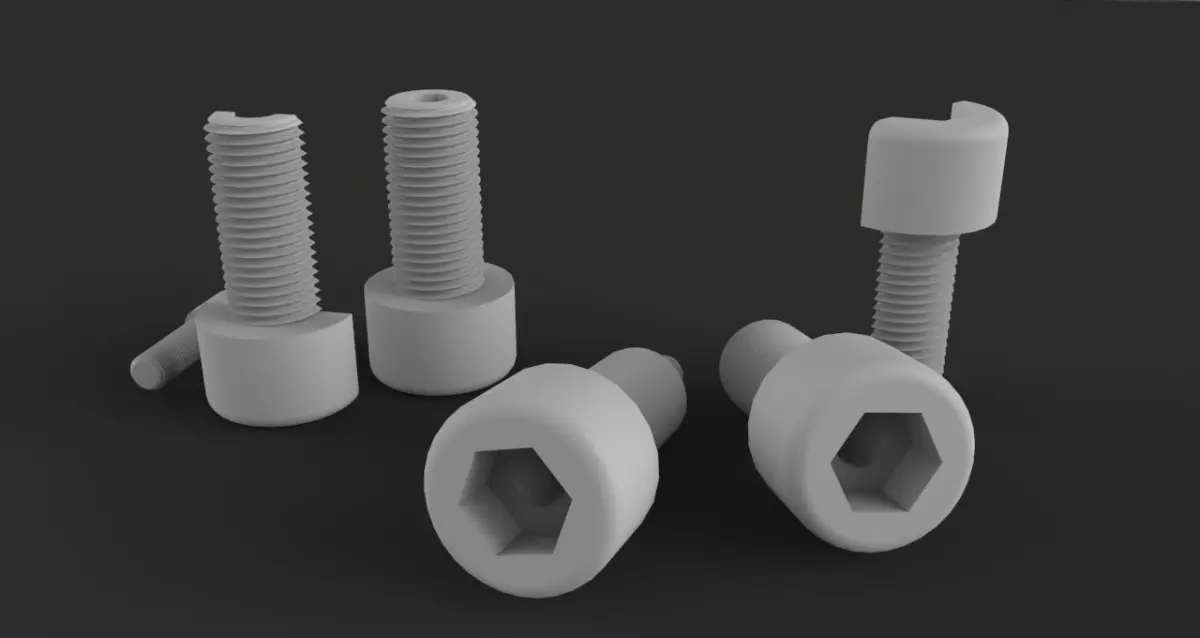

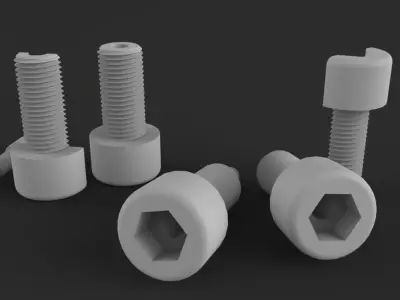

Many benefits we can get for this products. This is an innovative and multifunctional bolts. We can use as single bolts M10 or double bolt M10 for Top & M4 for Bottom.

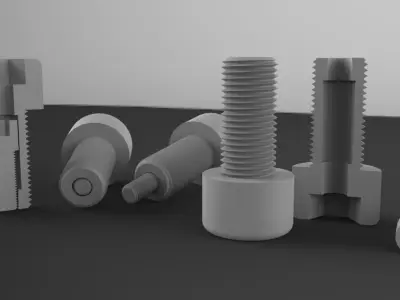

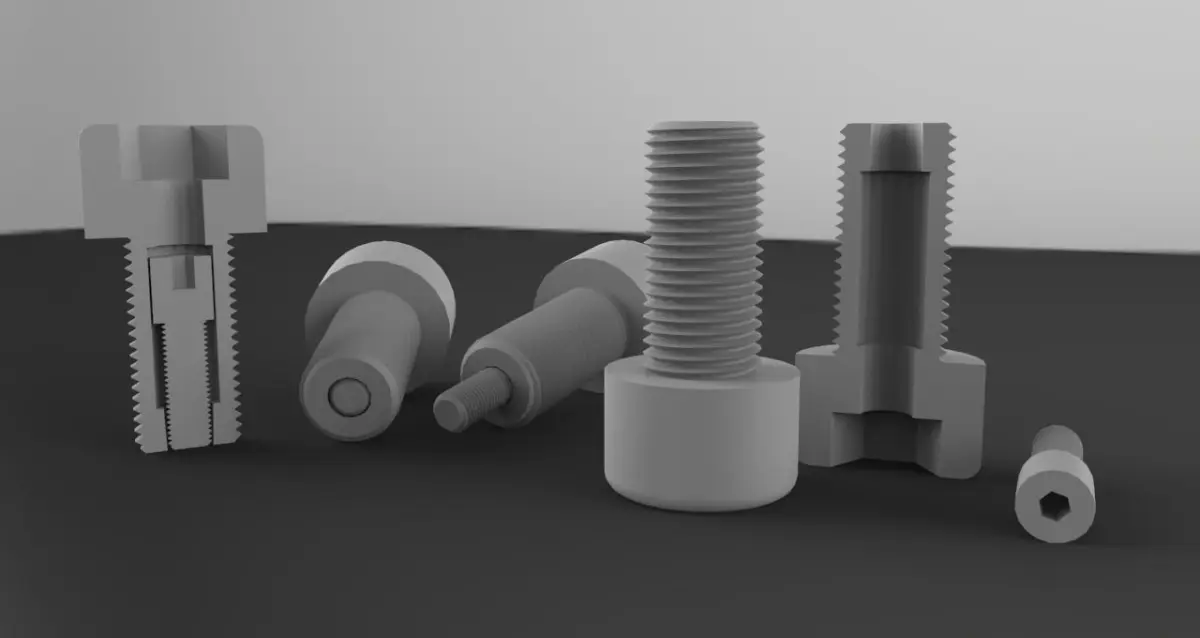

M4 bolt cannot desperate from M10 bolt. And I make M4 can hide inside M10.

For 3D Printing material I use ABS Plastic or if any recommends from 3D Printing Material supplier for the best material that we can use, that's very welcome for me.

You can download this model for Free, but you should to hit ♥ button as the payment :).

Catch us :

Email : onefuturesolutions@gmail.com

Instagram : https://www.instagram.com/1futuresolution/

Youtube : http://bit.ly/ytc-onefuturesolution

FB : https://www.facebook.com/1futuresolution/

Cheers,

Ridwan S
