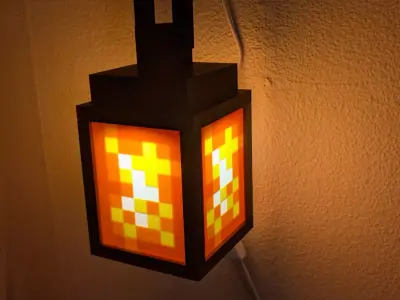

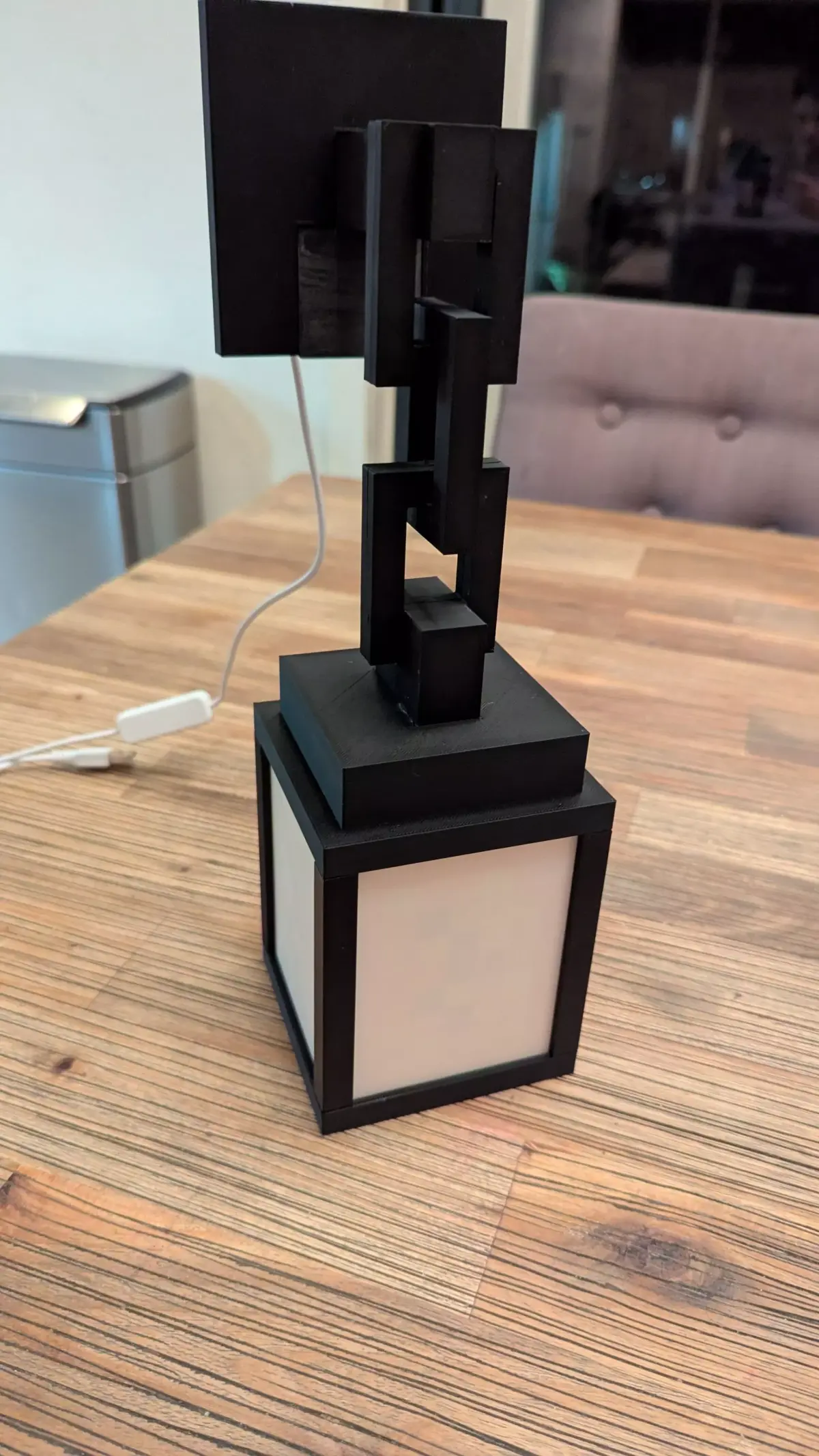

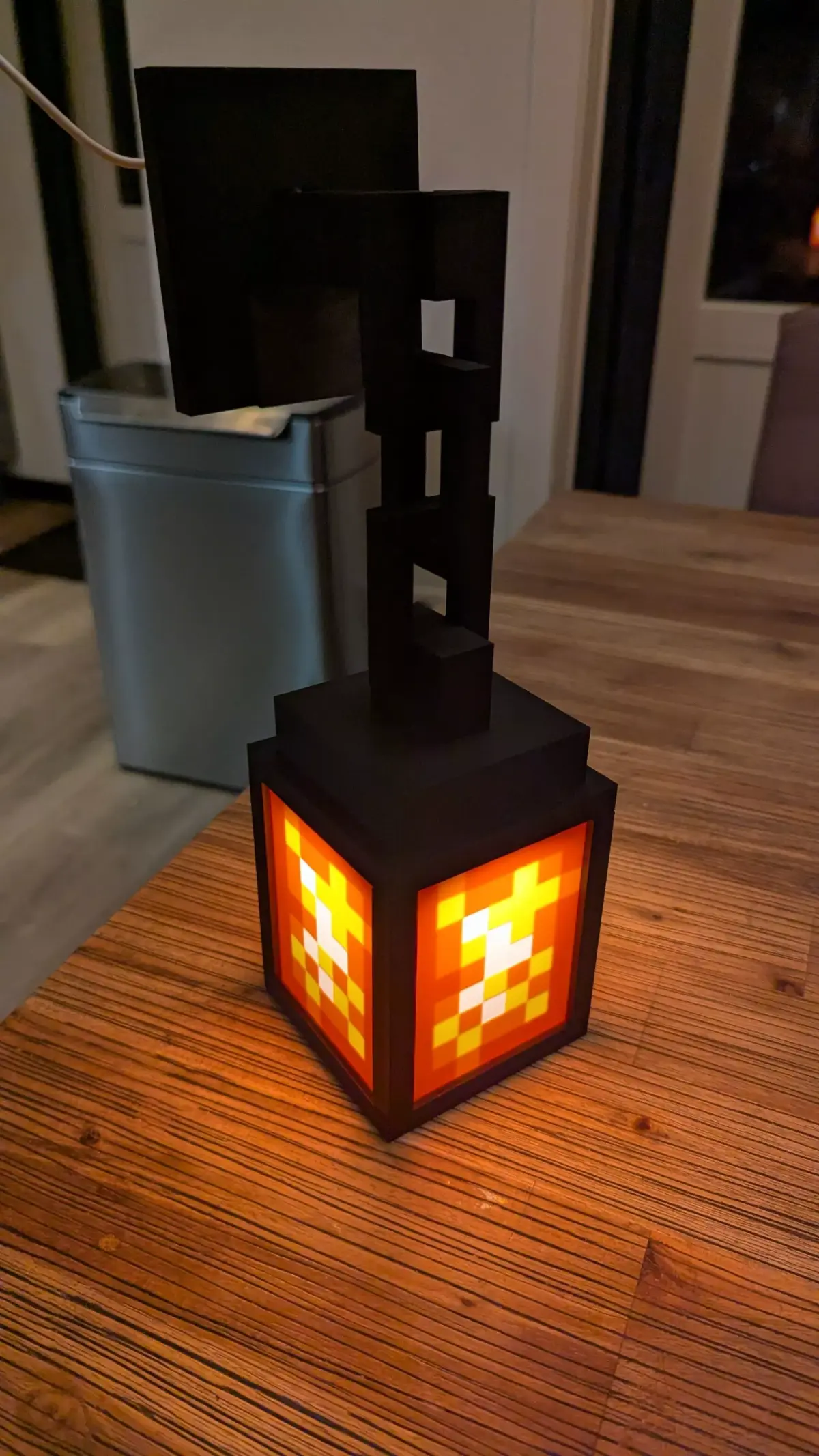

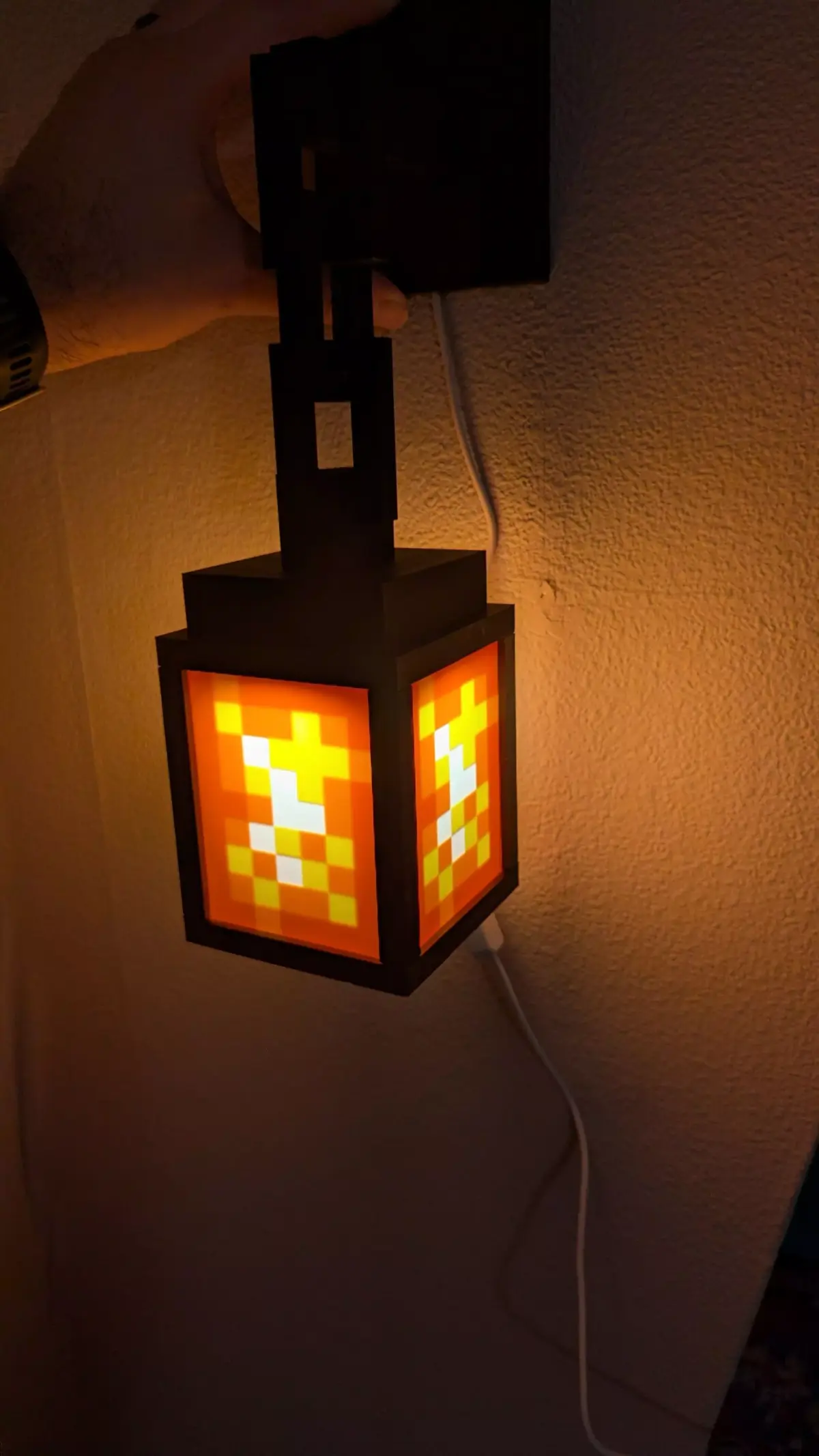

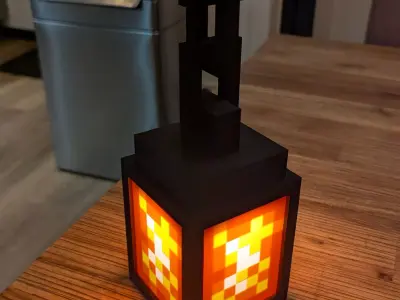

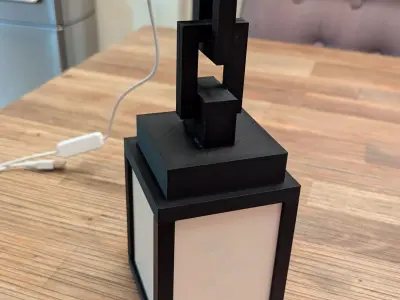

This is a 3D printable wall lamp inspired by a minecraft lantern.The panels are white on the outside but show yellow, orange and red when the light is turned on.I used the bambulab LED lamp kit 001 (ordered from ali express) for the lightsource itself.The wire is hidden in the chain and the holder and exits out of the backplate on the wall for a clean look.The whole print snaps together but I personally used a bit of glue on the chain.Minecraft Lantern.3mf contains the Bambustudio plates with all settings and colors set. You need black, white, yellow and red PLA for this print.The plates are colored by layer so AMS is not needed.
Size:The lantern itself is 90x90 mm and the height, chain included, is about 290 mm. ( about 3,5x3,5and a height of 11,4)
Assembly instruction:

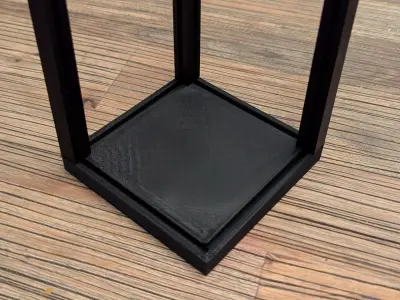

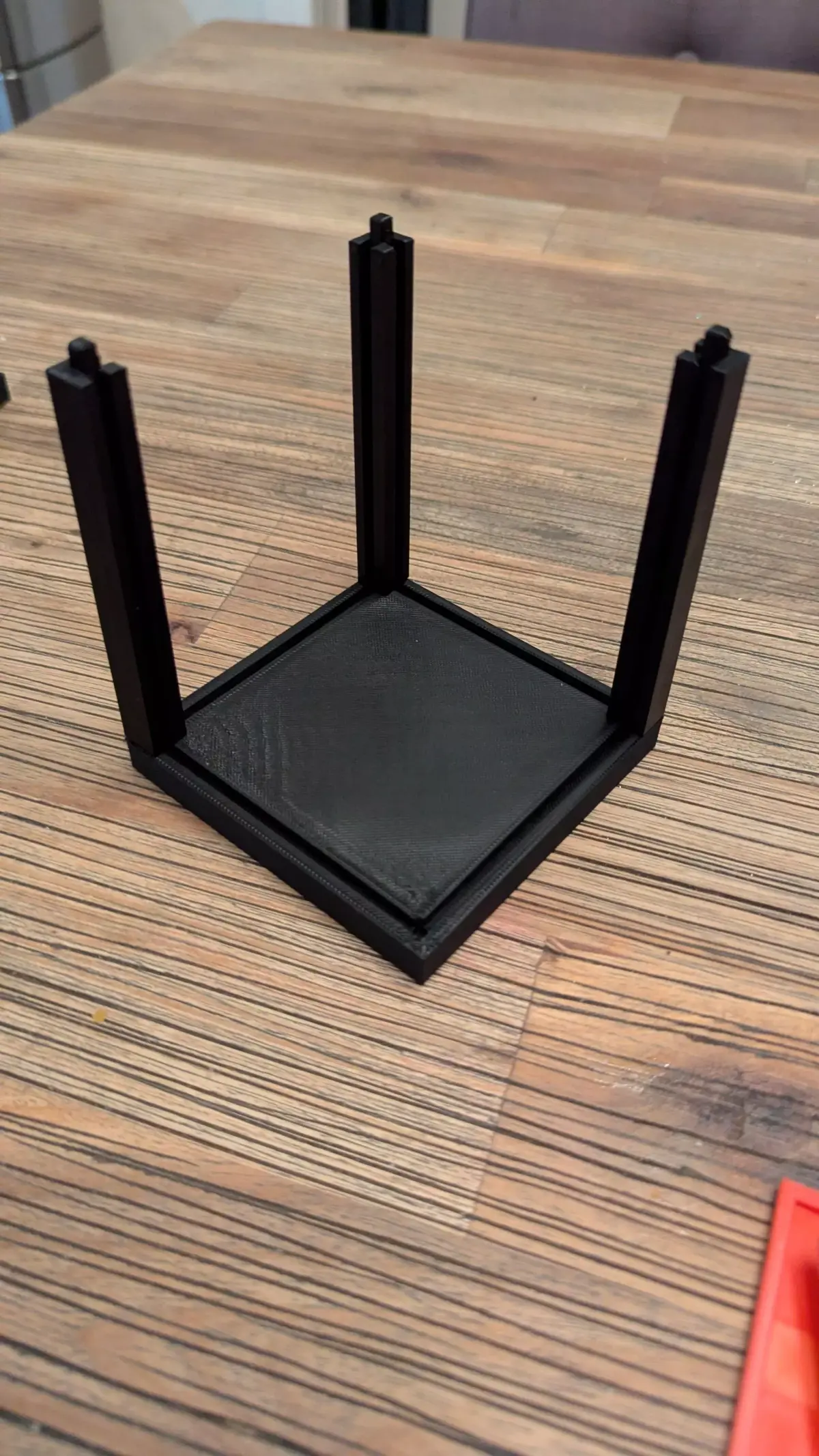

- Press the 4 struds in the bottom plate
- Insert the plates into the struds and into the baseplate.
- Insert the light in the top part and pull the wire through the hole in the top. (do not adhere the light just yet!)
- Insert the cable in the right side of the chain.
- Use the chain fillpiece to fixate the cable in the middle of the chain. (This piece could be glued, but it's not necessary)
- Place the 2 chain aligners in the chain.
- Push the wire in the wirepath on the chain.
- Press on the left side of the chain (optionally with glue)
- Press the whole chain into the top part of the lantern.
- Adhere the lamp in place. (the excess wire can fit under the light)
- Route the wire over the hook.
- Fix the light on the wall.
- Lastly slide the backplate over the hook to hide the screws.
3MF (3D Manufacturing File, filesize: 1.12 MB)
