Buy 3D printed rotary air motor 3D print model

Name: 3D printed rotary air motor 3D print model
Brand: Northern-Maker
SKU: 192300
Price: 3.00 USD
Availability: InStock

License: Royalty Free

author:

Northern-Maker

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Northern-Maker». CGhub does not claim copyright ownership over the content used.

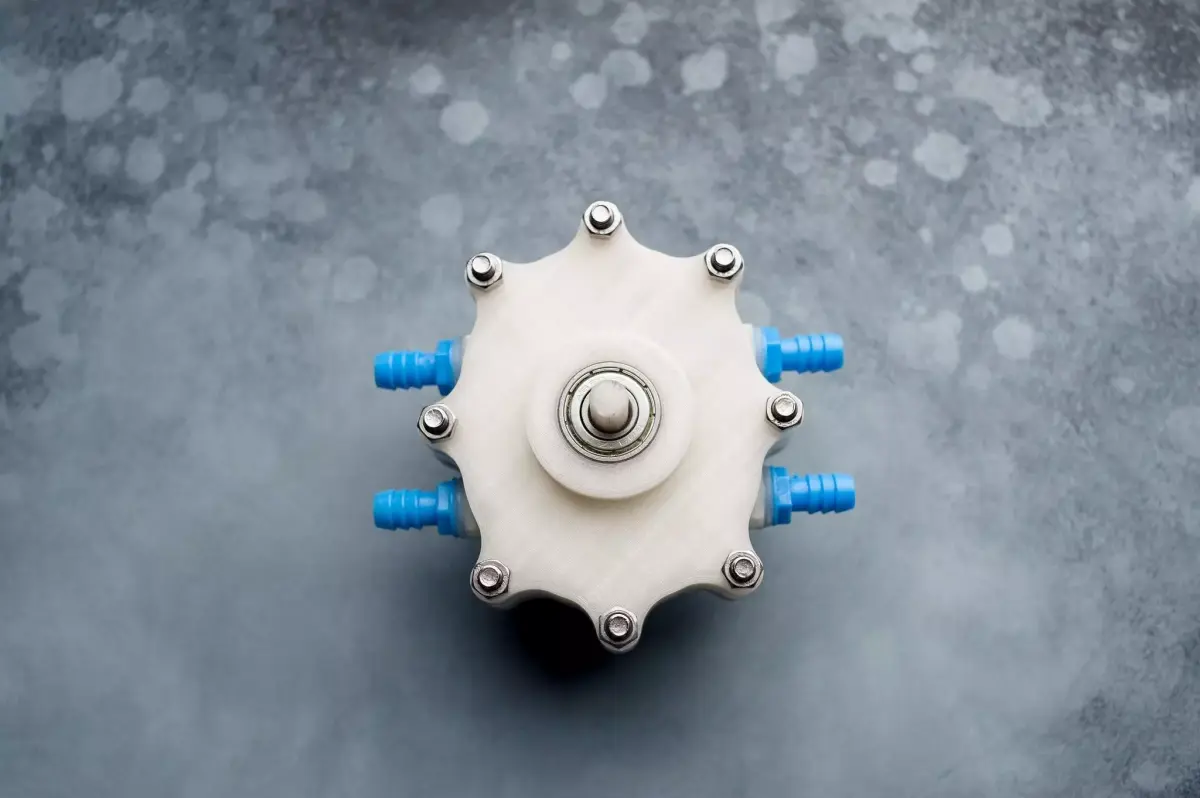

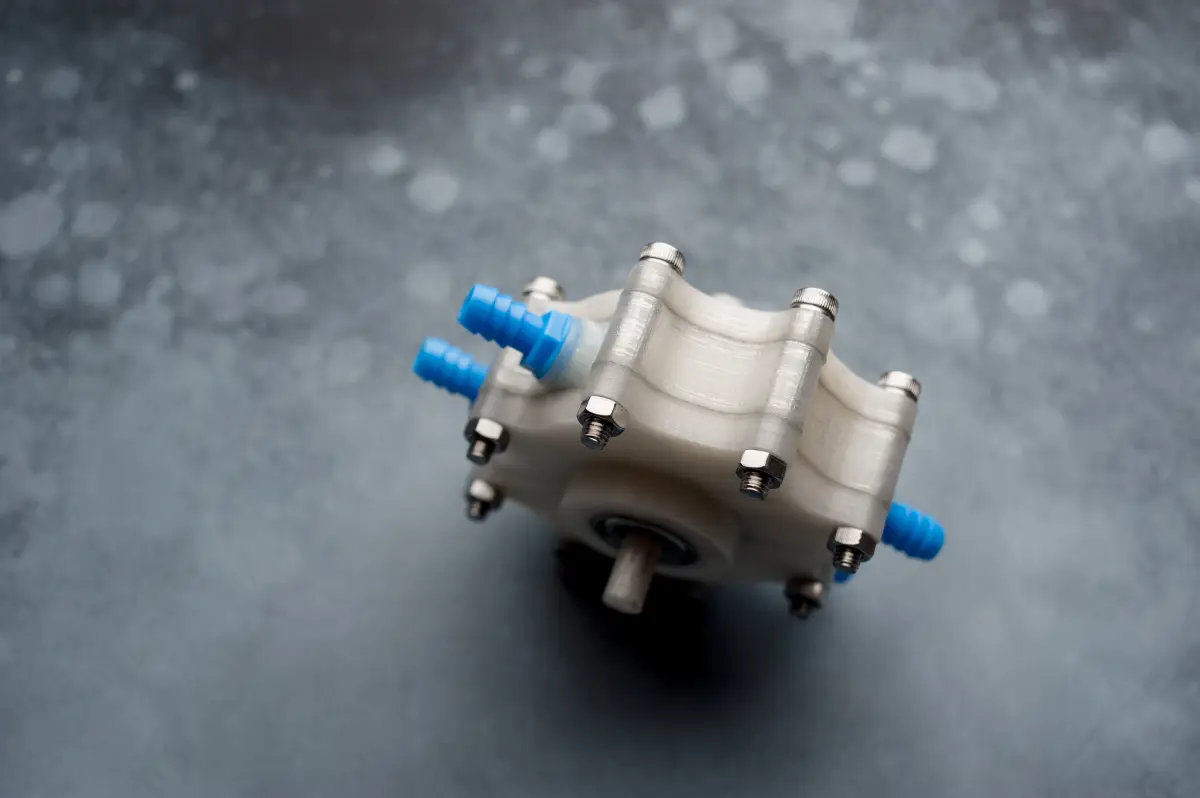

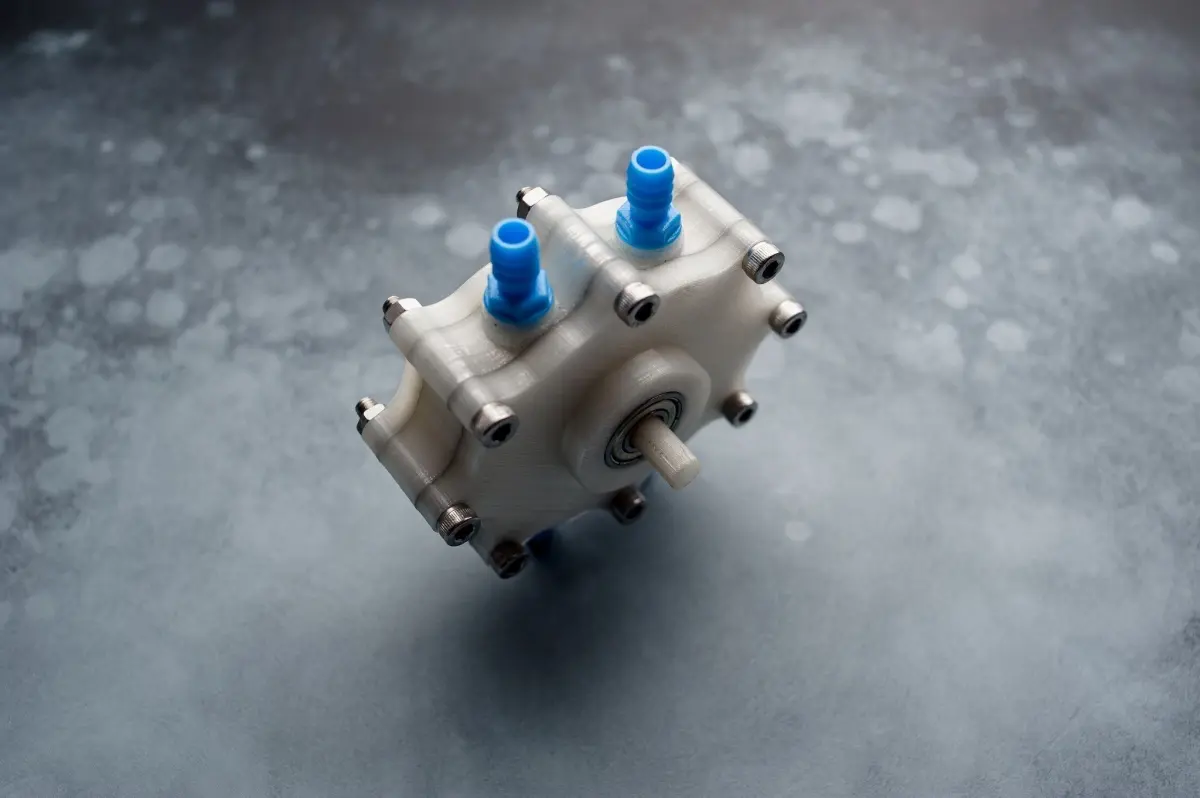

Thank you for your interest in my design! All of the funds from my sales are going towards my college fund.I call it (Rotary air motor, 3 piston, 2 cylinder or (RAM-3P2S-1). it is a fun project to print, functunal, isn't difficult to assemble and looks amazing!

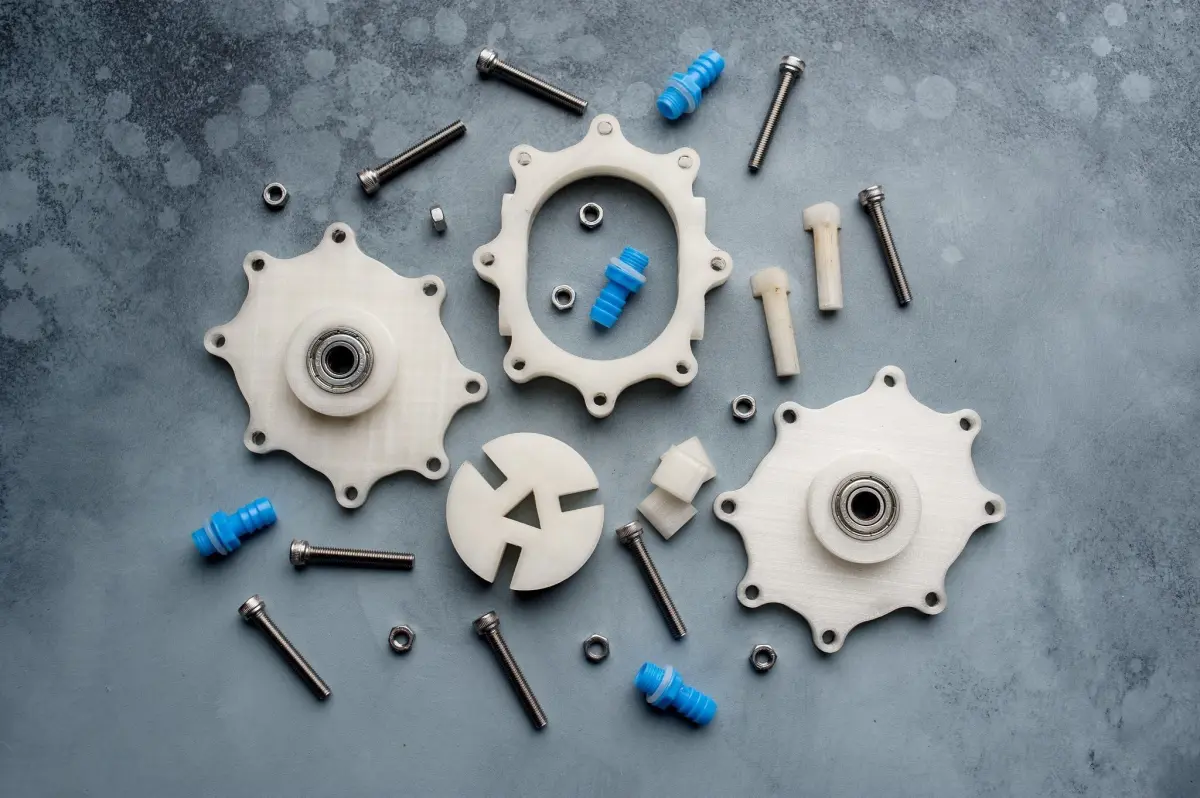

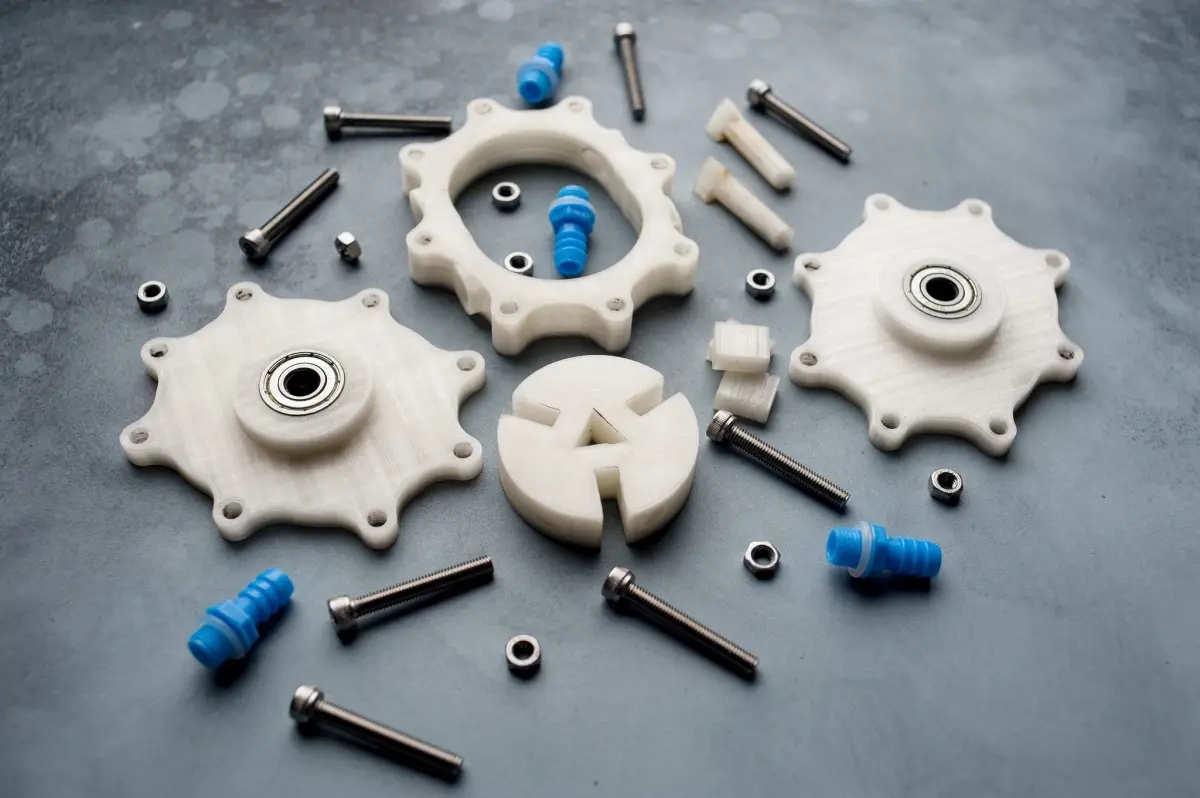

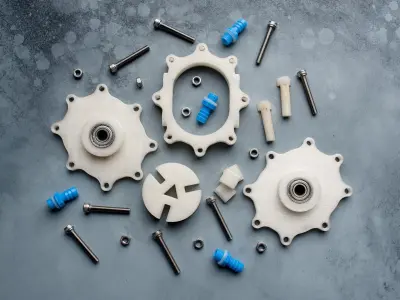

Parts needed:

4 standard ball bearings (scateboard bearings)
8 M4 or M5 bolts, both will work
plastic water connector (blue part with O-ring)
tubing for intake and exaust (fits on plastic water connector)
1x motor body
2x shaft
2x motor front and back plate
1x rotor

Instrictions:

Sand all flat faces of parts that contact eachother. The pistons should slide in and out just by tilting the motor side by side, the shaft also may need to be sanded down so it is flush on the faces of the rotor.
