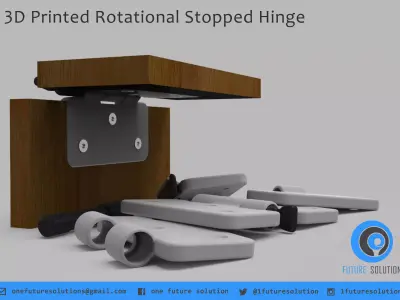

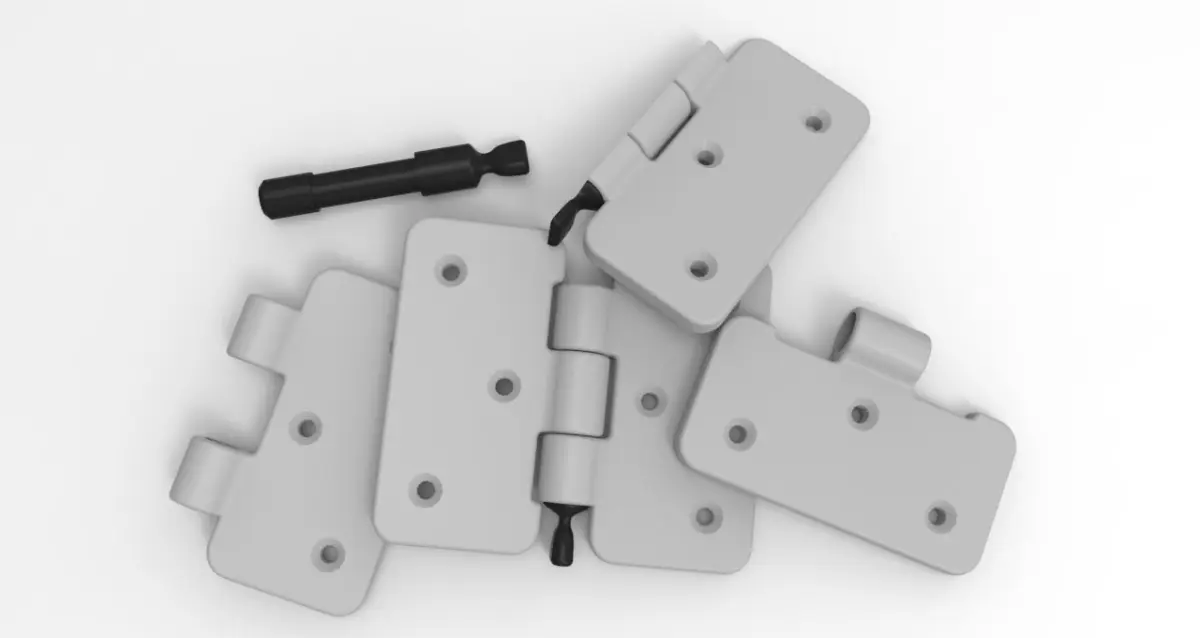

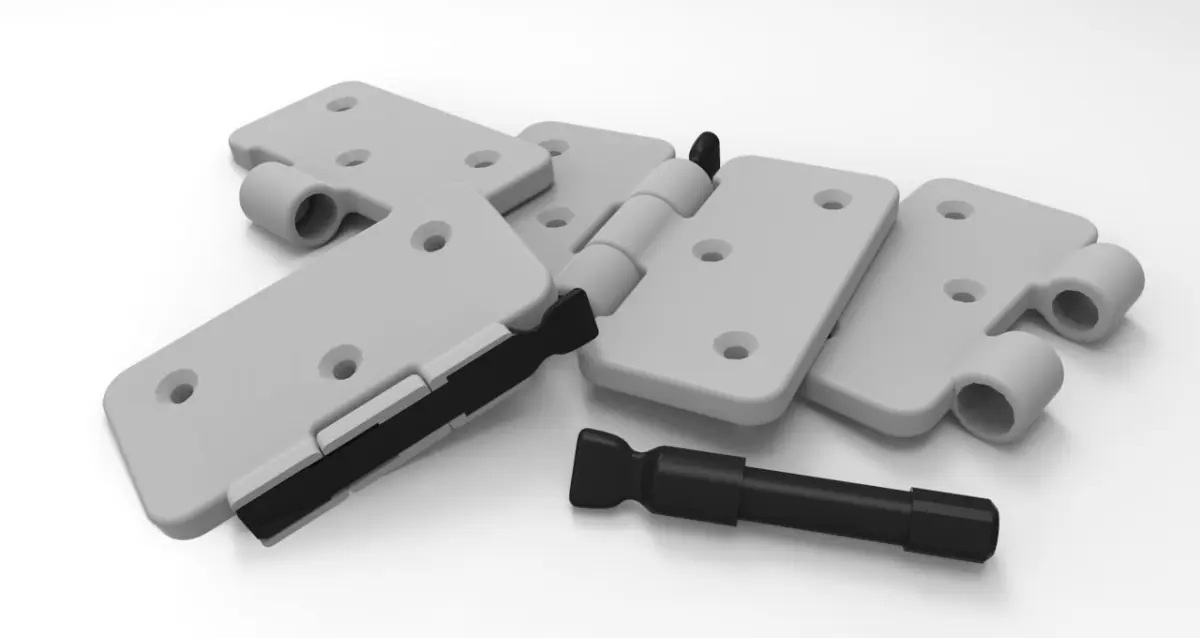

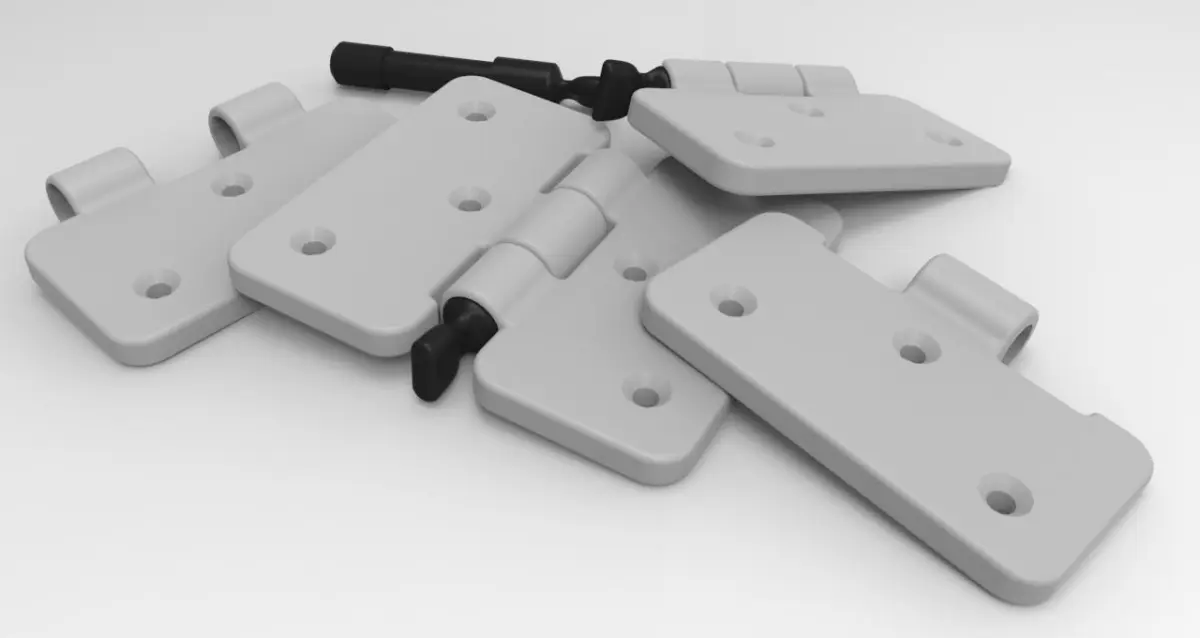

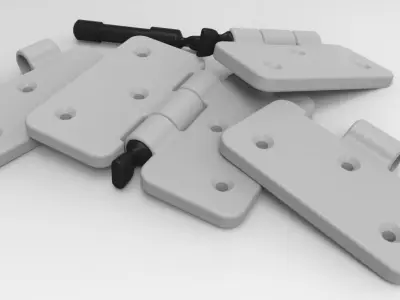

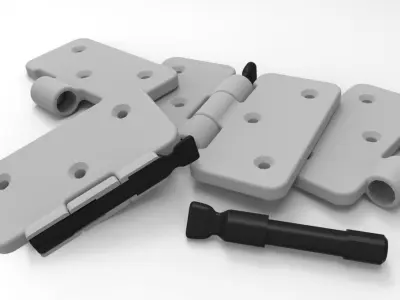

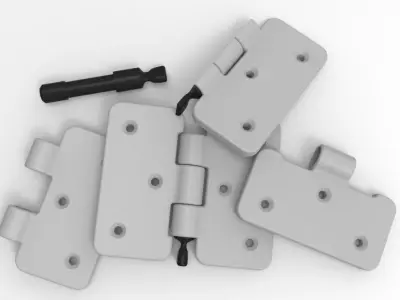

3D Printed Rotational Stopped Hinge

Modeled with SolidWorks 2014

Rendered & Animated with KeyShot 5

File Types : .SLDPRT, .IGS, .OBJ, .STL.

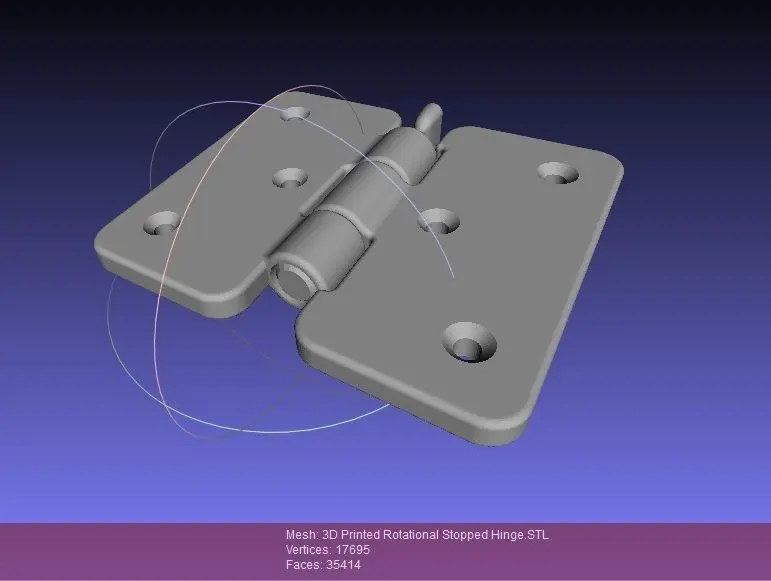

Vertices : 17695

Polygons : 35414

After see this link :http://www.kipp.com/gb/en/Products/Operating-parts-standard-elements/Hinges/K0442-Hinges-in-die-cast-zinc-with-clamping-function.html

I'm inspired to make hinge that's allowed product to stop in different angle position. To face gravitation force and make the product more functional and effective.

I make standard hinge and make modification in hinge rod parts. I addeed 2 x hexagonal face inside the rod to help adjust hinge position at different angle.

Hinge are work as normal hinge. If you want lock position angle of the hinge, just adjust the position then pull the hinge rod in the direction axis.

Material : ABS Plastic (or another recommended material from 3D Printer Manufacture)

I'm open for criticism for improve this submission until get the best solution.
