3D Weldneck Flange RF ASME B16-5 150lb up to 2500lb 3D model

Publication date: 2024-03-03

Buy 3D Weldneck Flange RF ASME B16-5 150lb up to 2500lb 3D model

$10

License: Royalty Free

author:

bagusvirdokan

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «bagusvirdokan». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $10 Add to Wishlist
  • Description
  • Formats

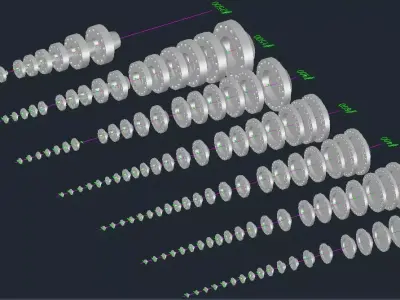

3D Weldneck Flange RF ASME B16.5Accurate Weldneck Flange RF as per ASME B16.5 2017. Complete with accurate bolt hole size, PCD, and number of hole. All flange size included from #150; #300; #400; #600; #900; #1500; #2500.Low polygon model so it can be used for Autocad Plant 3D template or any other 3D Plant Design software.If you have any question or inquiries feel free to contact me.

filetype : .dwg

DWG (AutoCAD, filesize: 1.55 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Unknown

Tags

Autocad Flange Mechanical Construction Plant Asme Piping Fitting Valve Pipe Plumbing Industrial Other Fitting cad
