400 kWp Solar Project Type 1

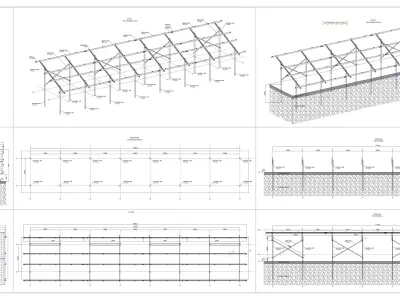

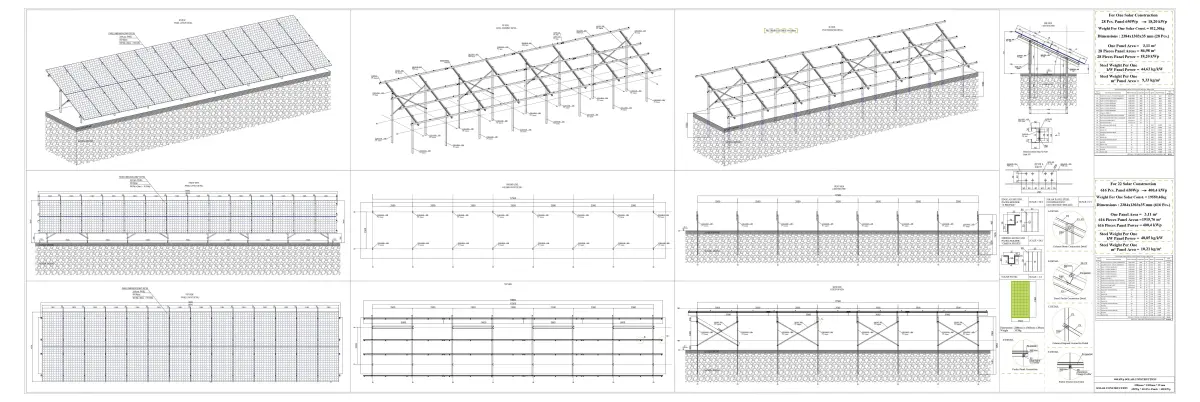

Static Steel Fabrication Project

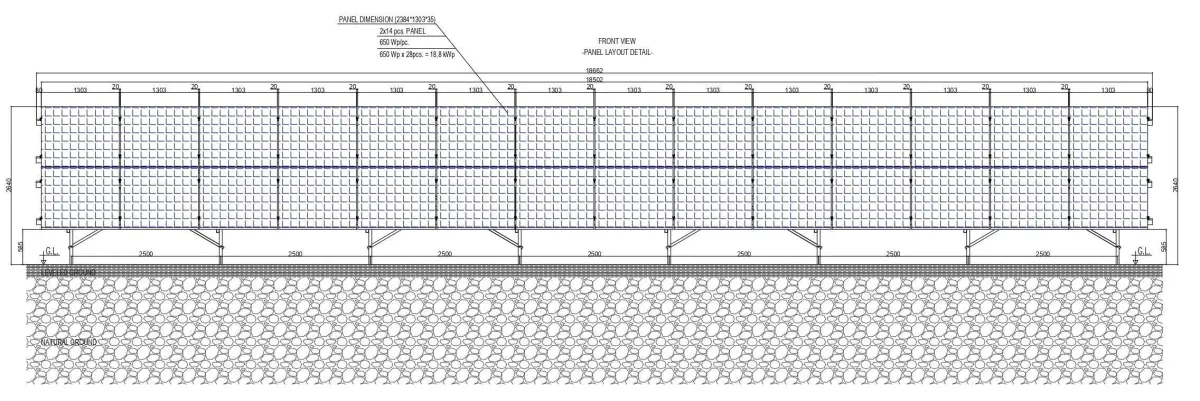

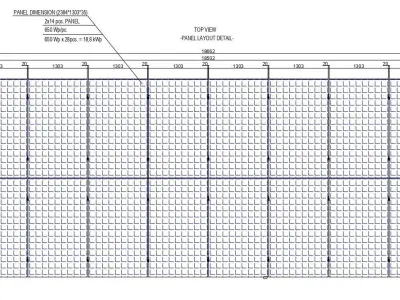

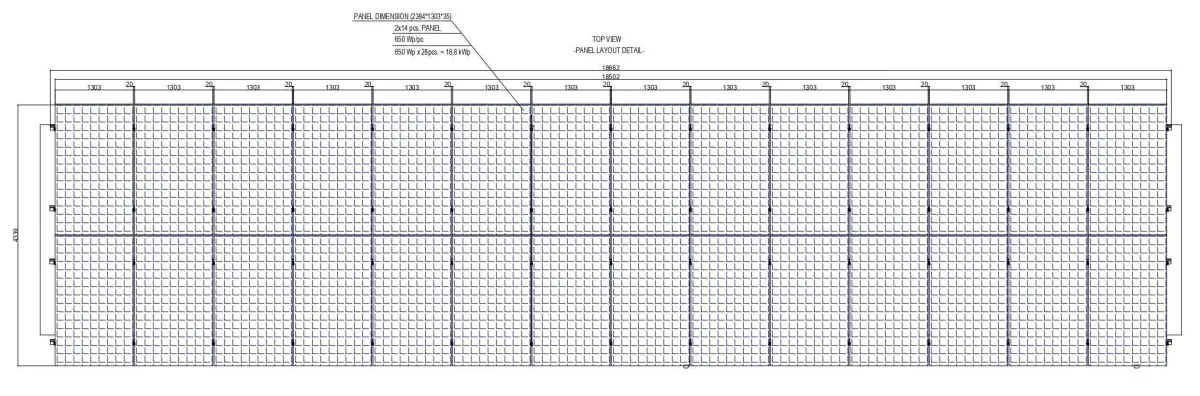

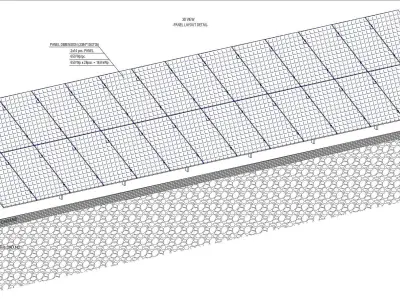

4x14 Vertical Panel Layout

Ground Connection Type; Steel Driven Column

Distance of Columns Below Ground 1500 mm.

Panel Dimensions : 2384 x 1303 x 35 mm

Panel Power : 650Wp

1 solar panel steel construction produces 18,8 kWp power in 1 hour

The system consists of 8 axles and the distance between each axle is 2500 mm.

Distance between two columns 2300 mm.

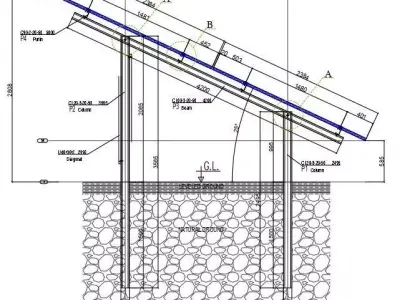

Horizantal angle of panel 25°

The closest distance of the panels to the floor 585 mm.

Prepared With AutoCAD Version 2021

Native Formats: DWG (AutoCAD, filesize: 4.18 MB) Exchange Formats: DXF (DXF, filesize: 19.5 MB), PDF (PDF, filesize: 1.07 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 0
  • Vertices: 0

Tags

Solar Energy Manufacturing Steel Project Dwg Dxf Autocad Static 2d Drawing Tracker Tracking Pdf Architectural Engineering
