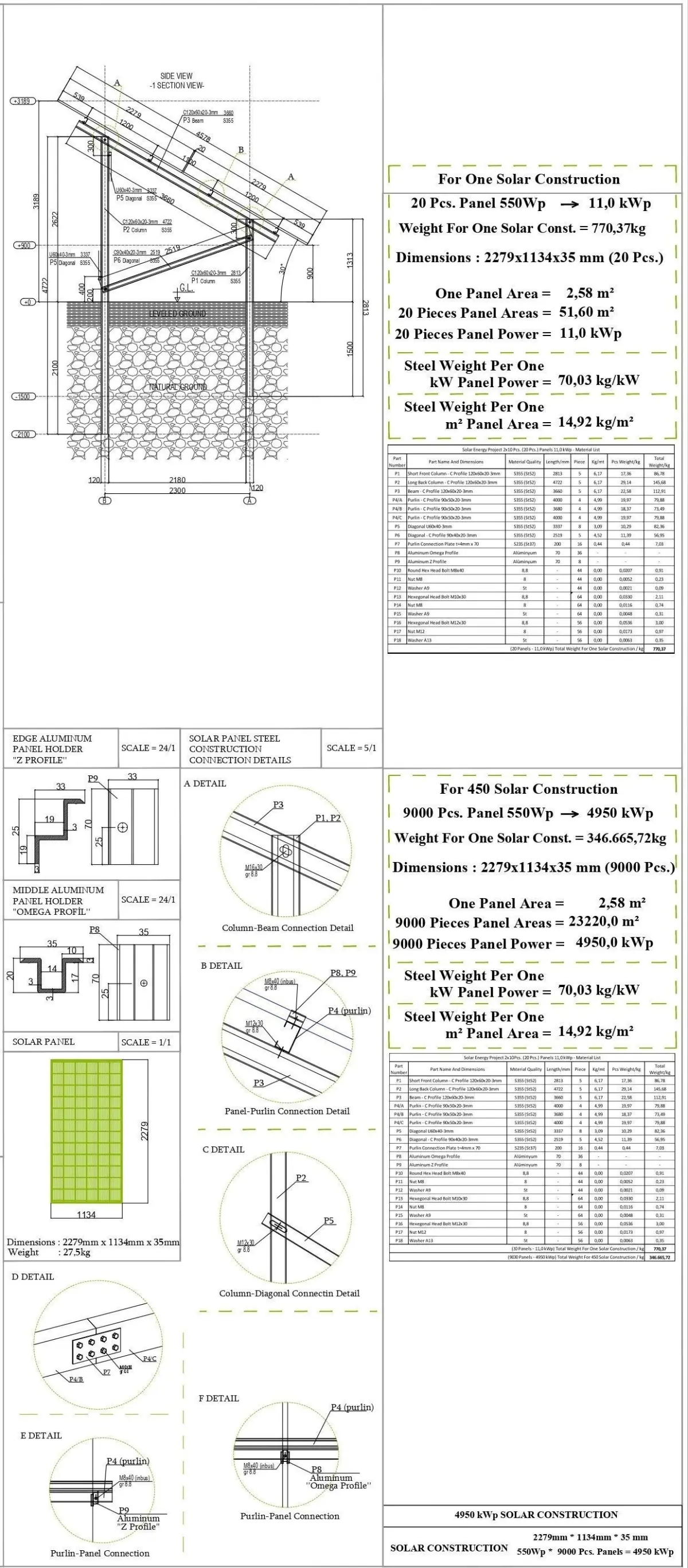

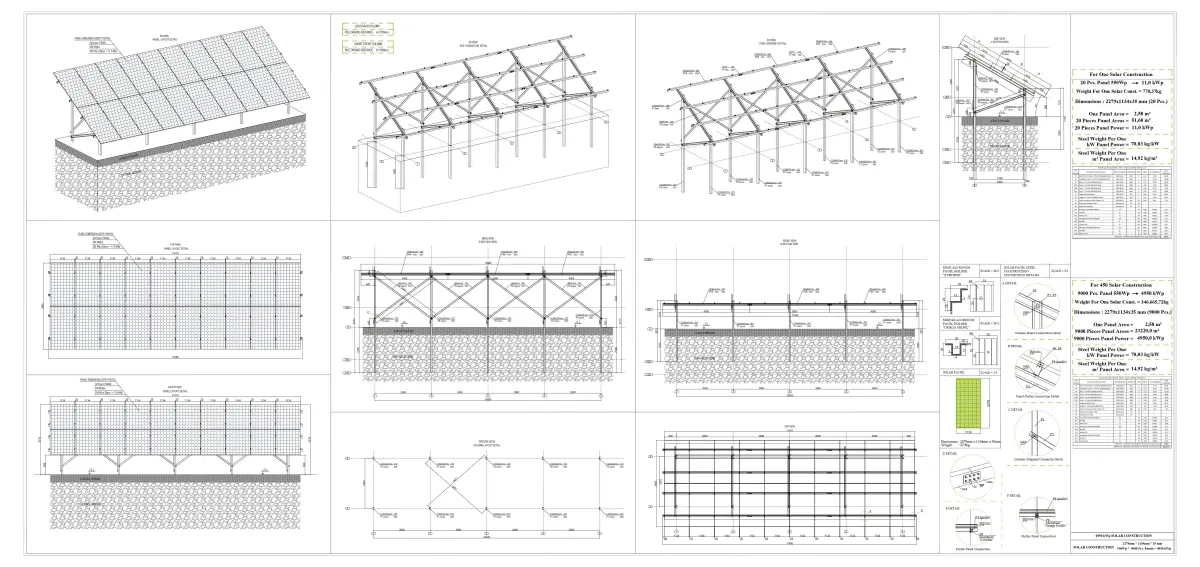

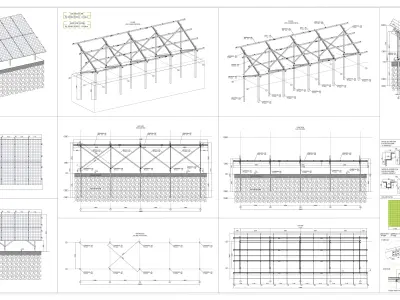

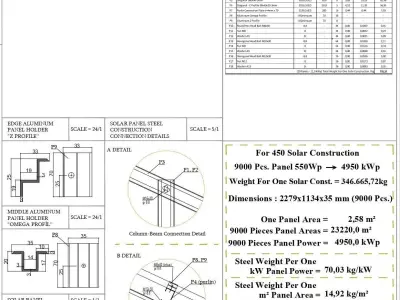

4,95 MW Solar Project Type 5

Static Steel Fabrication Project

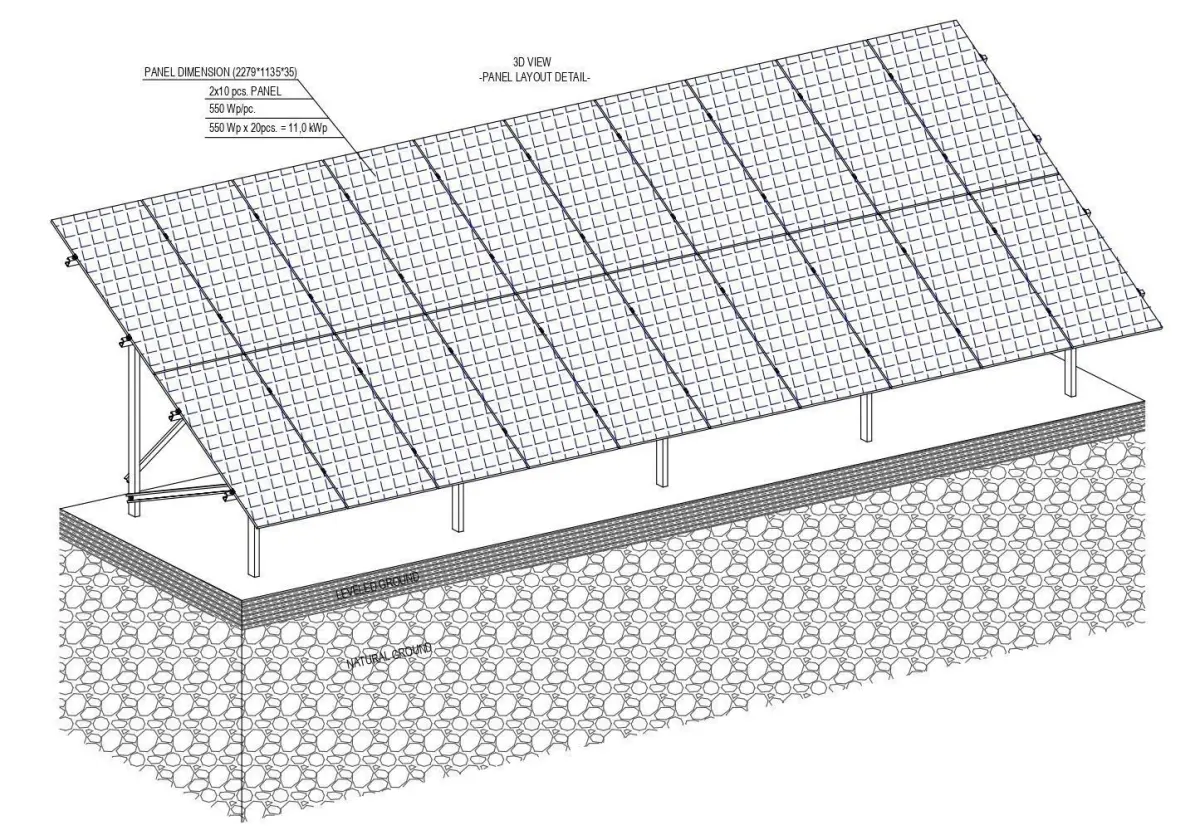

2x10 Vertical Panel Layout

Ground Connection Type; Steel Driven Column

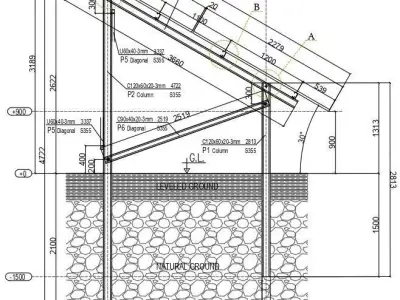

Distance of Columns Below Ground 2100 mm. and 1500 mm.

Panel Dimensions : 2279 x 1135 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 11,0 kWp power in 1 hour

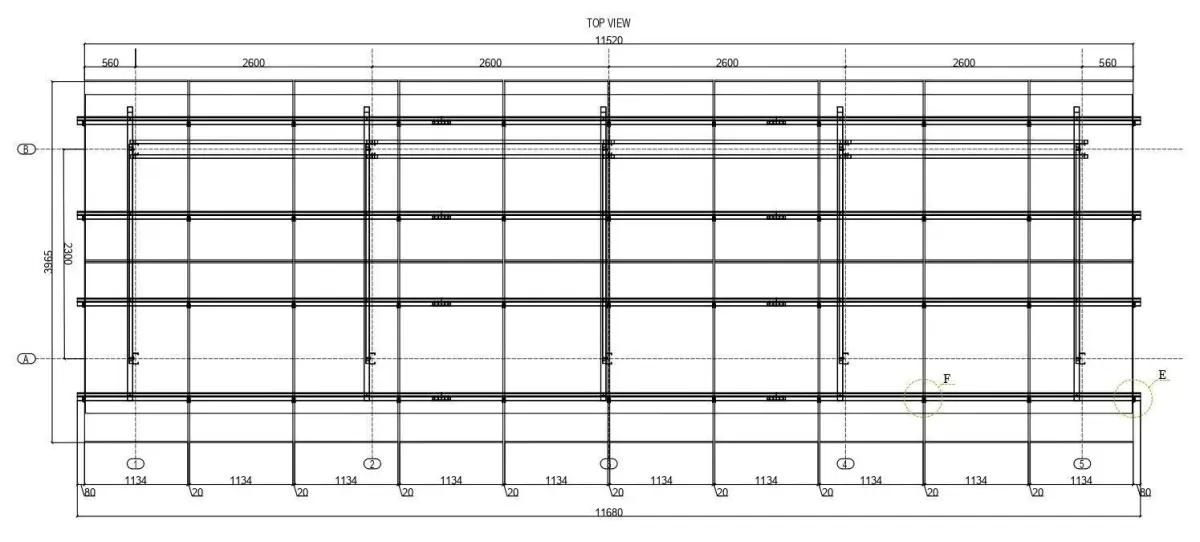

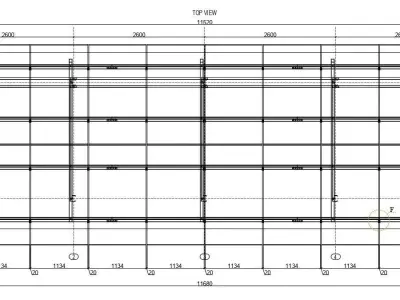

The system consists of 5 axles and the distance between each axle is 2600 mm.

Distance between two columns 2300 mm.

Horizantal angle of panel 30°

The closest distance of the panels to the floor 900 mm.

Prepared With AutoCAD Version 2021

Native Formats: DWG (AutoCAD, filesize: 1.11 MB) Exchange Formats: PDF (PDF, filesize: 861 KB), DXF (DXF, filesize: 7.16 MB)
