Buy 500kg Reversible Roller Conveyor Industrial Chain Lift System 3D model

Name: 500kg Reversible Roller Conveyor Industrial Chain Lift System 3D model
Brand: machinexdesigns
SKU: 895065
Price: 24.00 USD
Availability: InStock

$24

License: Royalty Free No Ai

author:

machinexdesigns

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «machinexdesigns». CGhub does not claim copyright ownership over the content used.

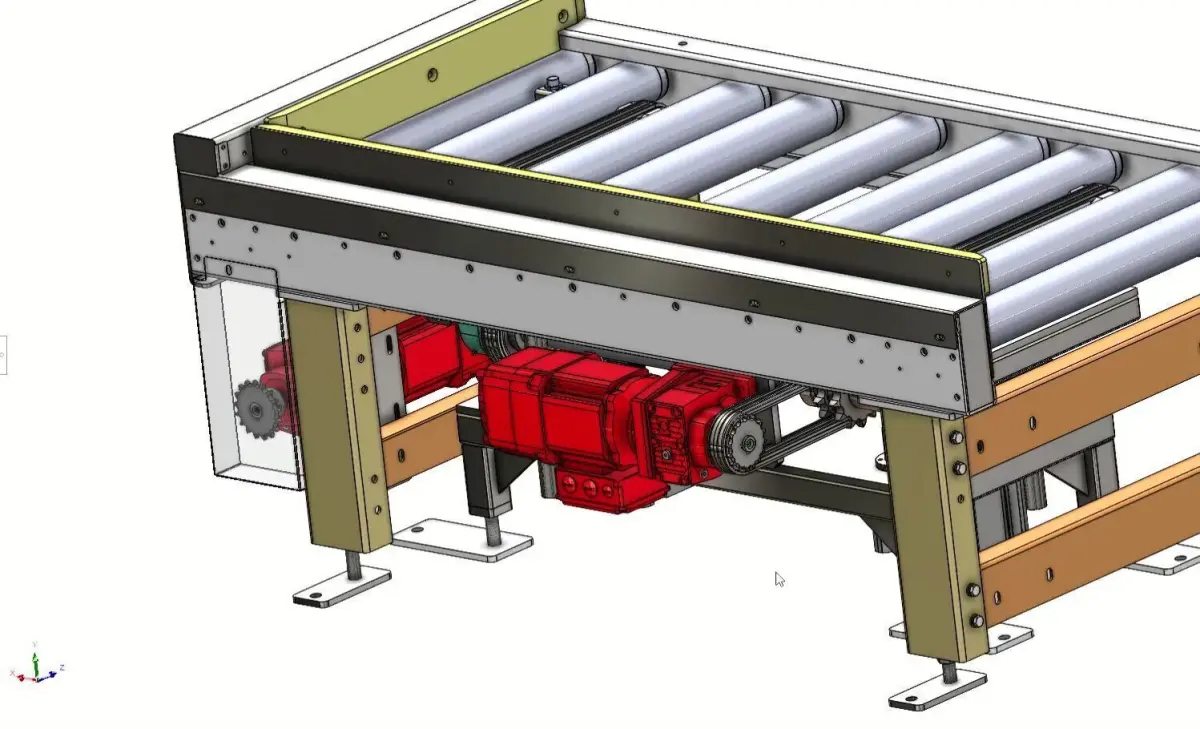

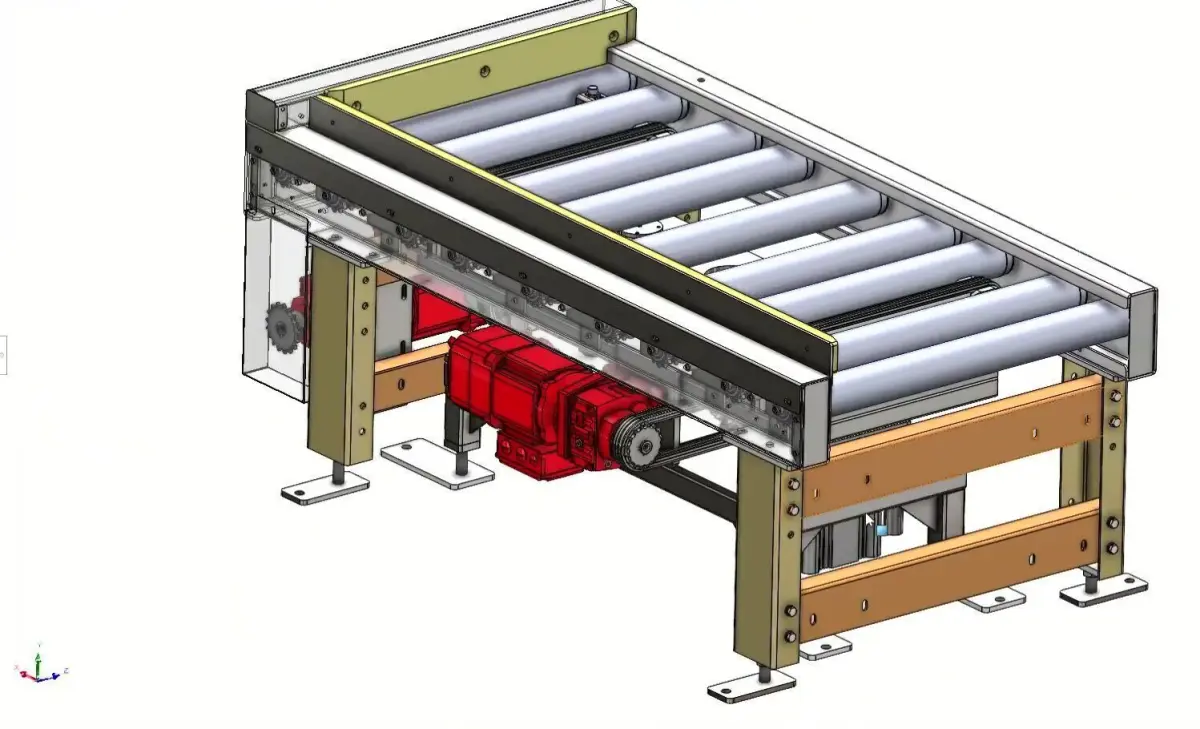

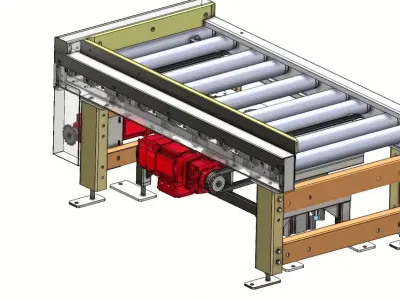

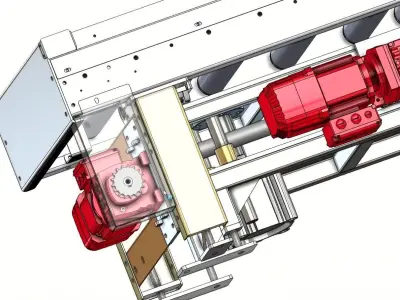

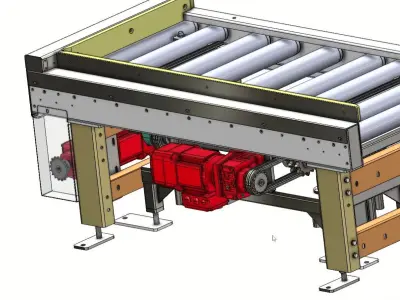

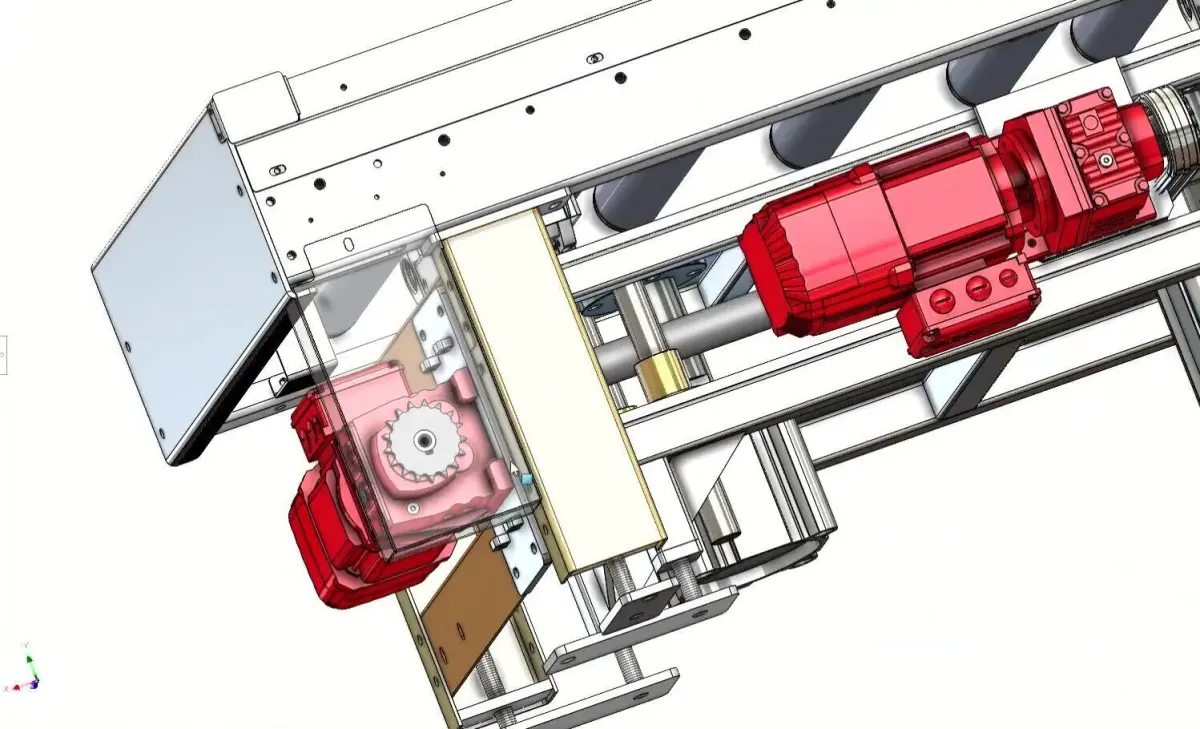

High-quality 3D model of a 500kg capacity reversible roller conveyor, engineered for industrial applications. This detailed design features a SEW motor driving φ76 rollers and a double SMC cylinder lift system integrated with a chain conveyor. Designed in SolidWorks 2018, the model includes precise structural components as used in real-world production lines. Ideal for simulation, layout planning, and manufacturing reference.

Specifications:

Load Capacity: 500kg

Roller Width: ~660mm

Motor: SEW Drive

Lift Mechanism: Double SMC Cylinder (φ160)

Roller Diameter: 76mm

Software: SolidWorks 2018

Formats: .step, .stp, .sldprt, .sldasm

Use Case: Industrial Equipment / Factory Automation

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 0
Vertices: 0
Geometry: Unknown

Tags

Conveyor Reversible Roller Industrial Automation Factory Mechanical Transport Assembly Production Equipment Lift Machine Industrial machine – Download & Buy
