58mm solar filter for DSLR Free 3D print model

free

License: Royalty Free No Ai

author:

mad-head

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «mad-head». CGhub does not claim copyright ownership over the content used.

Besides the printed parts you'll need:

AstroSolar® Safety Film OD 5.0 or it's alternative.
58 mm screw-thread lens mount. I took my from a cheap replica of Mennon DV-S 58.
Three 4×6 mm bolts (or similar) with nuts.
Cyanoacrylate glue (Super Glue).

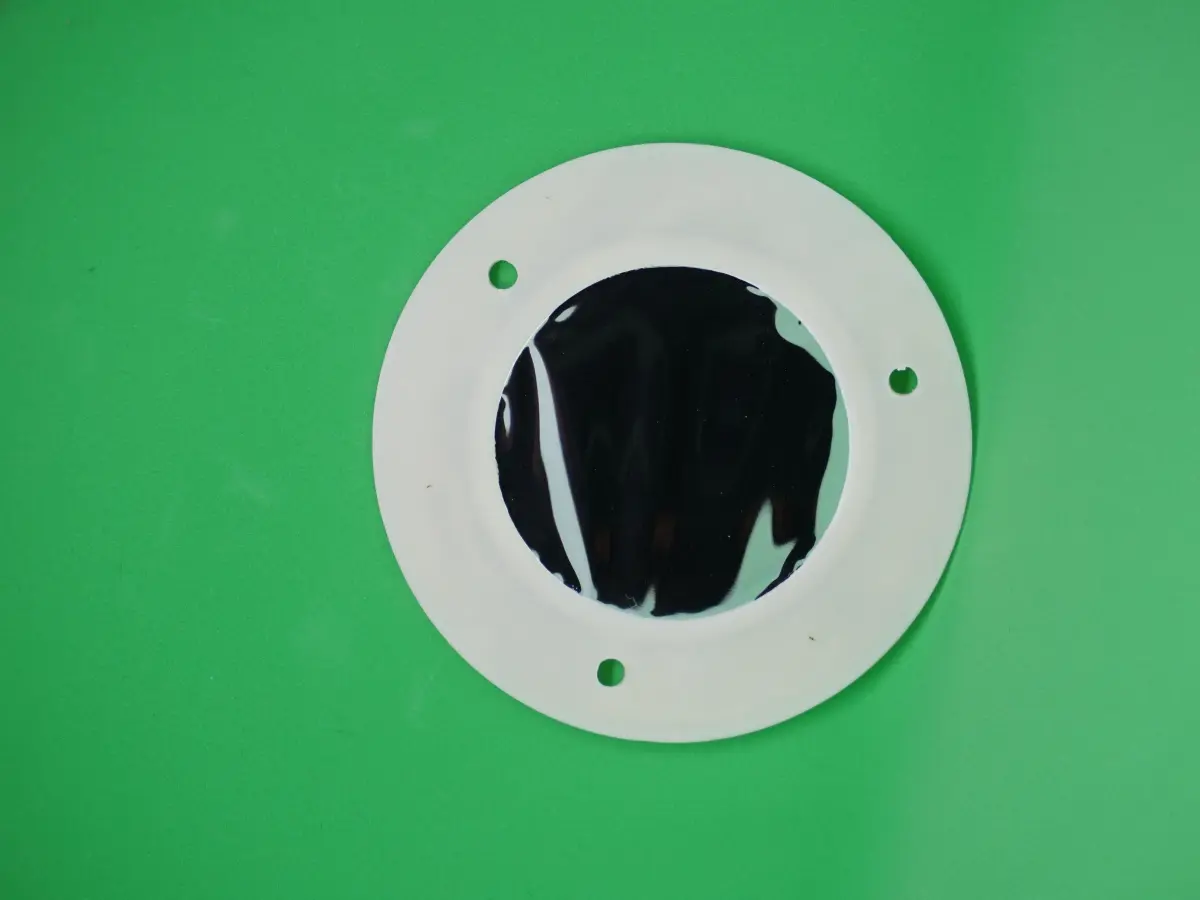

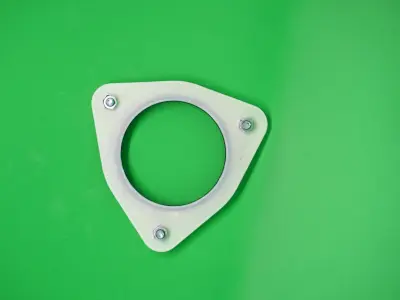

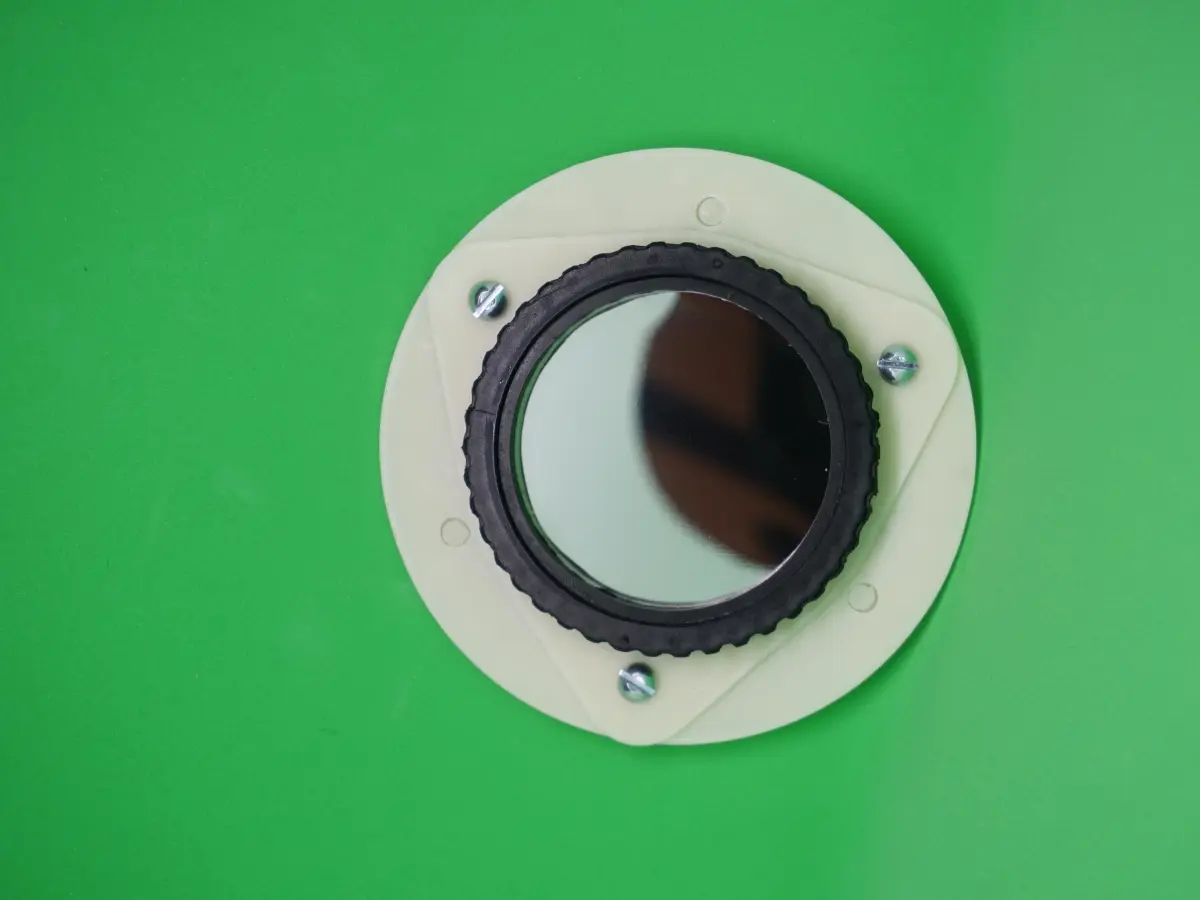

Print the parts with a heat-resistant white plastic tolerant to UV light and sandpaper them. Cut the bolting holes to fit your bolts. Cut a ø 70 mm circle (60 mm + 5 mm overlap) of the AstroSolar® Safety Film OD 5.0. Glue the film and one of the circle flange parts. Then glue the second flange part to the first so that the film is between two flanges. Cut the screw-threading part of the lens hood and sandpaper it too. Glue it to the triangle flange mount. Use bolts to connect the filter and the lens adapter together.
