Publication date: 2023-07-27

6 kWp Solar Carport Project Type 6 3D model

$60

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $60 Add to Wishlist
  • Description
  • Formats

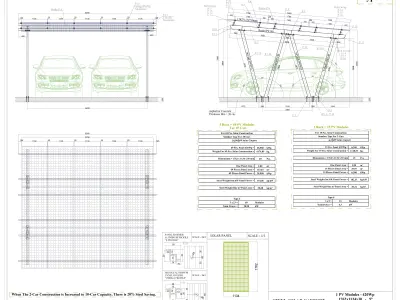

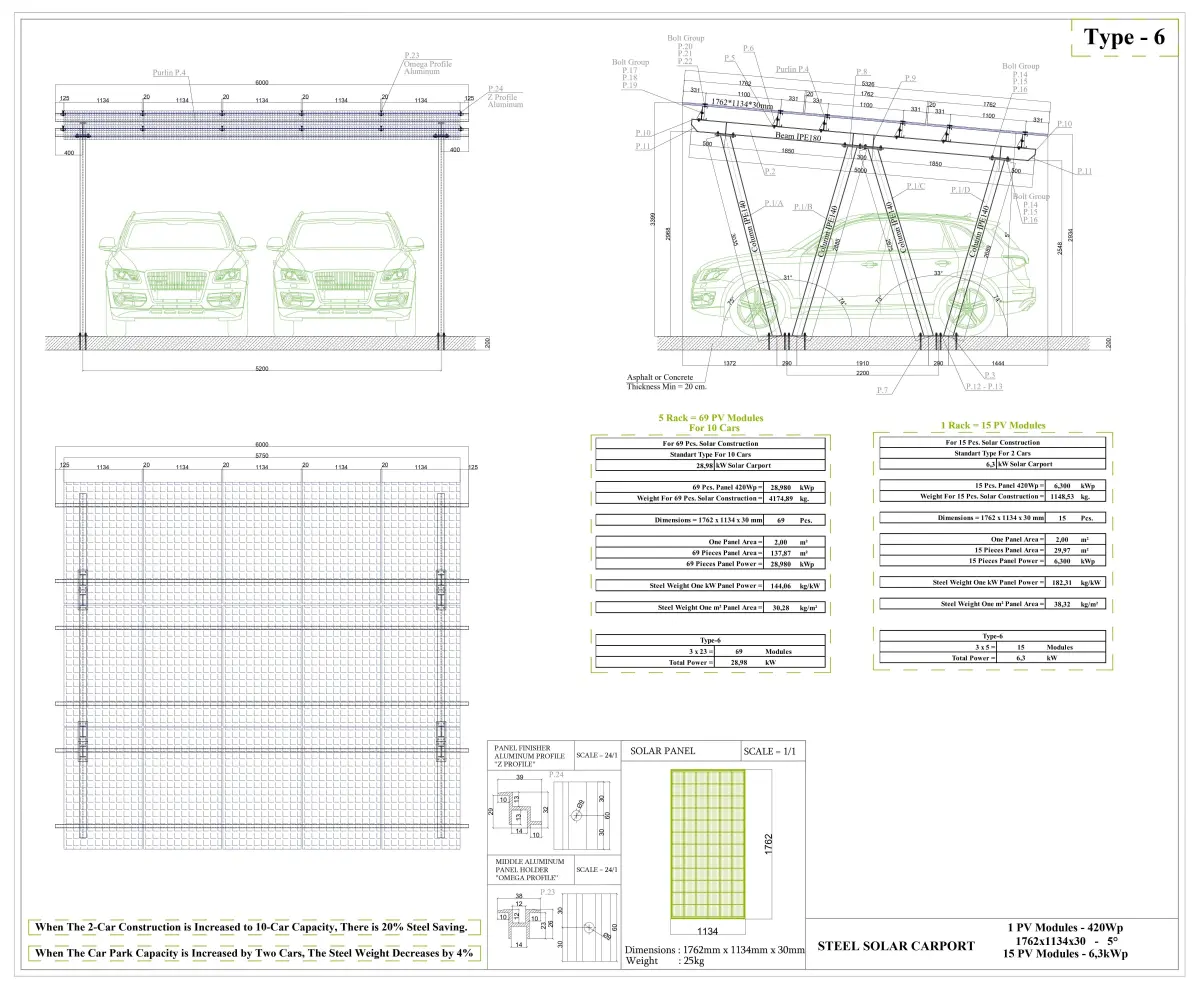

6,3 kWp Solar Carport Project Type 6

Static Steel Fabrication Project

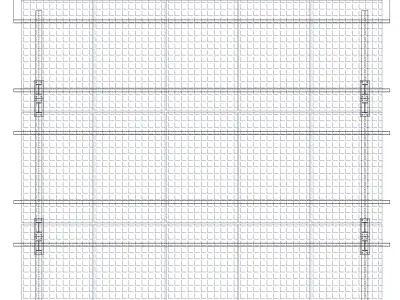

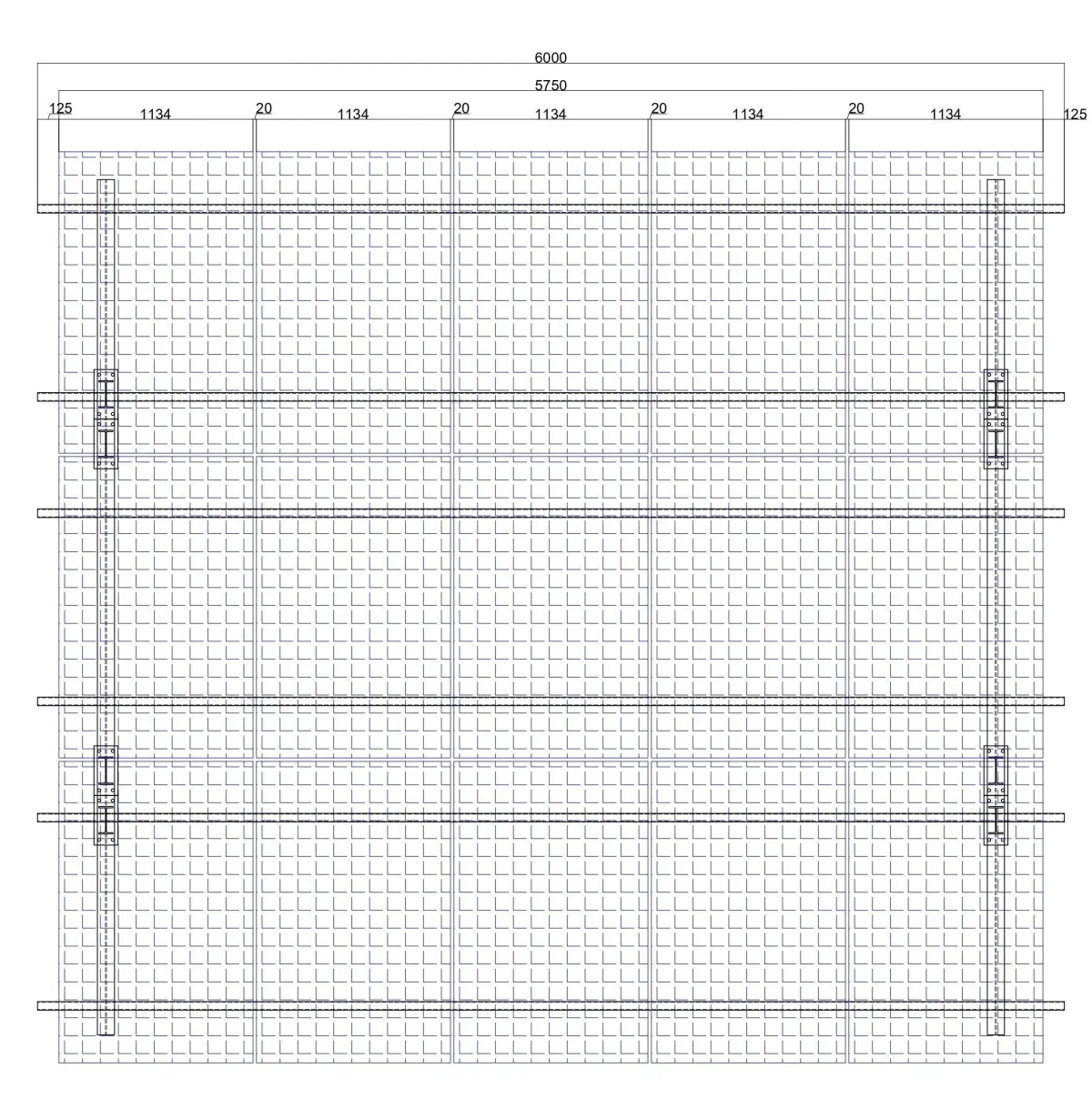

3x5 Vertical Panel Layout

Ground Connection Type; With Anchor Plate

Panel Dimensions : 1762 x 1134 x 25 mm

Panel Power : 455Wp

1 solar carport steel construction produces 68,25 kWp power in 1 hour

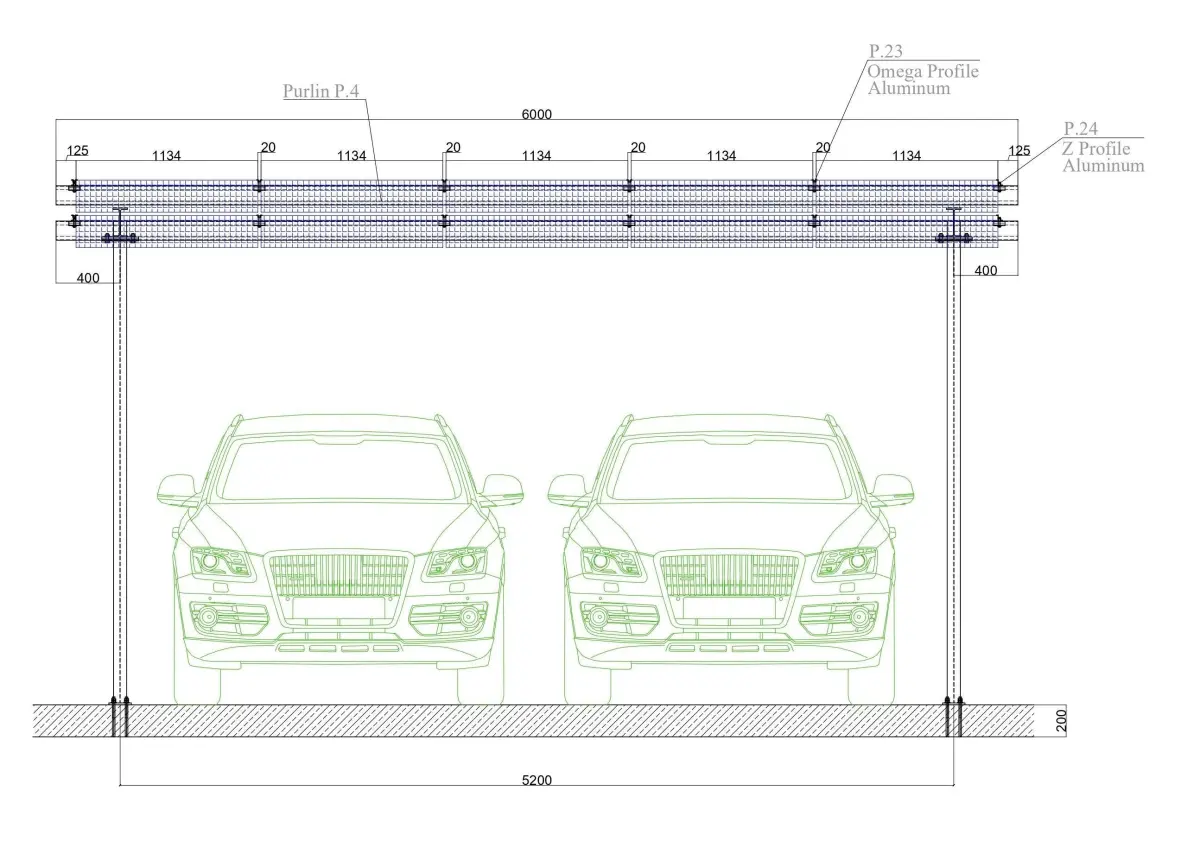

The system consists of 6x2 axles and the distance between each axle is 5200 mm.

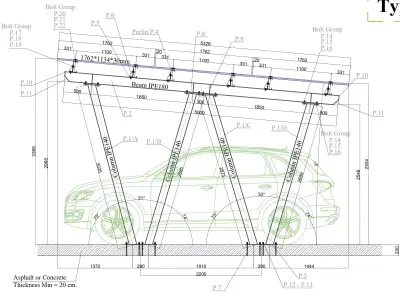

Horizantal angle of panel 5°

The closest distance of the panels to the floor 2934 mm.

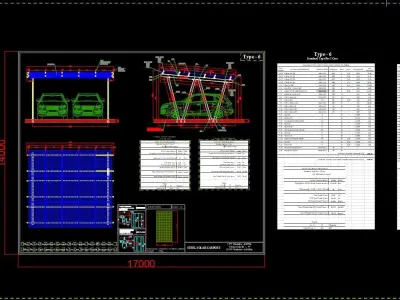

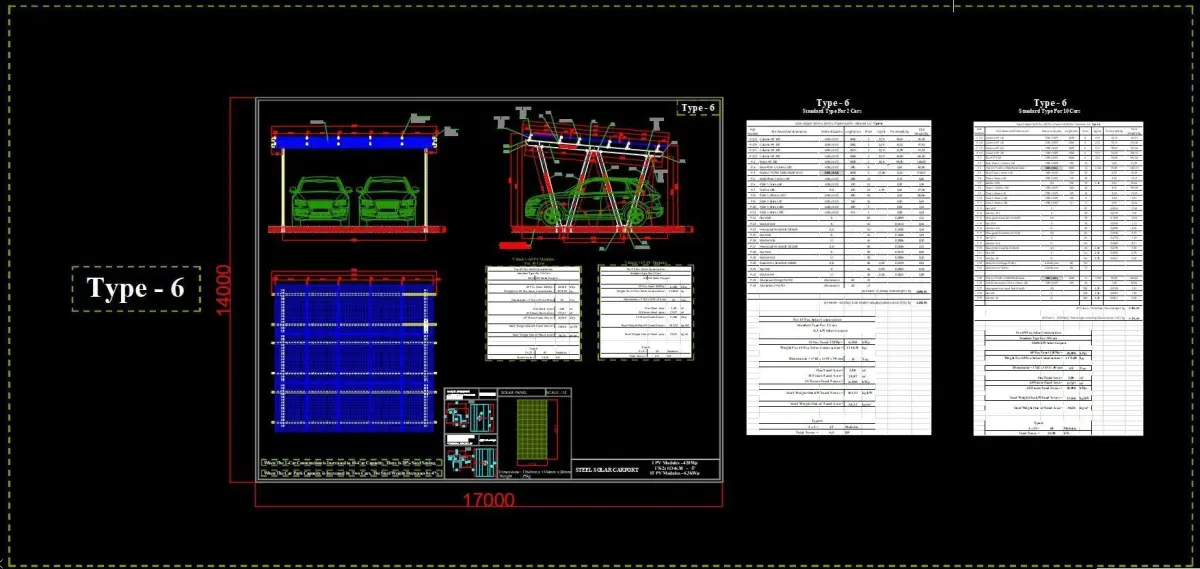

Prepared With AutoCAD Version 2021

Native Formats: DWG (AutoCAD, filesize: 974 KB) Exchange Formats: DXF (DXF, filesize: 6.13 MB), PDF (PDF, filesize: 1.51 MB)
