Publication date: 2023-07-27

Buy 68 kWp Solar Carport Project Type 5 3D model

$60

License: Royalty Free

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $60 Add to Wishlist
  • Description
  • Formats

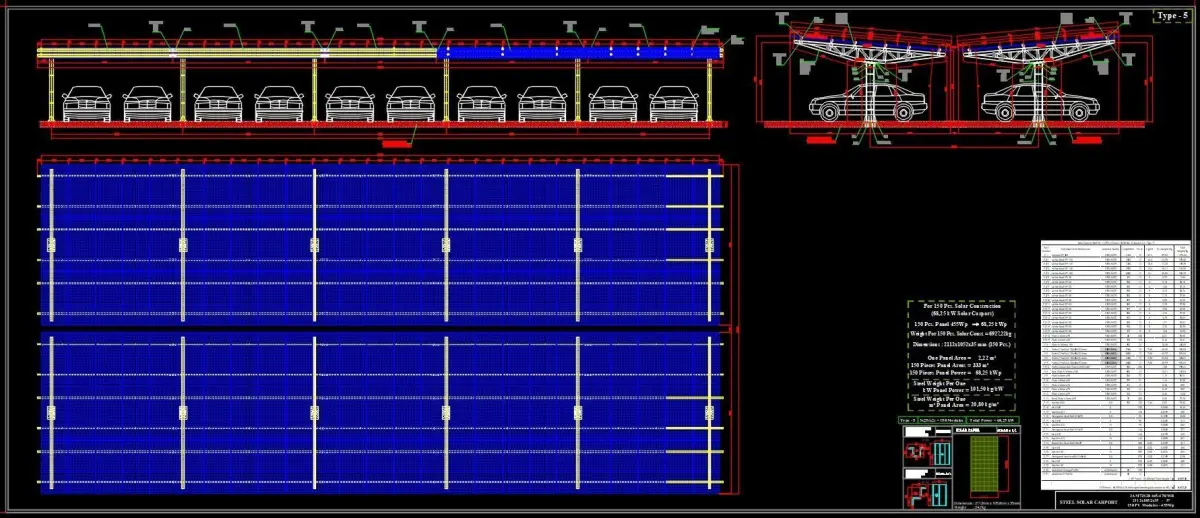

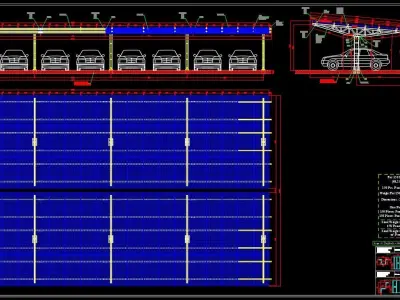

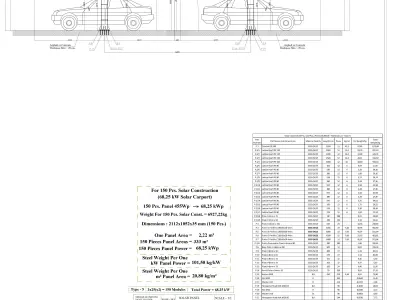

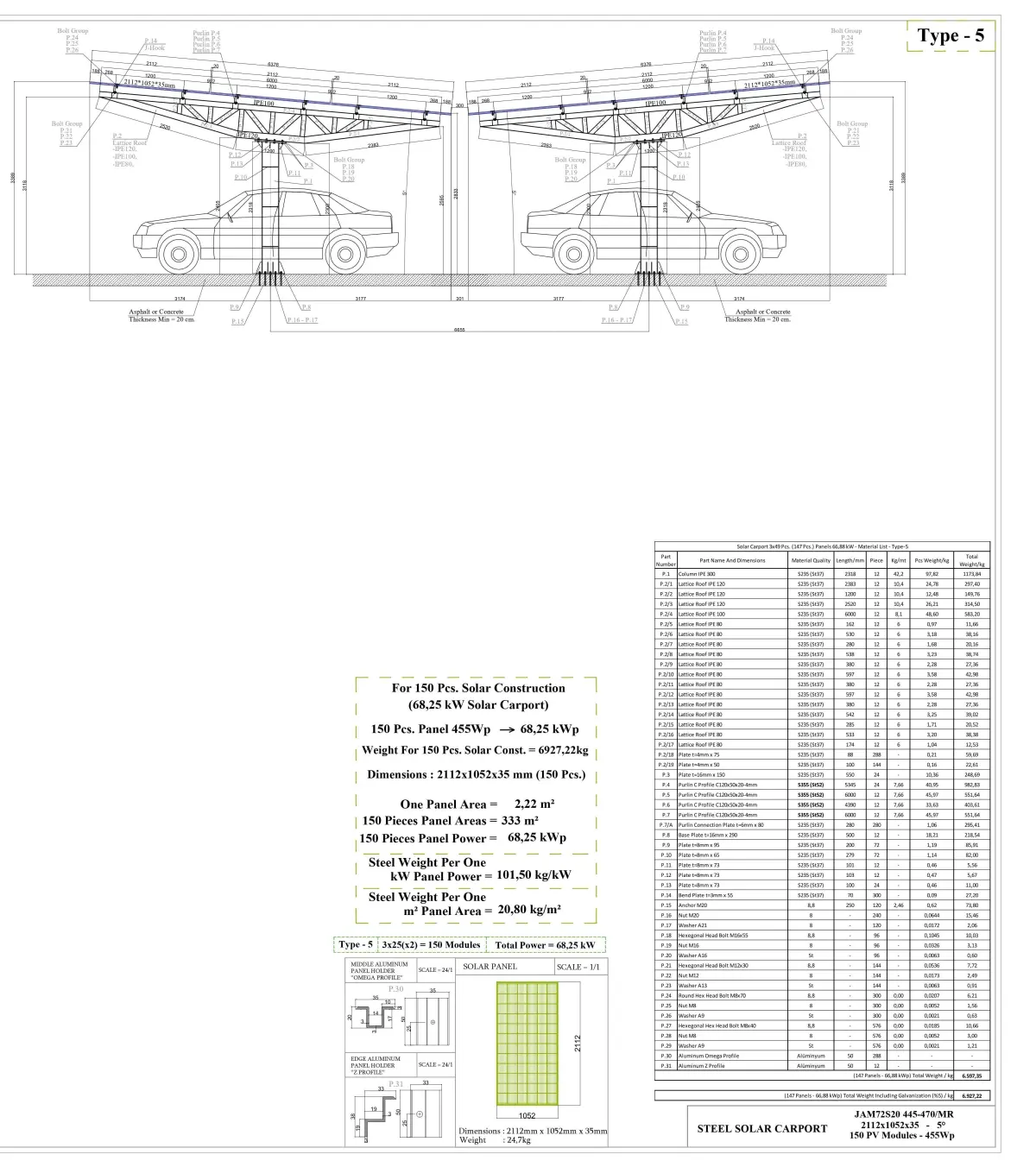

68,25 kWp Solar Carport Project Type 5

Static Steel Fabrication Project

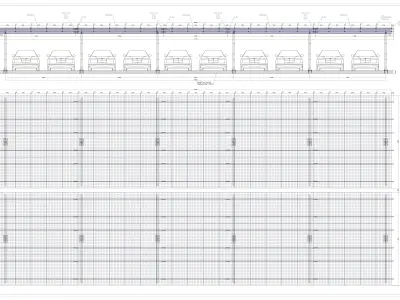

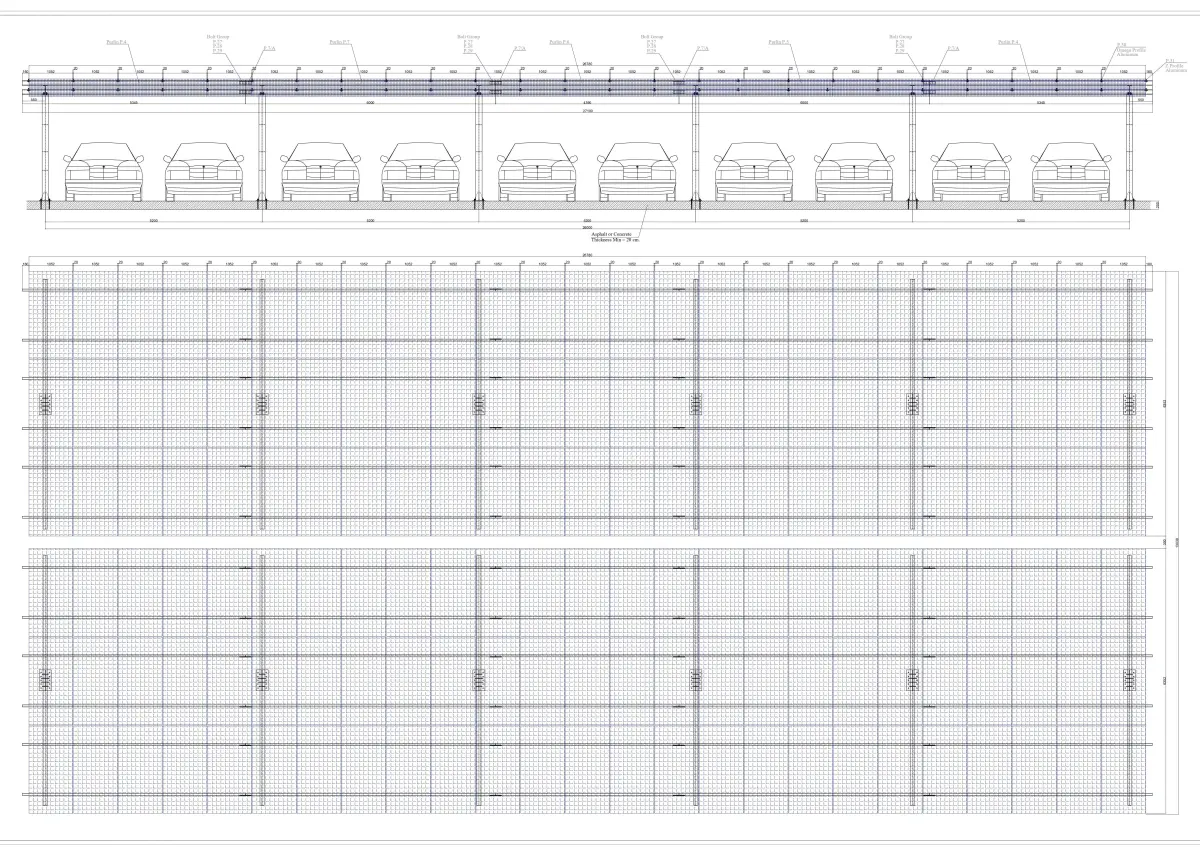

3x25(x2) Vertical Panel Layout

Ground Connection Type; With Anchor Plate

Panel Dimensions : 2112 x 1052 x 35 mm

Panel Power : 455Wp

1 solar carport steel construction produces 68,25 kWp power in 1 hour

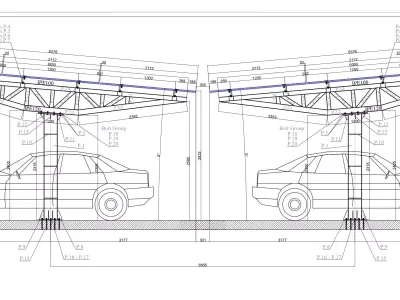

The system consists of 6x2 axles and the distance between each axle is 5200 mm.

Horizantal angle of panel 5°

The closest distance of the panels to the floor 2822 mm.

Prepared With AutoCAD Version 2021

DWG (AutoCAD, filesize: 454 KB), DXF (DXF, filesize: 3.2 MB), PDF (PDF, filesize: 1.37 MB)
