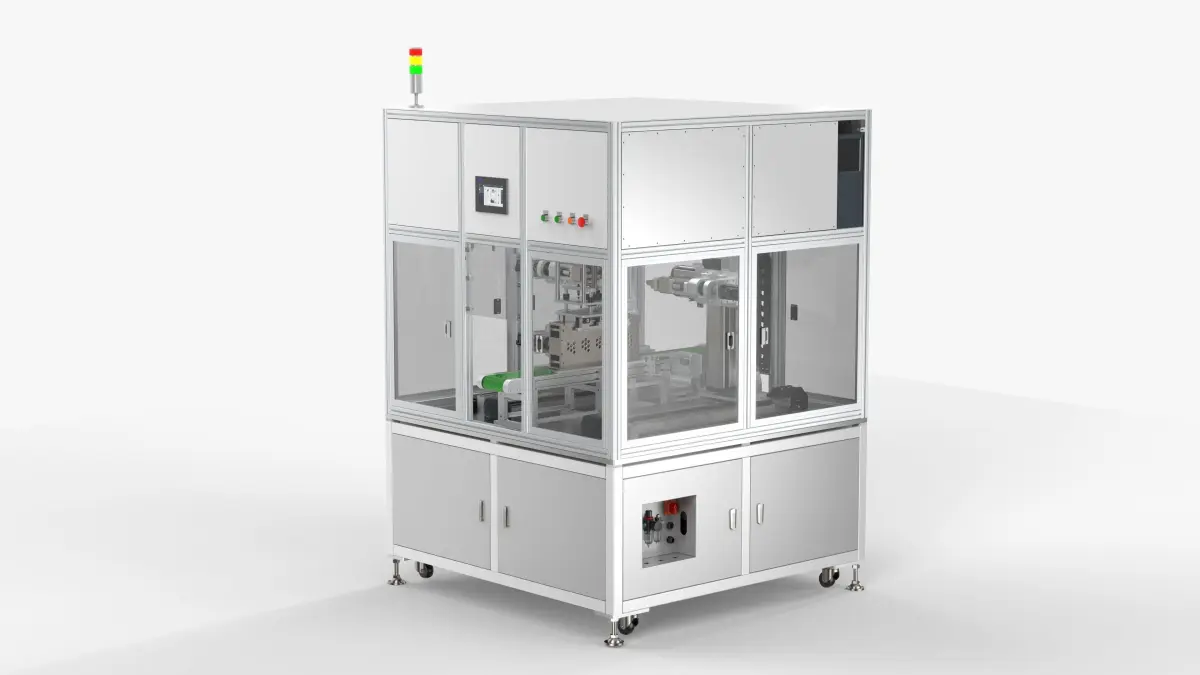

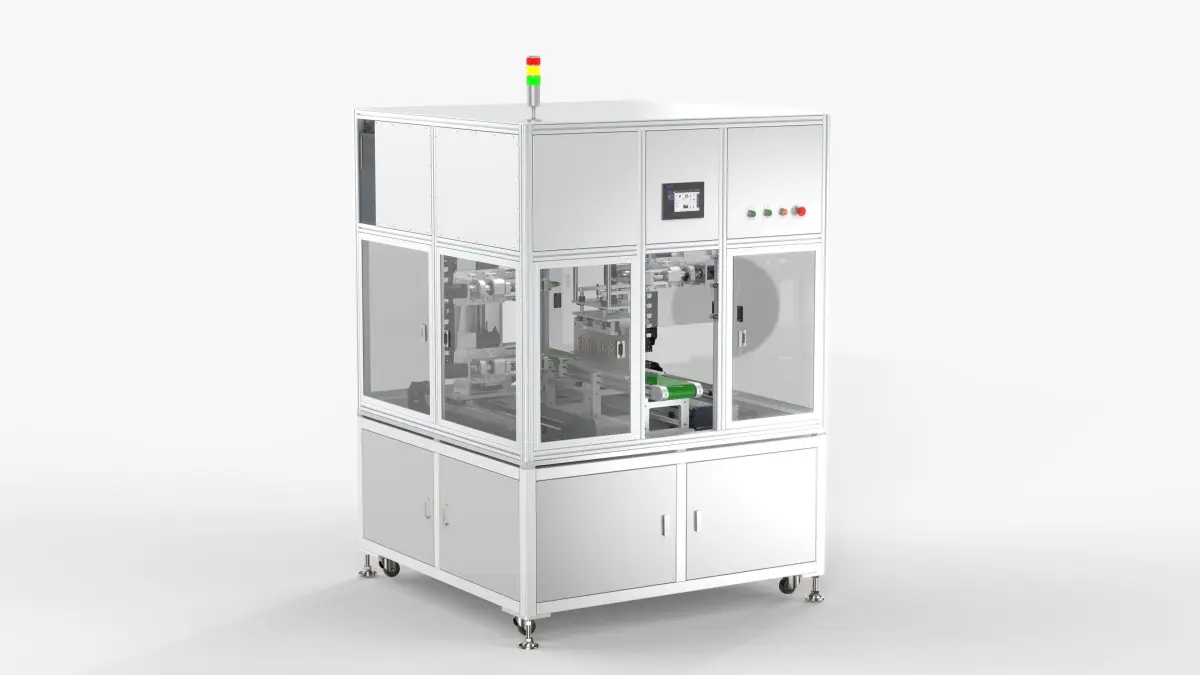

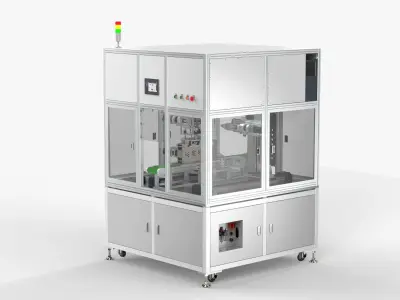

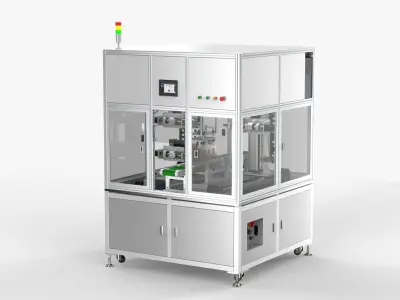

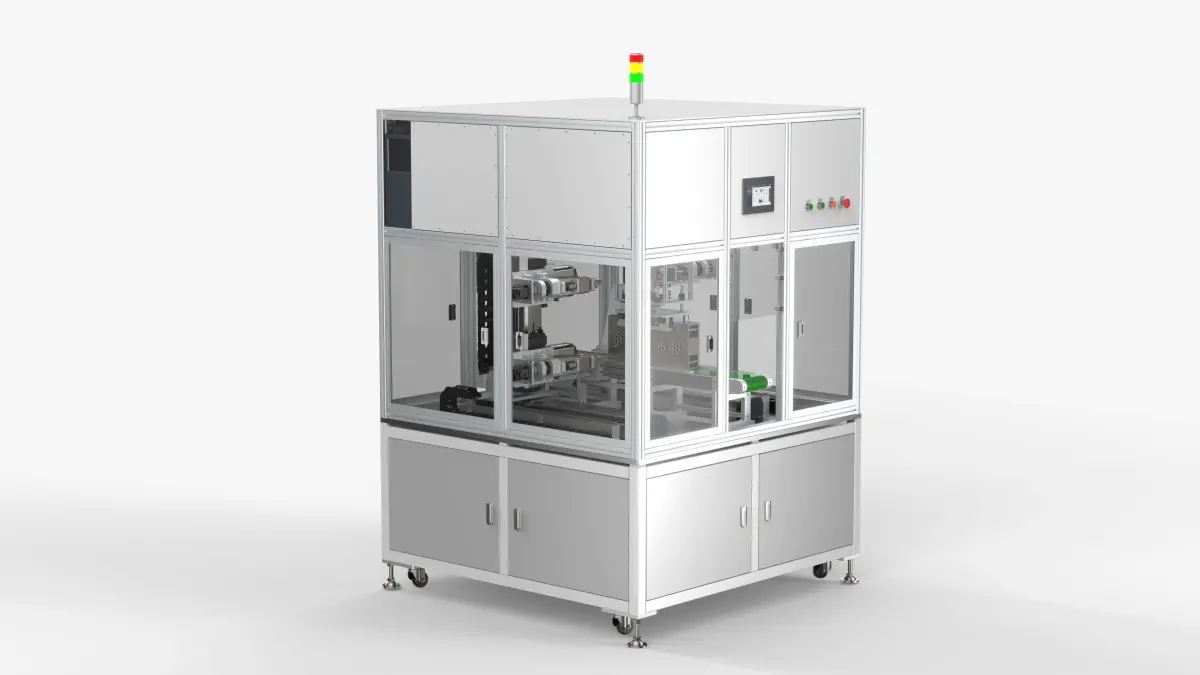

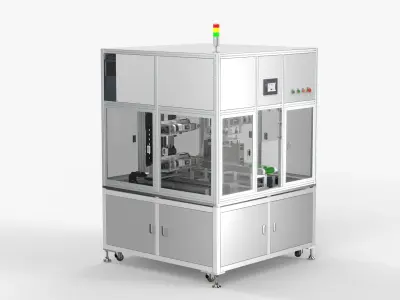

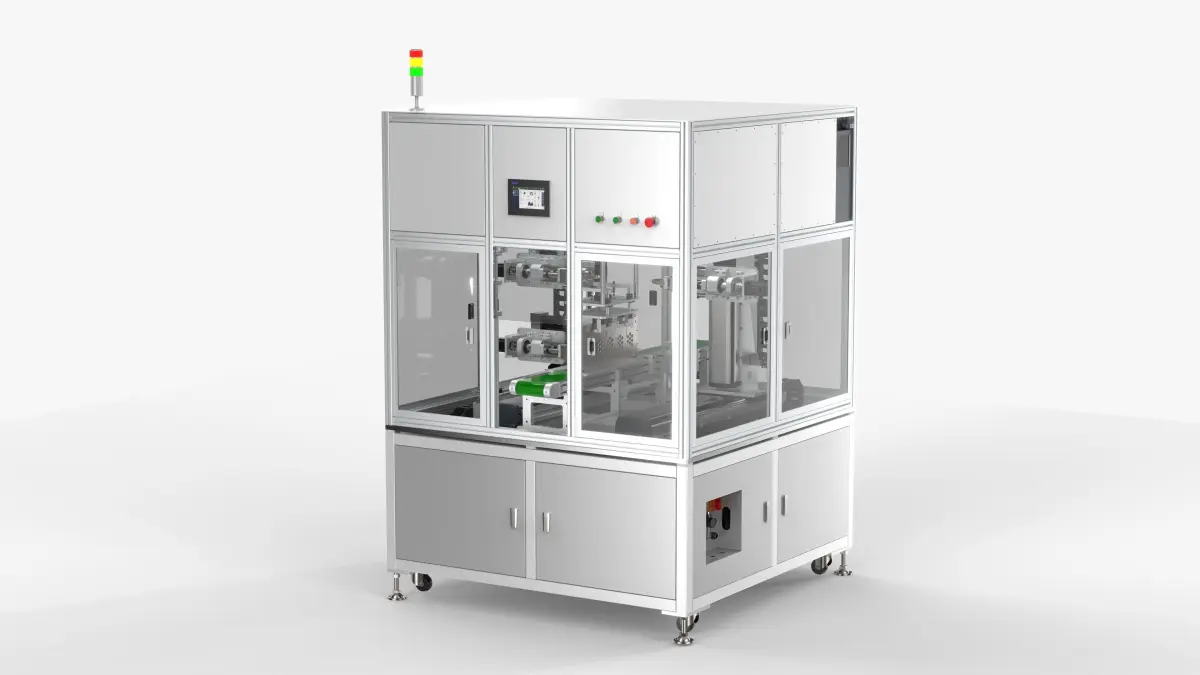

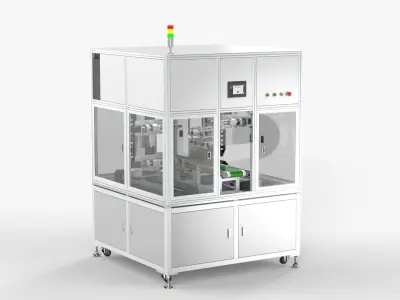

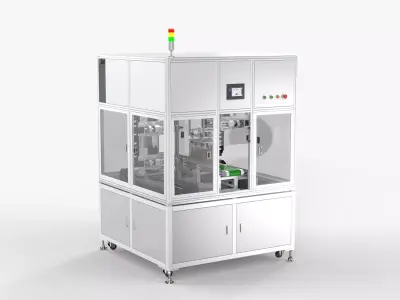

8 Axis Double Sided Spot Welding Machine

Introduction

This equipment is an 8-axis double-sided spot welding machine. It is designed for the situation that the nickel sheets on both sides of the battery module are different. It can realize concentric welding or non-concentric welding. It also adds a rotating function to prevent sticking needles. Two Y-axis strokes 650mm, two Z-axis strokes of 350mm, this equipment can realize the automatic entry and exit of fixtures, and can be directly connected to the assembly line.
