8-Size Precision Drill Guide Jig 3D print model

$10

License: Editorial No Ai

author:

spoocane777

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «spoocane777». CGhub does not claim copyright ownership over the content used.

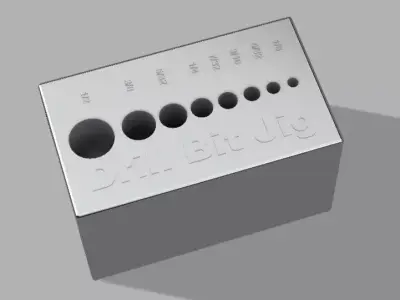

This precision drill guide jig is designed for accurate, repeatable drilling in wood, plastics, and light metals. Featuring a compact 1.75 × 3.00 × 1.00 inch body, the jig is easy to handle while providing excellent stability during drilling operations.

The jig includes eight integrated drill guide holes covering the most commonly used imperial bit sizes: 1/8, 5/32, 3/16, 7/32, 1/4, 5/16, 3/8, and 1/2. Each guide hole is aligned perpendicular to the jig face to help maintain straight, square holes and reduce bit wander, making it ideal for workshop, garage, and jobsite use.

Designed with 3D printing in mind, the body balances strength and material efficiency and can be printed in common filaments such as PLA+, PETG, or ABS. This jig is well suited for edge drilling, repair work, furniture building, and general fabrication where consistent hole placement is required.

Perfect for DIY makers, woodworkers, machinists, and hobbyists, this drill guide jig delivers professional results in a compact, easy-to-print form.
