Accurate Piaggio reed valve scooter model 3D print model

$15

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

3Dominion

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «3Dominion». CGhub does not claim copyright ownership over the content used.

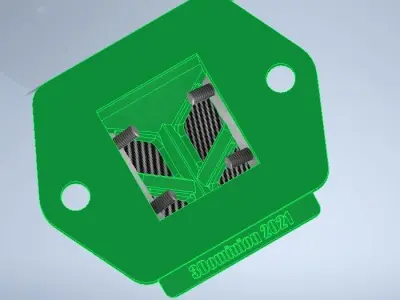

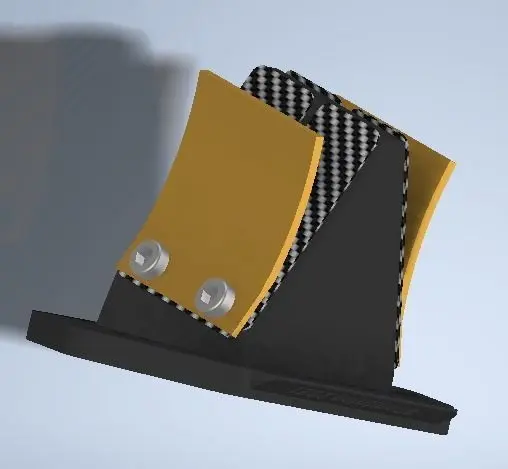

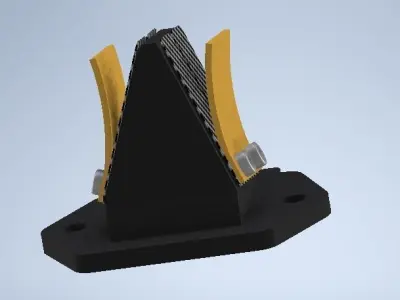

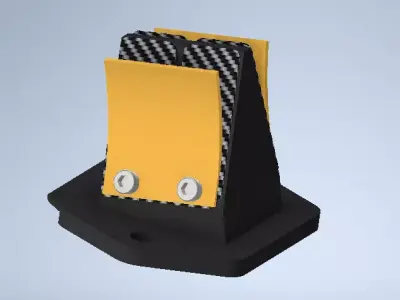

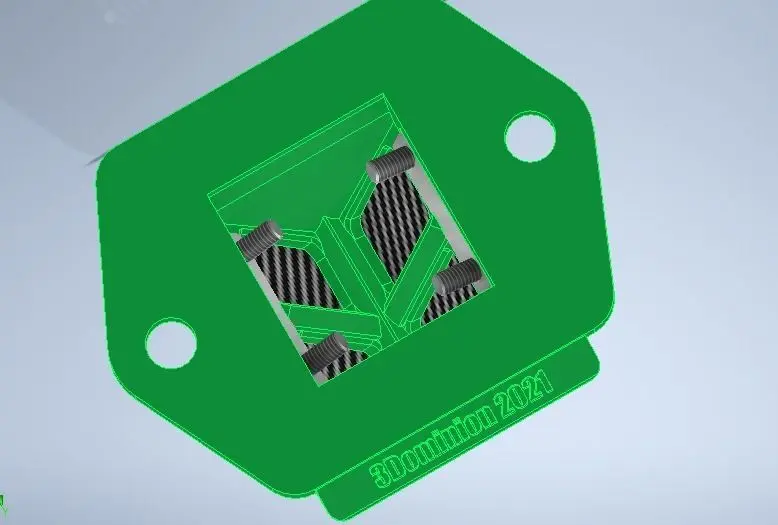

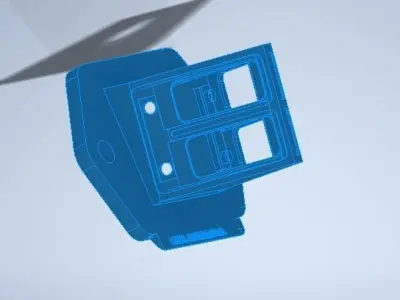

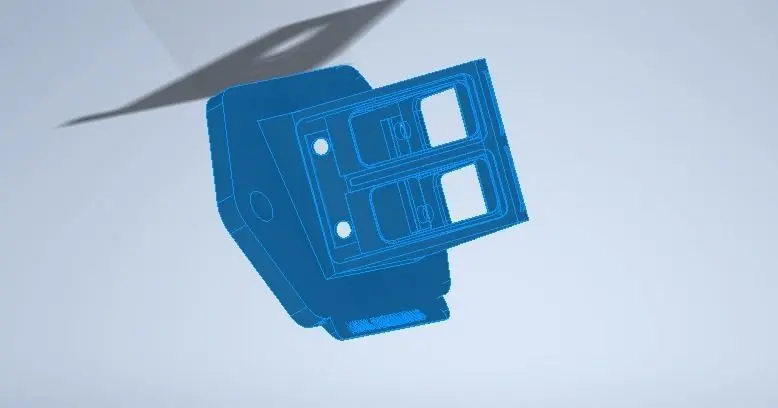

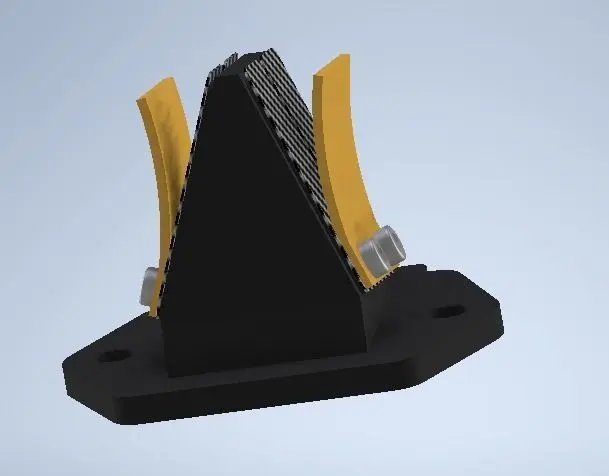

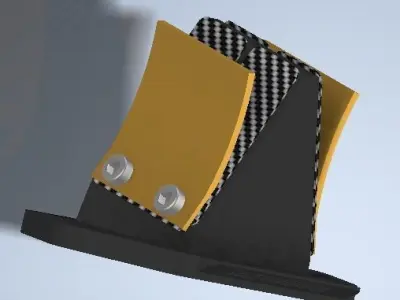

This is an accurate model of the original reed valve mounted on Piaggio 50cc 2t scooter engines (Scarabeo, Zip etc). The 125cc and 180cc versions (Gilera Runner etc) should mount this valve too. The original part was disassembled, every piece was measured and thoroughly reported in the Inventor modeling you can find attached.As you can see, the assembly is complete of everything: valve body, reeds, stoppers, threaded plates and screws. I made this to have a good reference to use as a starting point for a better intake system for Piaggio blocks, which I'm going to make in the next months. You can find online another extreme reed valve I made for Minarelli 50cc scooter engines, the VLX.This is my first model here in CGtrader, and I tried to include various file formats, images and textures. If you have any concern or need other formats, however, tell me: I'll do my best to help. This model can be 3D printed with quite good results, especially the valve body, even though its purpose is only to be a realistic and accurate reference.I definitely hope you enjoy my work, especially two stroke and engine passionates like me, who like research and development and could find this work useful!

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0

Tags

Engineering Engines Motorsport Scooter Moped 50cc 2t Twostroke Twowheels Gasoline Gas Mechanical Engine Piaggio Minarelli Inventor Modeling 3d Print Printing Hobby Diy Hobby diy Parts Mechanical parts Engine parts
