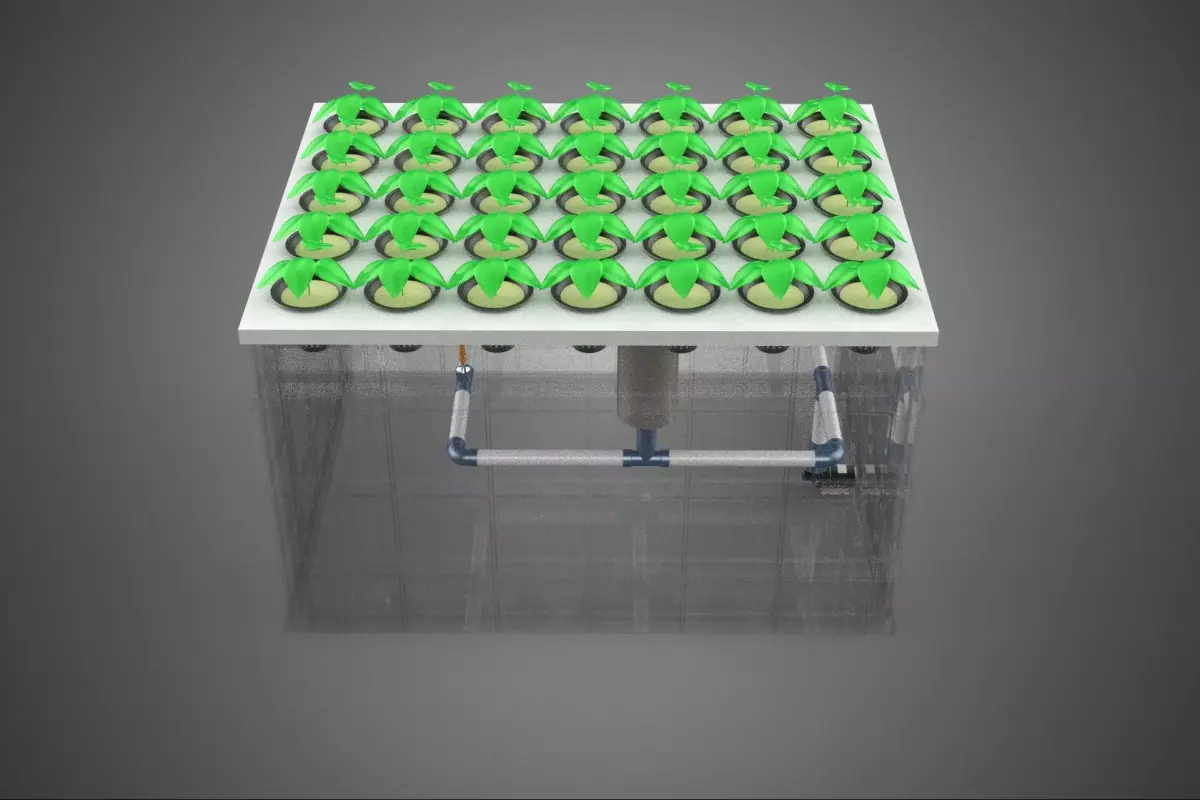

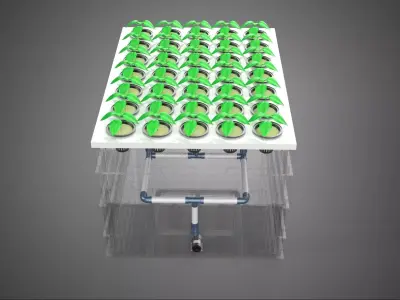

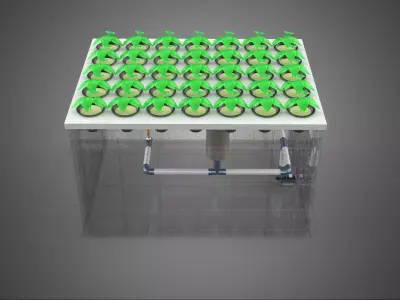

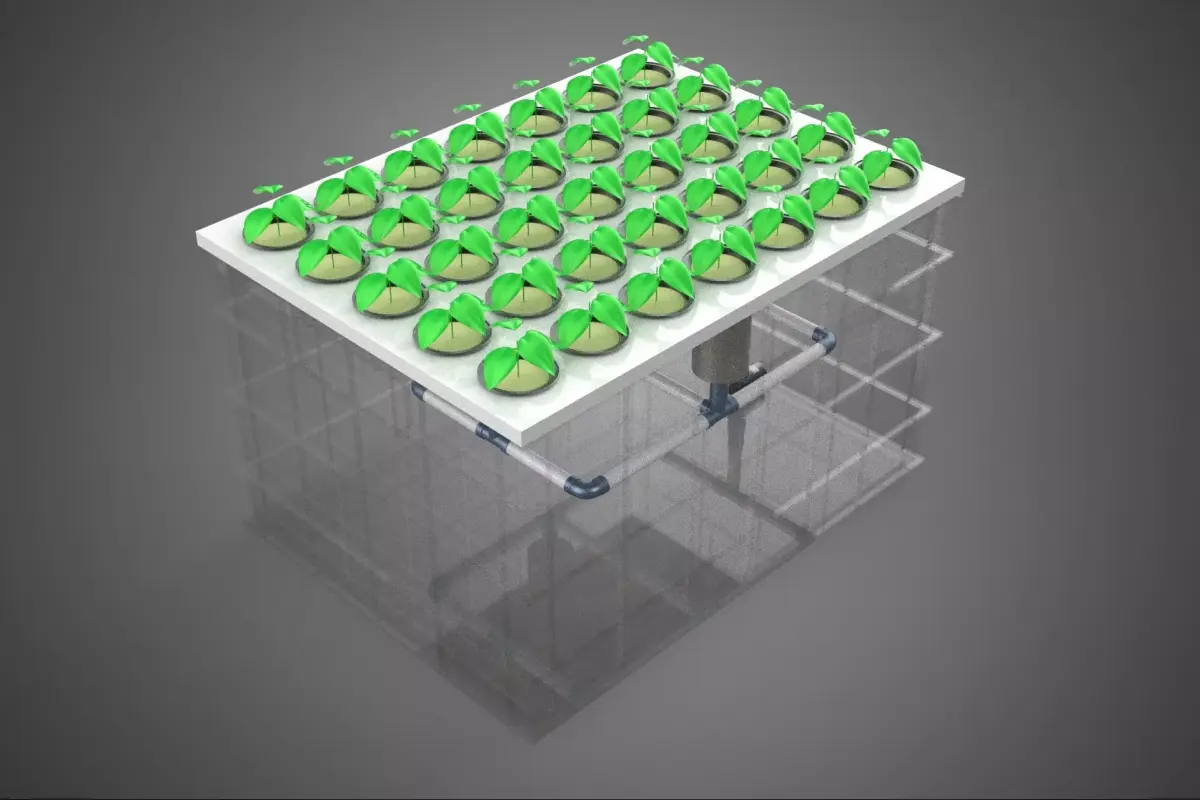

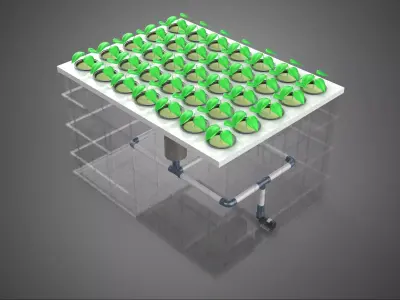

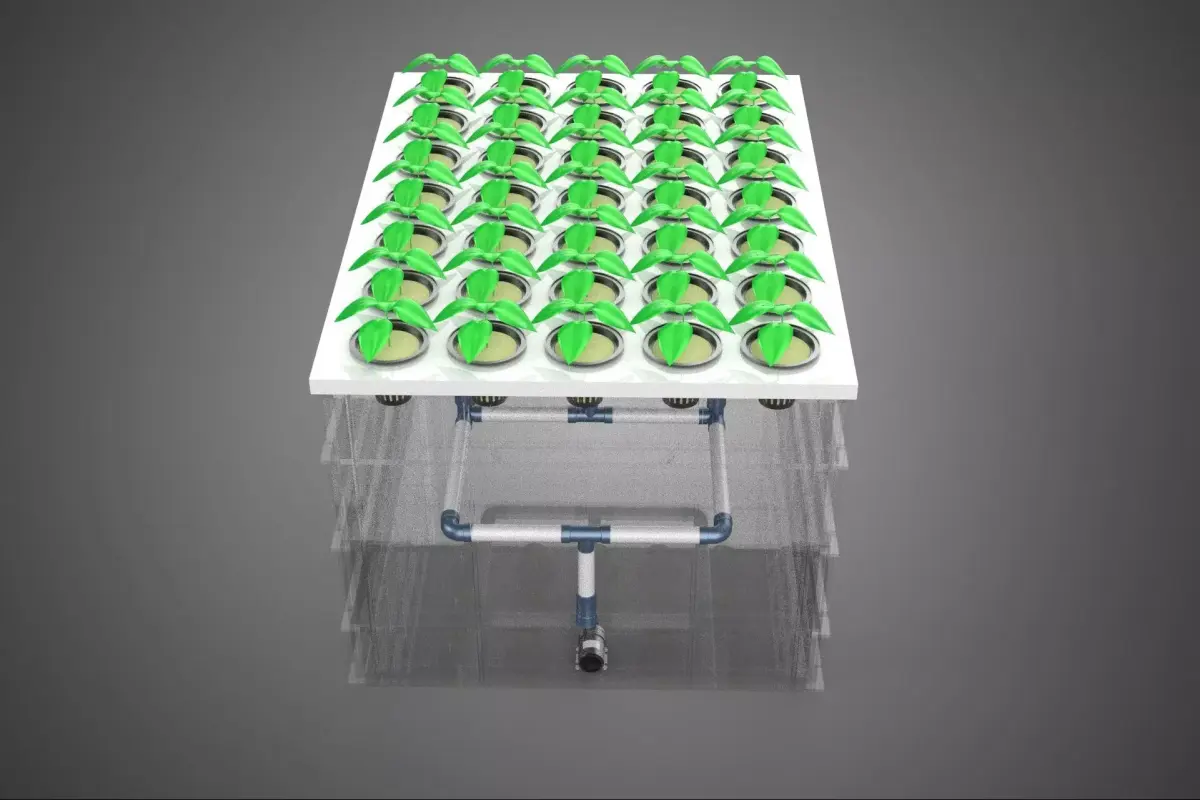

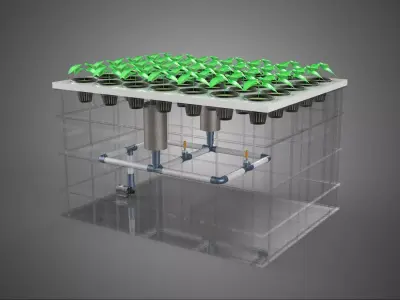

The Aeroponic Farm Misting Chamber Nutrient Delivery Sprayer System constitutes the core mechanism for supplying essential water and dissolved mineral nutrients to plant roots within a controlled aeroponic environment. Aeroponics is a form of hydroponics where plants are suspended in air and receive nourishment via a finely atomized mist, maximizing oxygen access to the root zone and promoting accelerated growth compared to conventional soil-based or deep-water culture methods.
System Architecture and Functionality
This sophisticated system is primarily defined by the precision and control exerted over the nutrient application process within the enclosed root chamber (or misting chamber).
1. Nutrient Reservoir and Preparation
The system begins with a dedicated nutrient reservoir, typically a light-proof, food-grade container to prevent algal growth. This reservoir holds the aqueous nutrient solution, which is carefully formulated to meet the specific stoichiometric requirements of the cultivated plant species across its growth cycle (vegetative, flowering, etc.). Key parameters—such as pH (typically maintained between 5.5 and 6.5) and Electrical Conductivity (EC), which correlates directly to nutrient concentration—are continuously monitored by inline sensors. Automated dosing pumps adjust acid/base levels (for pH control) and introduce concentrated stock solutions (for EC maintenance) to ensure optimal root uptake efficiency.
2. Pressurization and Distribution Manifold
The nutrient solution is drawn from the reservoir by a high-pressure pump, which is often a positive displacement or diaphragm pump capable of generating pressures typically ranging from 60 to 100 psi (4.1 to 6.9 bar). This high pressure is essential for atomizing the liquid into ultrafine droplets. The pressurized solution is directed through a distribution manifold, which routes the fluid to the individual misting chambers or growing modules. Filtration mechanisms, often including fine mesh or disc filters (e.g., 5–50 microns), are integrated into this stage to prevent clogging of the precision spray nozzles.
3. Spray Nozzle Technology
The critical component of the system is the sprayer technology, specifically designed to produce aerosolized droplets optimally sized for root absorption. Effective aeroponics relies on droplet sizes generally ranging from 30 to 70 micrometers (µm). Droplets larger than this range tend to saturate the roots (defeating the high-oxygen environment), while droplets much smaller may evaporate too quickly or fail to adequately coat the root surface.
Common nozzle types utilized include:
- Impaction Pin (Fogging) Nozzles: Rely on high pressure to force fluid against a pin, shattering the stream into a fine mist.
- Ultrasonic Transducers: While less common in commercial high-pressure systems, some systems use ultrasonic vibration to create a nutrient fog, achieving extremely fine and uniform droplet sizes.
- Swirl or Tangential Flow Nozzles: Produce a fine cone-shaped spray pattern suitable for uniform root coverage.
#### 4. Misting Chamber Environment and Timing
The sprayer system operates intermittently rather than continuously. This on/off cycle (often termed the misting interval) is paramount to the success of aeroponics. The chambers are designed to be light-proof and maintain high humidity (>95%) while protecting the roots from external light, which could trigger photo-oxidation or inhibit root development.
Typical spray cycles might involve activation for 1–5 seconds followed by a dormancy period of 2–15 minutes, depending on plant species, environmental conditions (temperature and humidity), and the size of the misting chamber. This precise timing is managed by a dedicated programmable logic controller (PLC) or sophisticated timer unit, ensuring that roots remain moist and nutrient-fed without suffering from waterlogging or desiccation.
### Advantages
The utilization of a high-pressure misting sprayer system in aeroponics maximizes nutrient absorption efficiency, significantly reduces water consumption (up to 98% less than traditional agriculture), and facilitates rapid root growth due to optimal oxygen exposure (gaseous exchange). Furthermore, the closed-loop nature of the system allows for the recapture and sterilization of excess nutrient run-off, enhancing resource sustainability.
