Specification:
- Brand: AMS
- Scale: 1/10
- Type of product: Arms and weapons
- Recommended Use: Scale Model

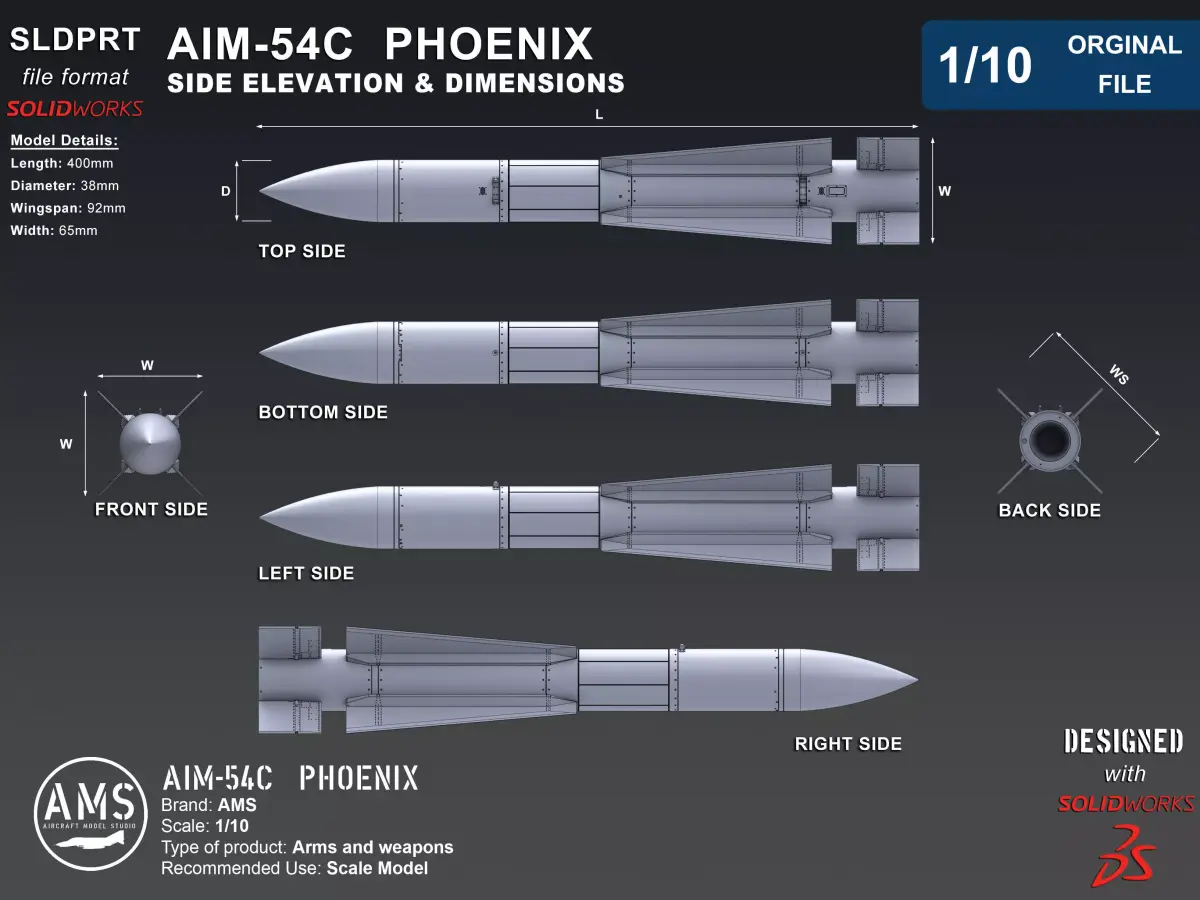

Missile Model Dimension :
- Length: 400mm
- Diameter: 38mm
- Wingspan: 92mm
- Width: 65mm

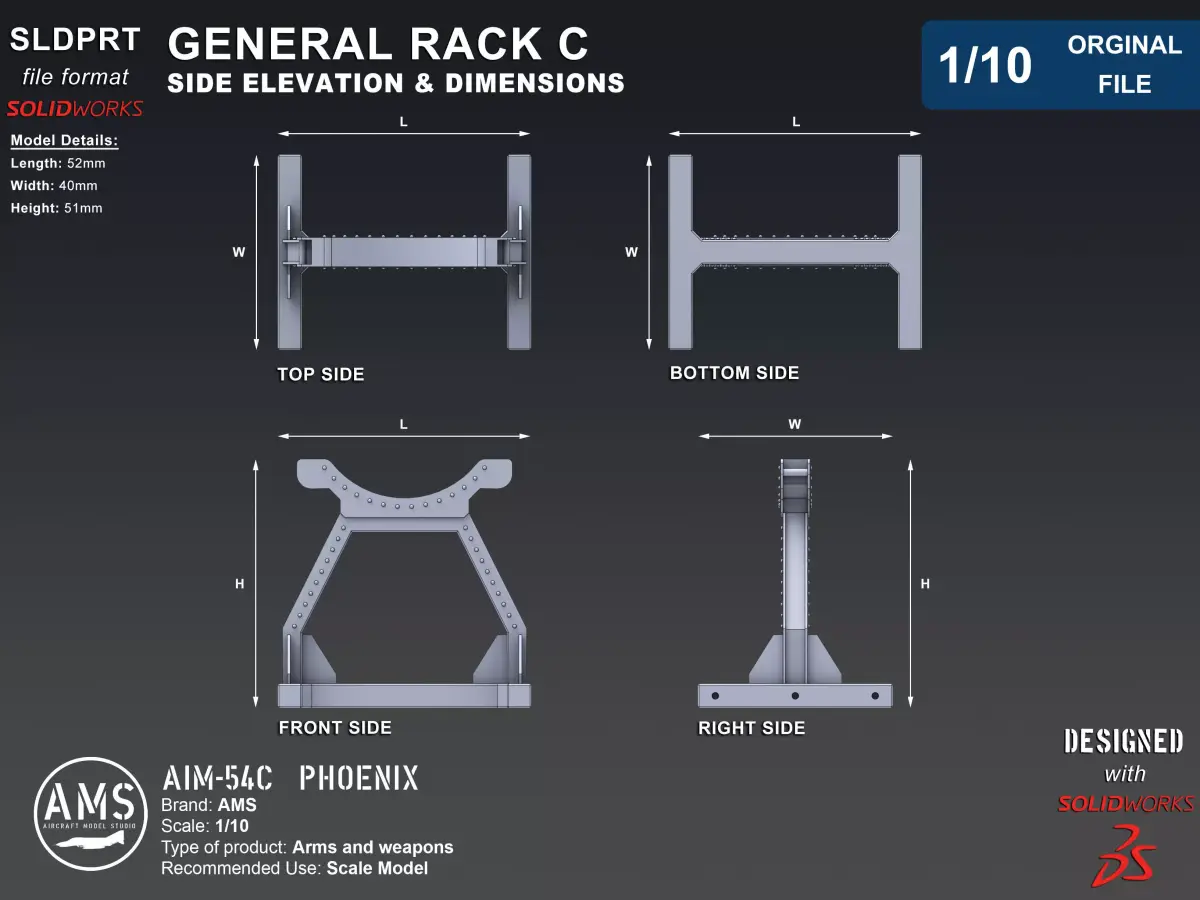

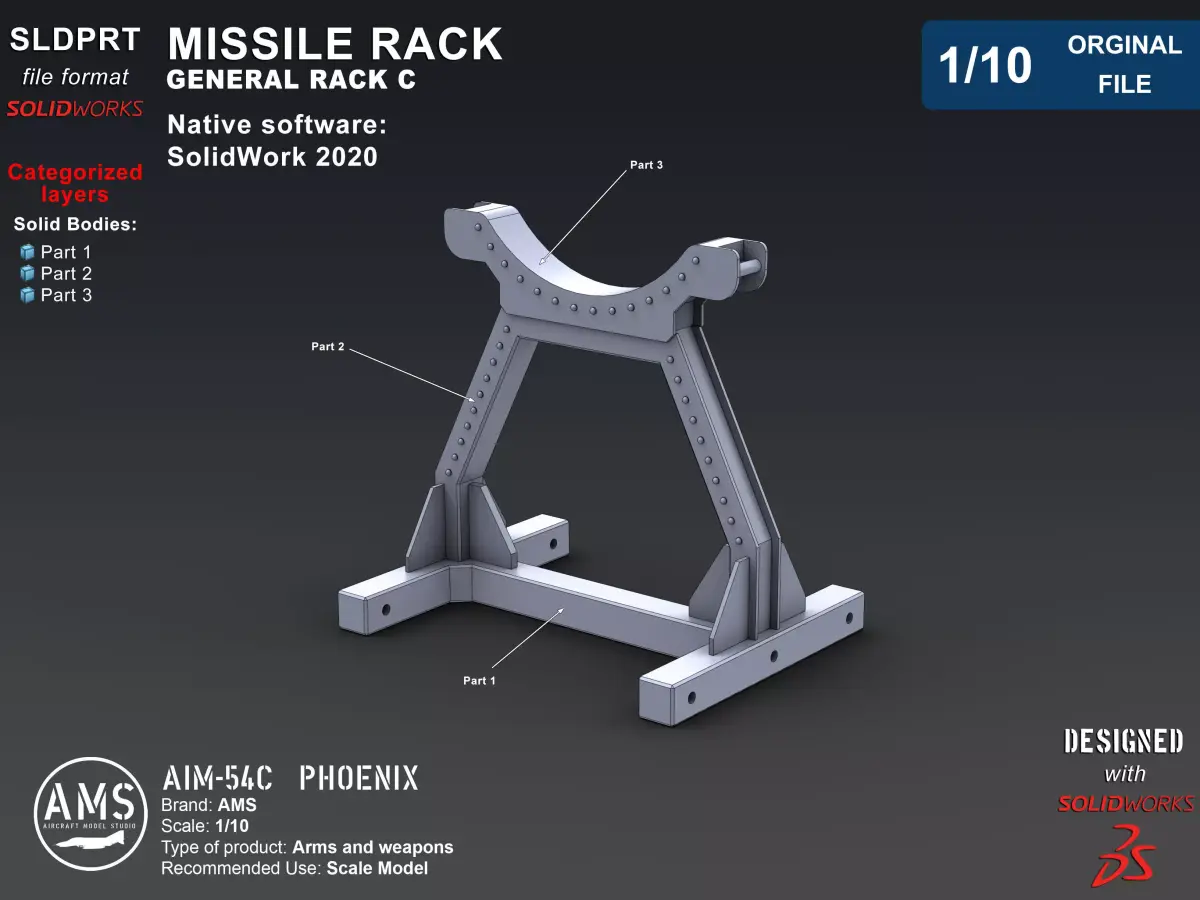

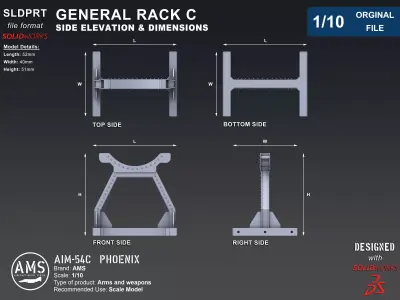

Rack Model Dimension :
- Length: 52mm
- Width: 40mm
- Height: 51mm
Note:
- Details are considered appropriate to the scale of the model.
- Native software: SolidWork 2020

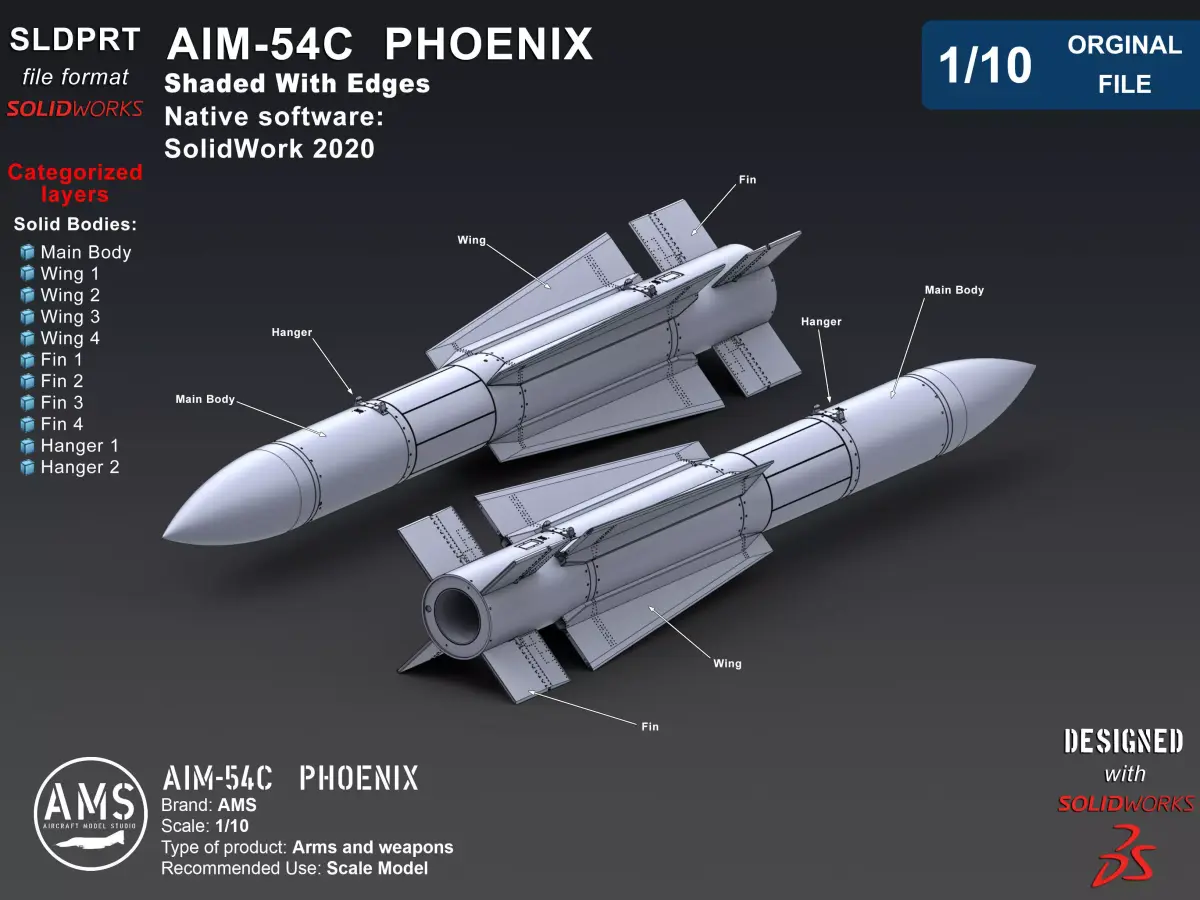

- Categorized layers
- Open layers
- Ability to Change the Scale
- Ability to Edit Details

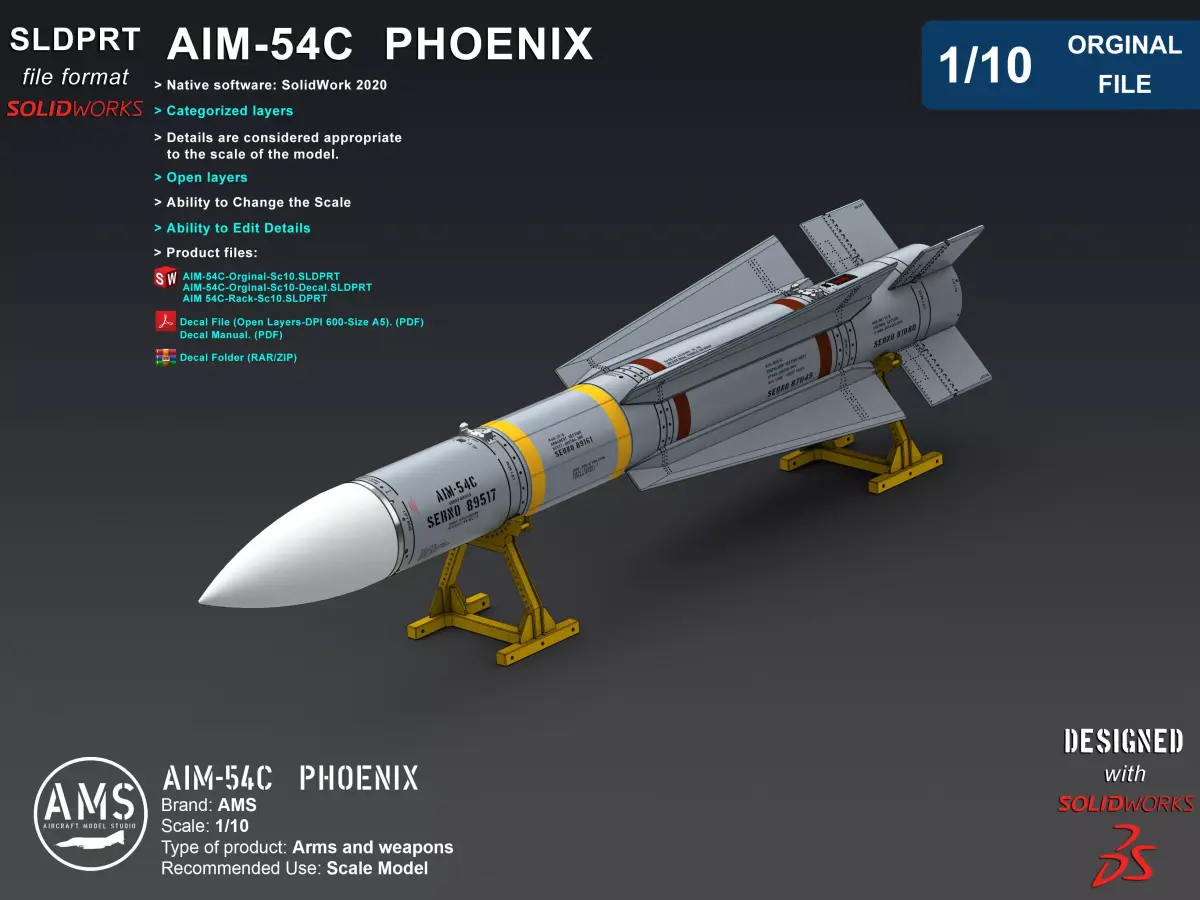

Product files:
- AIM-54C-Orginal-Sc10.SLDPRT. (Solidwork)
- AIM-54C-Orginal-Sc10-Decal.SLDPRT. (Solidwork)
- AIM 54C-Rack-Sc10.SLDPRT. (Solidwork)
- Decal File (Open Layers-DPI 600-Size A5). (PDF)
- Decal Manual. (PDF)
- Decal Folder-Textures. (RAR/ZIP)
Description:The AIM-54 Phoenix is an American radar-guided, long-range air-to-air missile (AAM), carried in clusters of up to six missiles on the Grumman F-14 Tomcat,its only operational launch platform.
The Phoenix was the United States' only long-range air-to-air missile. The combination of Phoenix missile and the Tomcat's AN/AWG-9 guidance radar meantthat it was the first aerial weapons system that could simultaneously engage multiple targets. Due to its active radar tracking, the brevity code Fox Threewas used when firing the AIM-54.The act of the missile achieving a radar lock with its own radar is known under brevity as 'Going Pitbull'.
Both the missile and the aircraft were used by Iran and the United States Navy. In US service both are now retired, the AIM-54 Phoenix in 2004 and the F-14 in 2006.
They were replaced by the shorter-range AIM-120 AMRAAM, employed on the F/A-18 Hornet and F/A-18E/F Super Hornet—in its AIM-120D version,thelatest version of the AMRAAM just matches the Phoenix's maximum range.
The AIM-54 has been used in 62 air-to-air strikes, all by Iran during the eight-year Iran–Iraq War.Following the retirement of the F-14 by the U.S. Navy, theweapon's only current operator is the Islamic Republic of Iran Air Force.
