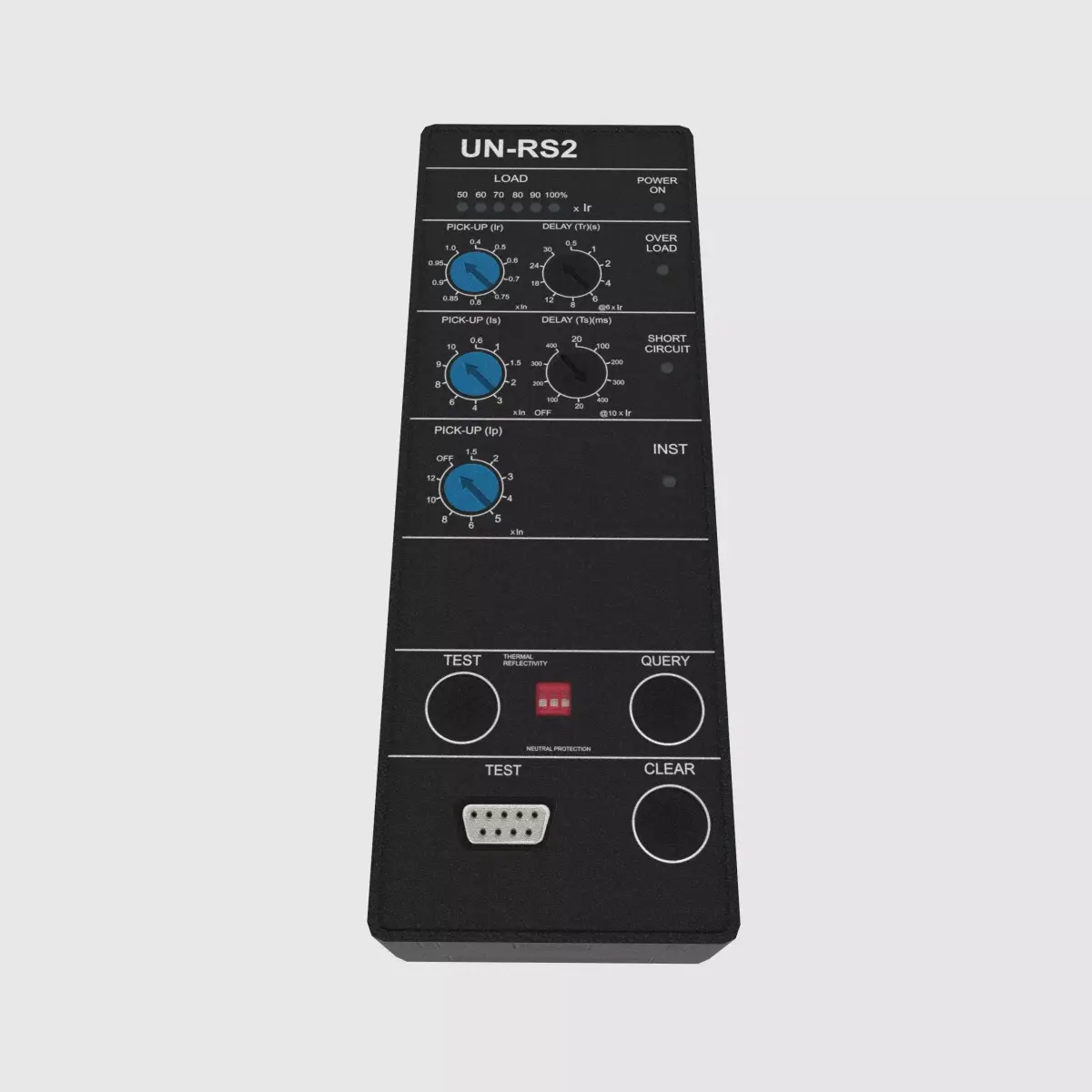

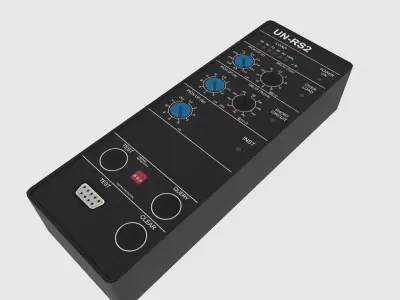

*Description*A highly detailed Air Circuit Breaker (ACB) Protection Relay System modeled after the UN-RS2 control unit. This 3D model accurately represents the electrical relay module used in industrial power distribution systems for overload protection, short-circuit sensing, and operational monitoring.
The model includes fully detailed dials, switches, labels, indicator LEDs, and I/O ports — ideal for technical visualizations, electrical training simulations, VR/AR, engineering demos, and industrial environment scenes. Designed with real-world scale and optimized PBR textures for maximum realism.
Features
Realistic Air Circuit Breaker (ACB) relay module

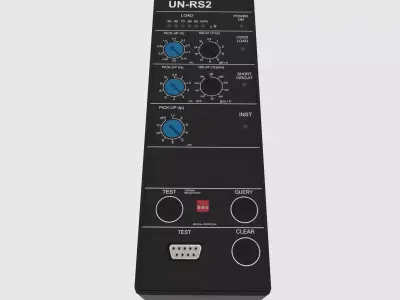

Detailed front panel with:
Load & pick-up (long-time, short-time, instantaneous) dials
Delay & trip adjustment knobs
Indicator LEDs (Power, Overload, Short Circuit)
Test & Clear push buttons
Query button
RS-type communication port
Clear printed markings and calibration labels
High-resolution PBR materials
Clean topology and fully optimized model
Suitable for VR/AR and real-time applications
UV-unwrapped with non-overlapping islands
Categories
3D Models - Electronics - Industrial Electronics
3D Models - Industrial - Electrical Equipment
3D Models - Engineering - Power Distribution
3D Models - Game Assets - Props
Technical Details
Formats: FBX, OBJ, BLEND
Textures: PBR (Base Color, Metallic, Normal) - 2K
Materials: Metal, Plastic, Label Print
UVs: Clean, non-overlapping
Polycount: Optimized for real-time
Rigged: No
Animated: No
Scale: Real-world unit dimensions
Compatibility: Blender, Maya, 3ds Max, Cinema 4D, Unity, Unreal Engine
OBJ (OBJ, filesize: 6.18 KB), BLEND (Blender, filesize: 101 KB), FBX (Autodesk FBX, filesize: 16.8 KB), PNG (PNG, filesize: 12.9 MB), JPG (JPG, filesize: 12.9 MB)
