Hello,

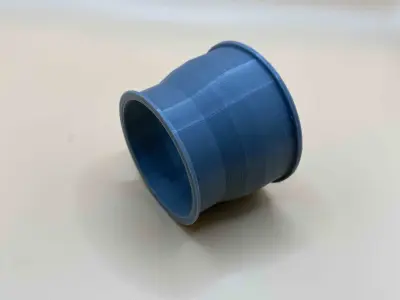

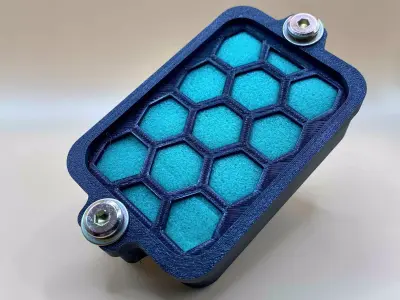

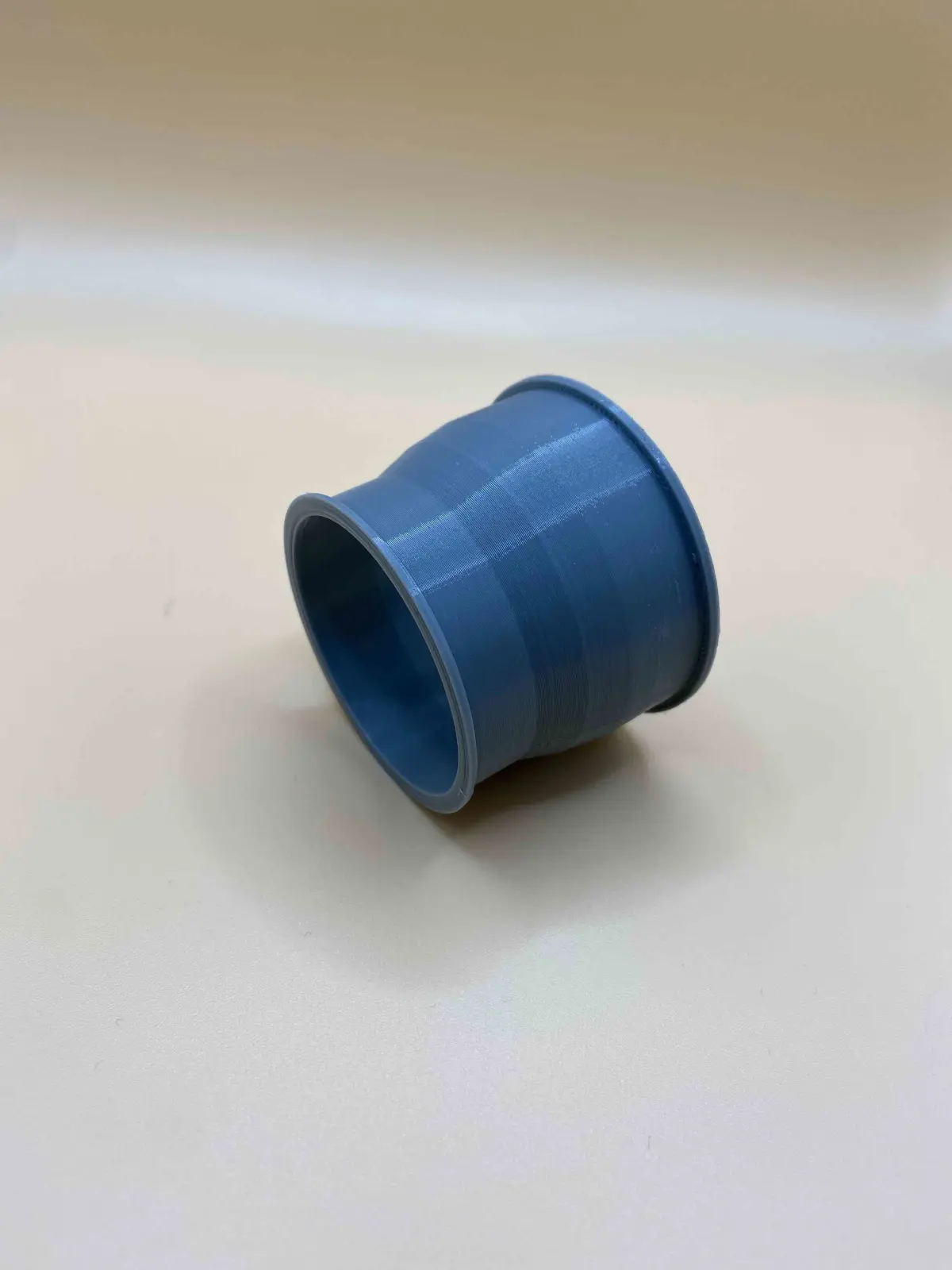

This air filter was designed for installation on a tuning air filter box (40mm diameter) for a Schwalbe KR51/1. With the 35mm rubber, the air filter can also be mounted on the original air filter box, and with some adjustments, it can fit on any other small motorcycle.

Required parts:

2x screws with nuts and washers1x thin layer of felt or fleece1x sponge or foam2x clamps for securing the connectionAssembly sequence:

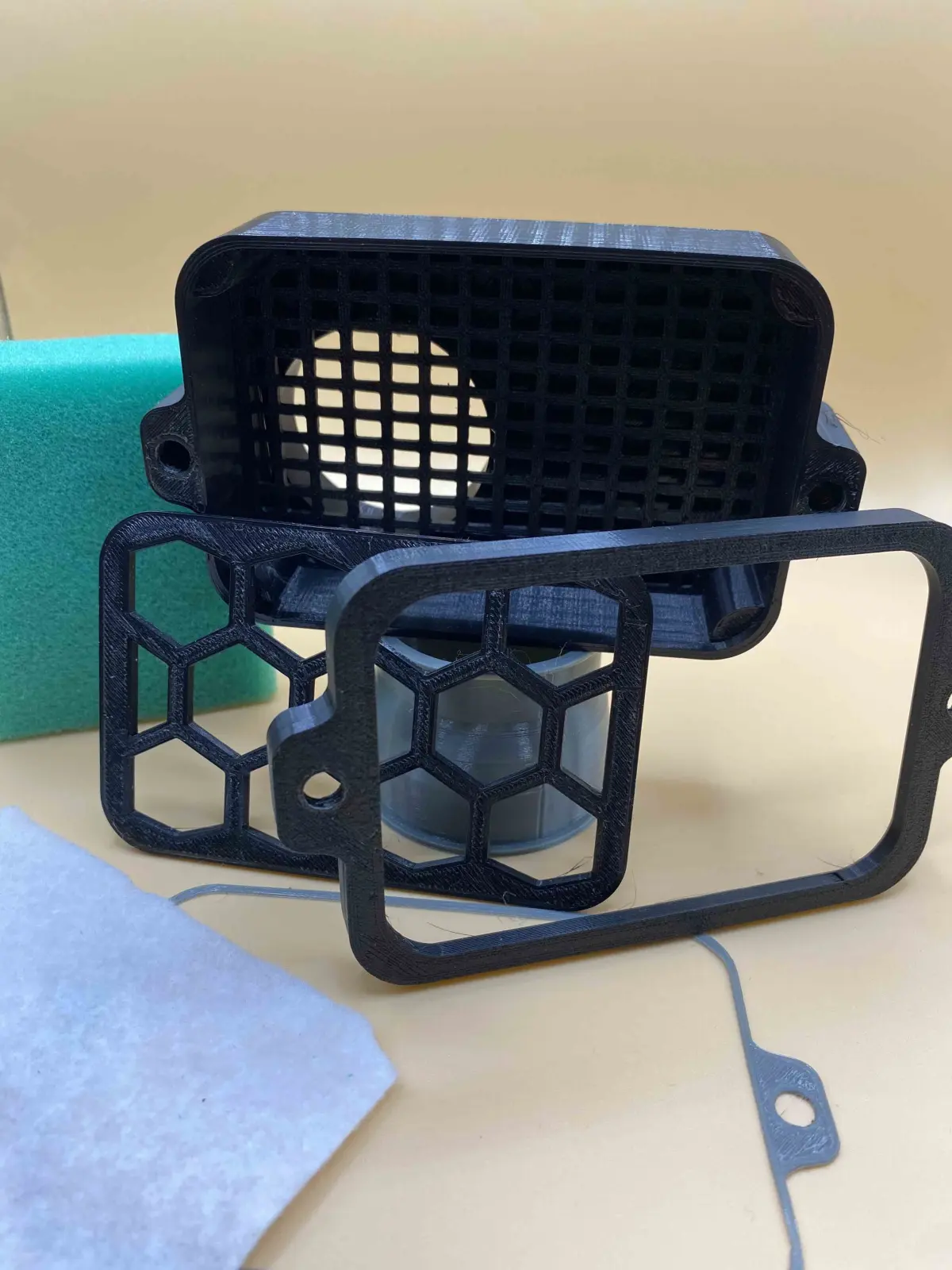

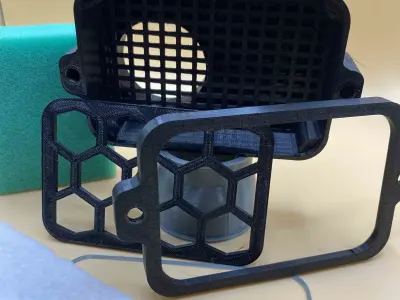

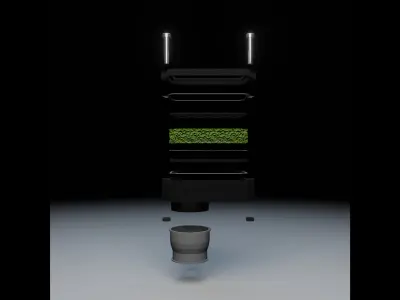

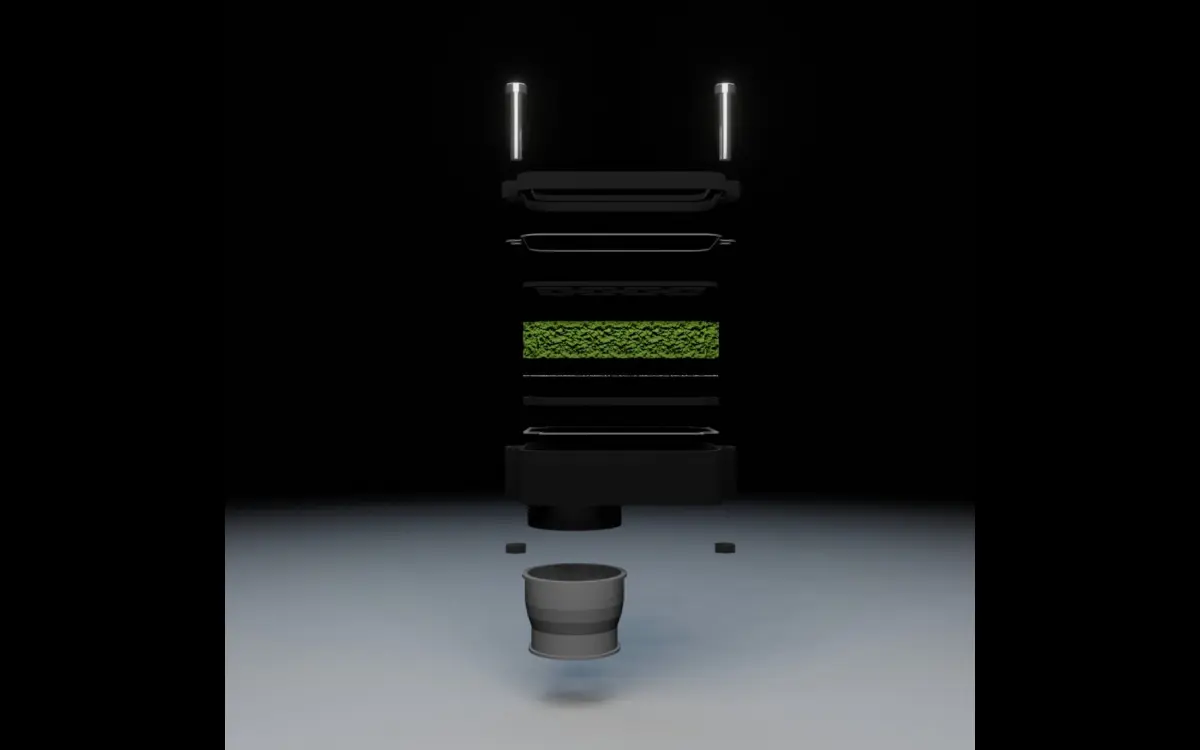

Rubber => Box => Bottom seal => Bottom mesh => Fleece => Foam => Top mesh => Top seal => Cap

I assume no liability for any potential damages. The road operating permit is void when used.

Enjoy printing and riding!
