Angle fixture platform 3D model

$18

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

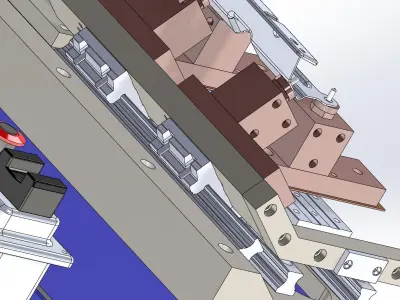

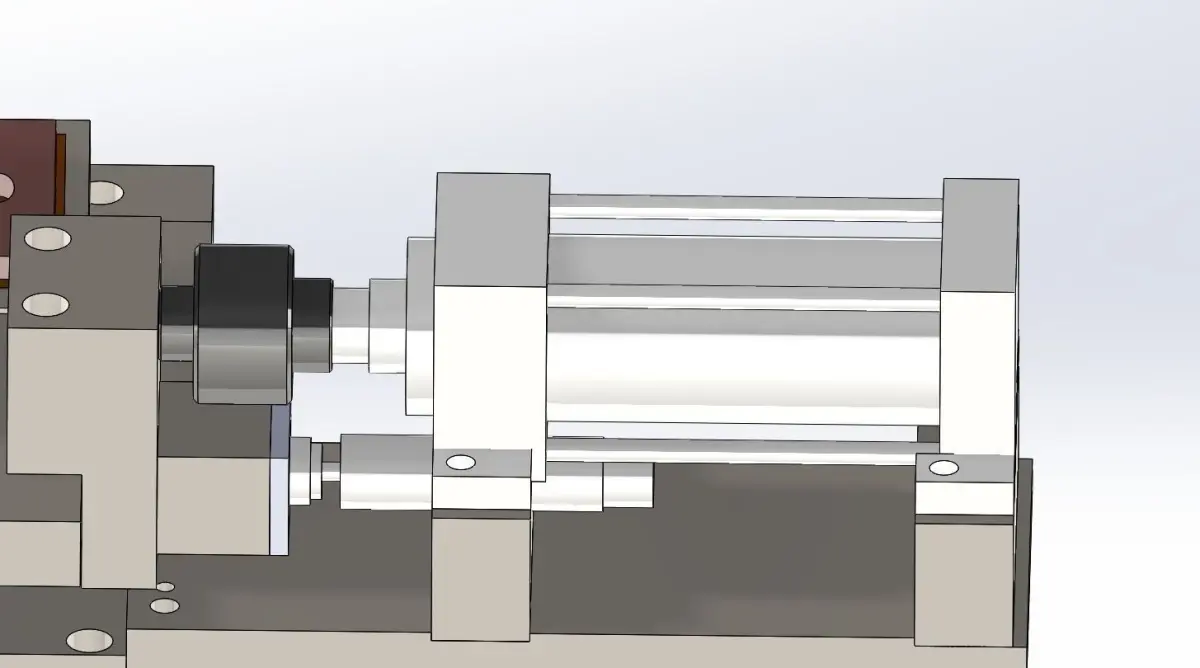

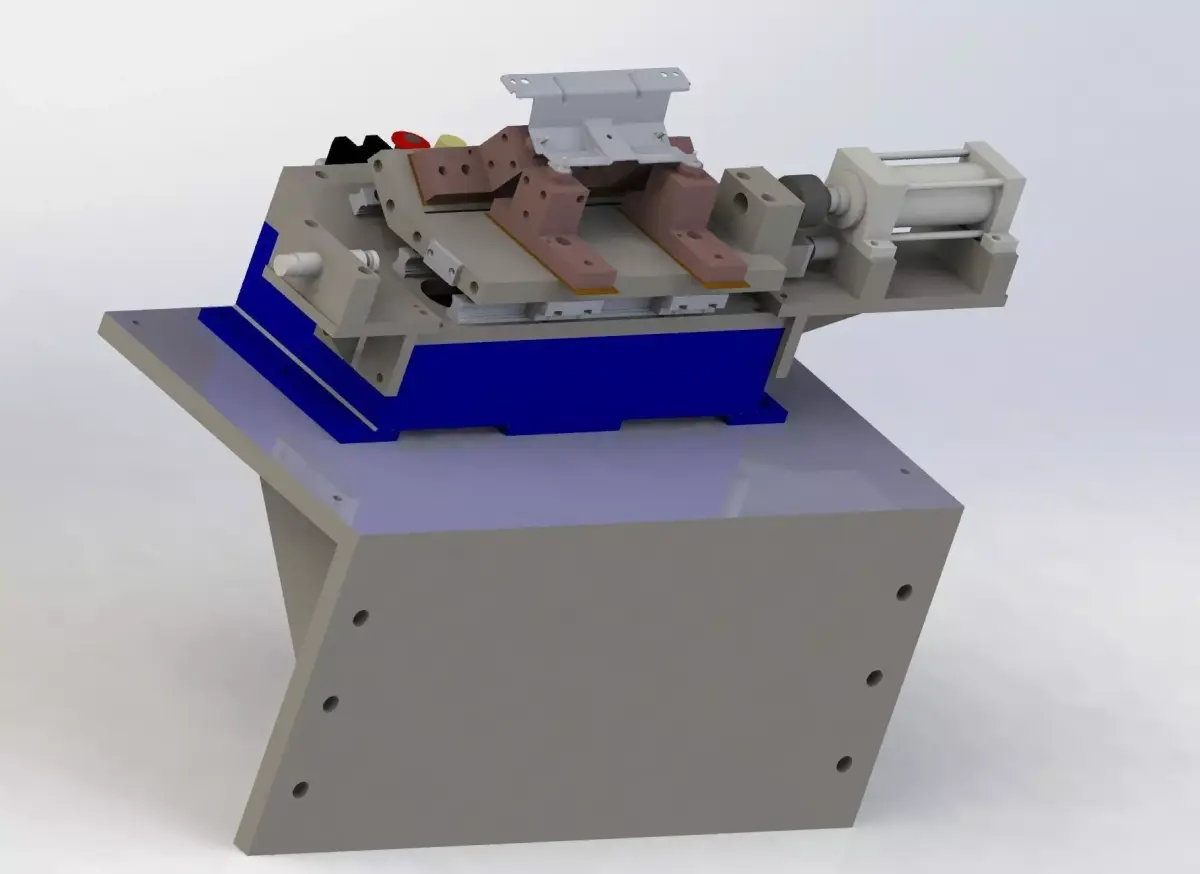

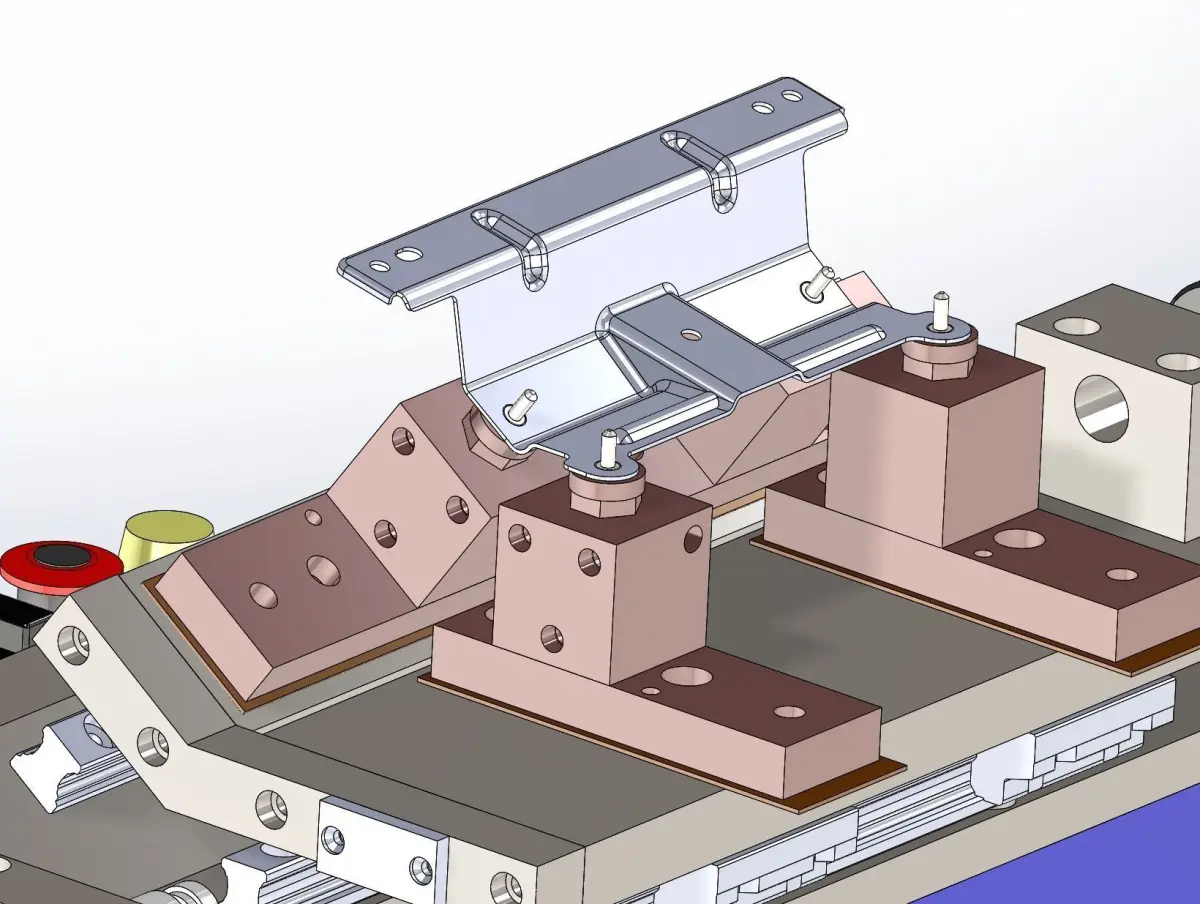

Angle fixture platform, the platform through the three slide rail travel inclined Angle of the jig platform, through the agency will push the cylinder fixed sheet metal products, products from the Angle of the platform is suitable for some fixed and positioning equipmentThe mechanism includes:

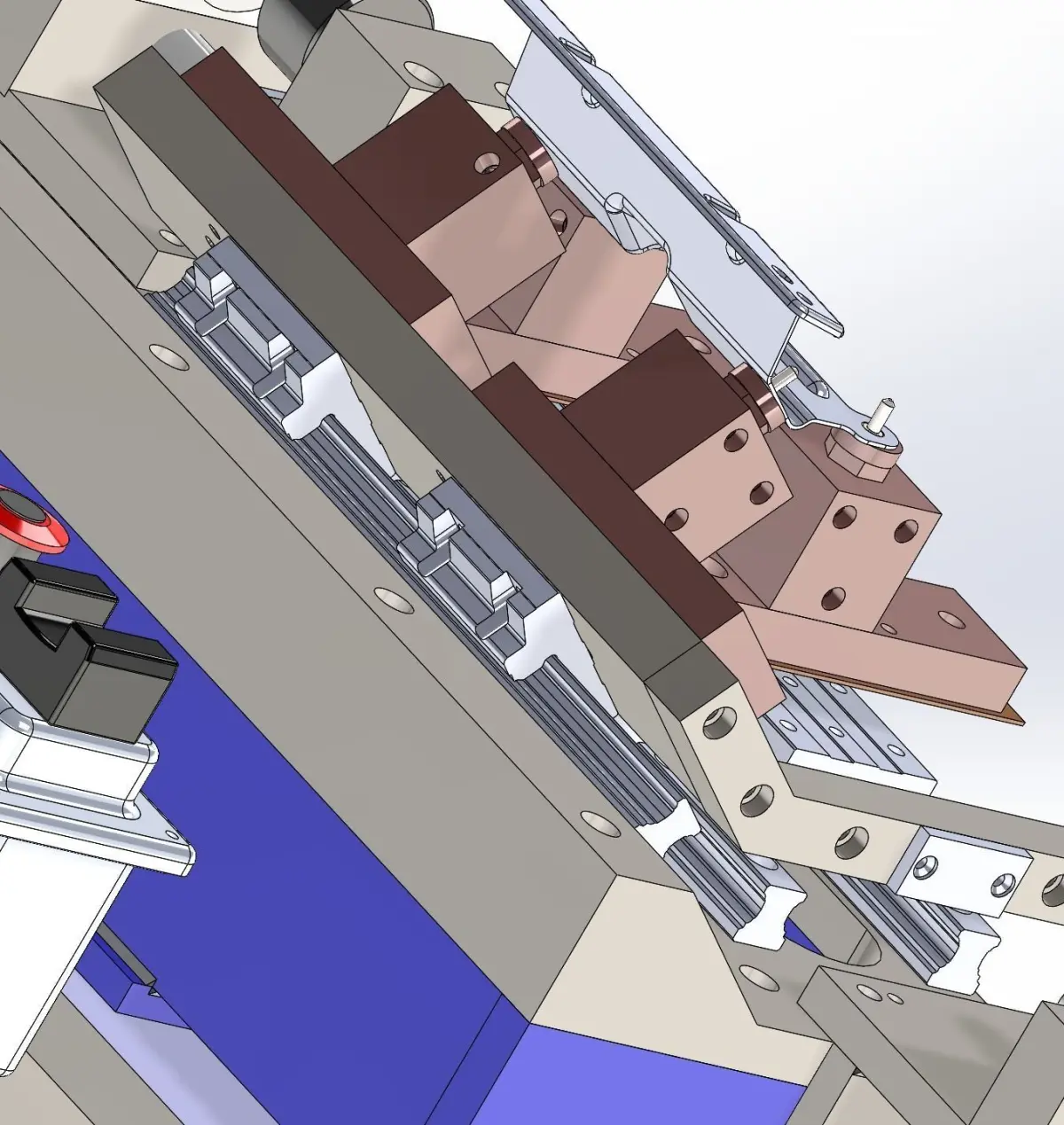

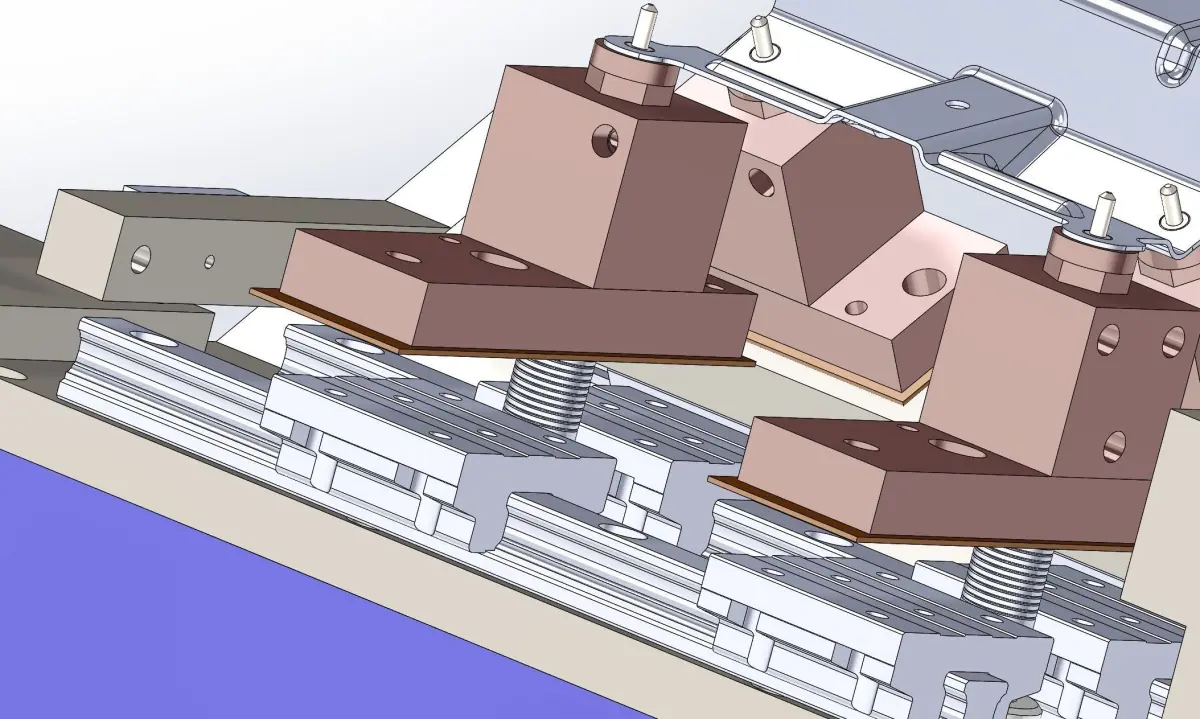

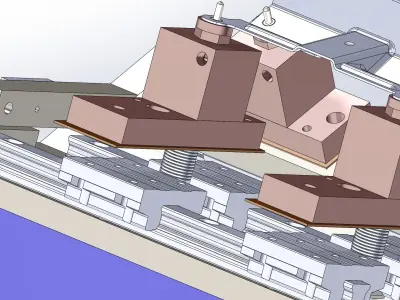

Inclined slide rail mechanism.
Parallel traverse mechanism.
Electric control box structure.************************************** Files format contains-solidworks 2017-step-iges-stl-obj-3ds
and other formats************************************** If you like,you can paypal for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with PhotoView 360**************************************

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs:
Geometry: Polygon mesh
Polygons: 172628
Vertices: 346102

Tags

Machine Industry Industrial Equipment Manufacture Production Assembly Factory Automatic Mechanic Engine Tool Part Device Tilting Track Sheet Metal Angle Fixing Industrial machine Industrial part Industrial factory
