Buy ANSI B16 5 Weld Neck Flange Class 150 05 to 24 NPS 3D model

Name: ANSI B16 5 Weld Neck Flange Class 150 05 to 24 NPS 3D model
Brand: AldoTronic
SKU: 892268
Price: 19.00 USD
Availability: InStock

$19

License: Royalty Free

author:

AldoTronic

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «AldoTronic». CGhub does not claim copyright ownership over the content used.

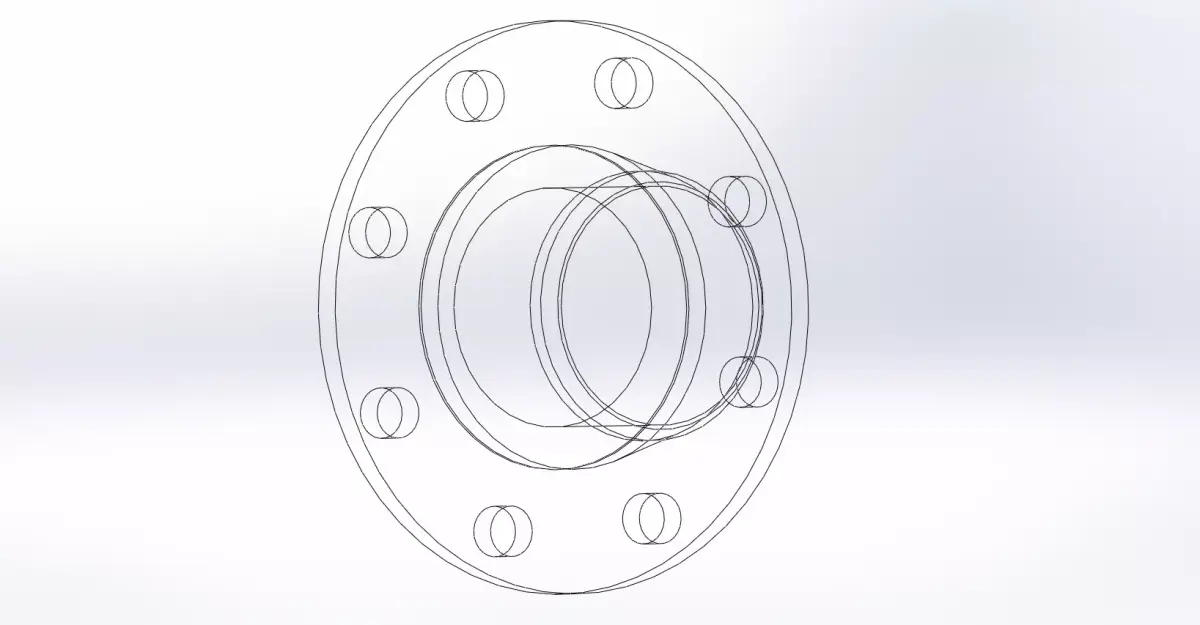

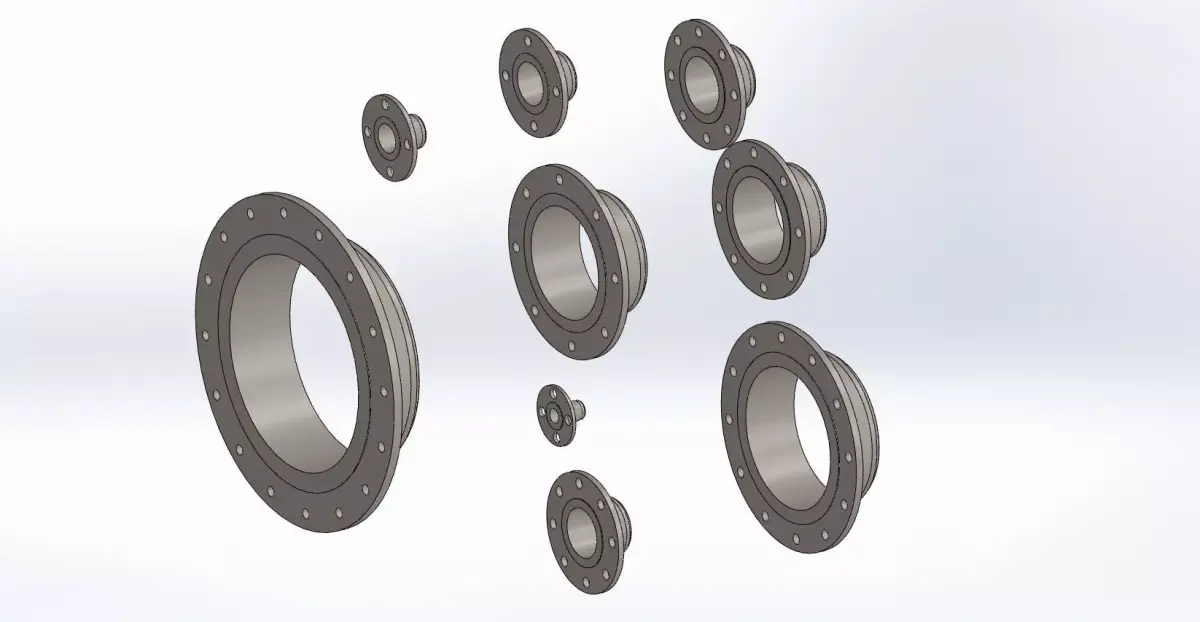

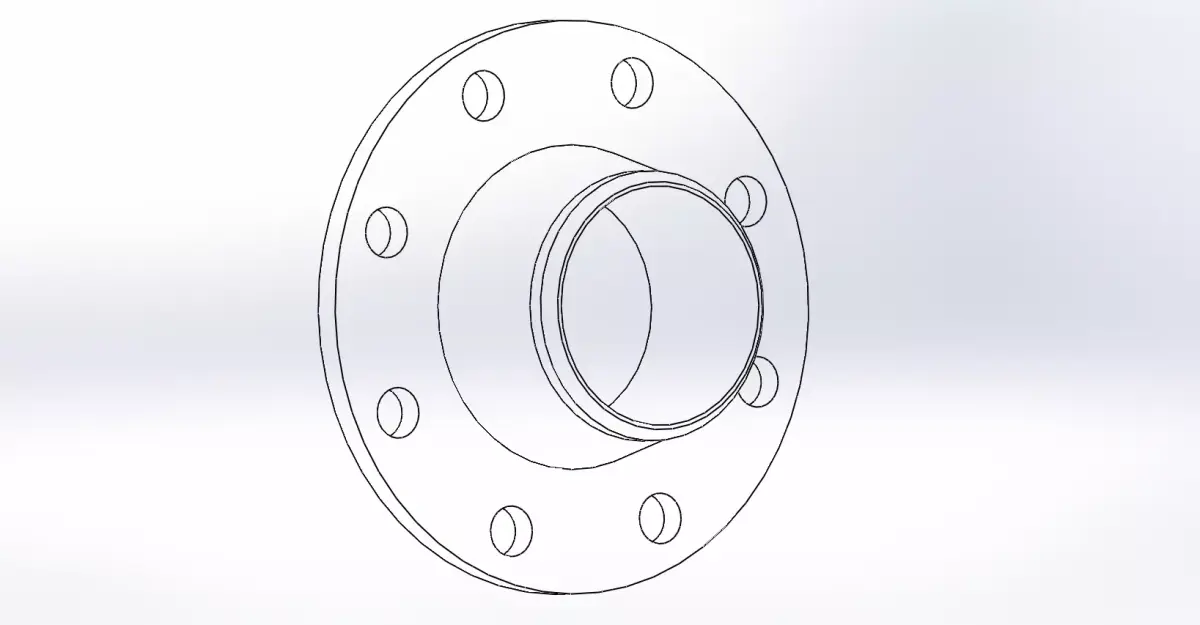

Complete ANSI B16.5 Weld Neck Flange (WN) Class 150 library, modeled in SS316 stainless steel.

This engineering-ready CAD package includes nominal pipe sizes from NPS 1/2up to 24, built as accurate parametric solid geometry for professional industrial use.

Designed for mechanical assemblies, piping systems, plant layout, and process equipment integration.

Included in this package:

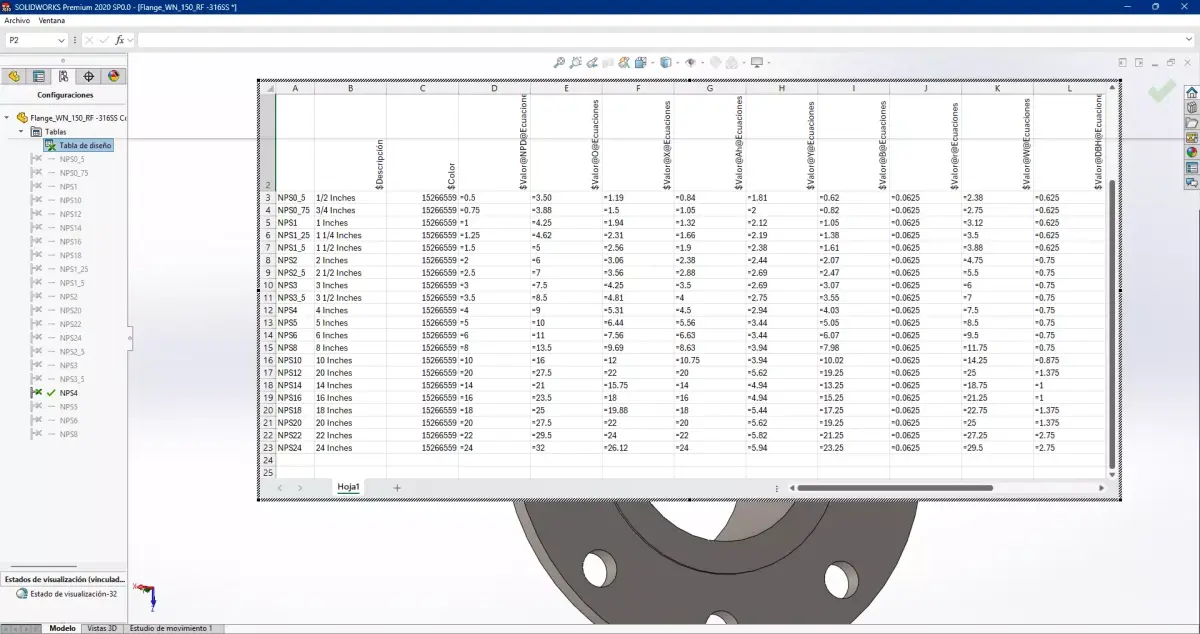

• SolidWorks native file (.SLDPRT) with all configurations• STEP files (.step) – individual file per size• STL files (.stl) – individual file per size• OBJ files (.obj) – individual file per size

Technical Specifications:

Standard: ANSI B16.5Type: Weld Neck (WN)Pressure Class: 150Material: Stainless Steel 316 (SS316)Nominal Size Range: 1/2– 24Units (native file): IPS (inch-pound system)Geometry: Fully defined solid model

Applications:

• Piping system design• Industrial plant modeling• Oil & Gas equipment layout• Mechanical assemblies• Engineering simulation environments

Models are provided as precise engineering solids. No decorative textures are included.
