RC CAR PRINTED ARRMA X ZDRACING TRUGGY 1:7 4WS 4WD(4 WHEEL STEERING X CENTRAL DIFF)
Ultra-high-performance 1/7 scale RC car, 3D printable, using standard ARRMA central diff and ARRMA 6S NOTORIOUS / KRATON / BIGROCK drive shaft.ZDRACING better big diff partsand many CVD 1/7 (ZD EX07-DBX07, MX07, ARRMA KRATON CVD)The design is improved, and much more durable than the original. Easy Fix, Strong, Modulable, Big battery place, Speed 100Km/h in 4S.4WD And 4WS
- Ender 3 compatible (NOTORIOUS ONLY)

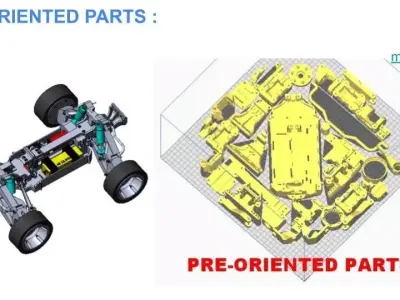

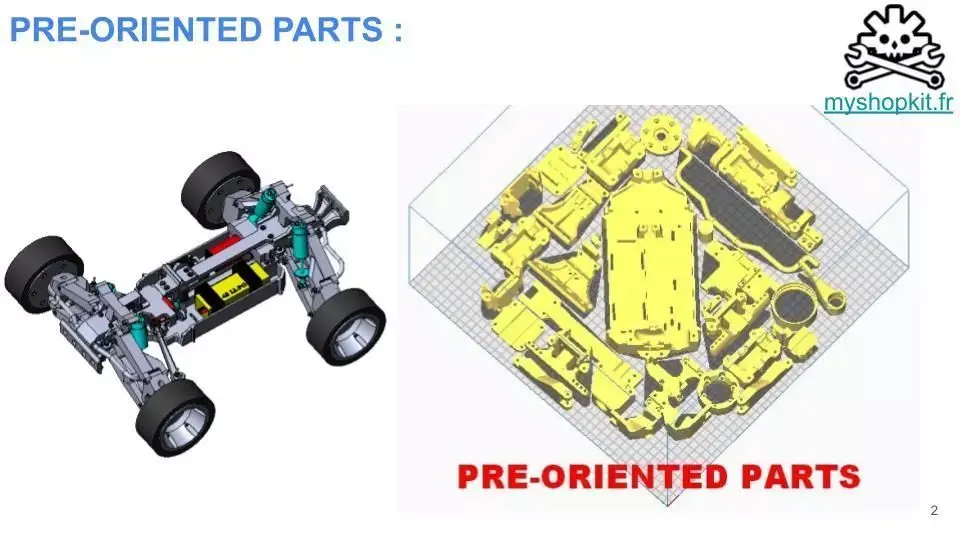

- STL Pré-oriented (ready to print),
- Full Metal transmission,
- 4 arms = 1 arm (Lowers and Uppers),
- Modulable,
- Only M3 Screws / Washers / Nuts
- 17mm Wheel Hub
Recommended Electronic hardware :
- D3660 3150KV 5mm (or more)
- 4S 4500mah 60C (or more)
- ESC 10BL120 (or more)
- Servo DS3218 PRO 180deg
Recommended Mechanical hardware : (with REF code for search Aliexpress)
- M1 Steel Pinions Gears 14T - 20T
- Rolling ABEC 7 (for ARRMA and MX07 : cf tuto / for ZD and EX07-DBX07 : cf tuto)
- (X2) Front Gear for Diff (REF: cf tuto)
- ARRMA or HSP MOTOR MOUNT (REF: cf tuto)
- CENTRAL DIFF (REF: cf tuto)
- TRANSMISSION DOGBONES (ARRMA NOTORIOUS / KRATON / BIGROCK drive shaft)
- (X2) Differentials (ZD EX07-DBX07 or ZD MX07)
- CVD (many possibility cf tuto)
BUILD GUIDE :
https://docs.google.com/presentation/d/10uAzJ0vI9sMLNTcA77r8GpKWMWLQf-Jbxnl2-MbjN_k/edit?usp=sharing
DRIVE TEST :
https://youtu.be/R_dJ-n3_QSA
BUILDING VIDEO LINK :
https://youtu.be/ltlX8YH-RXE
PREMIUM VERSION GOT :
- New REVERSE ACKERMANN STEERING SYSTEM Best for max angles
- New DIRECT DRIVE STEERING SYSTEM Best for Bash
- New Steering Cup Hubs and linkage
- New additional Battery Side Mount
- New Slim / Medium / Wide / Extra Wide Chassis
- New Body Mount + Body upper protection
- New Wheelie Bar
- All RIMS Sizes and offsets STL kit
- Transmission Cover
- Big ESC Hobby wing Max8(6S) or Max6(8S) Dual Place Capability
- Big Battery Place
- FPV Protection
- Lower Protection Pate
- Gopro mount
- More adjustment holes
- Fresh Update and Upgrade
- Thanks from the creator
DRIVE TEST :
Drive test 3 :https://youtu.be/SvWld79_sfc?si=IxgxMczxTGTEKQeaDrive test 2 :https://youtu.be/yqldffKXP6s?si=-j6Je2f98ZwKowQODrive test 1 :https://youtu.be/OAT00DGrQRY?si=kfoROmn45r2Mdgoa
PREMIUM LINKS :
Official websitehttps://myshopkit.fr/
FREE VERSION GOT :
- ALL PARTS TO RUN A GOOD DEMO VERSION ;)
- New REVERSE ACKERMANN STEERING SYSTEM Best for max angles
- Slim Version of the Chassis
- Motor Mount D36 D42
- Metal Motor Mount Capability
- RIMS Hexa 17mm
- Standard ESC Place Capability
- No additional parts
- No bumpers
- No Lower Protection
- No willie Bar
- …
NEEDS :
TPU ( 500g )ArmsBumpersPLA Plus ( 1Kg )All the Rest
TOOLS :
Hallen H2.5mm(for M3 Screws) / H1.5(for Pinion)Long Nose PliersThreadLockerGreaseClamp Gaskets

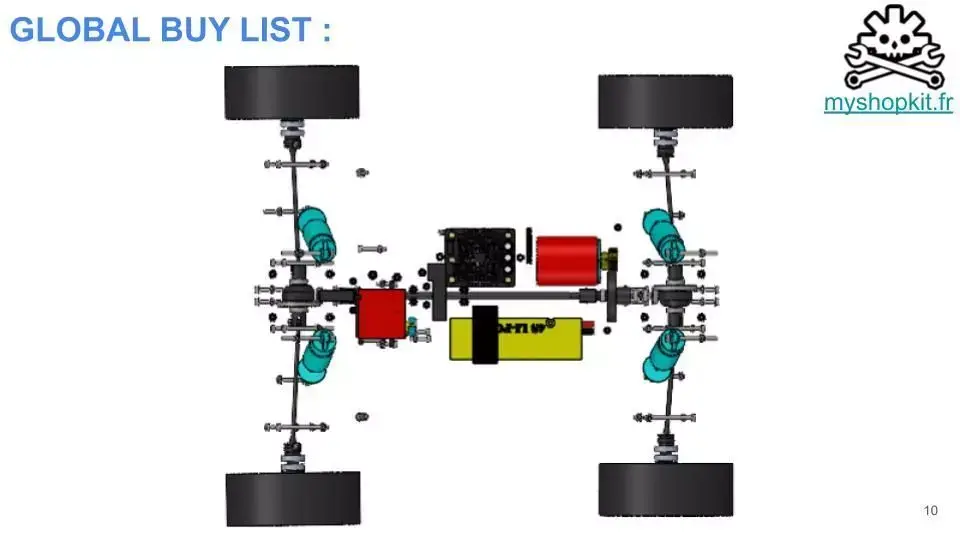

HARDWARE STORE :
Rolling ABEC 7 (for ARRMA and MX07 : cf tuto / for ZD and EX07-DBX07 : cf tuto) ( X 8)Metal Steering Linkages 105mm ( X 2)Washers M3 ( X 100)Lock Nuts M3 ( X 100)ScrewsM3 x 5mm Hexa ( X 8) (Motor Mount)M3 x 14mm Hexa ( X 10) (Steering Cup Hub)M3 x 20mm Hexa ( X 60) (ALL THE REST)M3 x 30mm Hexa ( X 10) (Shocks Absorbers / Reverse Ackermann Steering)M3 x 40mm Hexa ( X 24) (ARMS / Reverse Ackermann Steering)
TAGS :
- ARRMA - ZD
- Ender 3 compatible
- PreOriented STL PARTS
- 3D Printed RC Car
- Reverse Ackermann Steering Compact System or direct drive steering
- Full Metal transmission
- Metal Steering Linkages Compatible 105mm
- Brushless Motor 3660 3150KV Recommended up to 4268 (3650 min 3150KV max)
- 3S - 4S - 6S - 8S
- DUAL3S = 6S / DUAL4S = 8S / DUAL6S = 12S (soon DUAL8S = 16S $$$)
- ESP Front Gyroscope
- Pinion and Gearing Module 1mm (1mm Diametral Pitch) - No cogging issues
- Metal Differential mechanism Central axis Central drive shaft Motor-Gear
- Printed Beadlock Rims 2.2p or 3.2p
- Dogbones Hexa 17mmm
- Strong modulable design easy replace
- Standards Parts
- 4 Arms = 1 Arm (Lowers and Uppers)
- 4WD -2WD -4x4 -2x4
- With or Without Anti roll Bar
- 1:8 Hardware
- No Glue Only M3 Screws Washers and LockNuts
- LED Light System Front and Rear
- Drift
- GoPro Mount
- Body Mount + upper protection
- Wheelie Bar
TAGS:
RC car, ARRMA, 1:8, 4WD, Ender3, ZD RACING, 4WS, 4WD, HSP, NOTORIOUS, KRATON, BIGROCK
CONCEPTION / ADVANTAGES :Cup hub : all tires + flexibleArms : réversible 1 pour 4, flexible type traxxas, locked by screws and lock nuts.Arms mount : M4 + Quick replaceReinforced : triple deckShock absorber : max diam 36mm + extra reinforced + flexible + protectedSteering : flexible + 45deg + compact + gyro place + centered + 4wsTransmission : strong + covered + full métal + cvd + bearing oversized + M1mmBattery : 8000mah 4S placeMultiples bodies mountWillie barOnly Standards parts
If you like it please buy it
ENJOY !
STL (Stereolithography, filesize: 13.2 MB), 3MF (3D Manufacturing File, filesize: 13.2 MB), F3D (Autodesk Fusion 360, filesize: 13.2 MB), PNG (PNG, filesize: 13.2 MB), SLDPRT (SolidWorks, filesize: 13.2 MB), PDF (PDF, filesize: 1.14 MB)
