Description

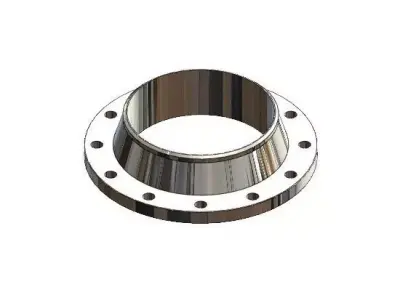

ASME B16-5 WELDING NECK FLANGE CLASS 150

Modeled in SolidWorks 2023
From 1/2to 24
Near 300 configuration to cover all pipe schedules

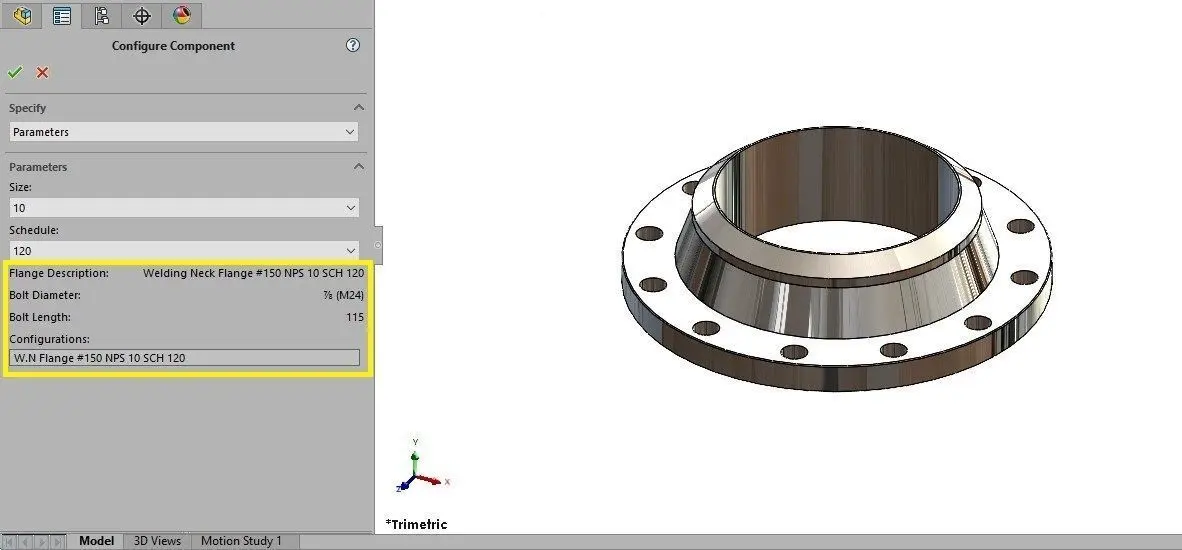

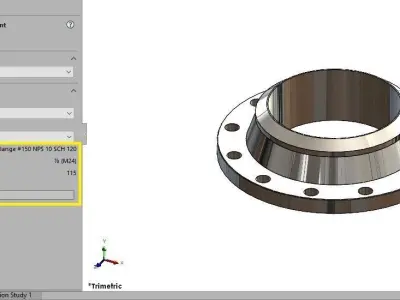

Easily select and filter your desired size in assembly with built in SolidWorks Configuration Publisher
Include bolting information for each flange configuration

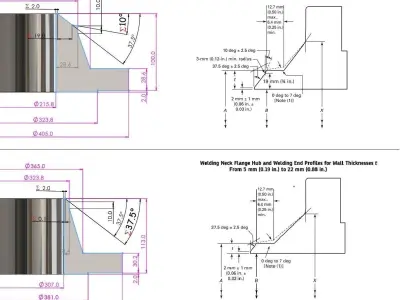

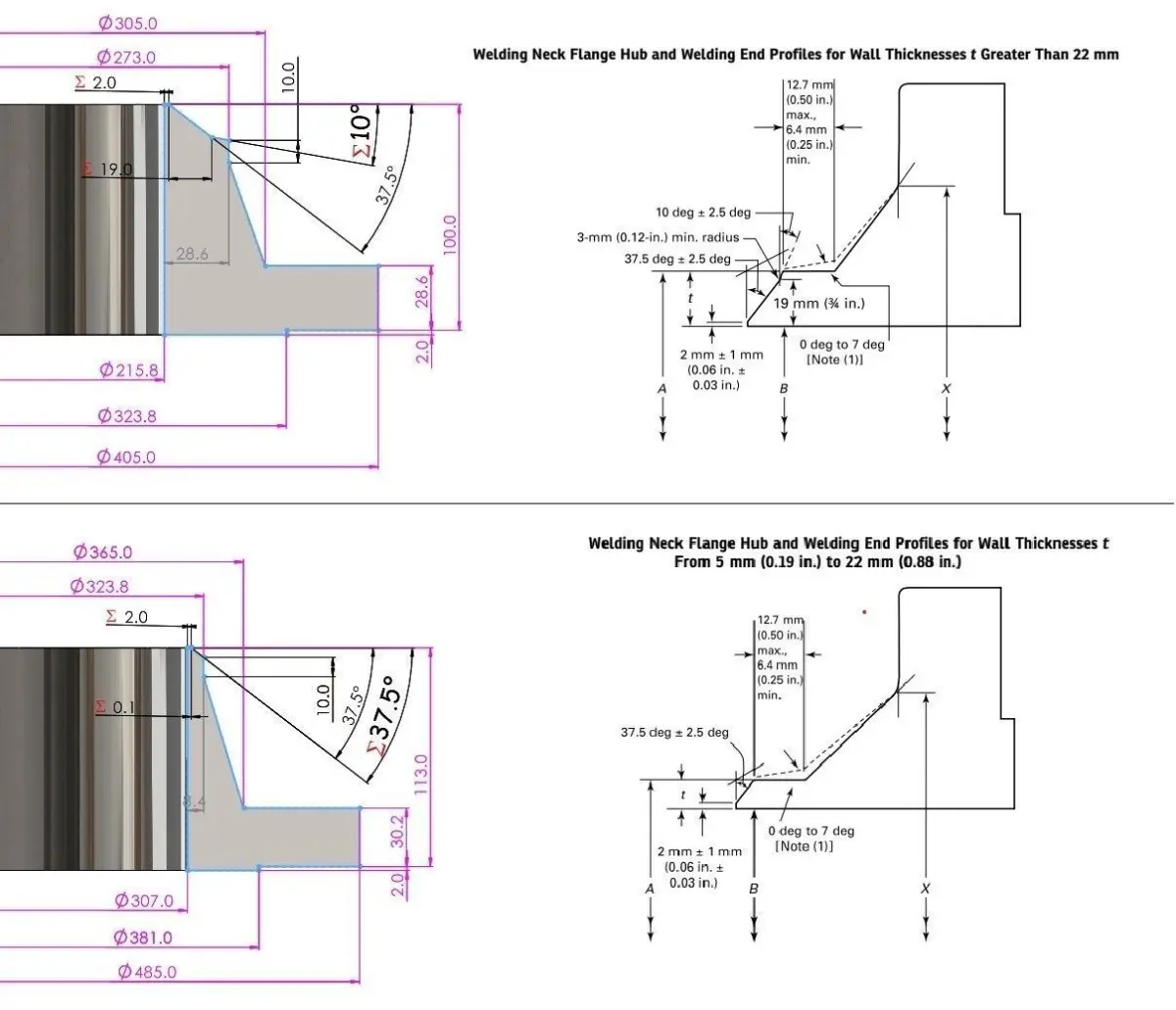

Designed with proper welding profile for various pipe thicknesses in accordance with ASME B16.5
