High-quality 3D model of an ASME BPE compliant sanitary pressure vessel, designed for pharmaceutical, biotechnology, and food processing industries. The model represents a vertical cylindrical vessel with a dished top head, zero dead leg bottom drain valve. This model is suitable for industrial visualization, engineering presentations, factory layout planning, simulation environments, and educational use.
Model Features:
- ASME BPE sanitary pressure vessel design
- Vertical cylindrical tank configuration
- Dished head
- Dished bottom

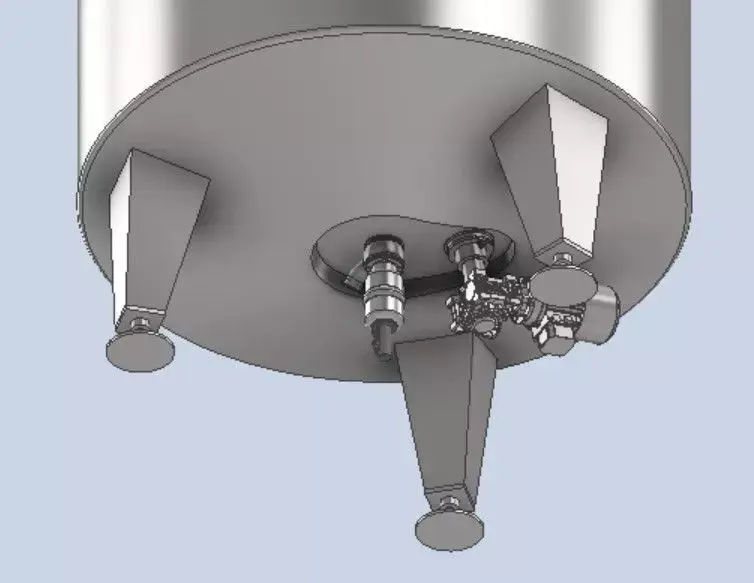

- Controlled zero dead leg drain valve

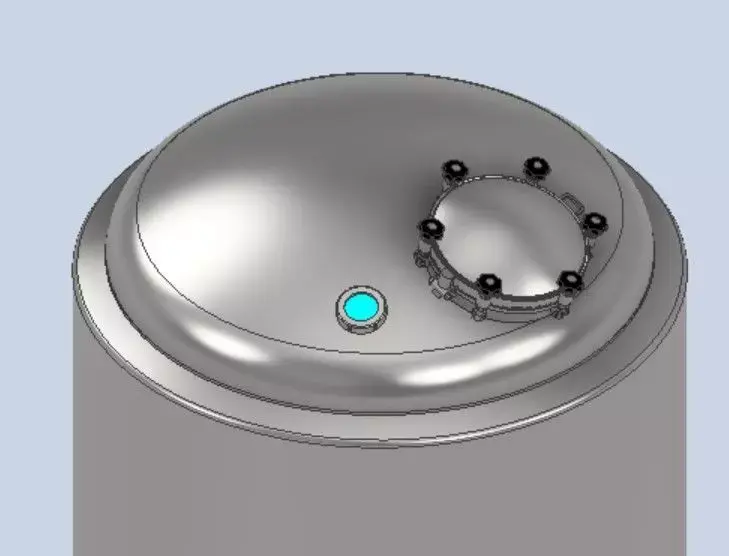

- Manhole access with clamp bolts
- Sanitary sight glass

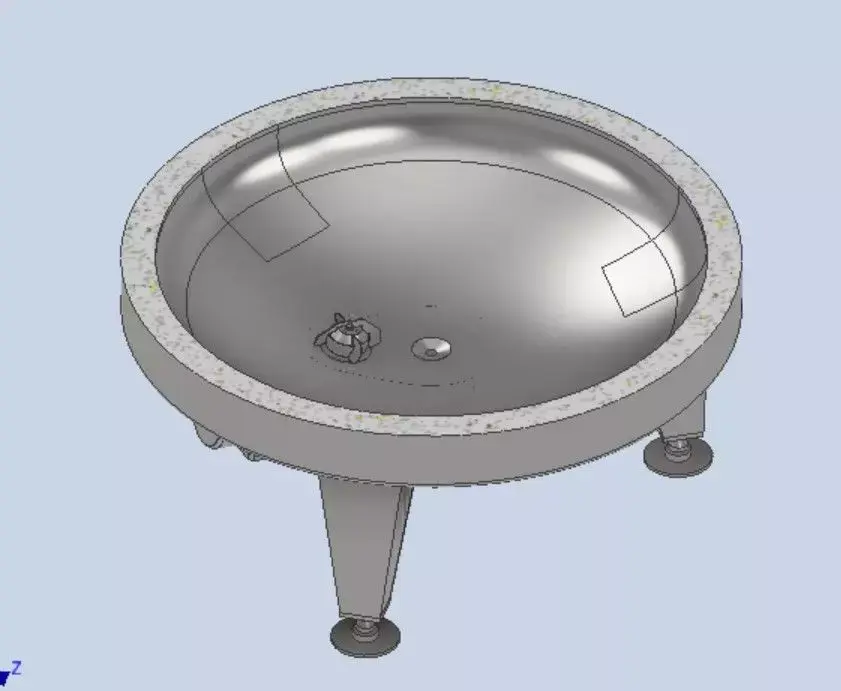

- Magnetic agitator
- Smooth industrial surface geometry
- Clean topology suitable for rendering or modification
Technical Details
- Real-world scale
- Units: millimeters
- Geometry: Clean solid model
Sepatrate body for:
- Vessels shell
- Magnetic agitator
- Manhole
- Controlled valve
- Sight glass
Applications, this model is ideal for:
- Pharmaceutical plant visualization
- Biotech facility design
- Food processing equipment renders
- Industrial training simulations
- Engineering presentations
- Factory layout design
- Product demonstrations
- VR/AR industrial environments
Industrial Standards Reference:The design is based on ASME BPE (Bioprocessing Equipment) sanitary equipment guidelines commonly used in:
- Pharmaceutical manufacturing
- Biotechnology processing
- Clean-in-place (CIP) systems
- Sterile production environments
IAM (Autodesk Inventor, filesize: 9.15 MB), OBJ (OBJ, filesize: 8.95 MB), STP (STEP, filesize: 8.45 MB), IGE (IGES, filesize: 15 MB), X_T (Parasolid, filesize: 7.82 MB)
