Asymmetric Gyro Motor - Electro Mechanical Euler's Disc - Concept.

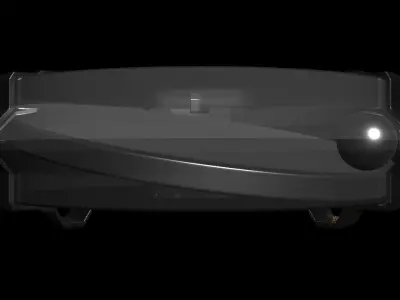

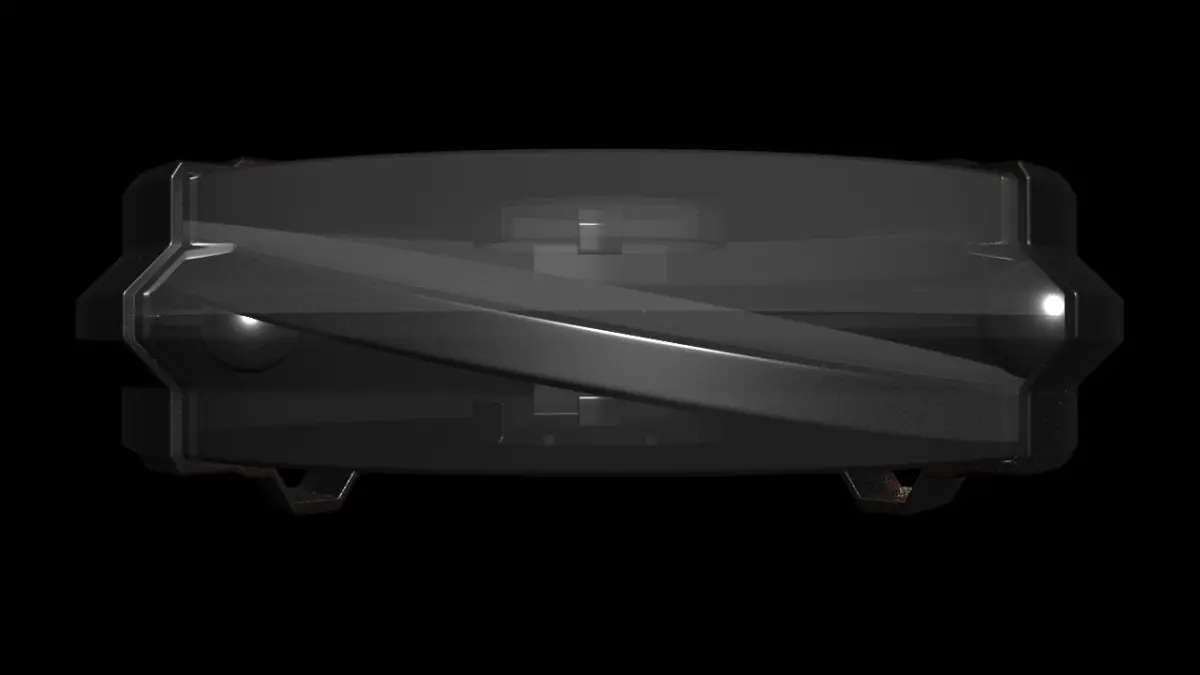

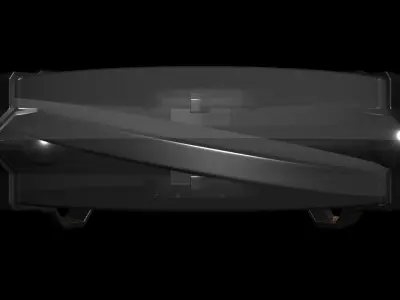

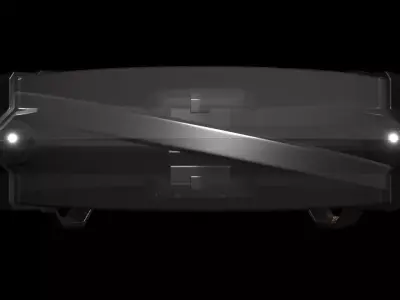

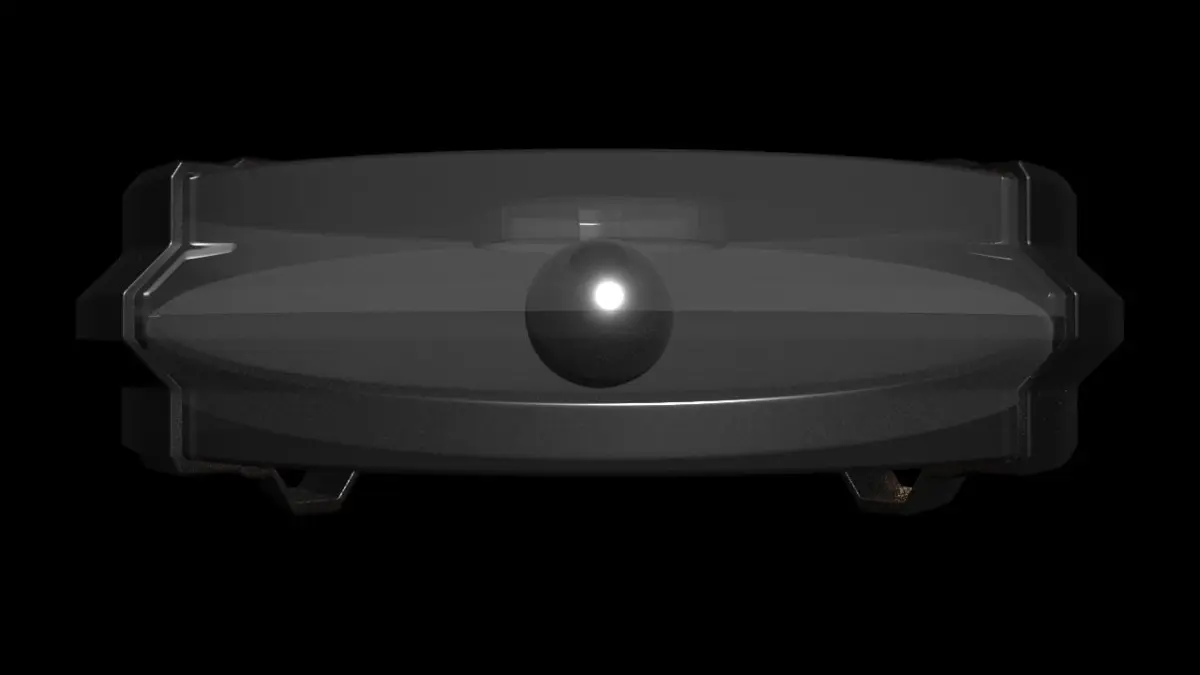

A asymmetrically placed, central [aluminum - metal] gyro disc, propelled by two magnetically rotated, metal bearing spheres, one above the disc, one below the disc, for finding a asymmetric or imbalance in continual rotation. the two metal balls are rotated by two pancake coils creating a single rotating magnetic field between them, inside the motor, moving the balls in their tracks, as they must, like electro magnetic bearings, moving the central asymmetrically placed gyro disc with them.

we could separate the circuits, and perform various magnetic experiments with charges on the balls, etc. i separated the top and bottom half to be able to place the balls and disc easily, the entire apparatus should be easily fabricated, for further educational testing and experimenting.

Thank you for reading, have a nice day, every like helps me to grow and continue.
