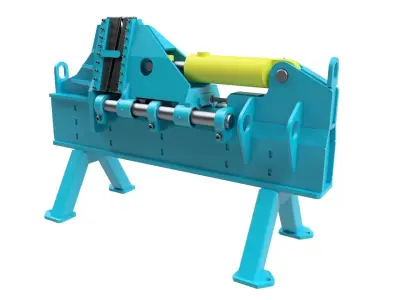

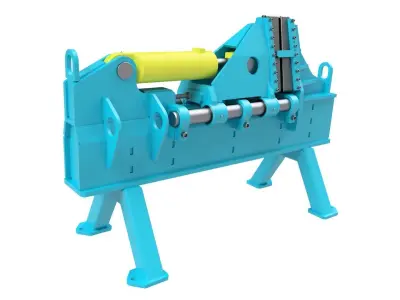

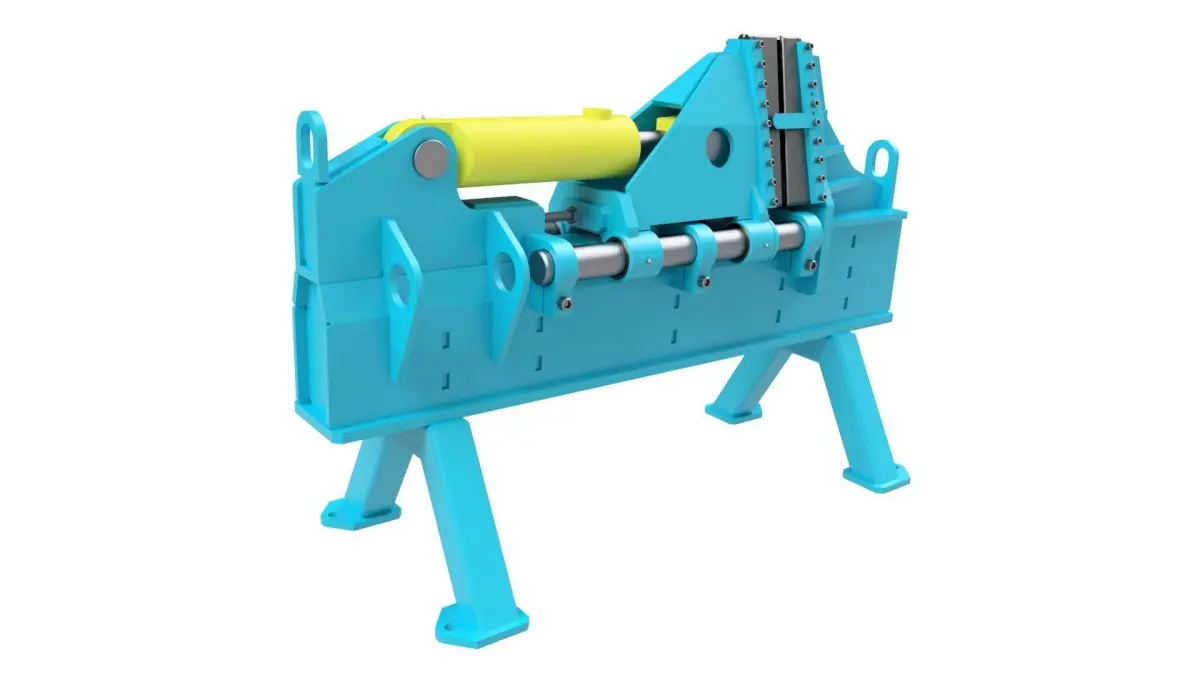

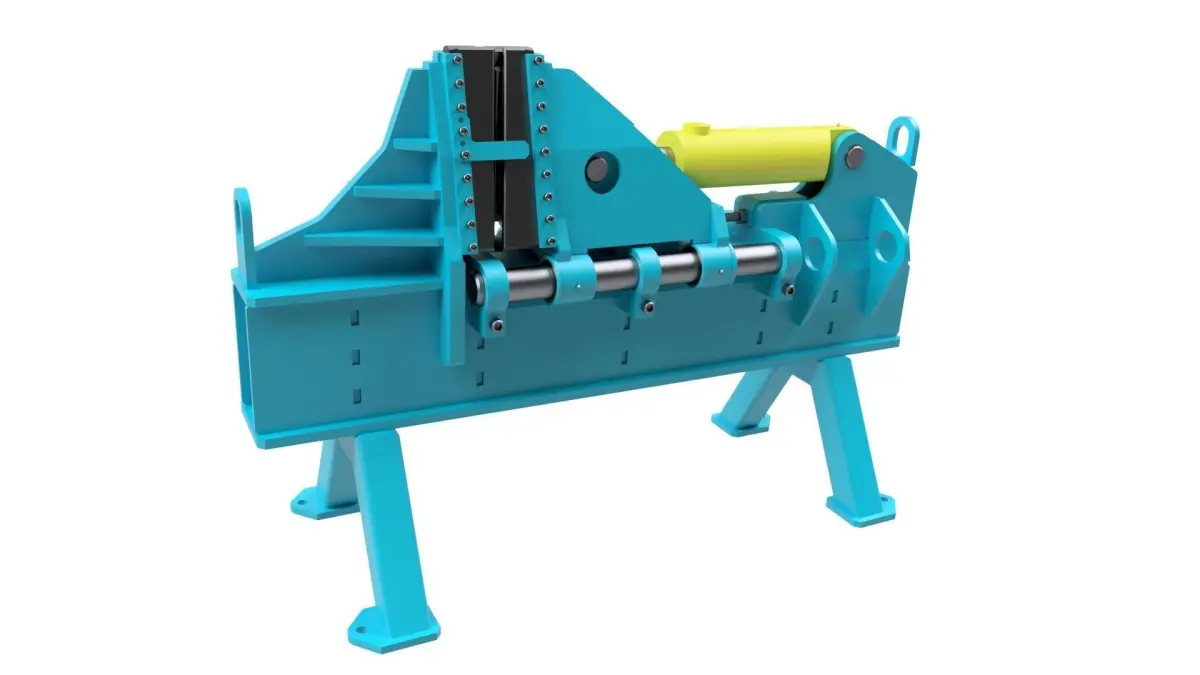

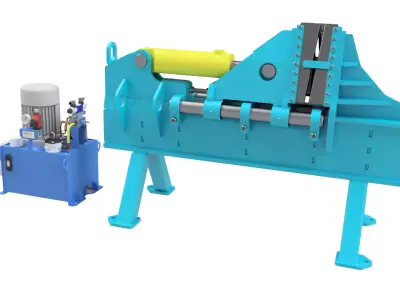

Auger flight forming machine 3D model
Home Catalog Auger flight forming machine 3D model
Auger flight forming machine 3D model
Auger flight forming machine 3D model
Auger flight forming machine 3D model
Auger flight forming machine 3D model
Auger flight forming machine 3D model

Publication date: 2023-11-23

Auger flight forming machine 3D model

$499

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

oleksii27

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «oleksii27». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $499 Add to Wishlist
  • Description

Metal forming machine for the manufacturing of screw feeders and conveyors, auger flights – screw presses , helical tools drilling ground auger cleaning device debris removal.

A complete set of design documentation (drawings of assemblies, parts and specifications) for the manufacture of the product.

Technical specifications:

  1. Outer diameters of finished screw - 100 ... 900 mm;
  2. Internal diameters of finished screw - 40 ... 200 mm;
  3. The thickness of the workpiece screw - 2 ... 16 mm;
  4. The force generated by the hydraulic cylinder - 5 ... 20 tons;
  5. Rated pressure of hydraulic cylinder - 20 MPa;
  6. Piston diameter - 125 mm;
  7. Rod diameter - 70 mm;
  8. Piston stroke - 240 mm;
  9. Machine dimensions: Length - 1857 mm; Width - 750 mm; Height - 1247 mm.

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 0
  • Vertices: 0

Tags

Helix Screw Bending Machine Auger Flights Engineering Flight Forming Metal Conveyors Parts Engineering parts Various Content User
