Buy Auto stacking loading and unloading machine 3D model

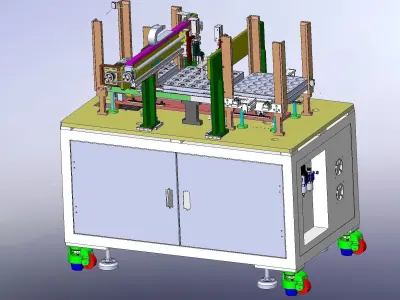

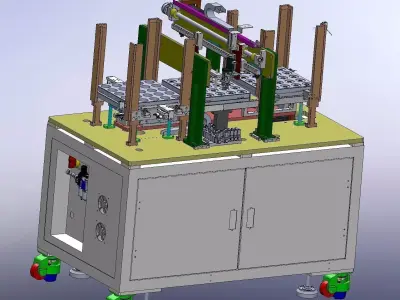

Name: Auto stacking loading and unloading machine 3D model
Brand: forestlsls
SKU: 37448
Price: 35.00 USD
Availability: InStock

$35

License: Royalty Free

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

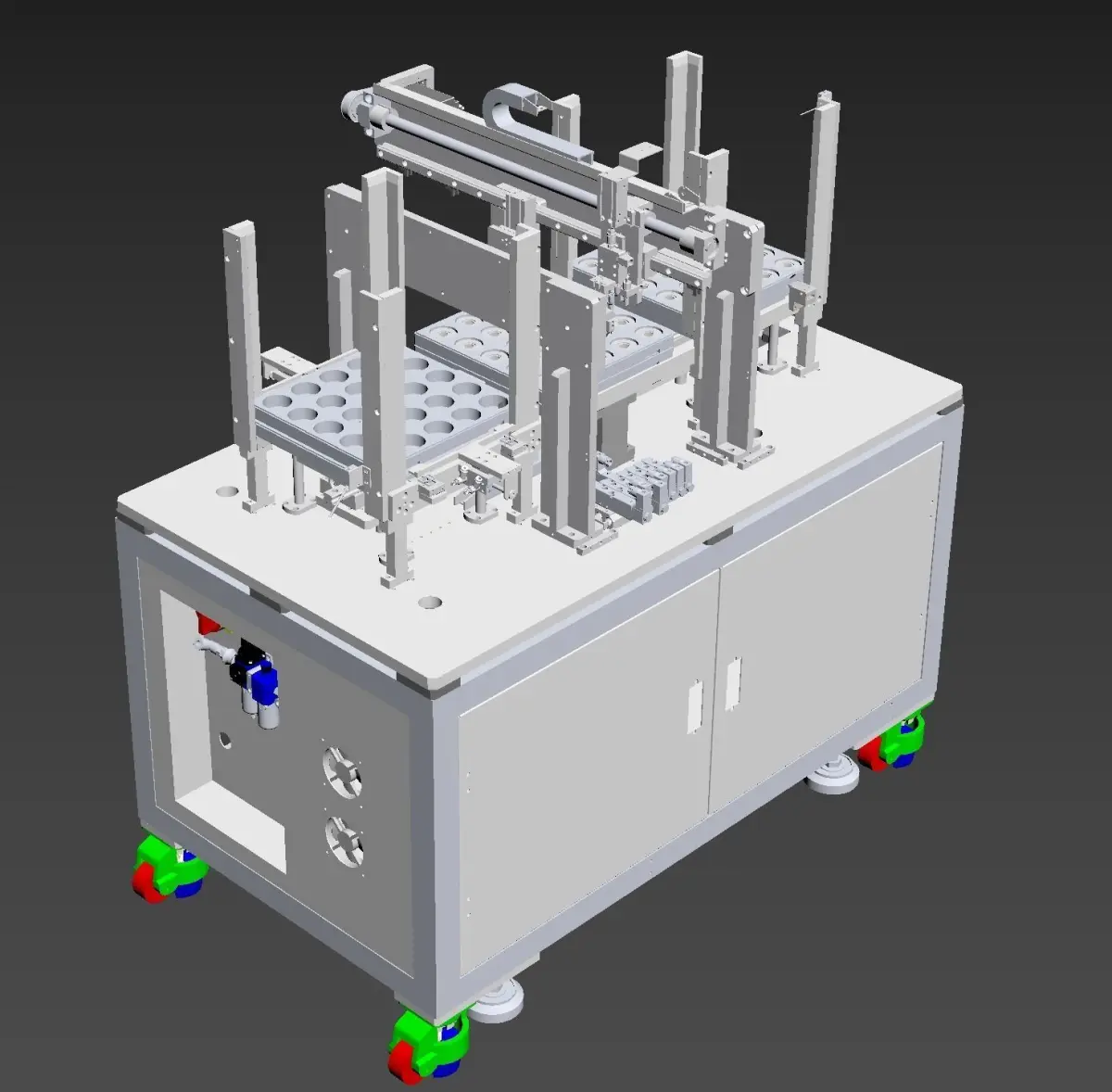

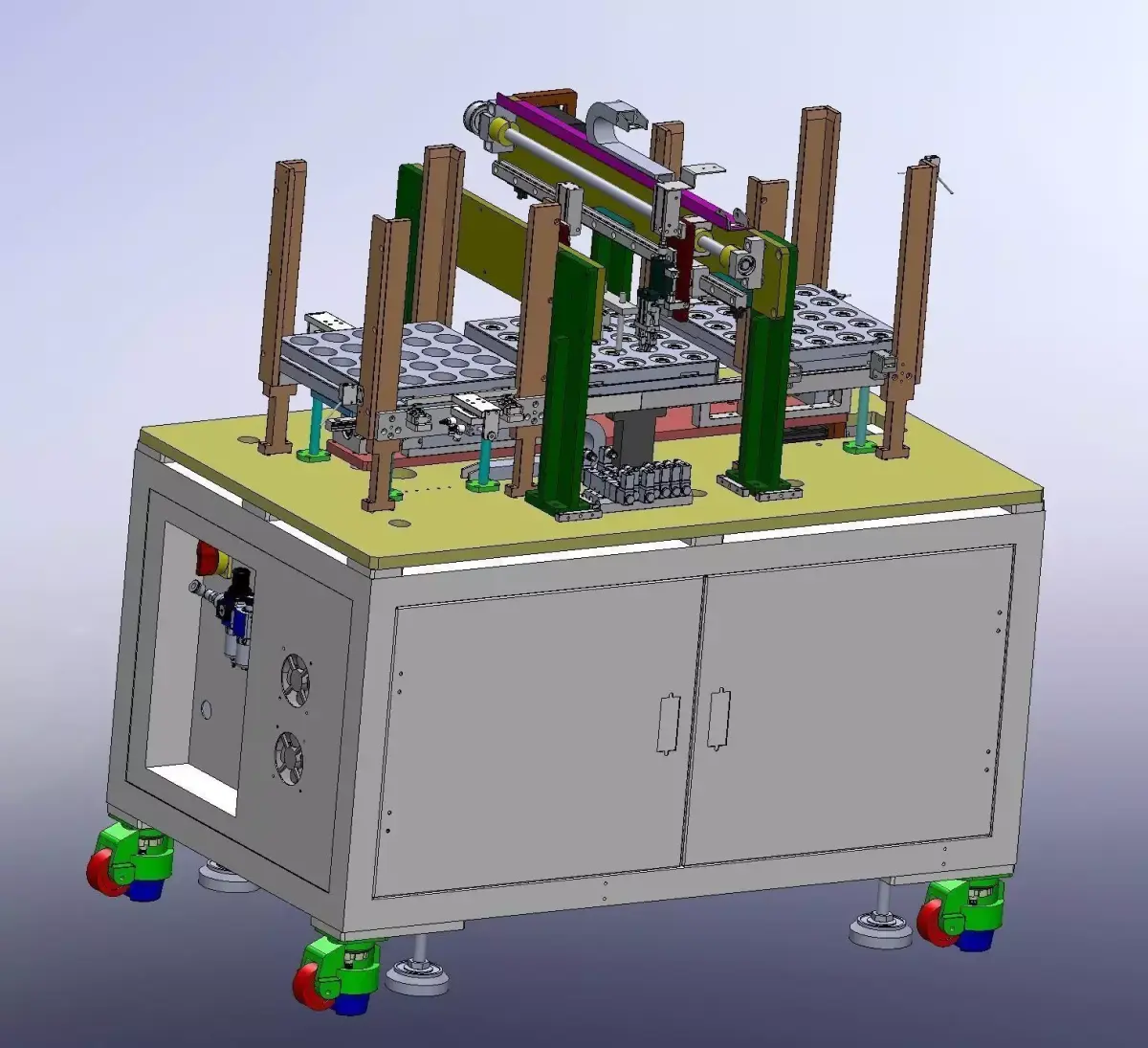

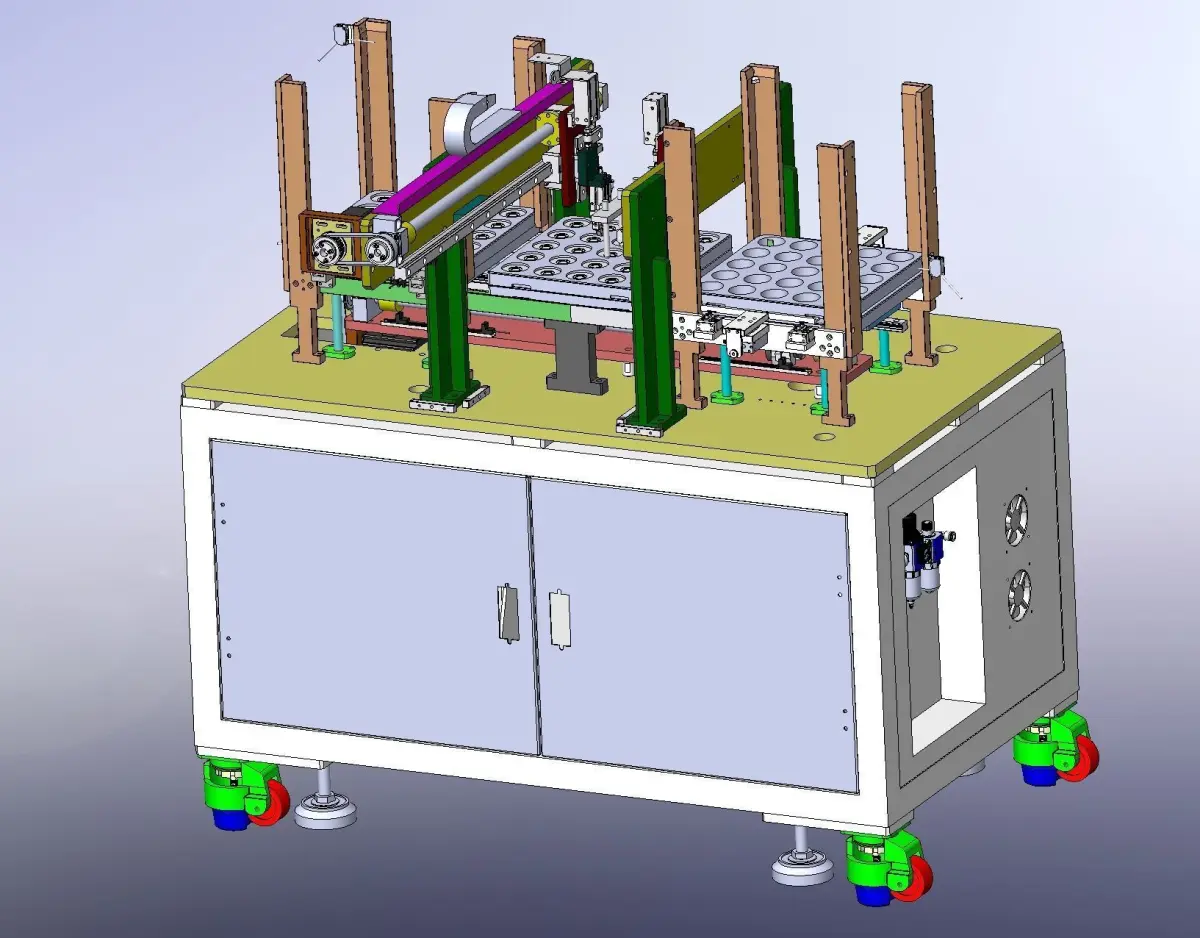

Auto stacking loading and unloading machine，The machine is used to lift up and down the tray tray with the lifting mechanism of the tray tray. The device USES the lead screw horizontal movement mechanism to transfer the tray to feed. The dividing mechanism separates the tray tray through the push mechanism of the cylinder to form the movement of loading and unloading on the tray tray

mechanism include

1.Tray conveyor

2. Entire tray lifting mechanism

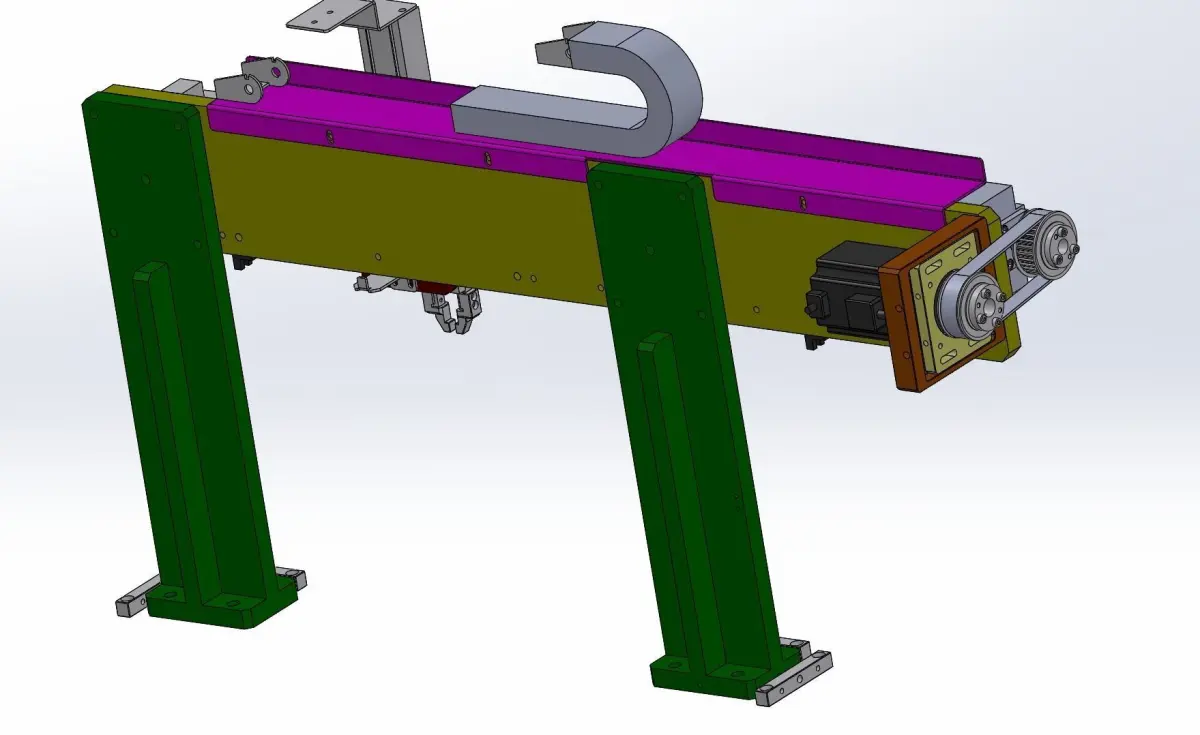

3. Transverse clamping mechanism

4. Oil lubrication mechanism

**************************************

Files format contains

-solidworks 2017

-step

-iges

-stl

-obj

-3ds

-Fbx

-3dmax

- and other formats

**************************************

If you like,you can buy for you to get this models or if you have any questions also you can email to me.

Designed with SolidWorks 2017, render with PhotoView 360

**************************************

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 4264464
Vertices: 8461415
Plugins used
Geometry: Polygon mesh

Tags

Machine Industry Industrial Equipment Manufacture Production Assembly Factory Automatic Mechanic Engine Tool Part Device Robot Stacking Cylinder Feeding Belt Tray Industrial machine – Download & Buy Industrial part – Download & Buy Industrial factory Industrial robot
