Buy Automated Bearing Press-Fitting Machine 3D model

Name: Automated Bearing Press-Fitting Machine 3D model
Brand: eric2020
SKU: 895375
Price: 26.00 USD
Availability: InStock

$26

License: Royalty Free No Ai

author:

eric2020

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «eric2020». CGhub does not claim copyright ownership over the content used.

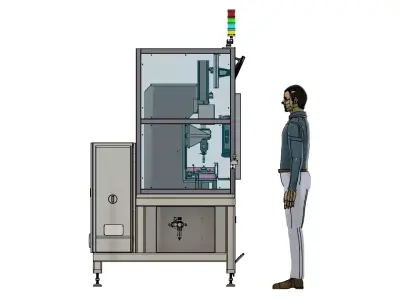

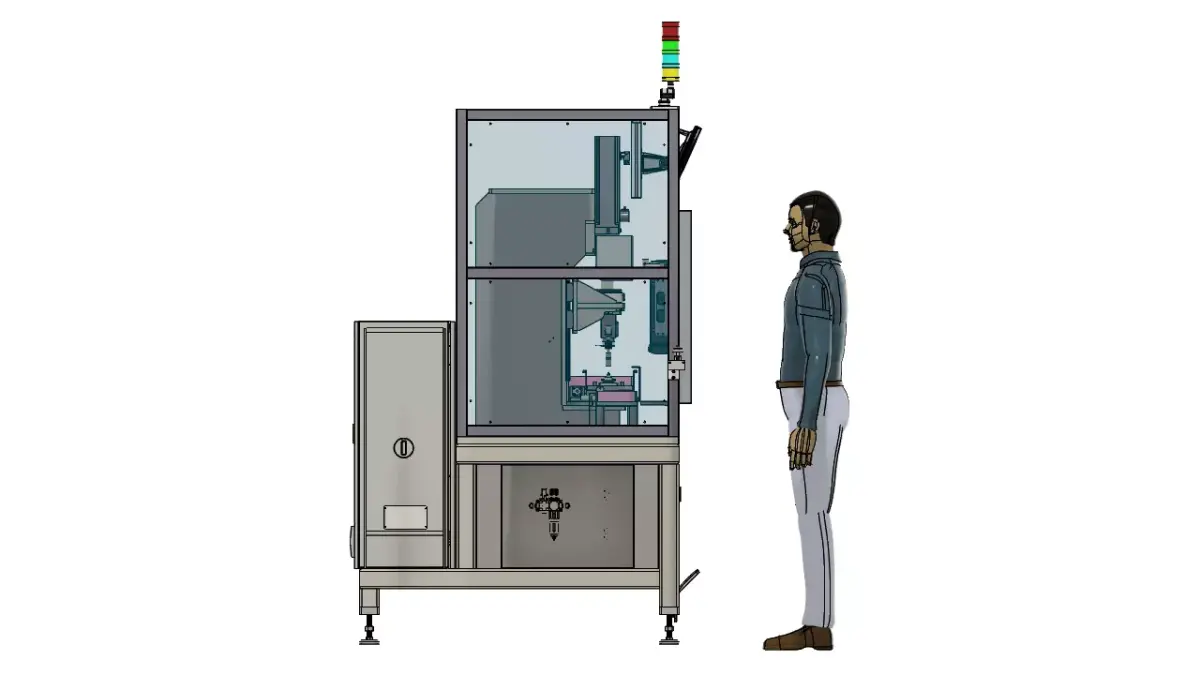

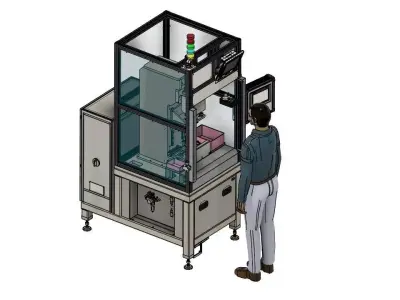

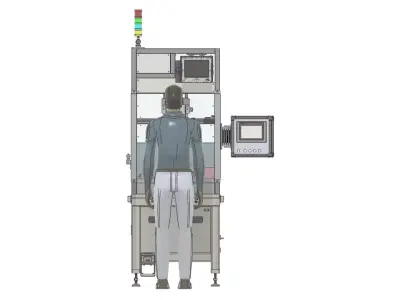

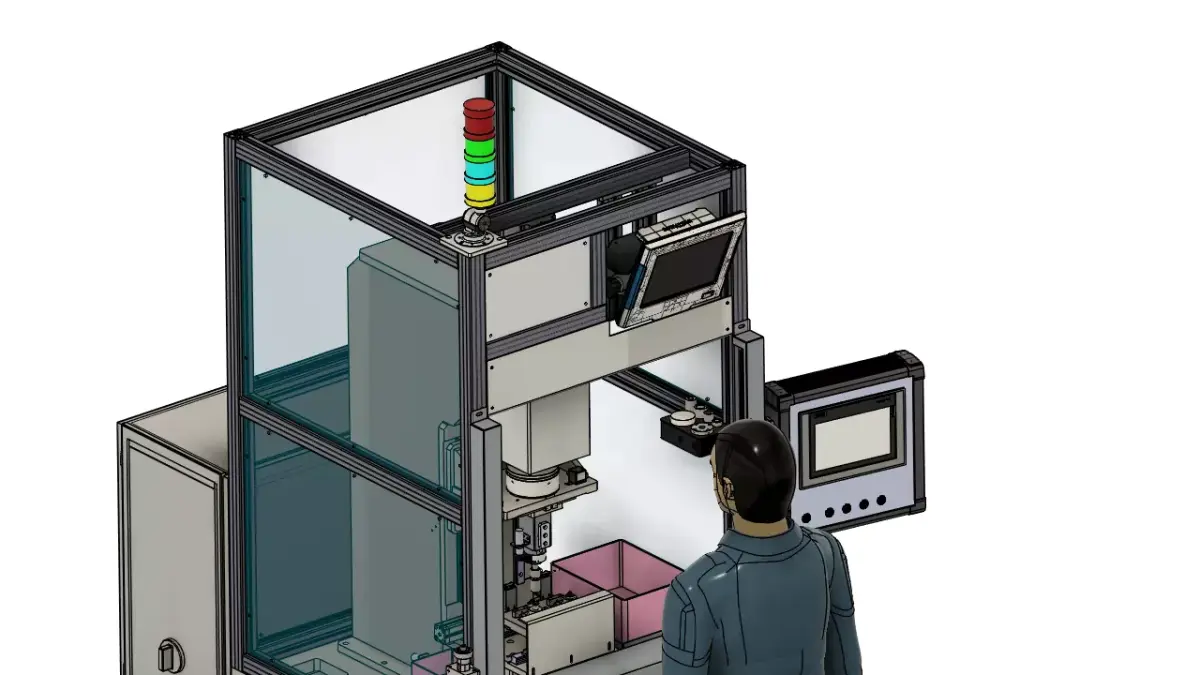

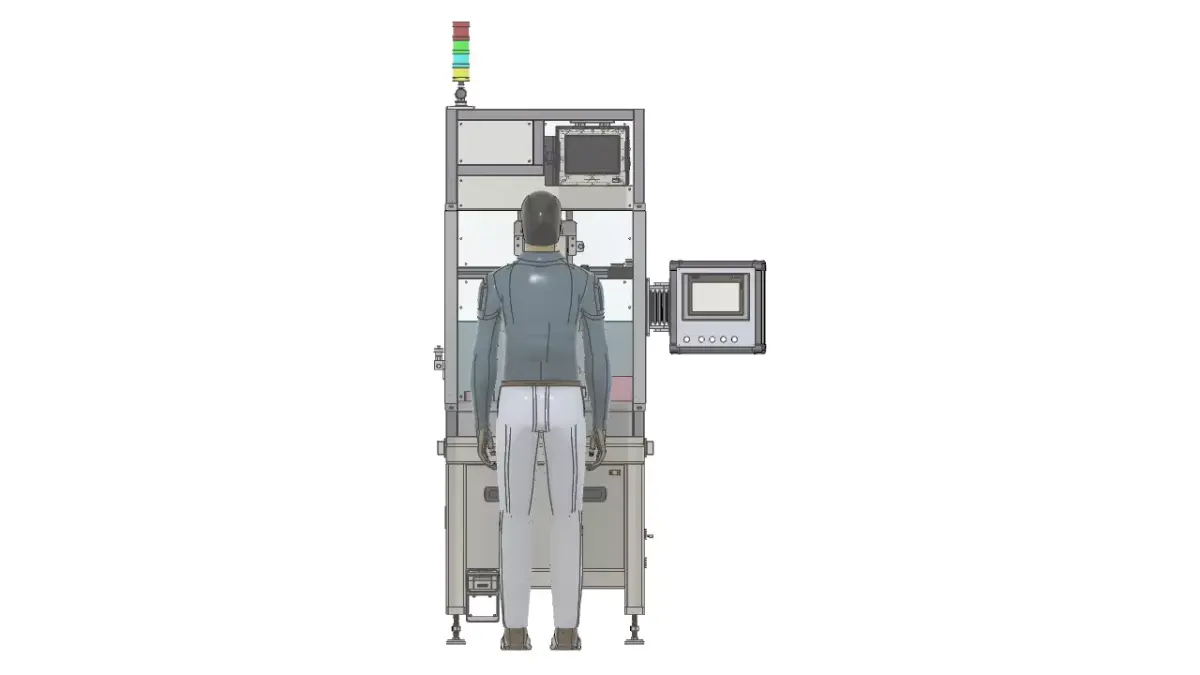

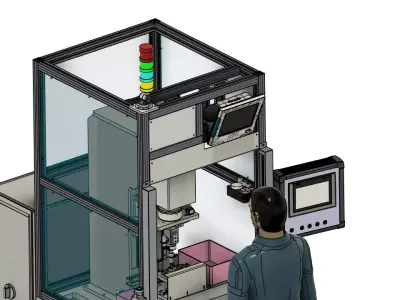

This automated bearing press-fitting machine is a high-precision industrial device, whose 3D model is fully designed and optimized using SolidWorks 2020 software. Leveraging SolidWorks 2020’s robust parametric modeling, assembly simulation, and finite element analysis (FEA) capabilities, the equipment’s mechanical structure—including the servo-driven press module, automatic feeding system, and positioning fixture—has been rigorously verified for structural stability and motion coherence in the virtual environment before physical prototyping.Equipped with intelligent control algorithms, the machine realizes automatic bearing feeding, precise centering, and adaptive press-fitting force regulation, ensuring a press-fitting accuracy of ±0.01mm and eliminating manual operation errors. Integrated with real-time pressure and displacement sensors, it can instantly detect abnormal processes and trigger safety interlocks. The SolidWorks-built 3D model also enables seamless compatibility with downstream digital manufacturing systems, facilitating rapid customization for different bearing specifications and significantly boosting production efficiency in automotive, aerospace, and precision machinery assembly lines.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 0
Vertices: 0
Geometry: Unknown

Tags

Industrial Machine Industrial machine Bearing Modeled Equipment Press Module Automatic Feeder Precision Real time Pressure Sensor Manufacturing Automotive Machinery
