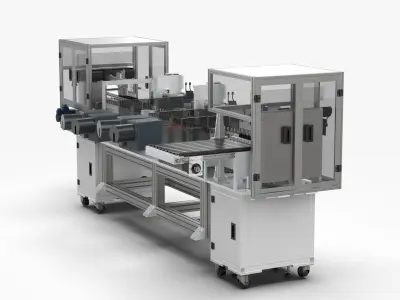

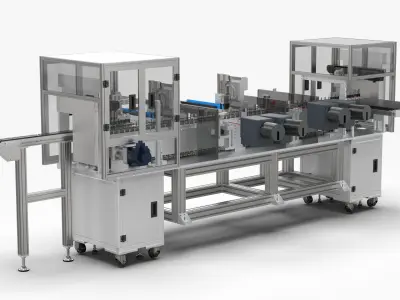

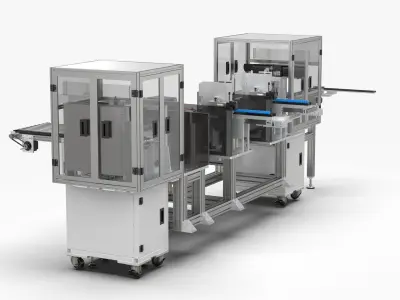

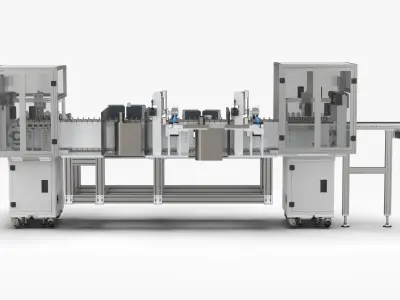

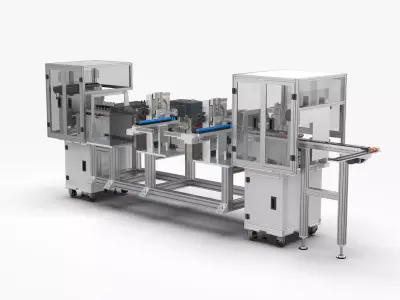

Automatic 18650 Battery X-Ray Testing Machine
Introduction
A set of fully automatic X-ray inspection machine 18650 battery inspection machine 10450 battery X-ray inspection machine. The complete set of drawings is the original complete set of 3D model design drawings. This equipment is suitable for products For: 18650 batteries, 10450 batteries, X-Ray inspection machines for various cylindrical batteries, etc., the equipment mainly transports the batteries to be inspected to the X-Ray inspection station through the chain return line for inspection. The transmitter can detect the voltage internal resistance of the battery, the state of liquid injection, and the number of winding layers inside the battery. It can detect various functions through X-ray irradiation. It is also the most high-end testing equipment in China. It is also very stable. When the battery comes in from the conveyor belt, the cell manipulator grabs the product and puts it in the carrier station of the chain return line for secondary positioning, transportation and inspection. The undetected ones will be discharged in the line body. There are two sets of bad discharge mechanism and discharge The final good products of bad manipulators will be collected together, and that is the main function of this device.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 7,630,611
- Vertice: 22,891,833
