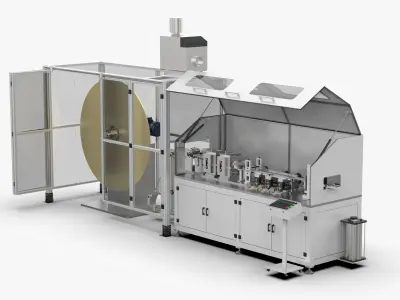

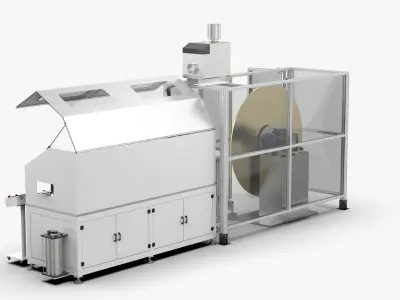

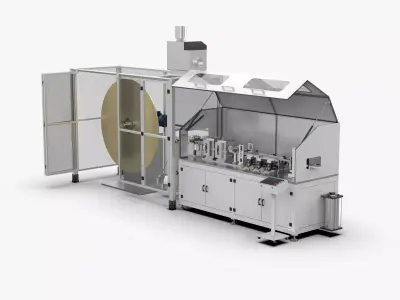

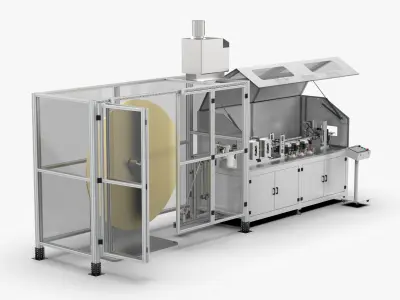

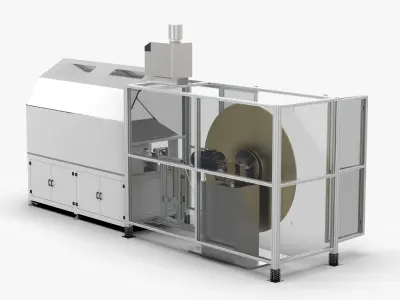

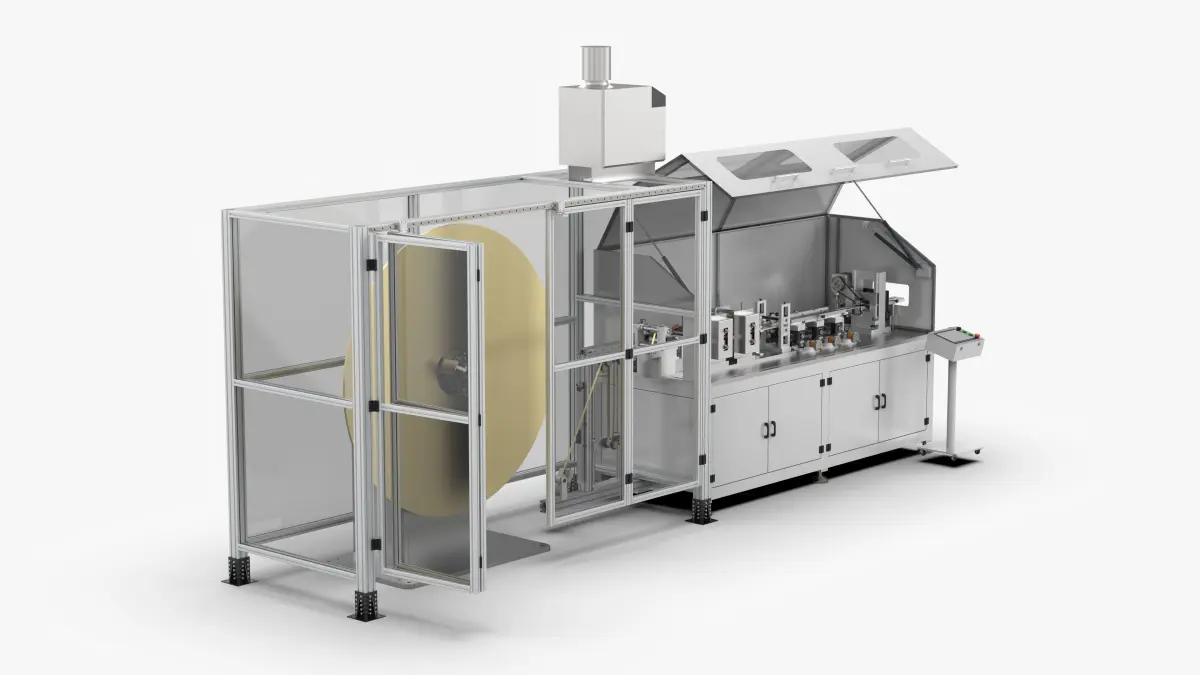

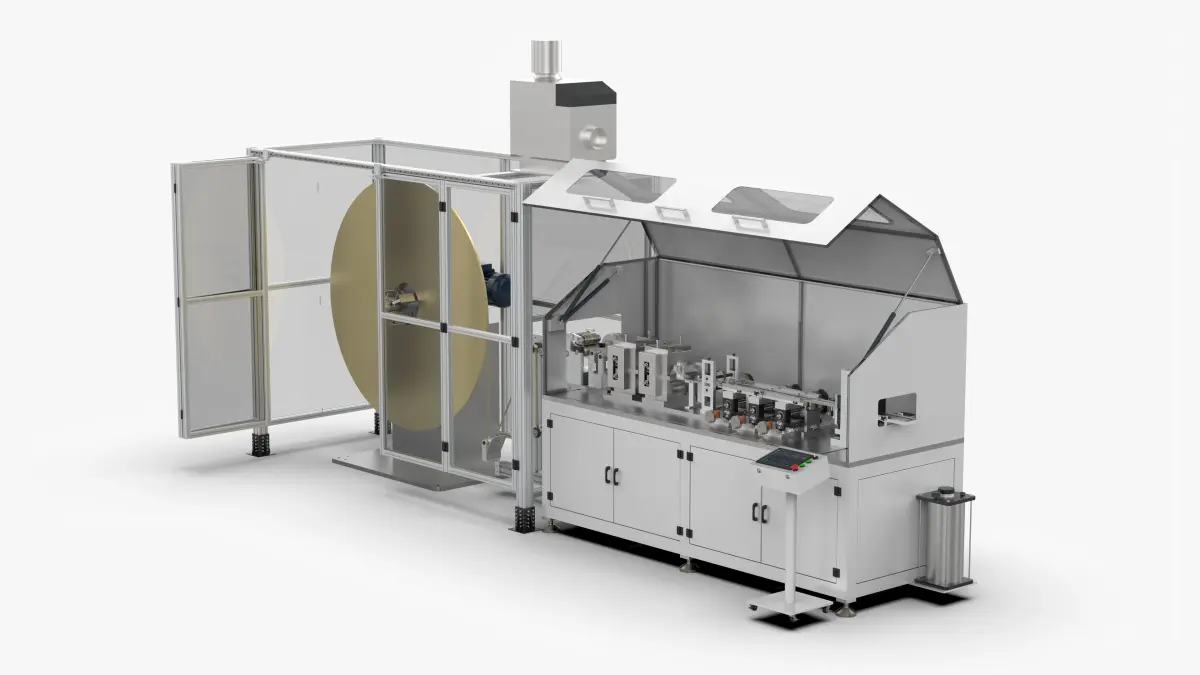

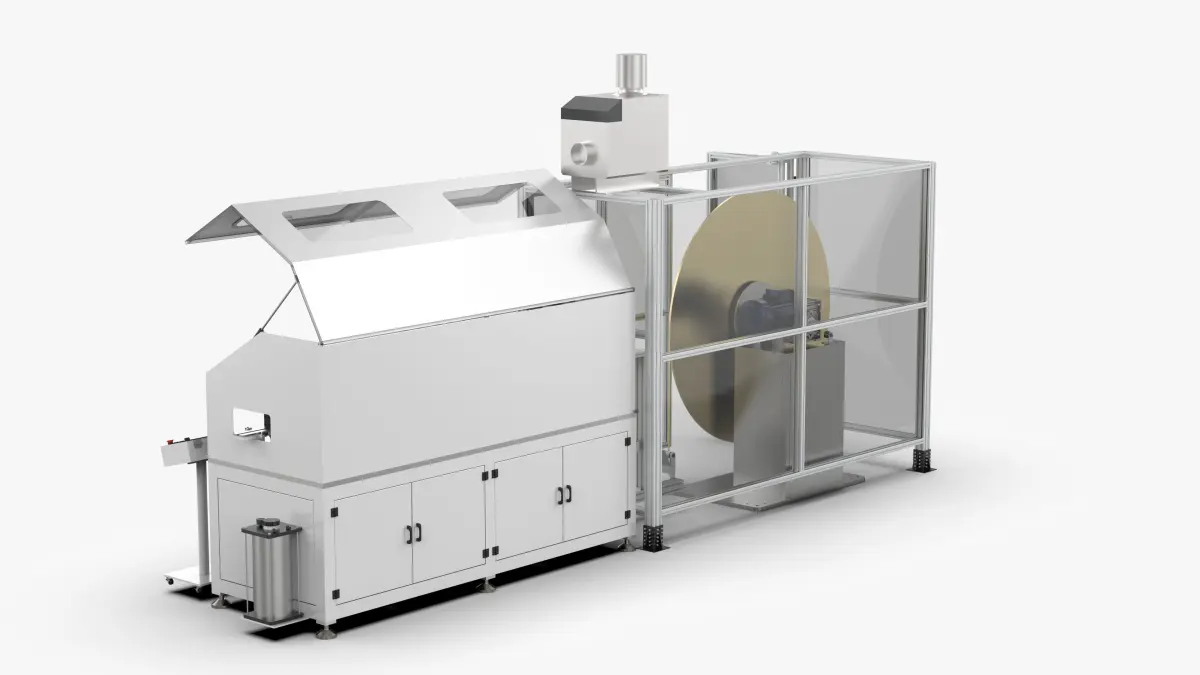

Automatic Aluminum Fin Forming Machine 3D model

Description

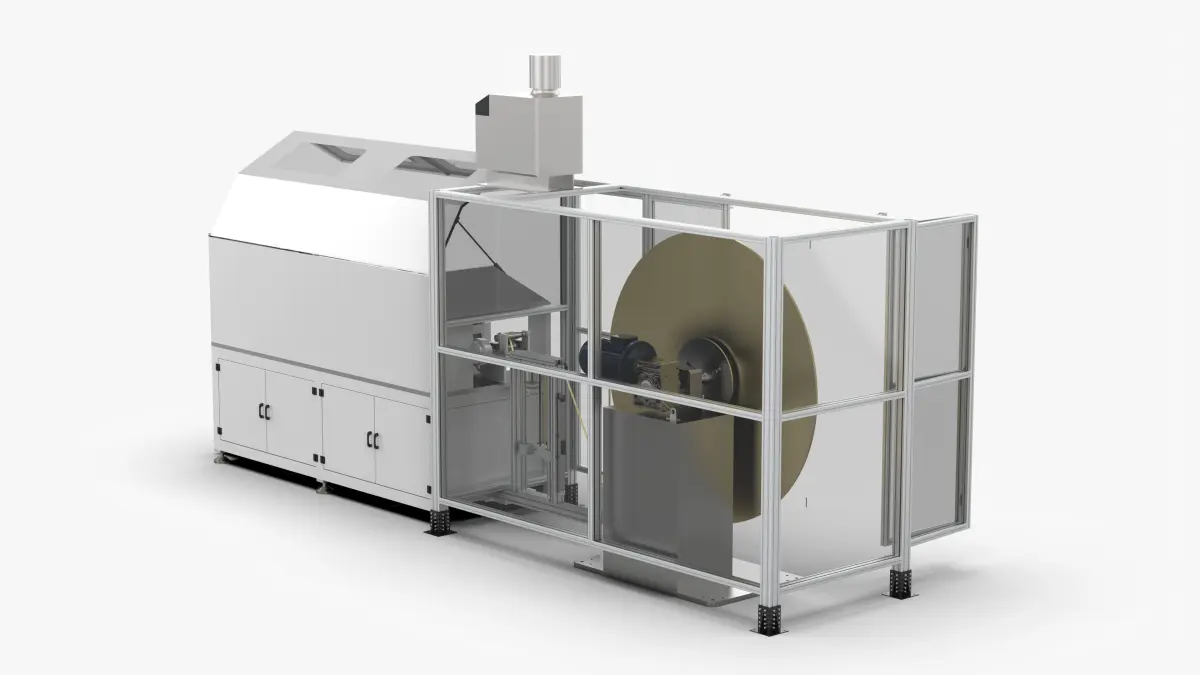

Automatic Aluminum Fin Forming Machine

Introduction

Fin forming machine, aluminum foil forming machine, servo cutter, closed-loop tension control, and uncoiling mechanism equipment are mainly used for automatic forming of aluminum foil for automobile radiators.

Feeding speed 170 m/min
Cutting times 90 times/min
Material thickness 0.06~0.12MM

Material Aluminum Foil

Fin Height 5~12MM
Fin Width 12~26MM
Fin Density 1.6~3.2
Single Material Rack Maximum 1800MM
Roll Inner Diameter 200~350MM
Fin Height Error 0.03+/-
Adjustment Range 0.05+/-
Fin Length 5MM 500 +/-
Average fin density 0.1+/-
Cut wave number 1+/-
