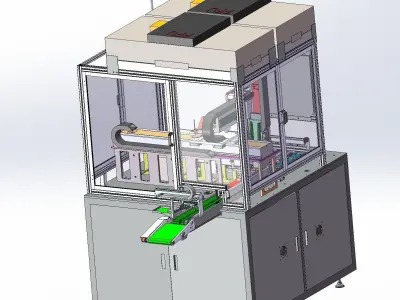

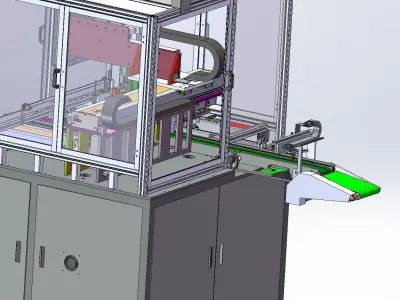

Automatic assembling of touch screen 3D model

$85

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

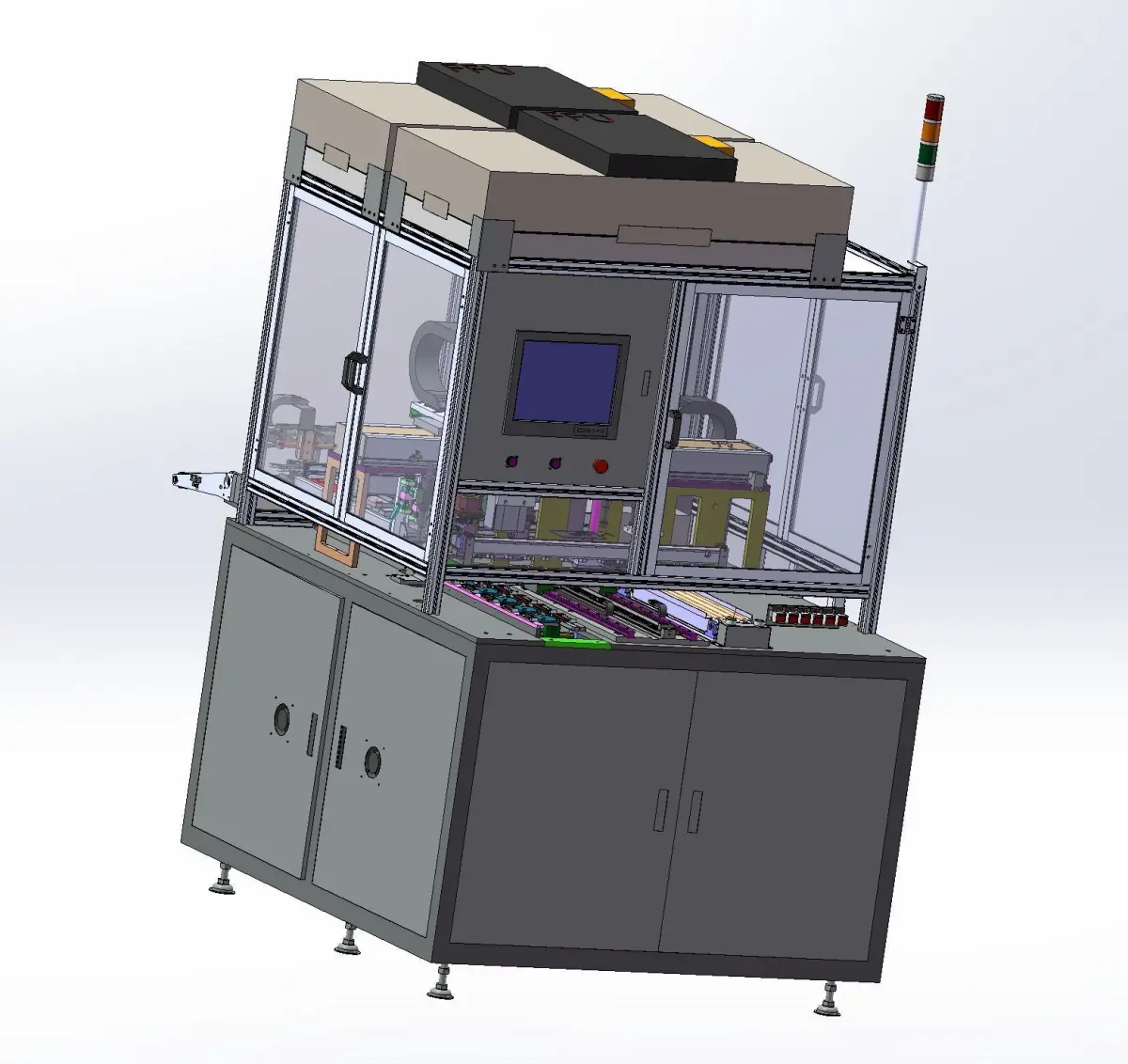

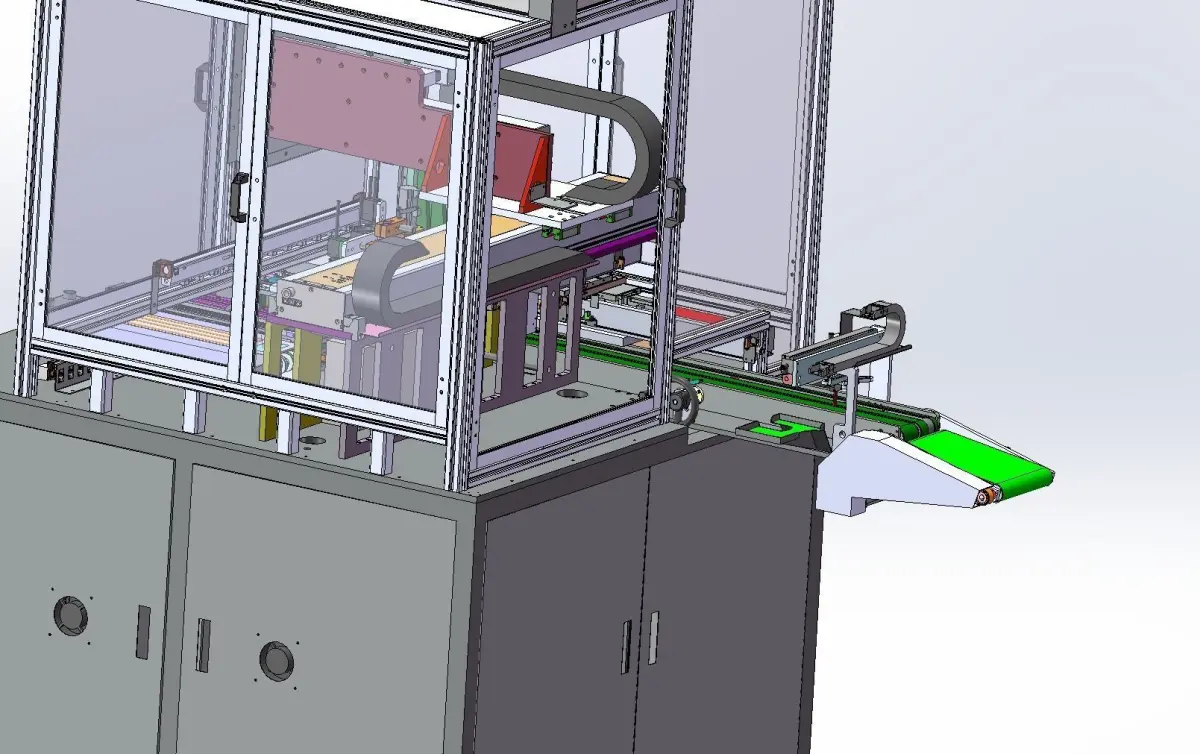

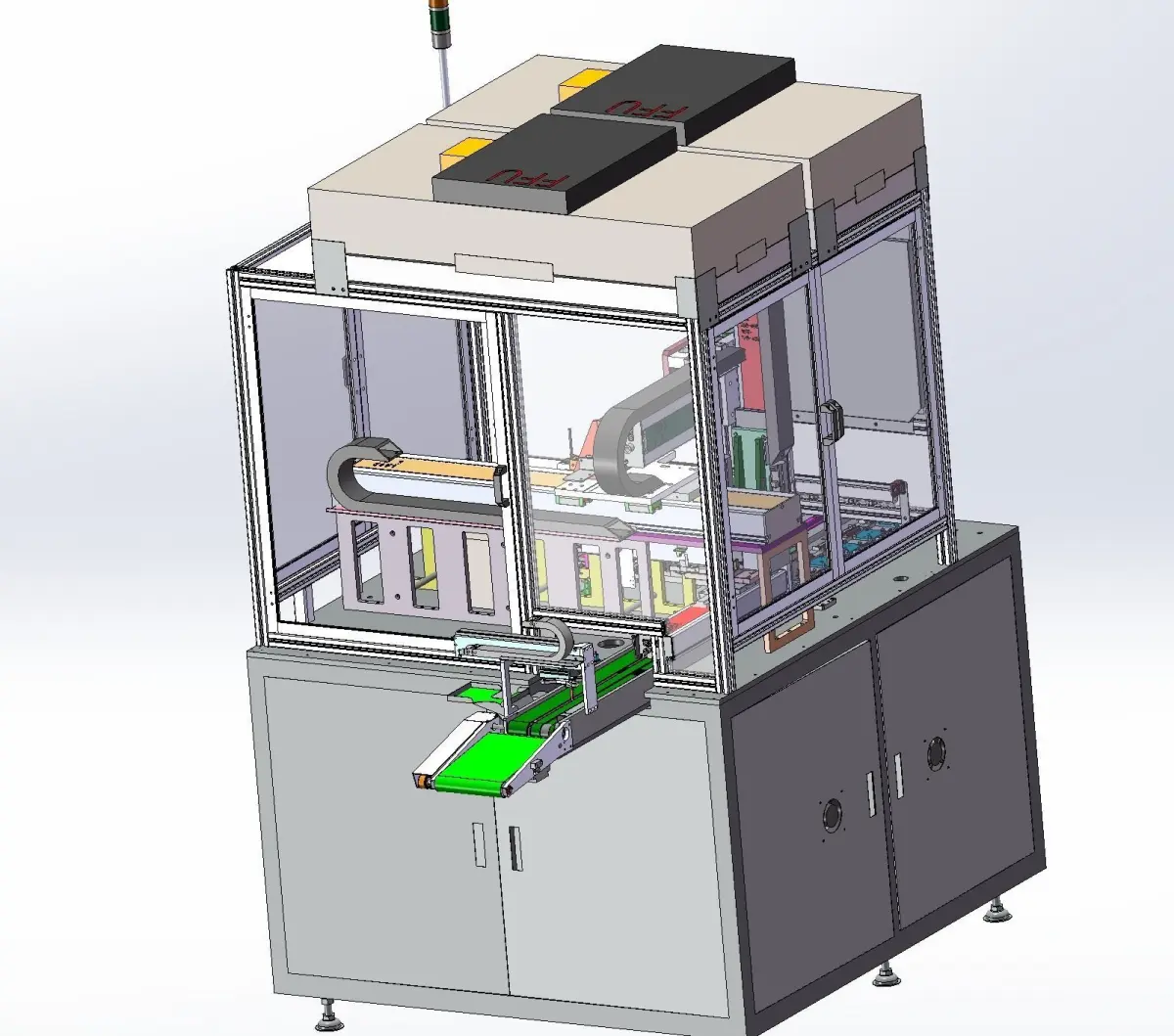

Automatic assembling of touch screen, this machine is used to assemble the touch screen of electronic products, which is made up of automatic assembling of mechanical hand and small materials on the assembly line by taking pictures of CCD

mechanism include

1. Feeding mechanism of xy axle module

2. CCD camera correction mechanism

3. Assembly line positioning feeding mechanism

4. PLC electronic control system

**************************************

Files format contains

-solidworks 2017

-step

-iges

-stl

-obj

-3ds

-Fbx

-3dmax

- and other formats

**************************************

If you like,you can buy for you to get this models or if you have any questions also you can email to me.

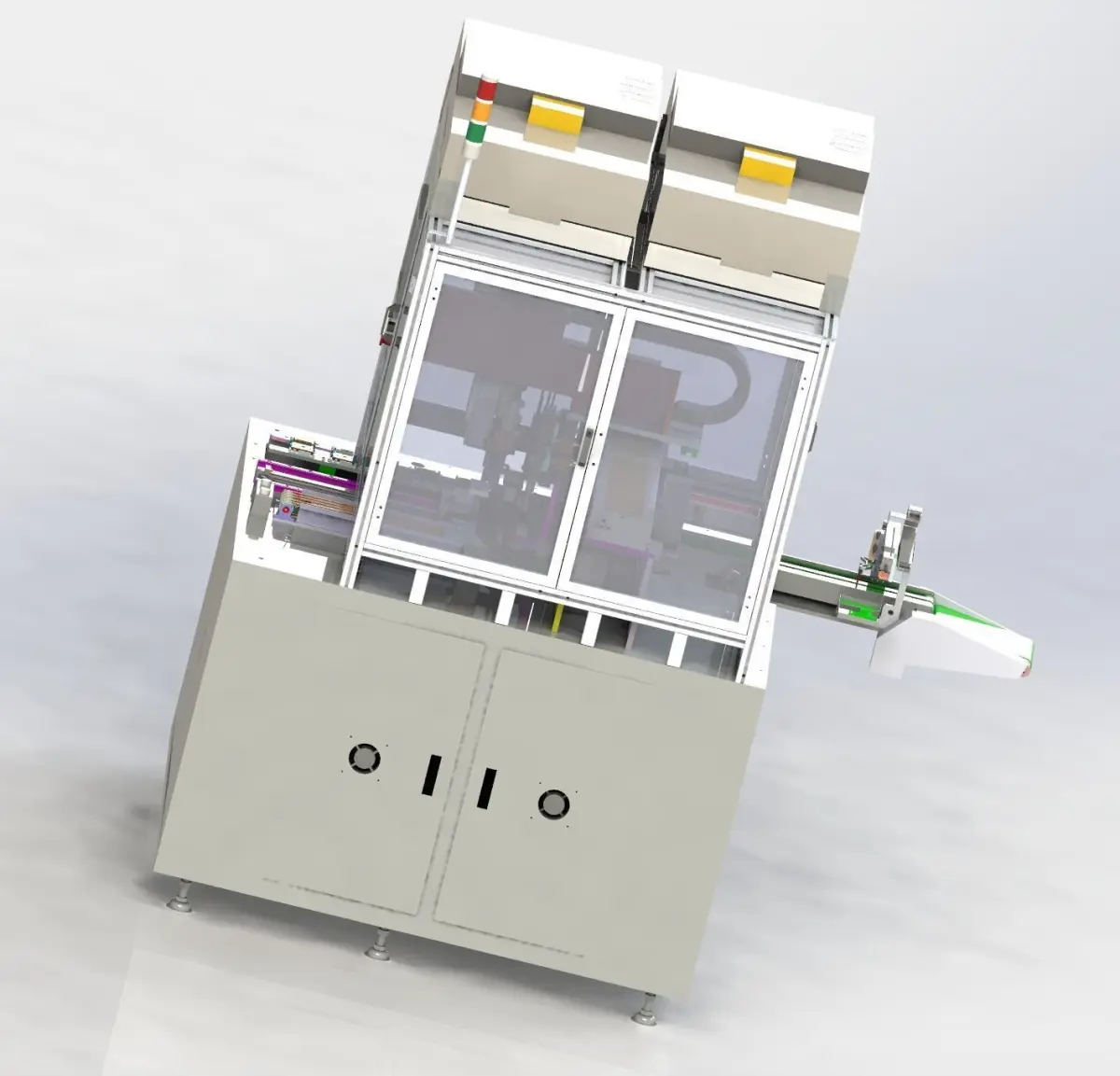

Designed with SolidWorks 2017, render with PhotoView 360

**************************************

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 5048766
Vertices: 10100707
Plugins used

Tags

Machine Industry Industrial Manufacture Production Assembly Factory Automatic Mechanic Engine Tool Part Device Robot Touch Screen Electronic Microelectronic Ccd Plc Industrial machine Industrial part Industrial factory Industrial robot
