Automatic Battery Tray Loading and Unloading Coating Machine 3D model

Publication date: 2023-03-10

Automatic Battery Tray Loading and Unloading Coating Machine 3D model

$169

License: Royalty Free License

author:

Lovano

Description

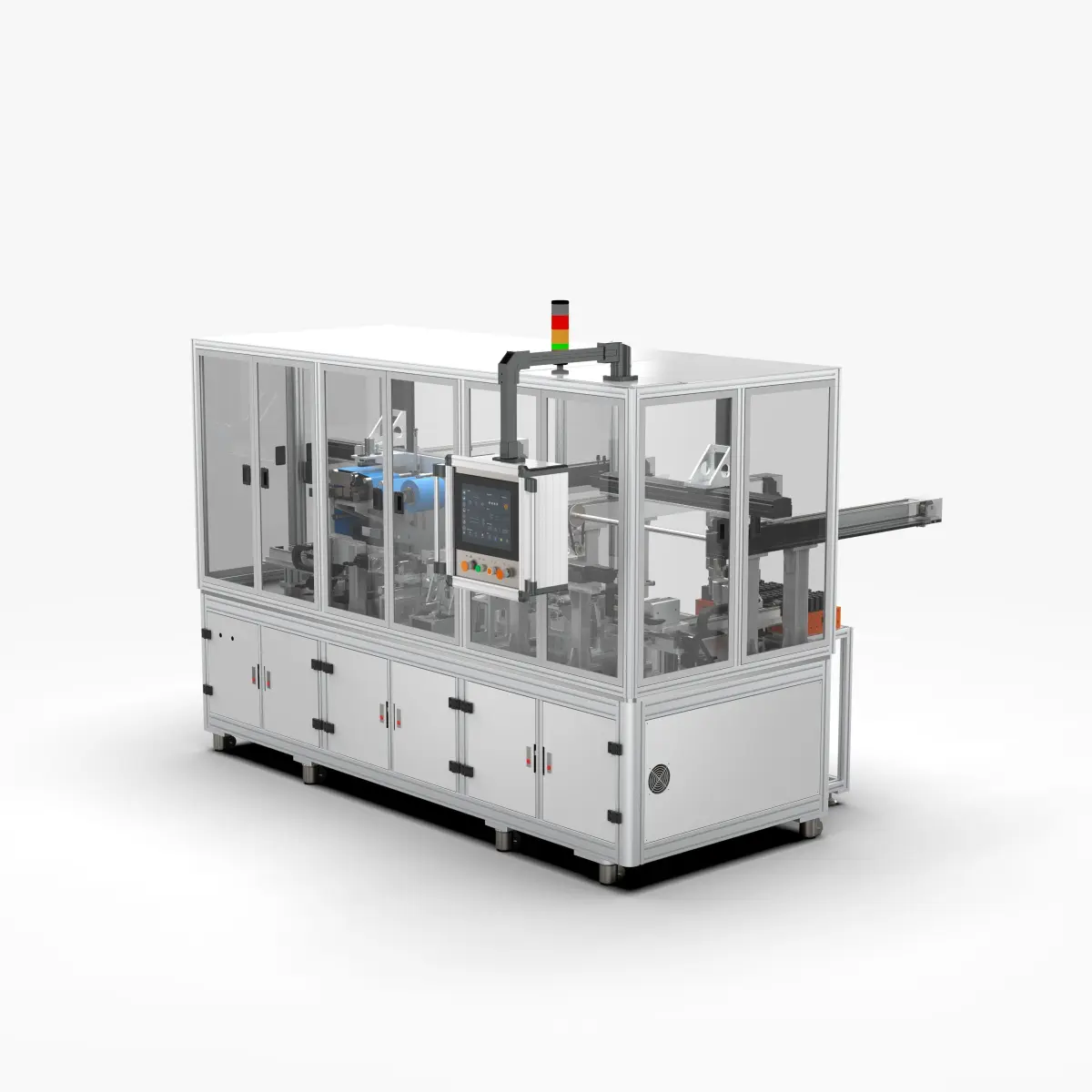

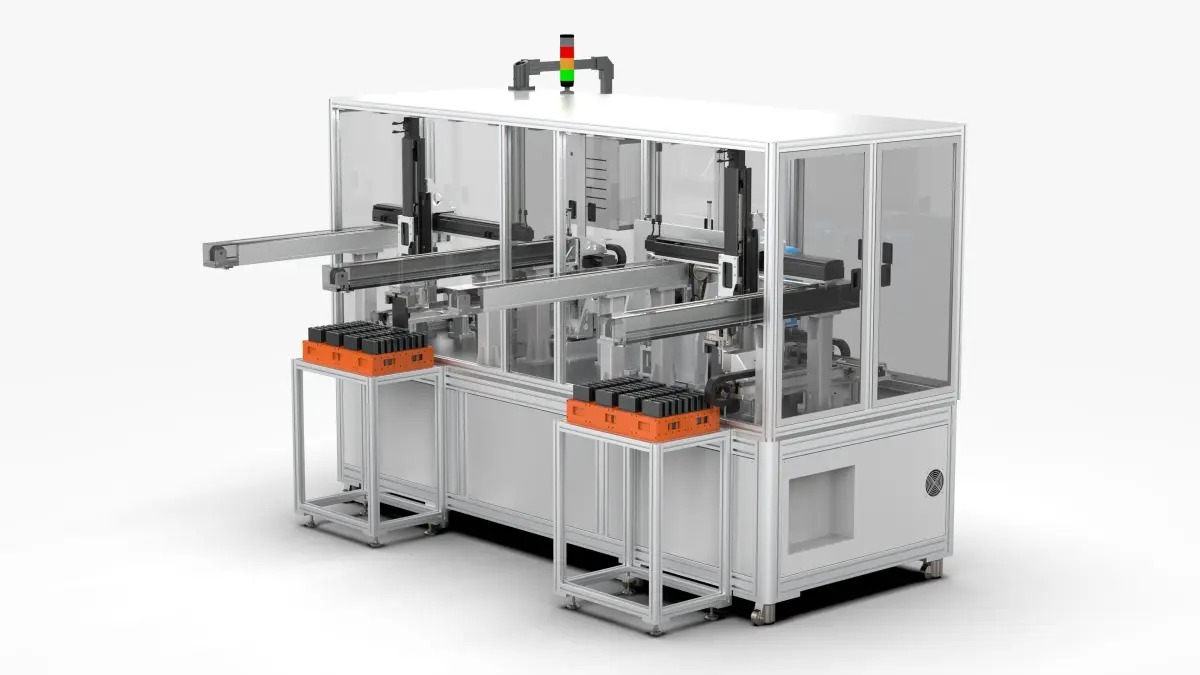

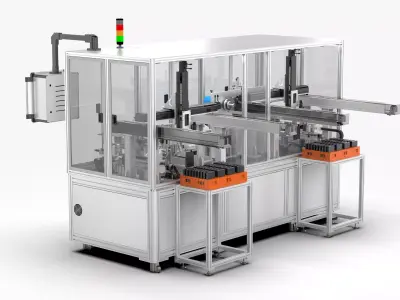

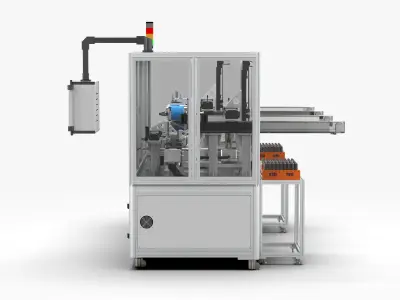

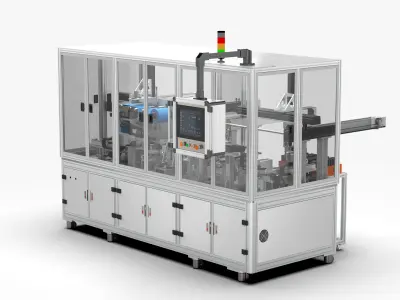

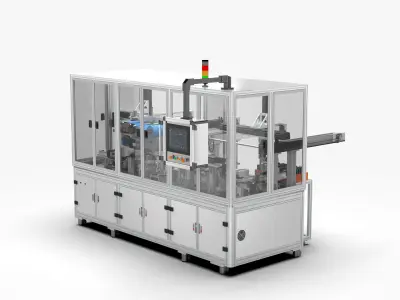

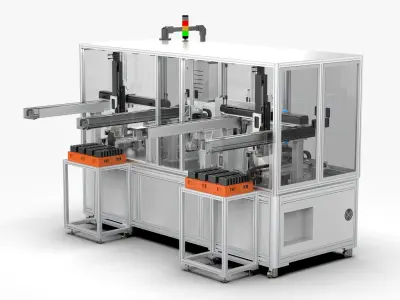

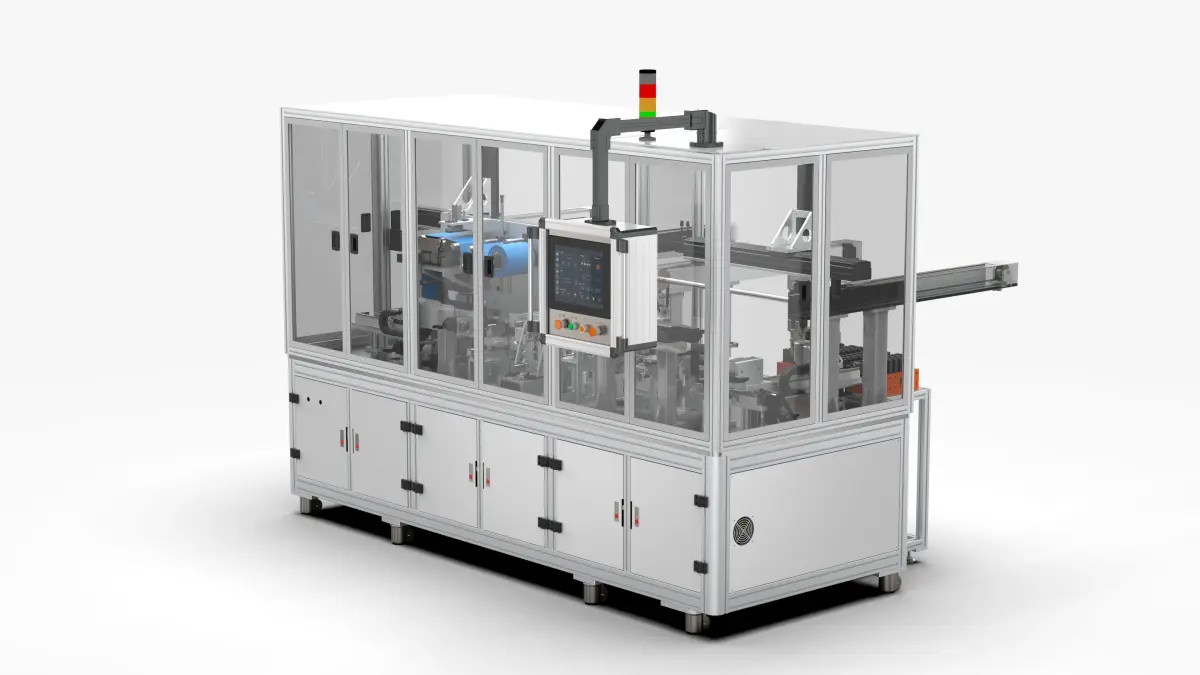

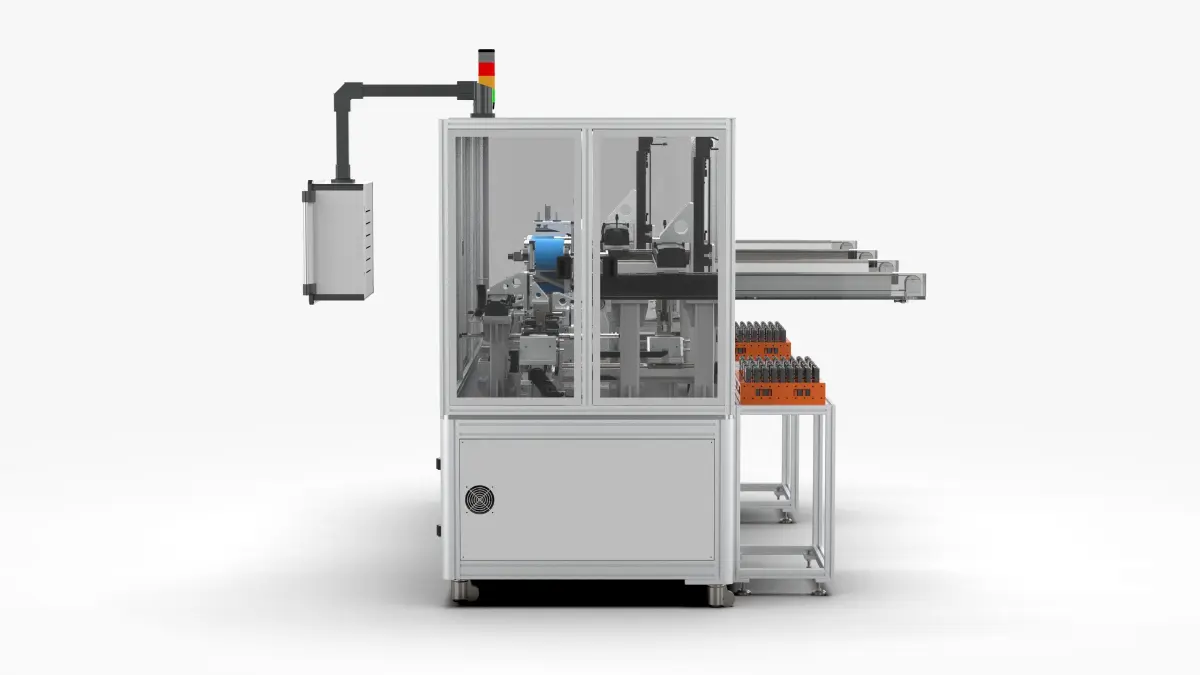

Automatic Battery Tray Loading and Unloading Coating Machine

Introduction

Battery tray type loading and unloading coating machine This equipment is a power battery coating, folding, size measurement, integrated automation equipment. The material is stored in a tray and picked up by a manipulator. By controlling the tension of the insulating film and the speed, hardness and pressure of the roller to ensure that the insulating film sticks to the surface around the cell; the rubber roller mechanism is pushed by the cylinder to complete the folding and sticking of the insulating film. After completion, use the manipulator to put back the blanking tray.

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 5,392,559
Vertice: 16,177,677

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 5,392,559
Vertices: 16,177,677
Plugins used

Tags

Automatic Battery Tray Loading Unloading Coating Machine Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Line Production Robot Industrial Industrial machine
