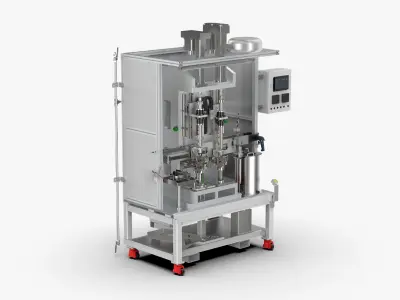

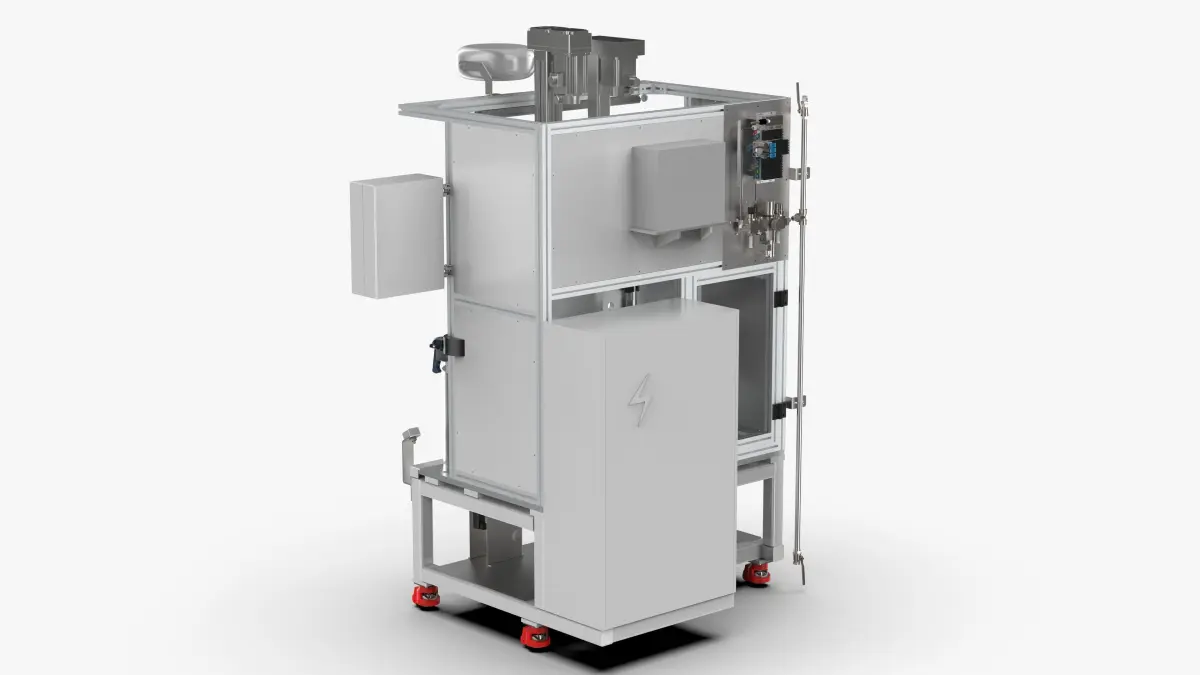

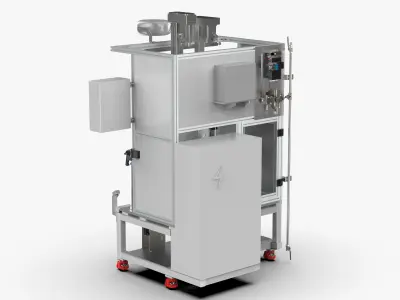

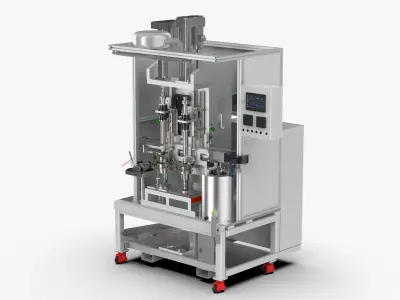

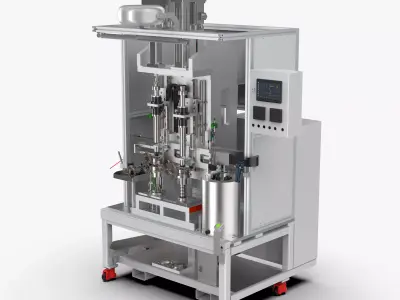

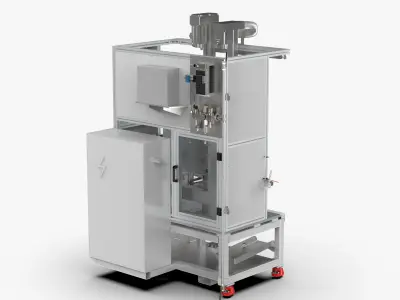

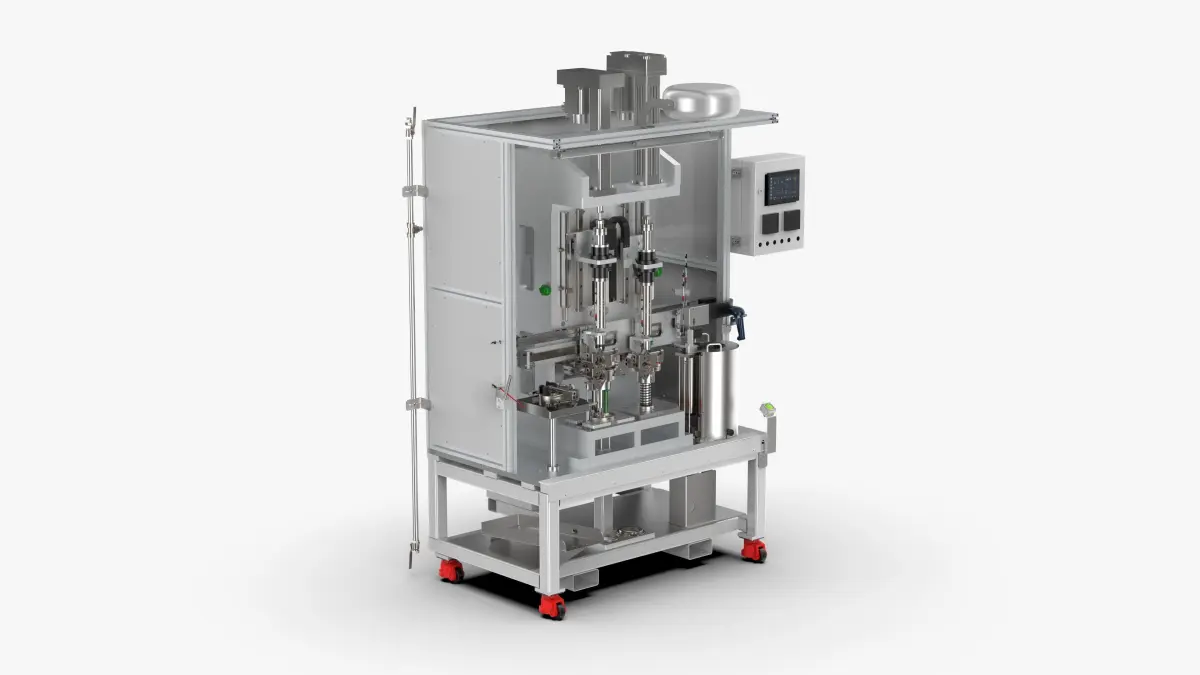

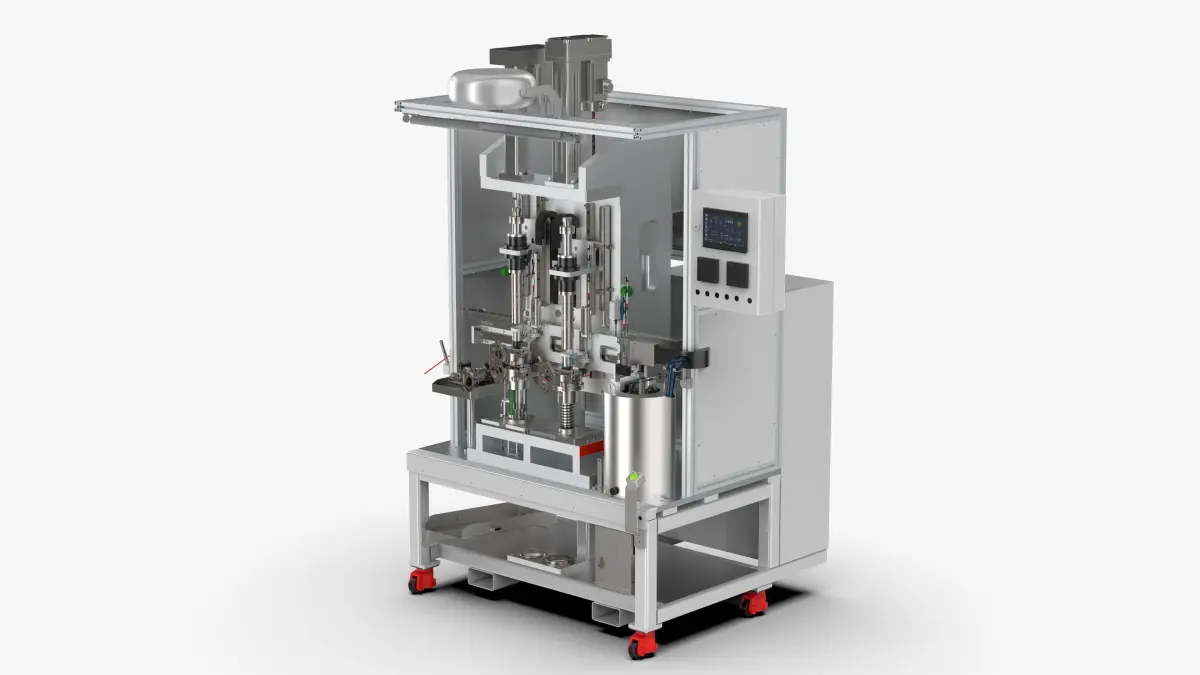

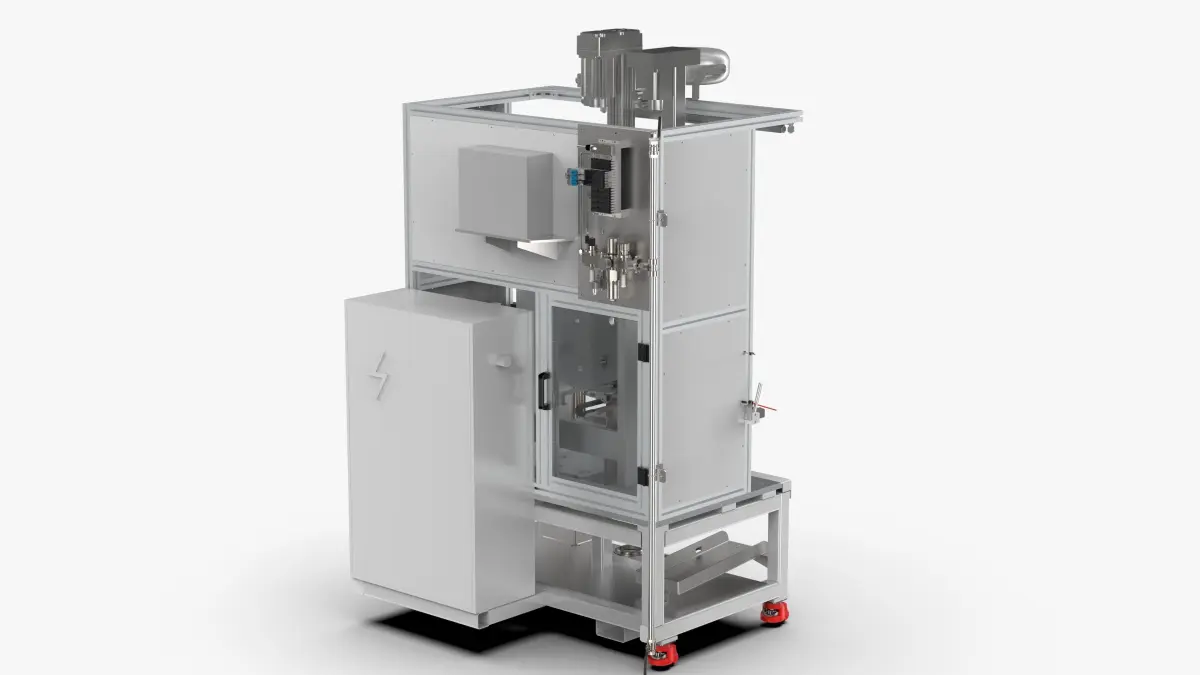

Automatic Bearing and Circlip Press Fitting Machine 3D model

$59

License: Royalty Free License

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Description

Automatic Bearing and Circlip Press Fitting Machine

Introduction

Press-fitting of OP40A housing bearings and circlips:

Purpose: To realize the press-fitting of circlips, bearings and turbine housings.
Compatible products: ES8D, ES8F, ES8H, ES8N, ES8L2.

File Formats

Inventor 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)
x_t (Parasolic Model Part File)

Geometry

Polygons: 9,702,166
Vertice: 29,106,498

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 9702166
Vertices: 29,106,498
Plugins used

Tags

Automatic Bearing Circlip Press Fitting Machine Industrial Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Line Production Robot Industrial machine
