Automatic CCD Winding Inspection Machine

Introduction

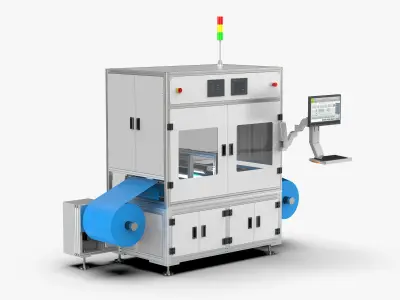

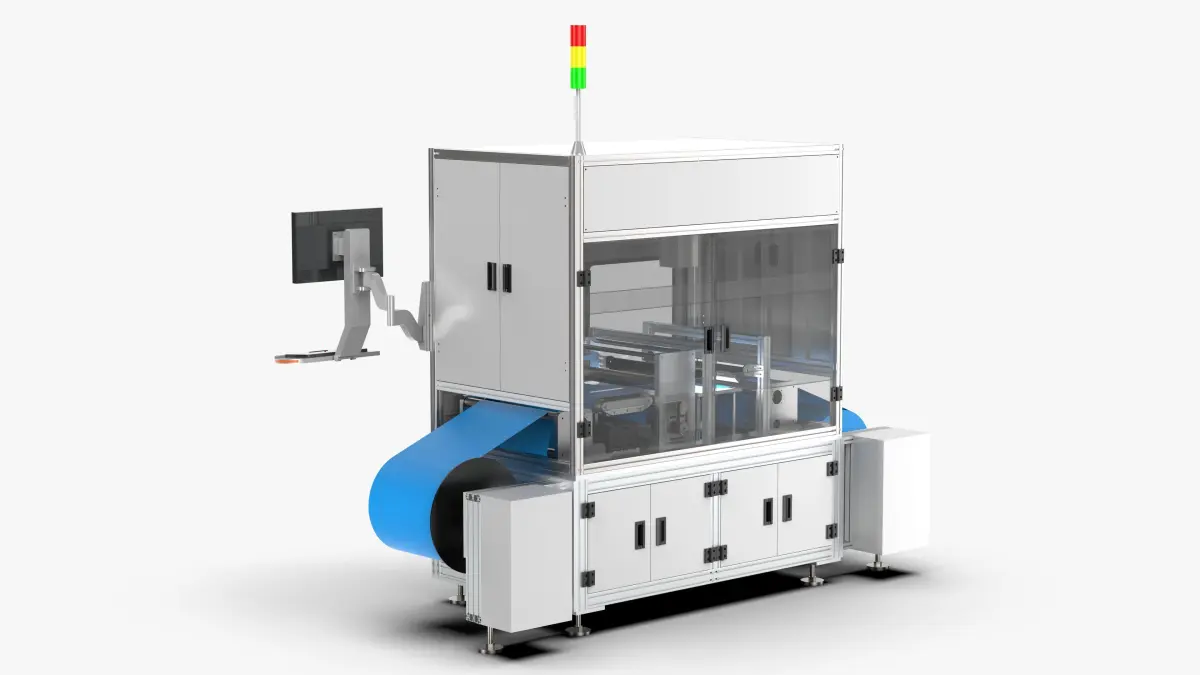

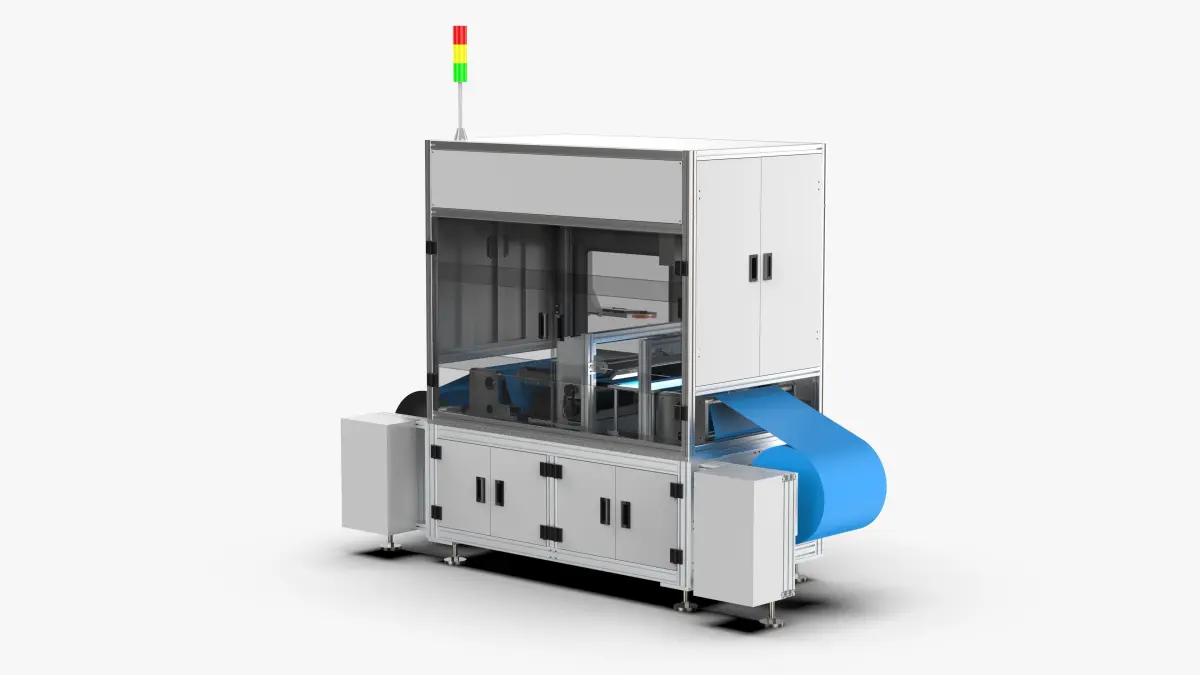

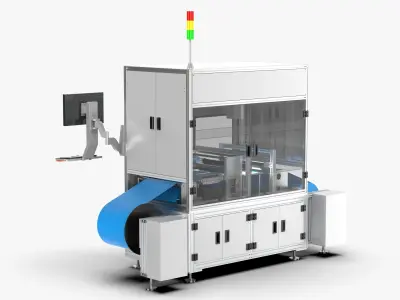

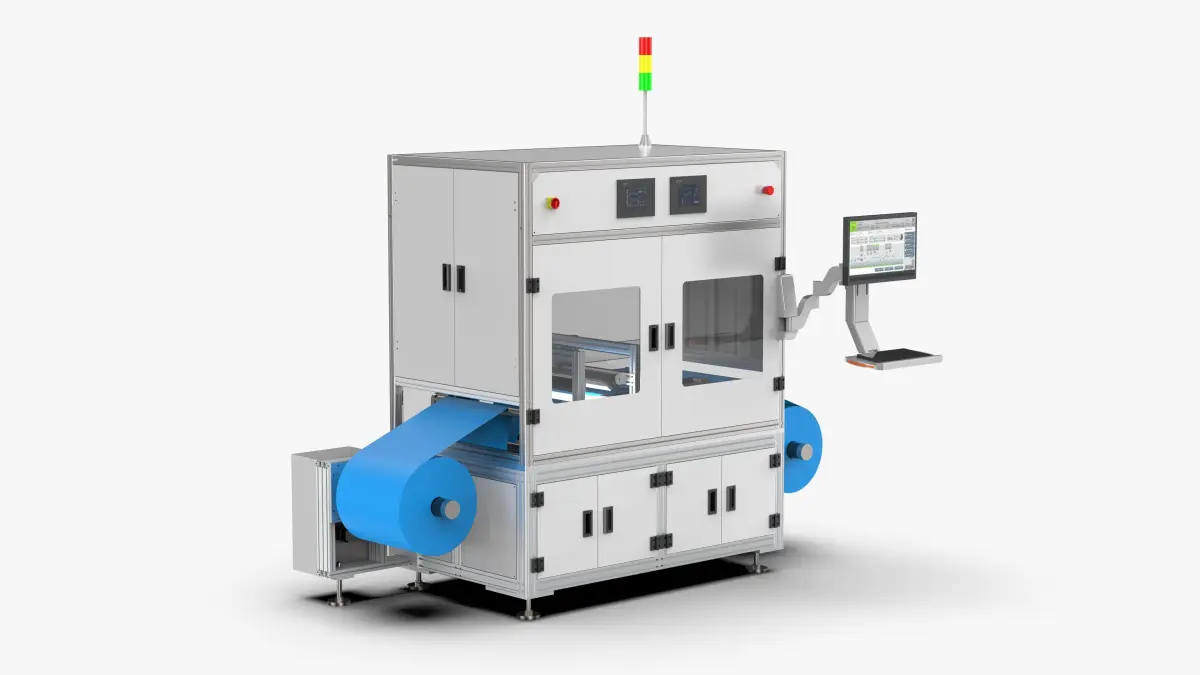

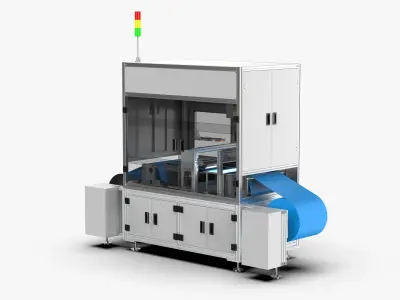

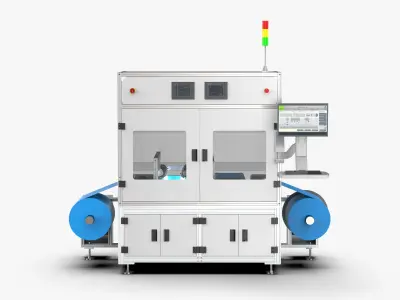

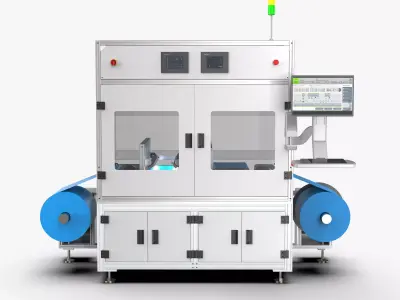

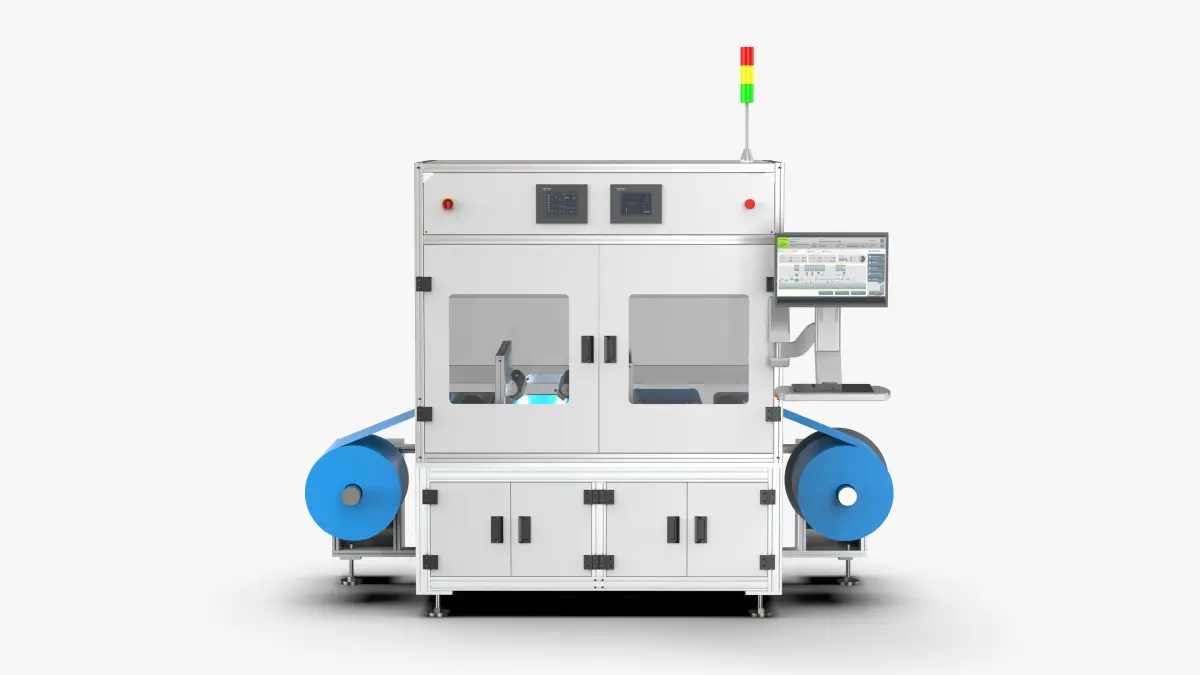

Check the two-dimensional code of the tape and whether there is any defect through the visual CCD. After the whole roll is loaded, it is fixed by the inflatable shaft. There is a deviation correction control system, a light source system at the bottom, and a CCD camera for top inspection. When NG occurs, the system will alarm and process, and the entire roll will be unloaded after inspection.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 983,616
  • Vertice: 2,950,848

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 983,616
  • Vertices: 2,950,848
  • Plugins used

Tags

Automatic Winding Inspection Machine Industrial Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Line Production Robot Manufacture Drawing Industrial machine
