Automatic Circuit Board Robot Handling and Testing Machine 3D model

Publication date: 2024-07-16

Automatic Circuit Board Robot Handling and Testing Machine 3D model

$159

License: Royalty Free License

author:

Lovano

Description

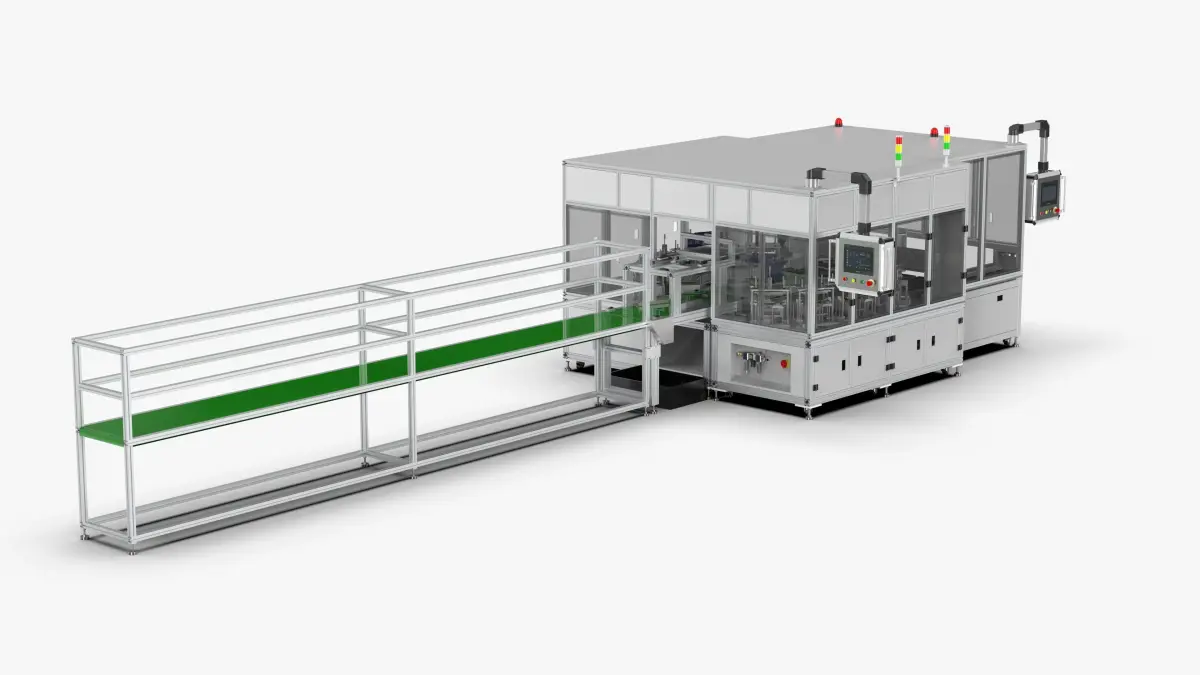

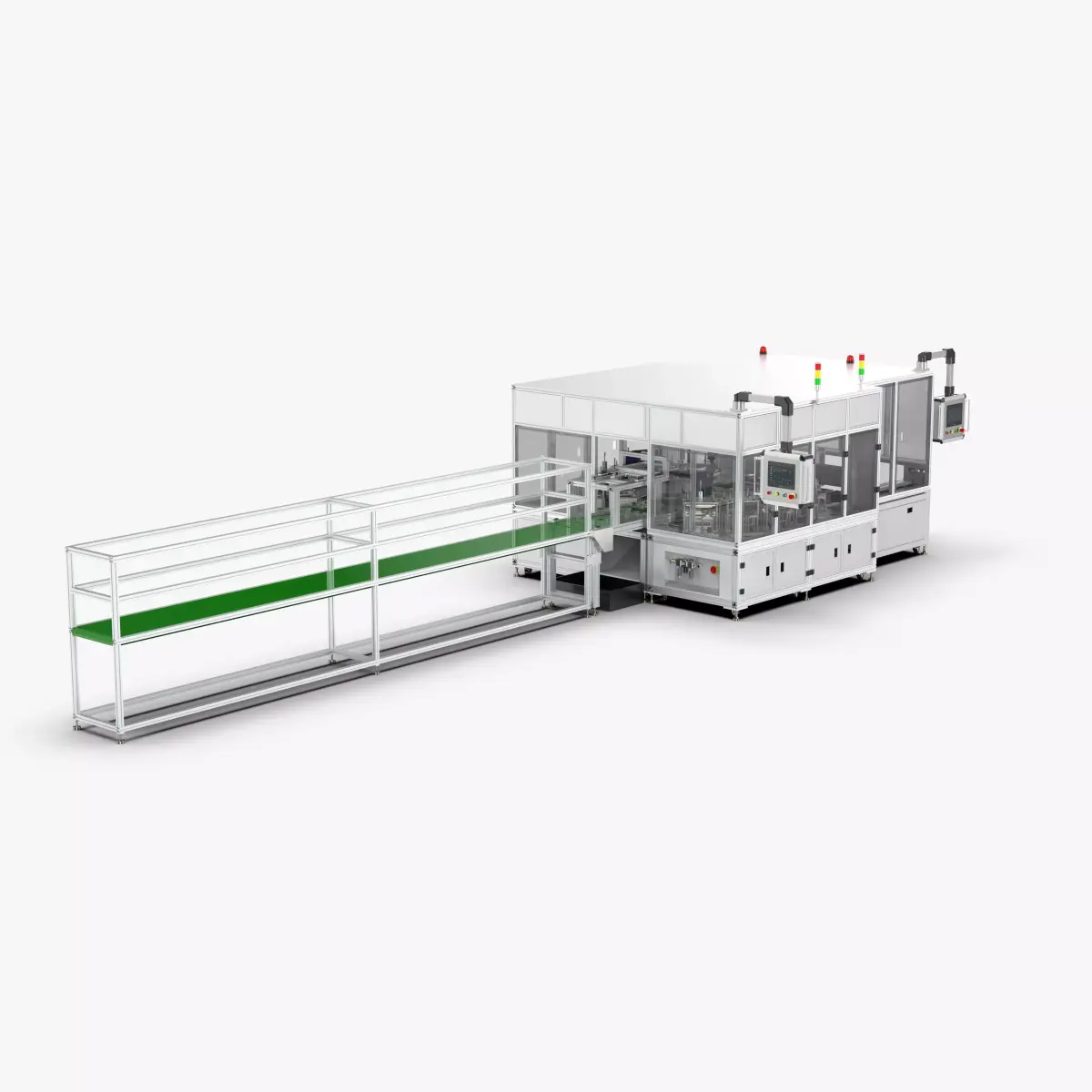

Automatic Circuit Board Robot Handling and Testing Machine

Introduction

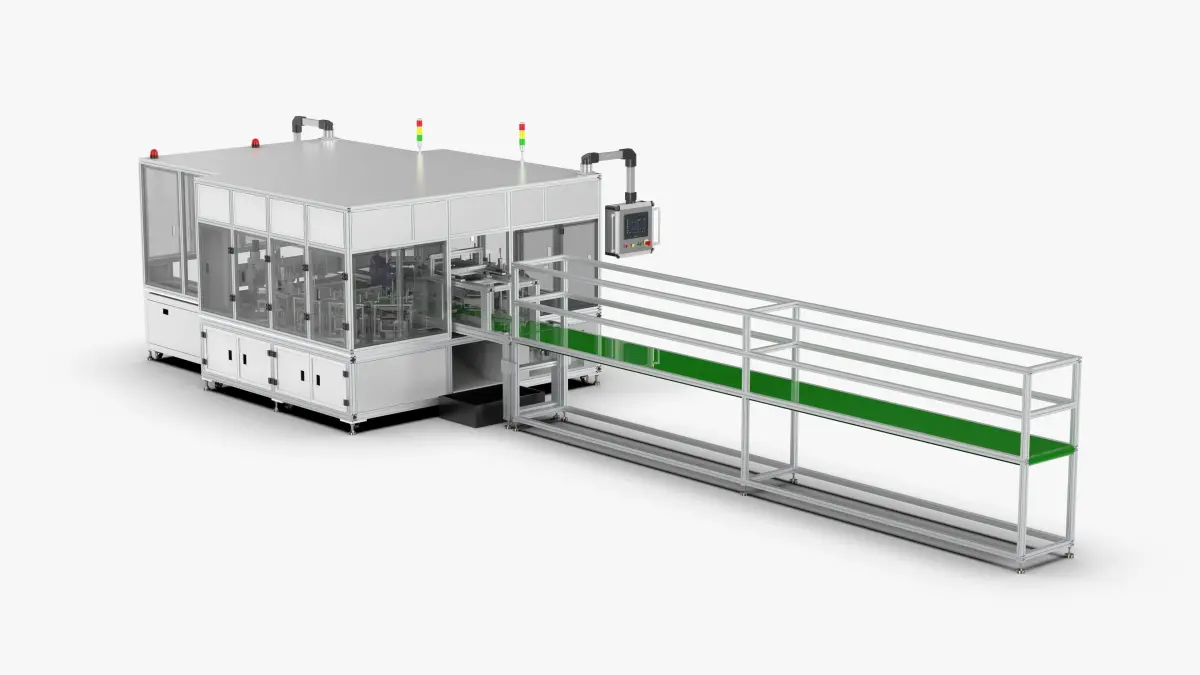

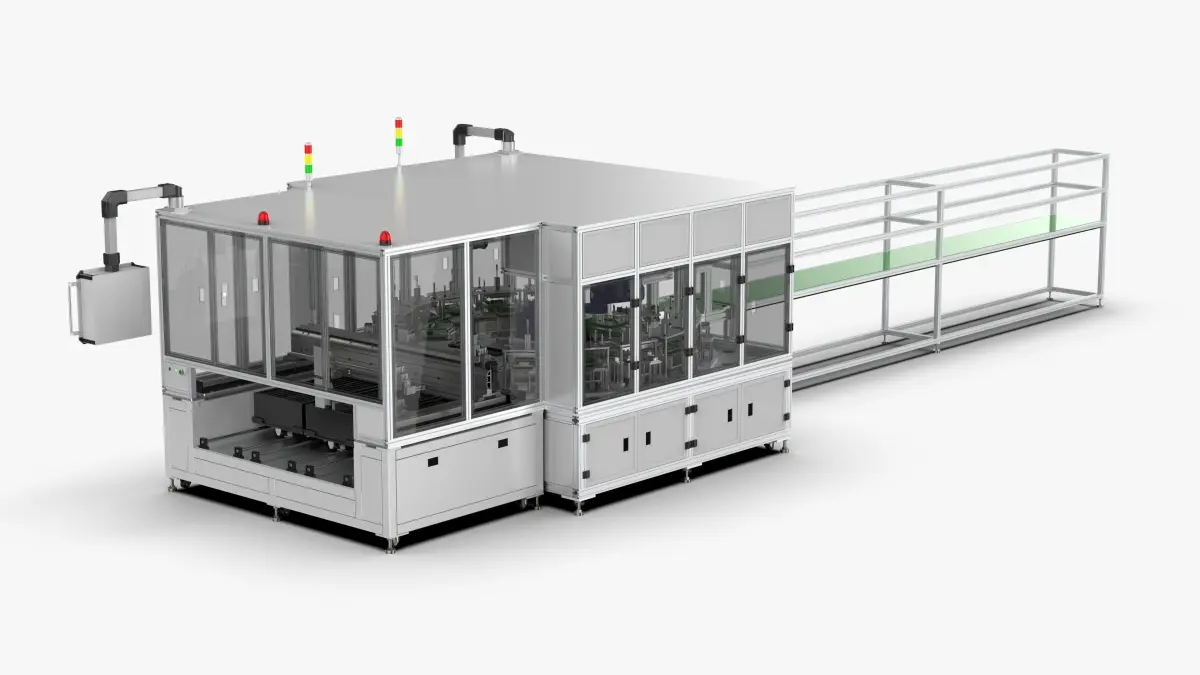

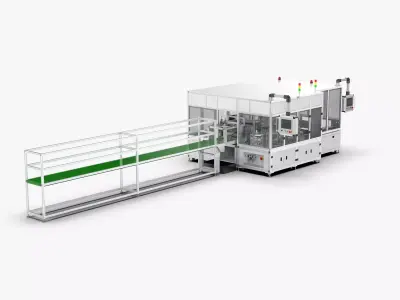

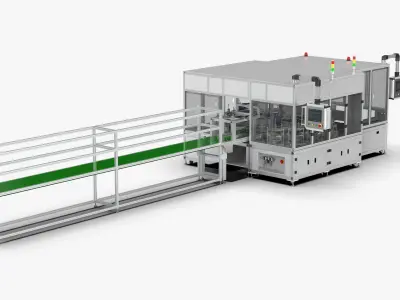

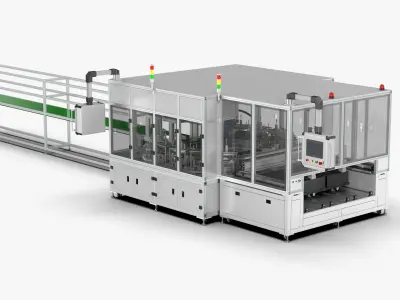

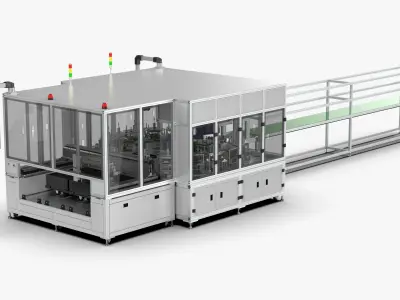

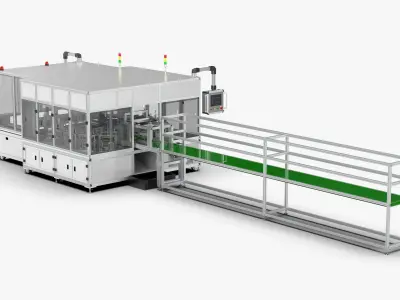

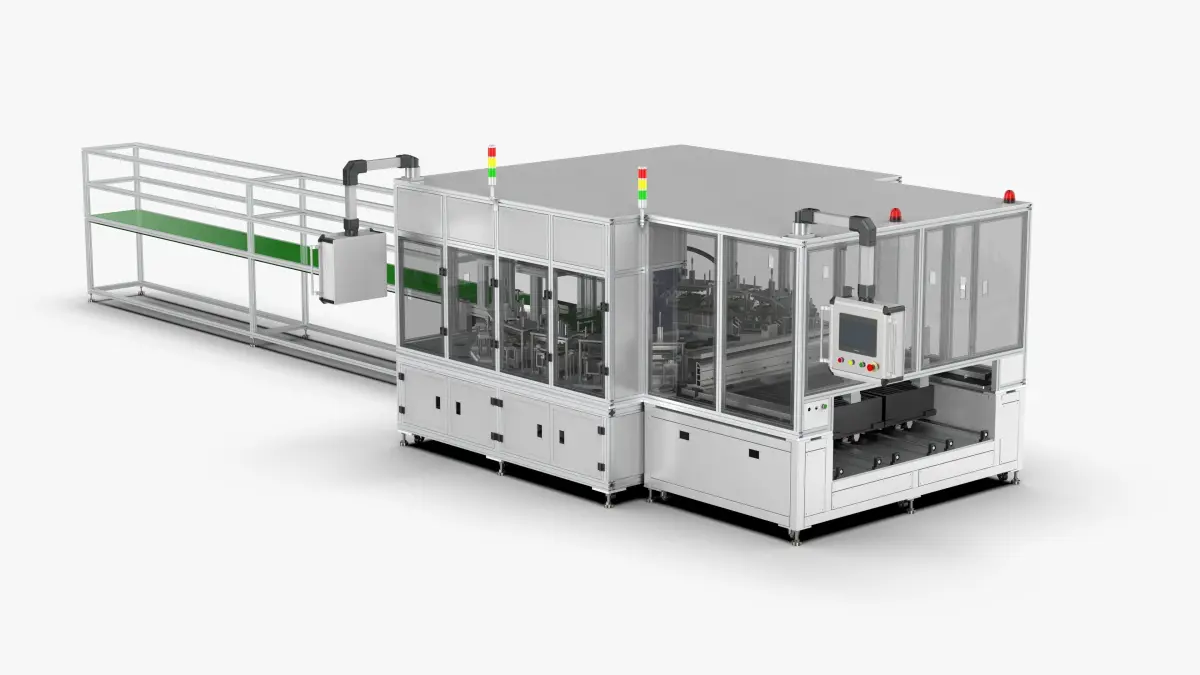

The 3D model of the complex optical cat circuit board automatic handling and testing equipment This set of complete non-standard equipment drawings is designed with SolidWorks. Its main functions are robot handling of circuit boards, visual inspection, product testing, and finally finished product blanking. The structure of the drawing is very complicated and worth learning.

Welcome to place an order for reference.

File Formats

SolidWorks 2019 | Keyshot 10
FBX (Filmbox)
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)
x_t (Parasolic Model Part File)

Geometry

Polygons: 5,485,726
Vertice: 16,458,178

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 5,485,726
Vertices: 16,458,178
Plugins used

Tags

Automatic Circuit Board Robot Handling Testing Machine Industrial Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Line Production Industrial machine
