Buy Automatic Double Side Lamination Cutting Machine 3D model

Name: Automatic Double Side Lamination Cutting Machine 3D model
Brand: Lovano
SKU: 37498
Price: 39.00 USD
Availability: InStock

$39

License: Royalty Free

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

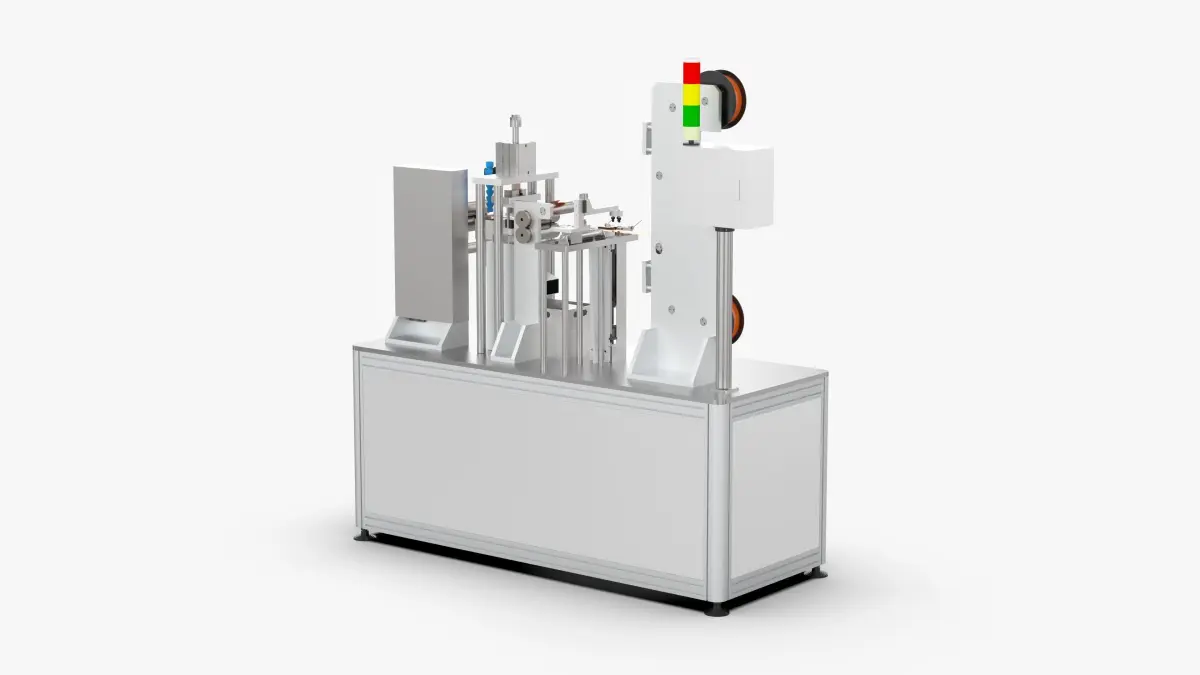

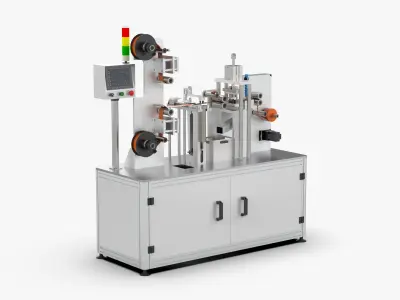

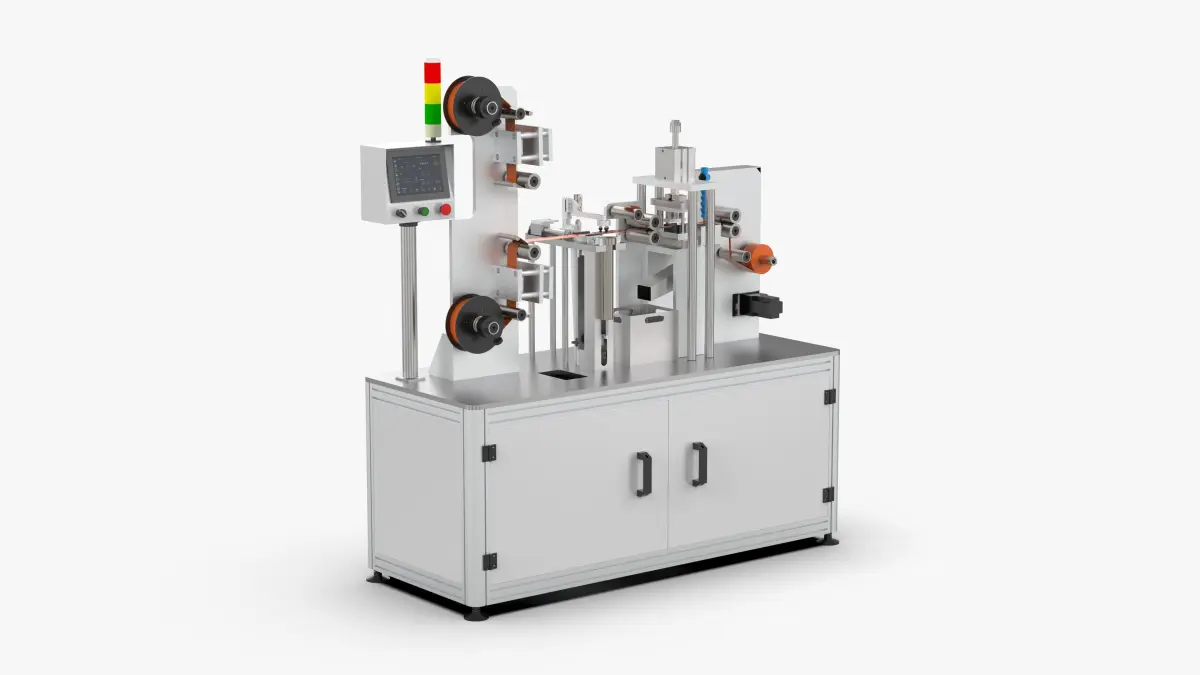

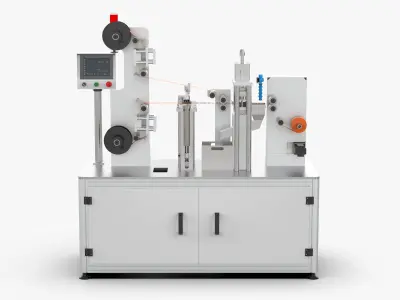

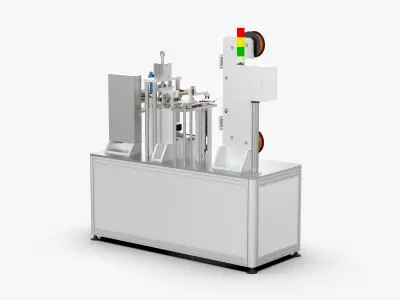

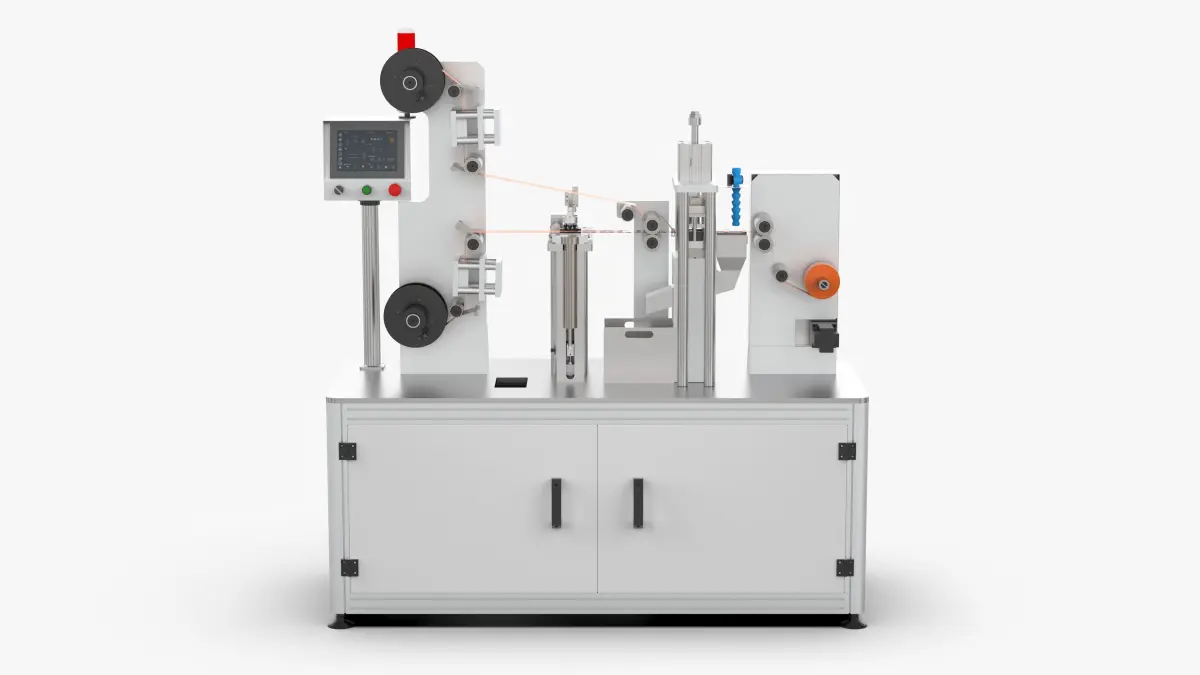

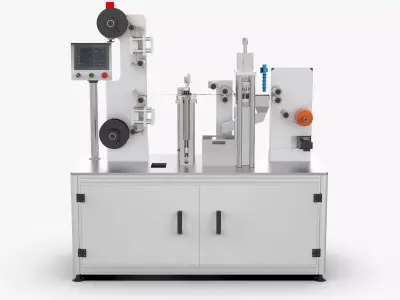

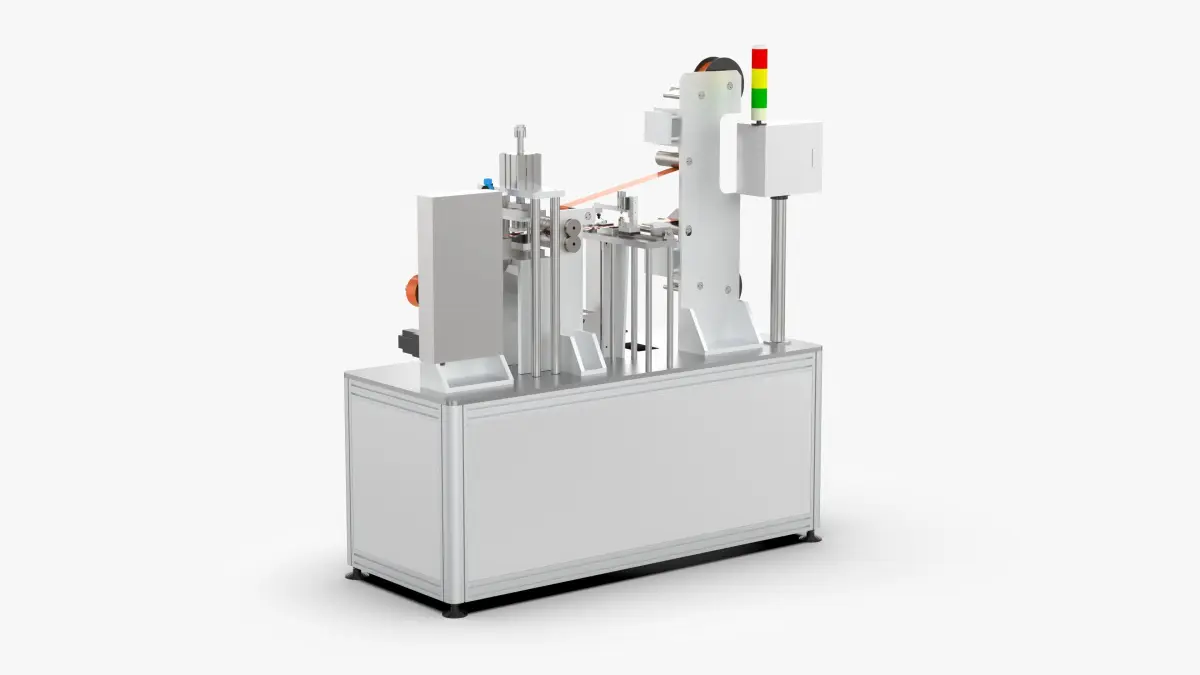

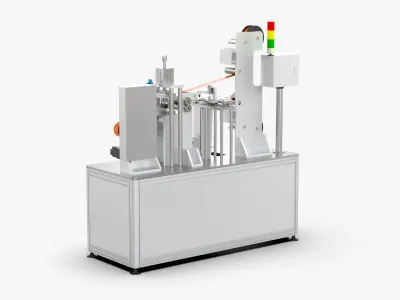

Automatic Double Side Lamination Cutting Machine

Introduction

Transformer metal casing sheet automatic double-sided lamination cutting machine

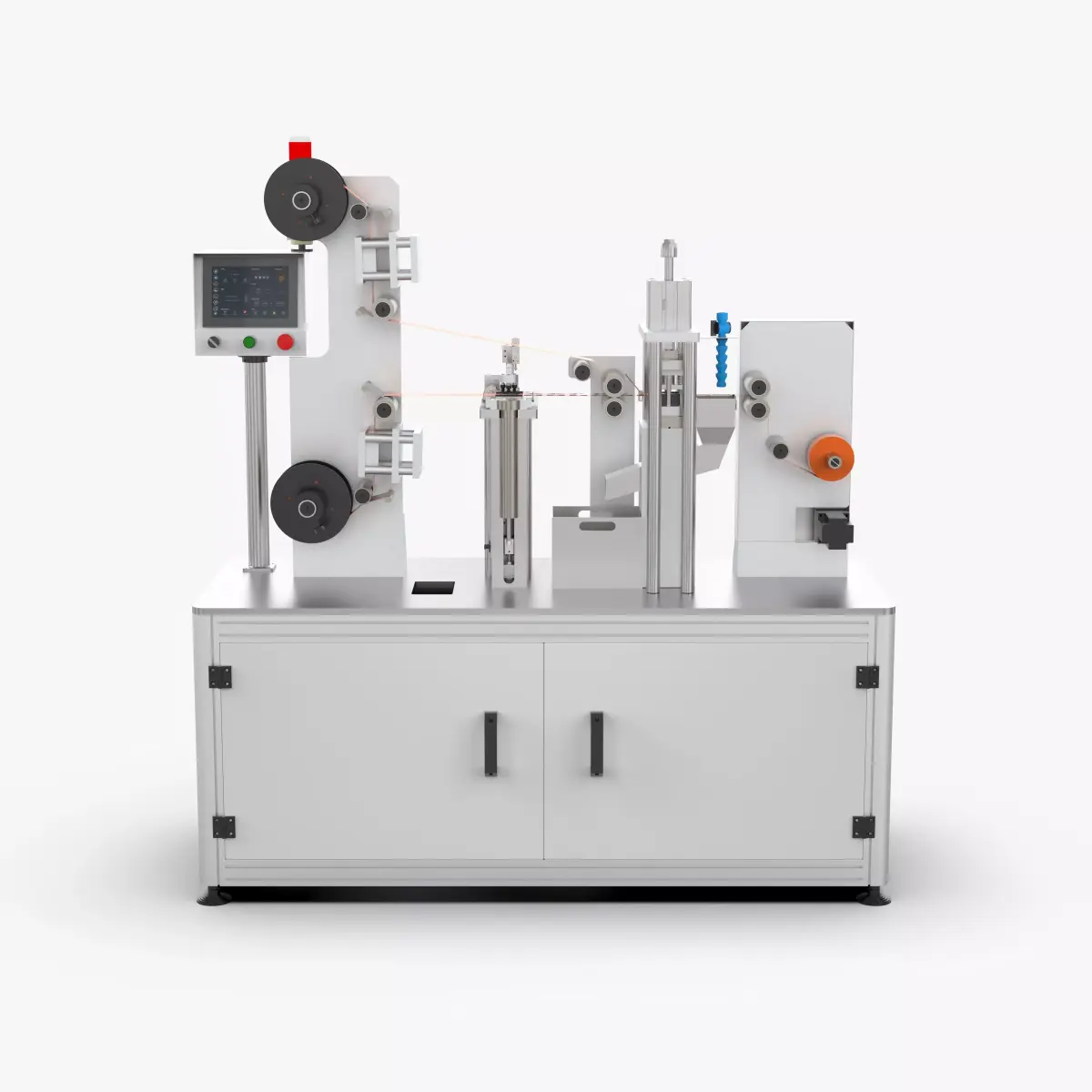

This equipment mainly includes: main frame, operation panel, alarm light, feeding mechanism, metal stamping parts feeding mechanism, lamination pressure wheel group mechanism, winding mechanism, product coating Punching and shearing mechanism, product receiving box, etc.

The equipment is controlled by PLC, the film and the products to be coated are placed manually, the key is started, and the equipment is in automatic operation mode.

One person guards the operation of multiple sets of this equipment, and the production capacity of one piece of equipment is about 1140Pcs/H; the operation of this equipment is simple, safe and reliable.

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 374,936
Vertice: 1,124,808

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 374936
Vertices: 1124808
Plugins used
Geometry: Polygon mesh

Tags

Automatic Double Side Lamination Cutting Machine Solidwork Design Assembly Modeling 3d Automation Machinery Part Mechanism Line Production Robot Manufacture Drawing Industrial Industrial machine
