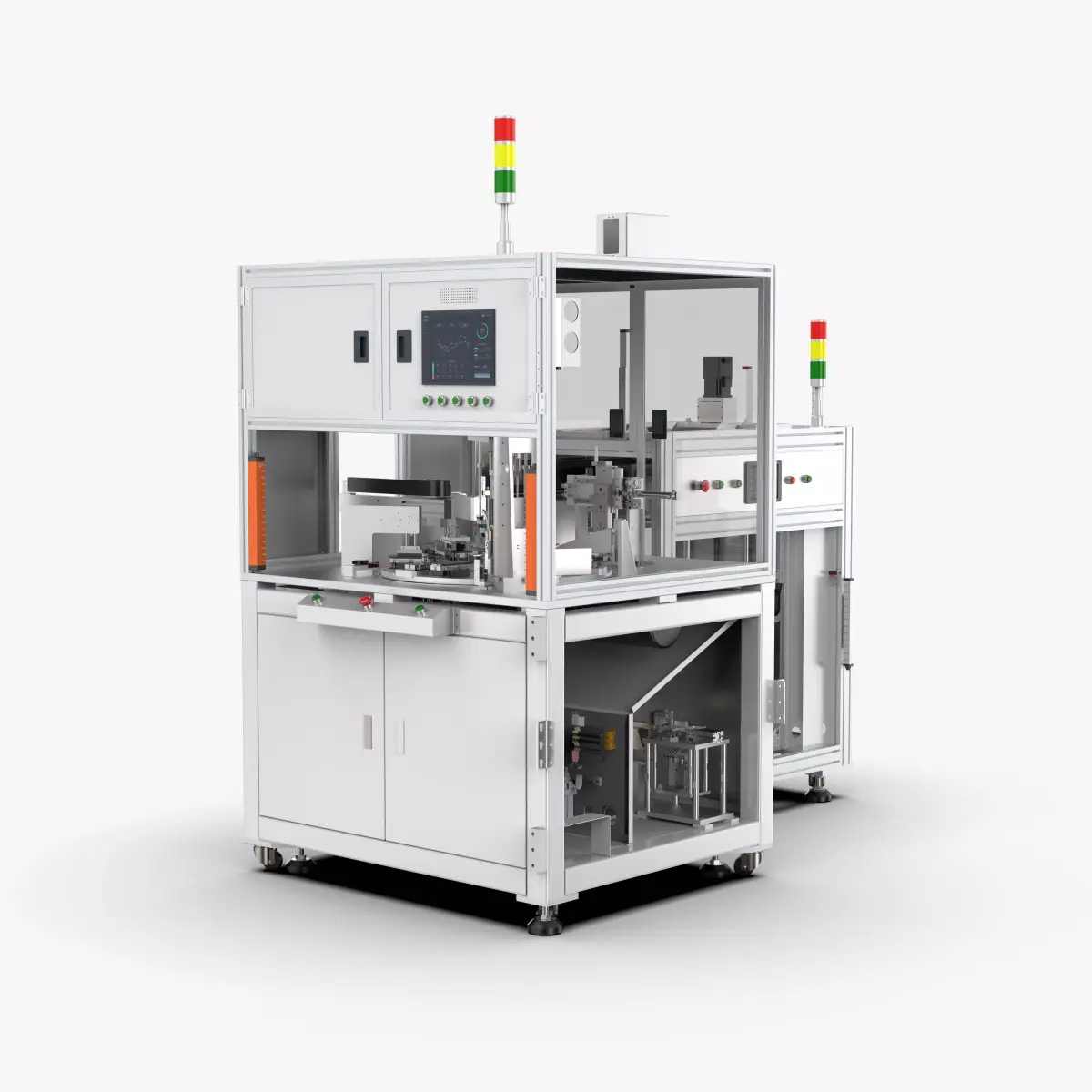

Automatic Double Side Screw Locking Machine 3D model
Home Catalog Aircraft part Automatic Double Side Screw Locking Machine 3D model
Automatic Double Side Screw Locking Machine 3D model
Automatic Double Side Screw Locking Machine 3D model
Automatic Double Side Screw Locking Machine 3D model
Automatic Double Side Screw Locking Machine 3D model
Automatic Double Side Screw Locking Machine 3D model

Publication date: 2023-11-27

Automatic Double Side Screw Locking Machine 3D model

$89

License: Royalty Free License

author:

Lovano

Buy at www.cgtrader.com - $89 Add to Wishlist
  • Description
  • Formats
Description

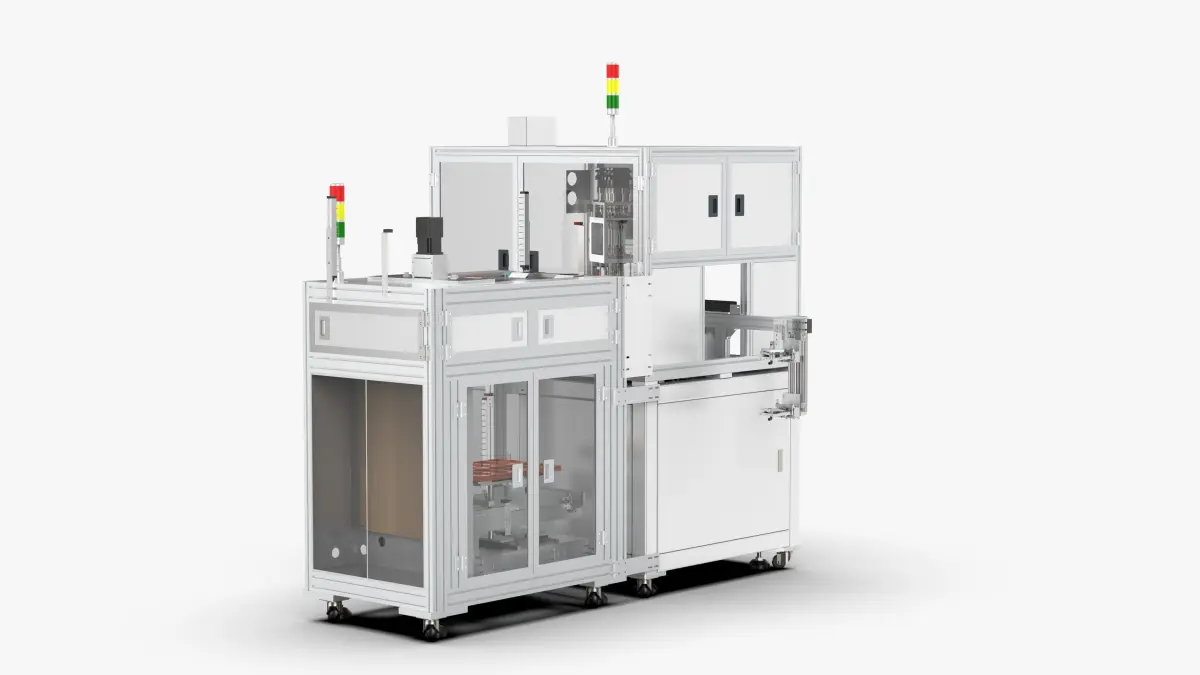

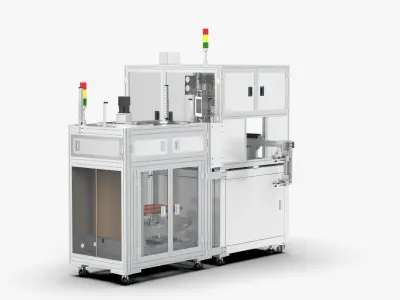

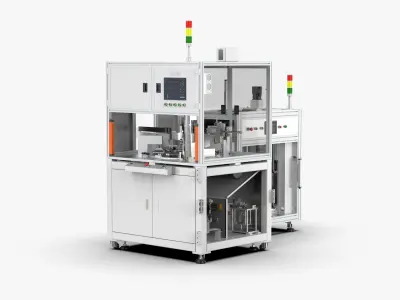

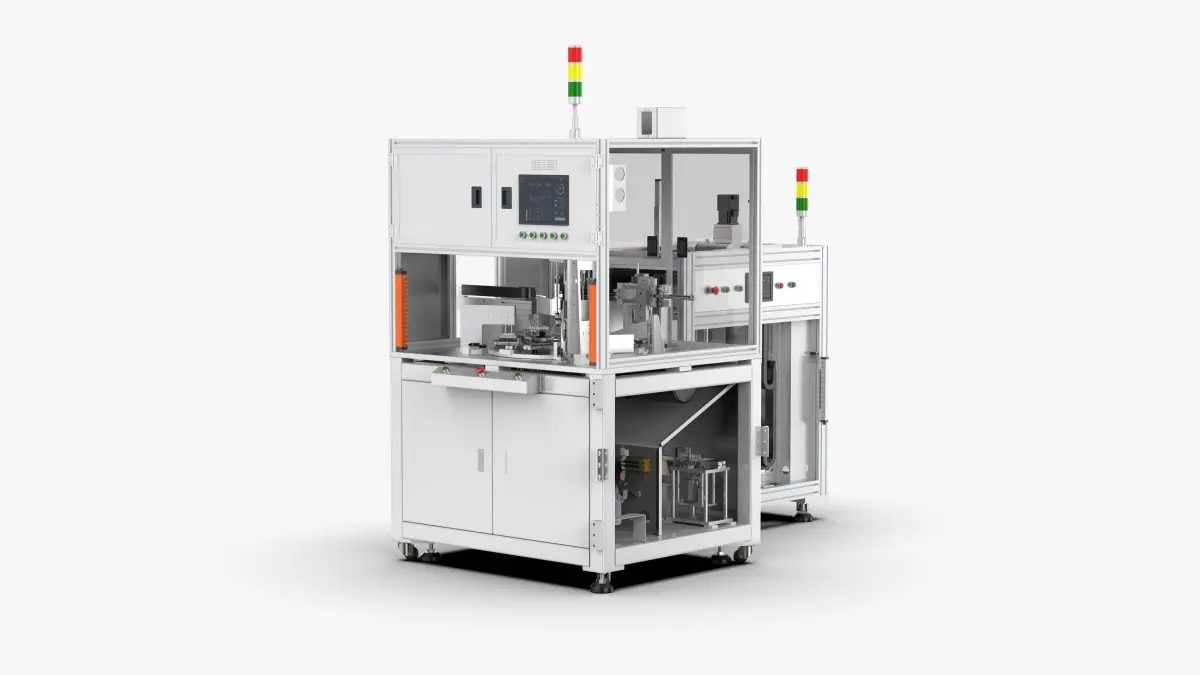

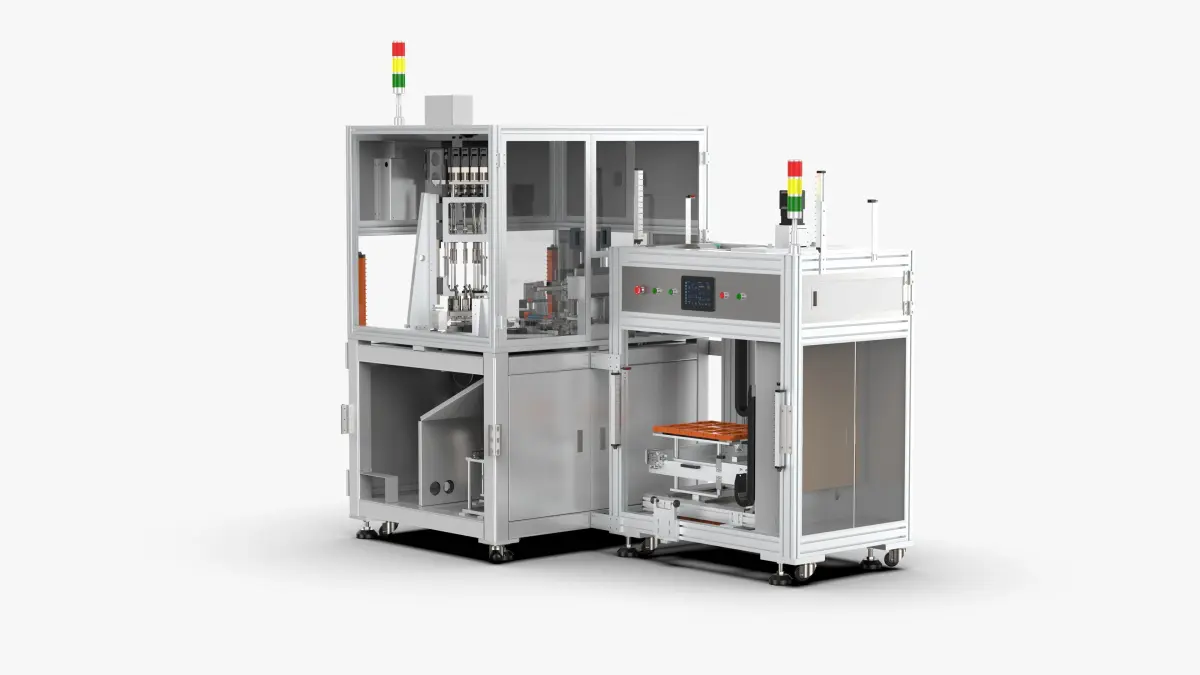

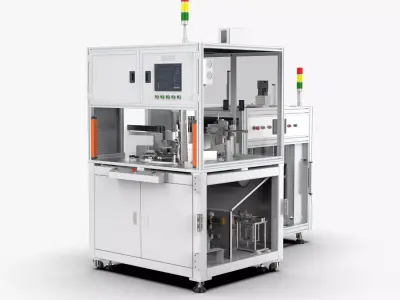

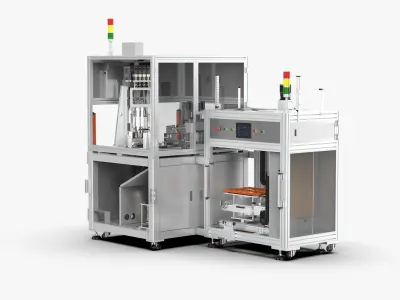

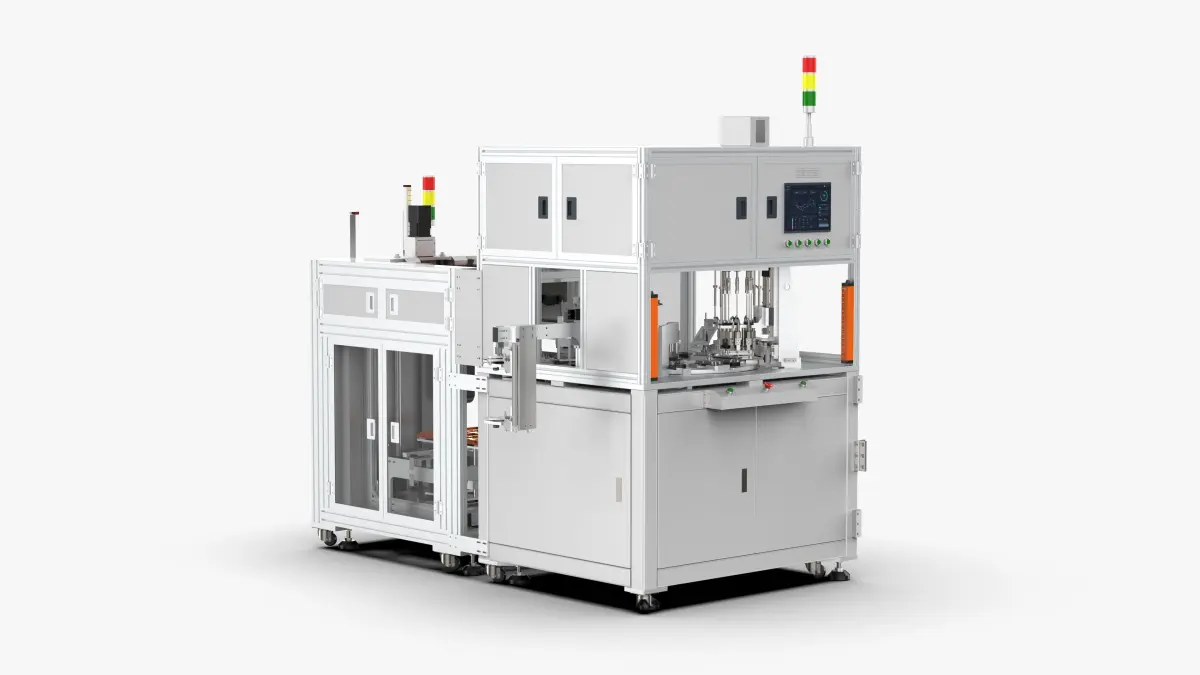

Automatic Double Side Screw Locking Machine

Introduction

This is an original turntable multi-station, and a non-standard device for multi-axis synchronous unlocking screws. There are screws on both sides of the product that need to be unlocked. The whole machine is more classic except for the gear synchronous transmission multi-axis rotation structure. Other structural reference values ??are also high. Among them, the screw automatic distributing and supplying mechanism is self-made, the design is more ingenious, and it also has certain reference value. This machine can be connected with other non-standard feeding equipment or assembly line.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 6,396,360
  • Vertice: 19,189,080

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 6,396,360
  • Vertices: 19,189,080
  • Plugins used

Tags

Automatic Double Side Screw Locking Machine Industrial Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Line Production Robot Manufacture Industrial machine
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
Native
  • SolidWorks 2018 ()153 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
  • OBJ ()509 MB
  • STEP ()82.8 MB
  • Stereolithography ()305 MB
  • IGES ()324 MB
  • Parasolid ()121 MB
  • KeyShot 10 ()637 MB
