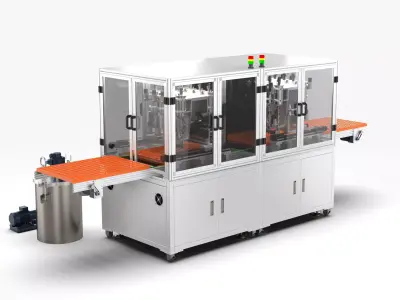

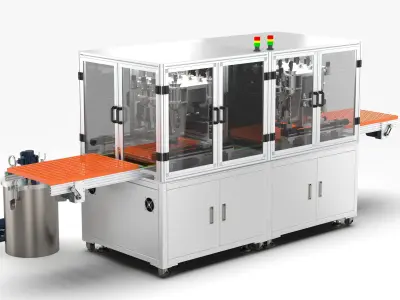

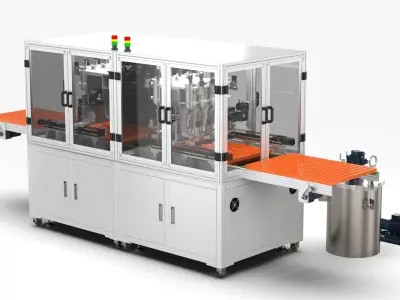

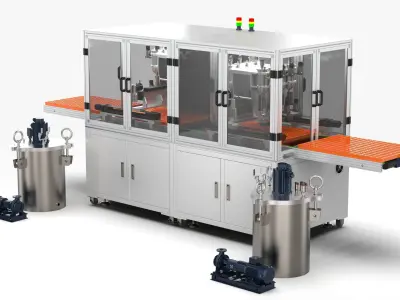

Automatic Double Station Pouring Machine 3D model

$189

License: Royalty Free License

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Description

Automatic Double Station Pouring Machine

Introduction

Automatic pouring equipment process:

The material tray flows out from the upper end equipment and enters the equipment.
Flows to the pouring station for positioning and lifting to ensure the flatness of the material tray
The XY axis mobile module is equipped with a pouring bucket for automatic pouring.
After half of the completion Flow to the next station to pour the remaining half of the product, and the double machine works at the same time to reduce the beat of the equipment.
After the whole tray is completed, the tray flows out of the equipment.

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 4,151,829
Vertice: 12,455,487

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 4151829
Vertices: 12,455,487
Plugins used

Tags

Automatic Double Station Pouring Machine Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Line Production Robot Manufacture Drawing Industrial Industrial machine
