Automatic Electronic Product Visual Inspection Machine 3D model
Home Catalog Automatic Electronic Product Visual Inspection Machine 3D model
Automatic Electronic Product Visual Inspection Machine 3D model
Automatic Electronic Product Visual Inspection Machine 3D model
Automatic Electronic Product Visual Inspection Machine 3D model
Automatic Electronic Product Visual Inspection Machine 3D model
Automatic Electronic Product Visual Inspection Machine 3D model

Publication date: 2023-04-24

Automatic Electronic Product Visual Inspection Machine 3D model

$69

License: Royalty Free License

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $69 Add to Wishlist
  • Description
  • Formats
Description

Automatic Electronic Product Visual Inspection Machine

Introduction

This model is a visual inspection platform for electronic products, including full parameter parts + detailed engineering drawings + parts BOM list, the content is super detailed; this equipment model is suitable for reference learning by assistant engineers who have just entered the job, the content Including:

  1. 3D design in the automation industry;
  2. Engineering drawing output specifications;
  3. Sheet metal parts + aluminum profile frame construction specifications, etc.

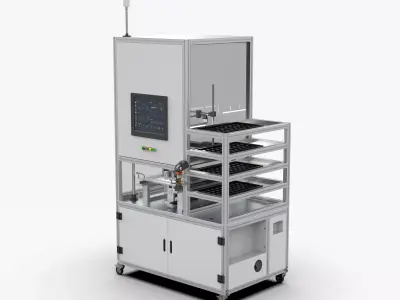

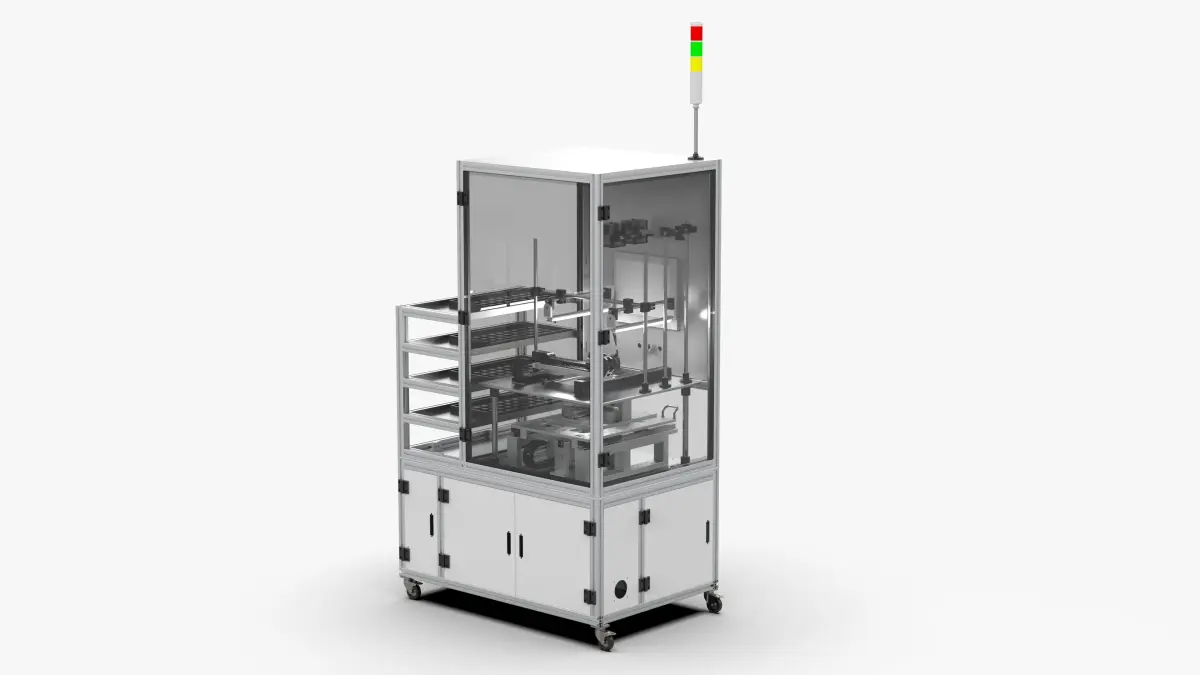

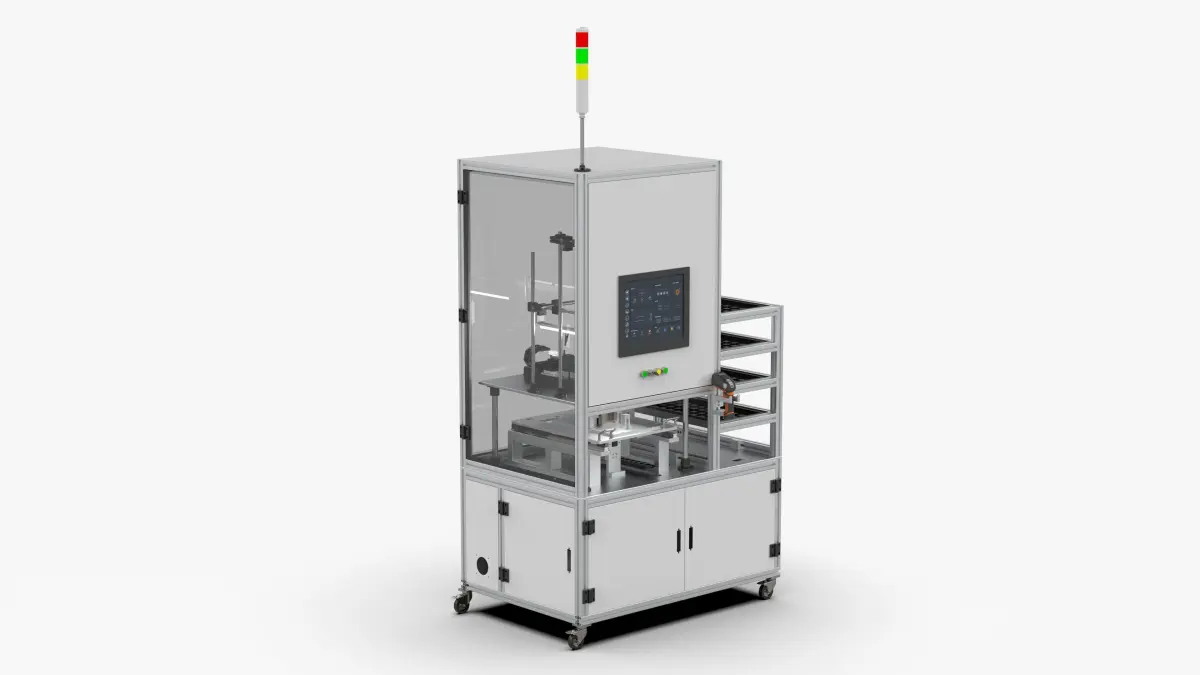

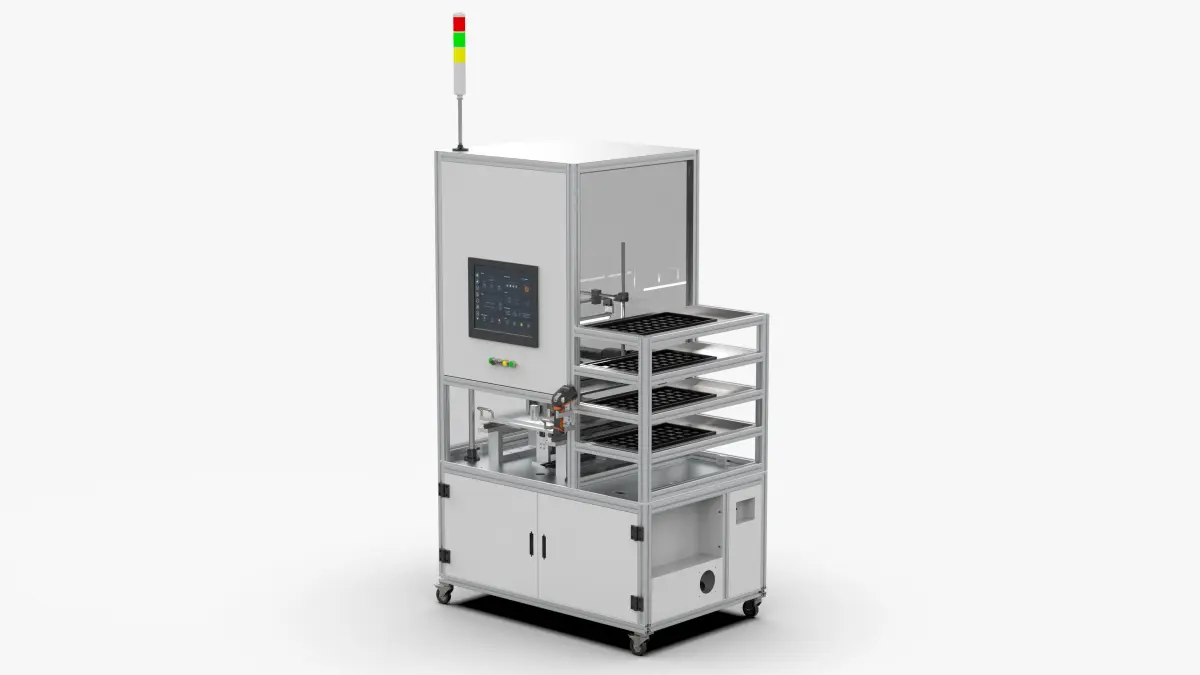

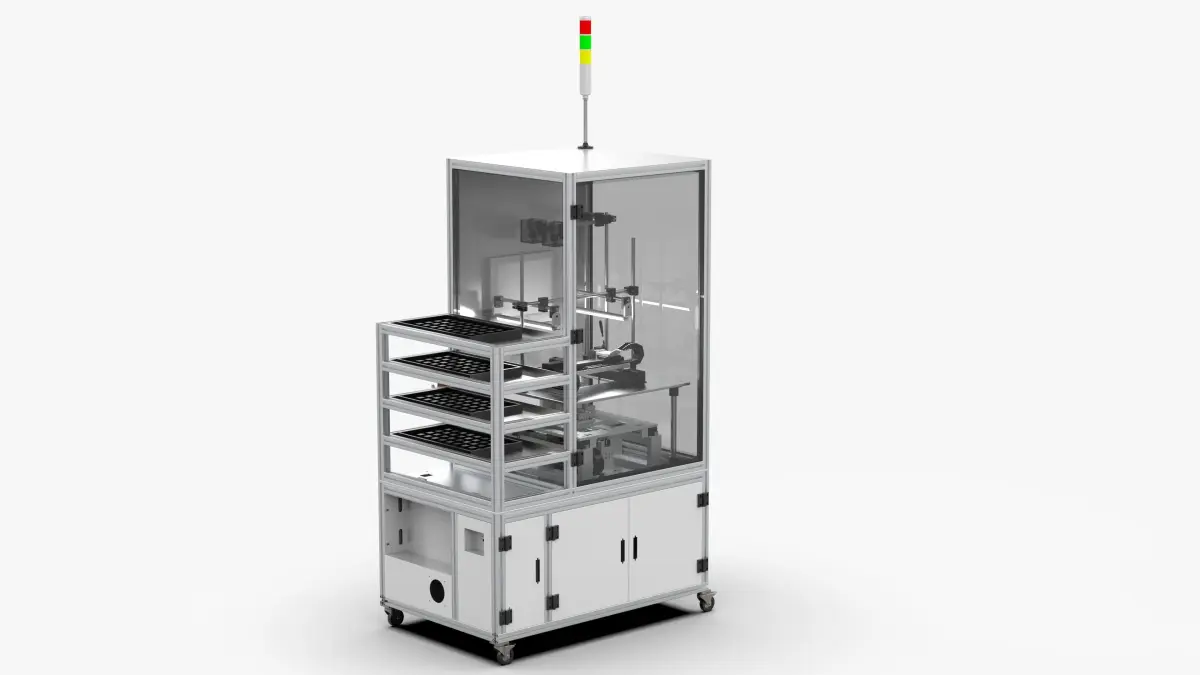

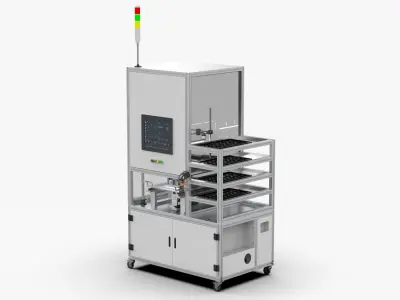

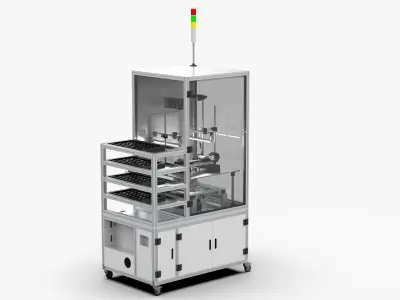

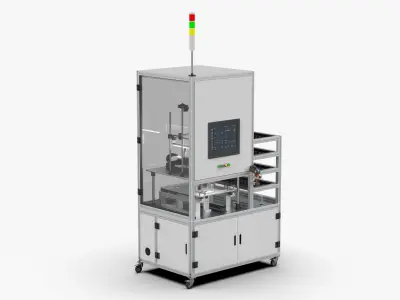

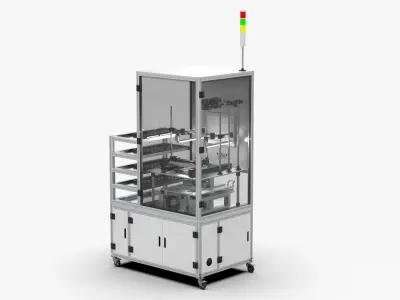

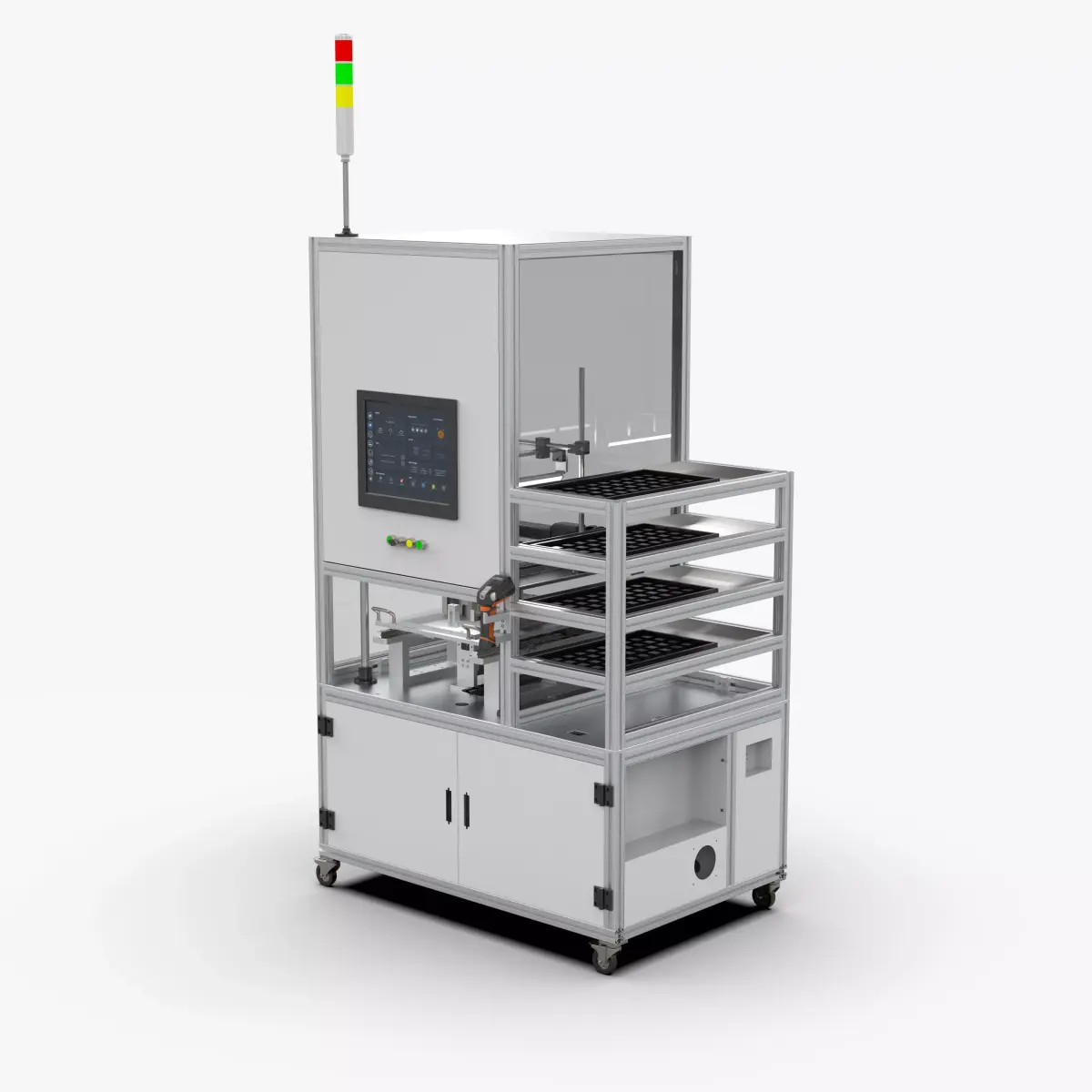

This model is a visual inspection platform for electronic products, which is divided into four parts: a workbench frame made of aluminum profiles + sheet metal, a code scanning mechanism combined with 2-axis modules, a camera component, and a shelf shelf.

The basic operation process is:

  1. The operator takes the product from the TRAY tray on the right and puts it into the fixture of the inspection platform;
  2. The vision system automatically judges whether the product is OK or NG. If the product is NG, the equipment will alarm and prompt to reject it.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 1,249,072
  • Vertice: 3,747,216
Native
  • SolidWorks 2018 ()103 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
  • STEP ()53.7 MB
  • IGES ()143 MB
  • OBJ ()89.4 MB
  • Stereolithography ()59.6 MB
  • KeyShot ()255 MB

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 1249072
  • Vertices: 3,747,216
  • Plugins used

Tags

Automatic Electronic Product Visual Inspection Machine Industrial Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Line Production Robot Manufacture Industrial machine
