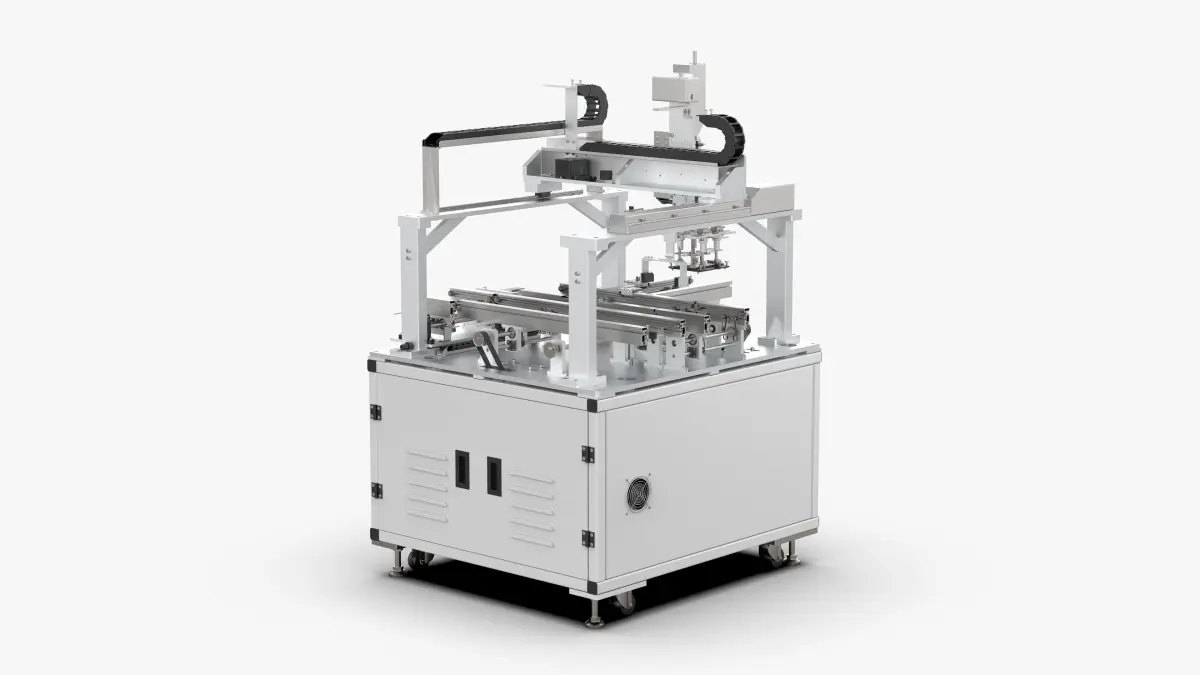

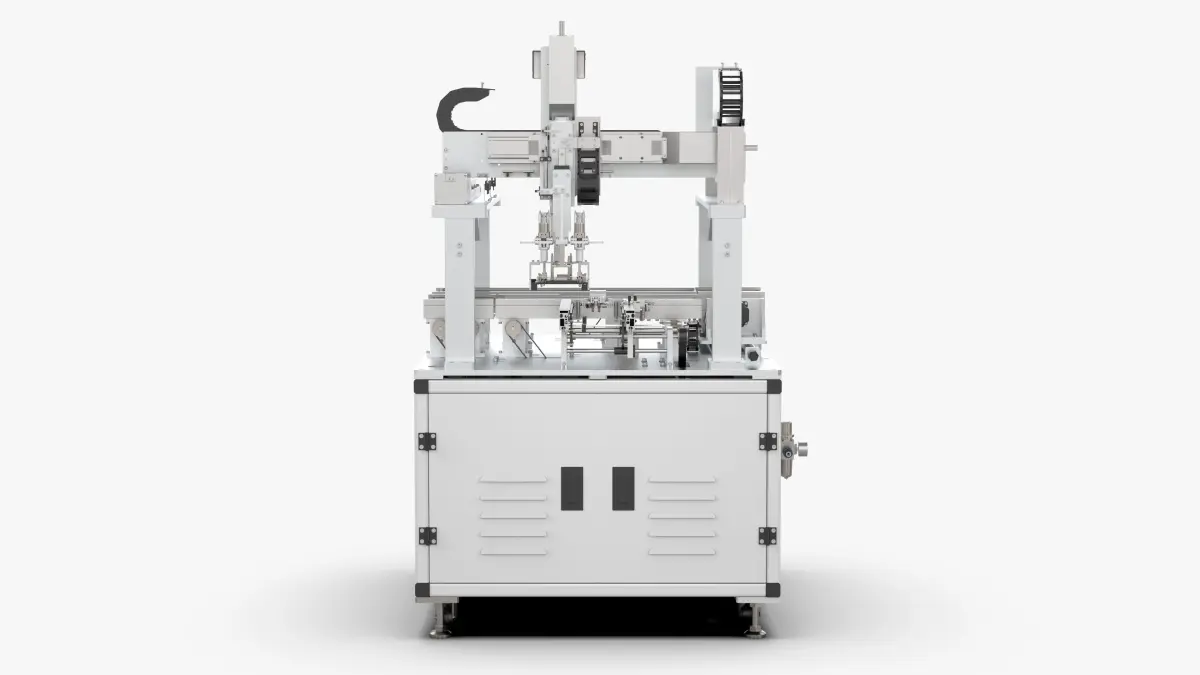

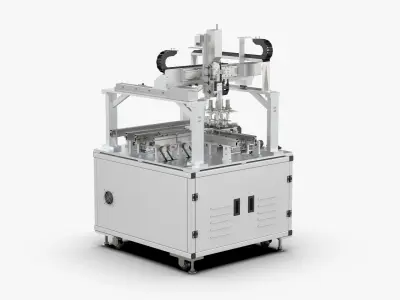

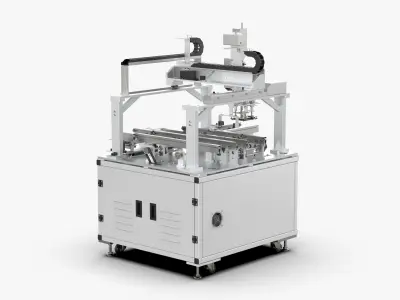

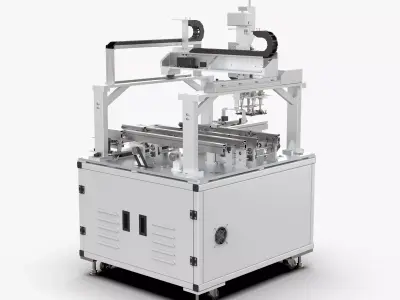

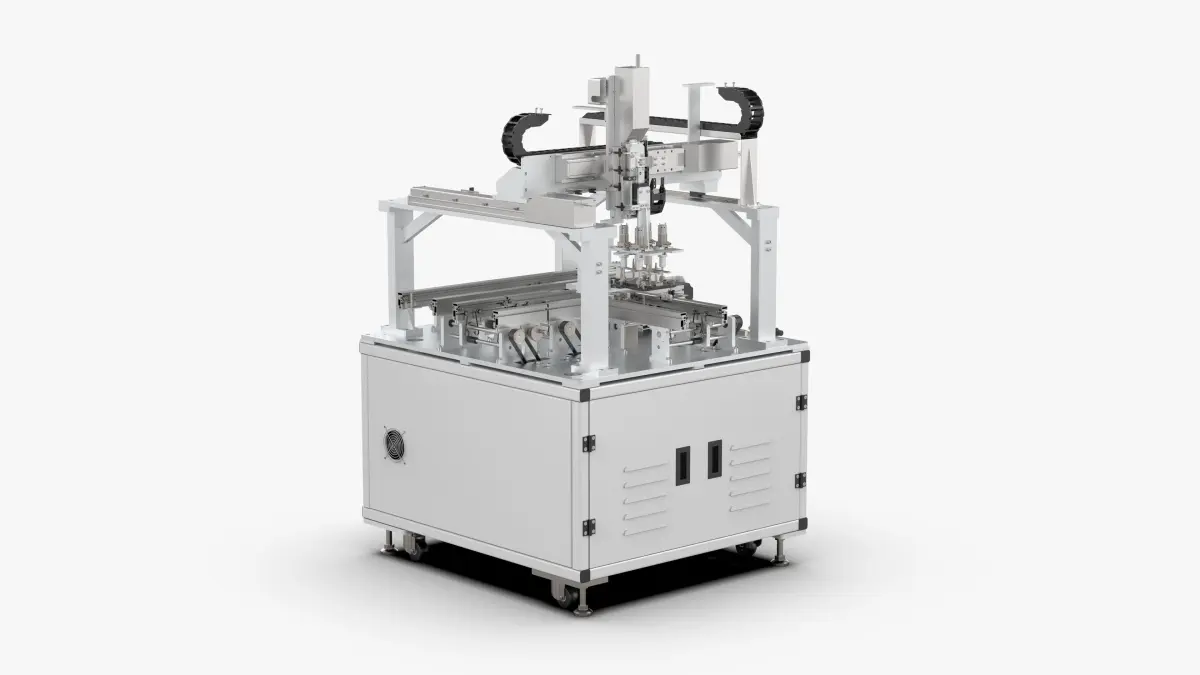

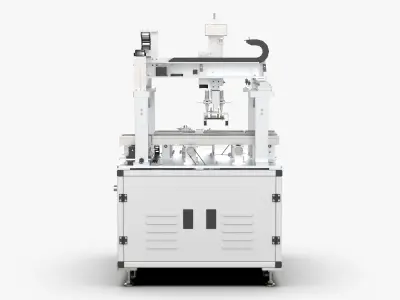

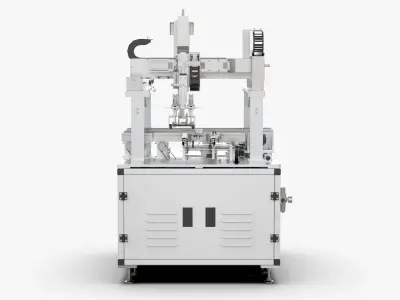

Automatic Flipping in Assembly Line 3D model

$39

License: Royalty Free License

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Description

Automatic Flipping in Assembly Line

Introduction

The utility model relates to a product turning mechanism, which uses a claw cylinder motor to drive the turning of the product, and is suitable for a processing station that needs to turn over during the production process of the product.

File Formats

STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 2,533,753
Vertice: 7,601,259

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 2533755
Vertices: 7,601,259
Plugins used

Tags

Automatic Flipping Assembly Line Industrial Machine Solidwork Design Modeling Automation Machinery Part Mechanism Production Robot Manufacture Drawing Industrial machine
