Automatic Gate Barrier 3D model

License: Royalty Free

author:

droumbas

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «droumbas». CGhub does not claim copyright ownership over the content used.

This is a revit family for an automatic car gate barrier. Family is fully parametric.As a generic model it can be placed almost anywhere in any project. Visulisation parameters control how the model is illustraded in the project, either with closed gate, half open, fully opened or any other rotation angle.

Almost all aspects of the model can be altered via the parameters available including materials. All family parameters are shown below.

Model can also be flipped on both vertical and horizontal axis for correct placement according to any project needs.

ATTRIBUTES:

Revit version : 2022
Family Type : Generic Model
File Extension : .rfa

PARAMETERS:

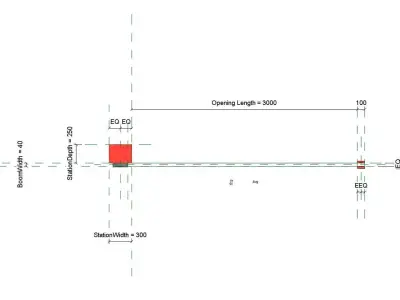

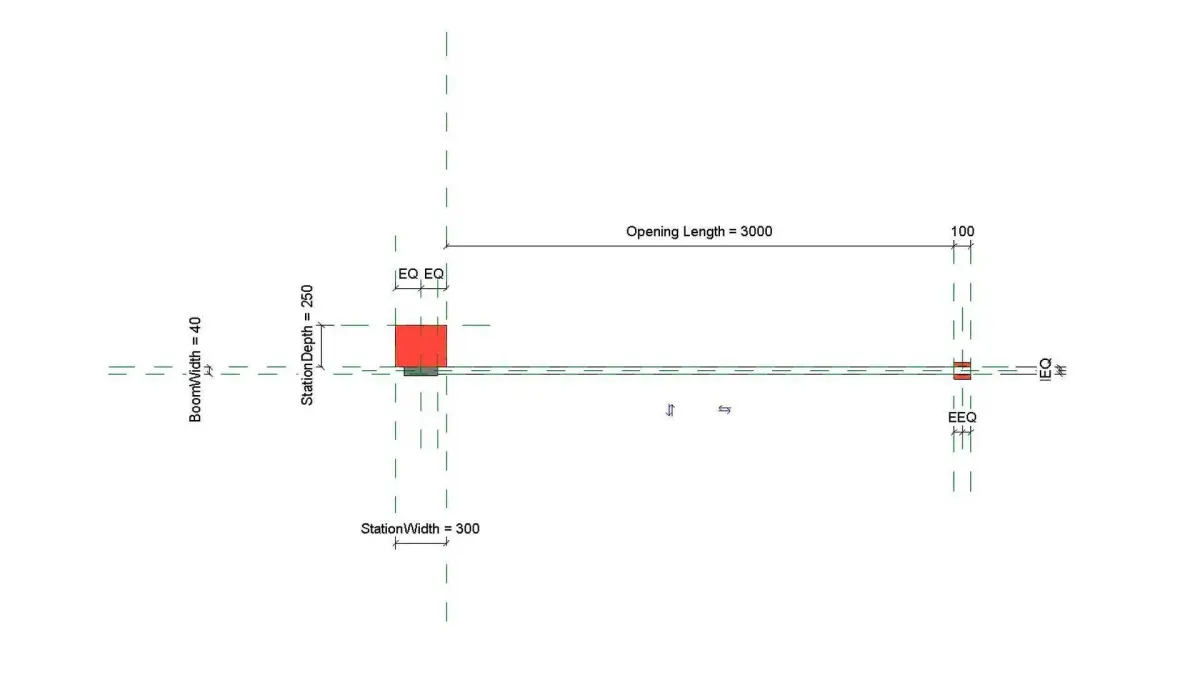

Opening Length ( clear passage )

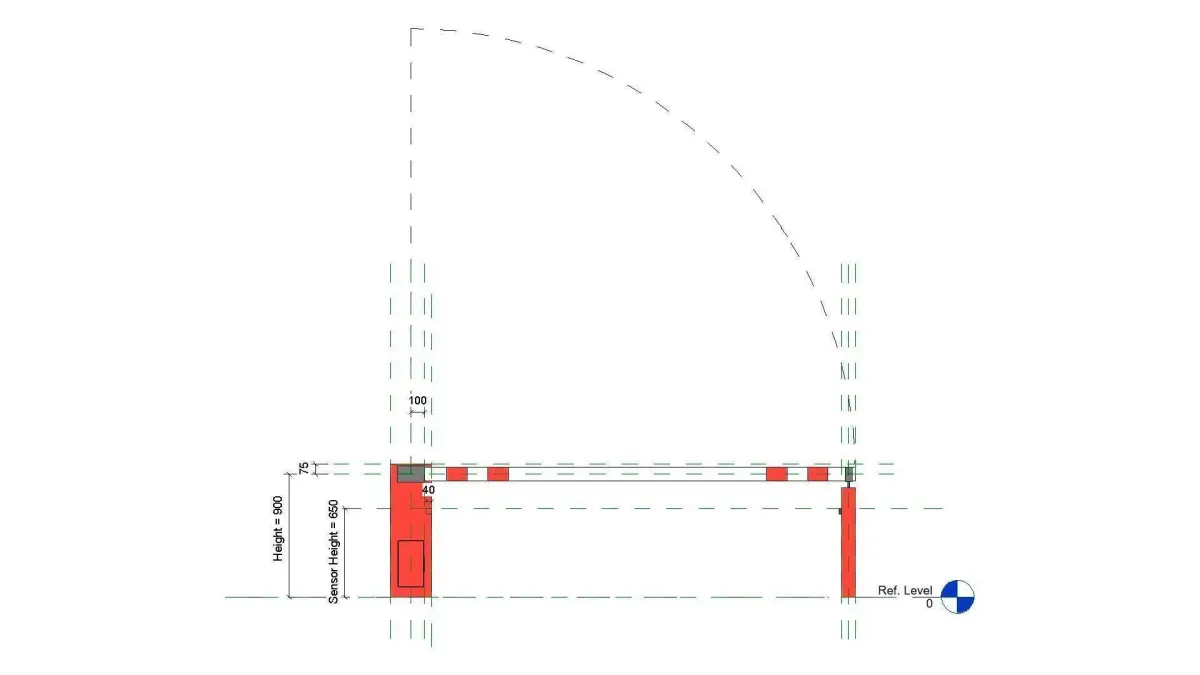

Height of the barrier
Boom Height and Width
Barrier raised angle ( 0 to 90 degrees )
Sensor height
Station Width and Depth

FAMILY TYPES:

Opening length 3000mm, boom closed
Opening length 3000mm, boom half opened
Opening length 3000mm, boom fully raised
Opening length 4000mm, boom closed
Opening length 4000mm, boom half opened
Opening length 4000mm, boom fully raised
Opening length 5000mm, boom closed
Opening length 5000mm, boom half opened
Opening length 5000mm, boom fully raisedUser can create as many family types as needed within any project to match every project's needs.
