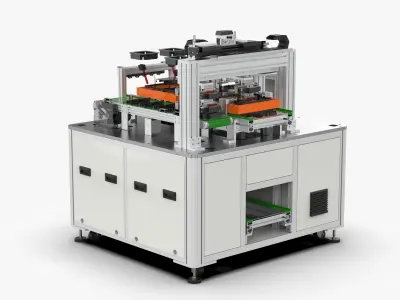

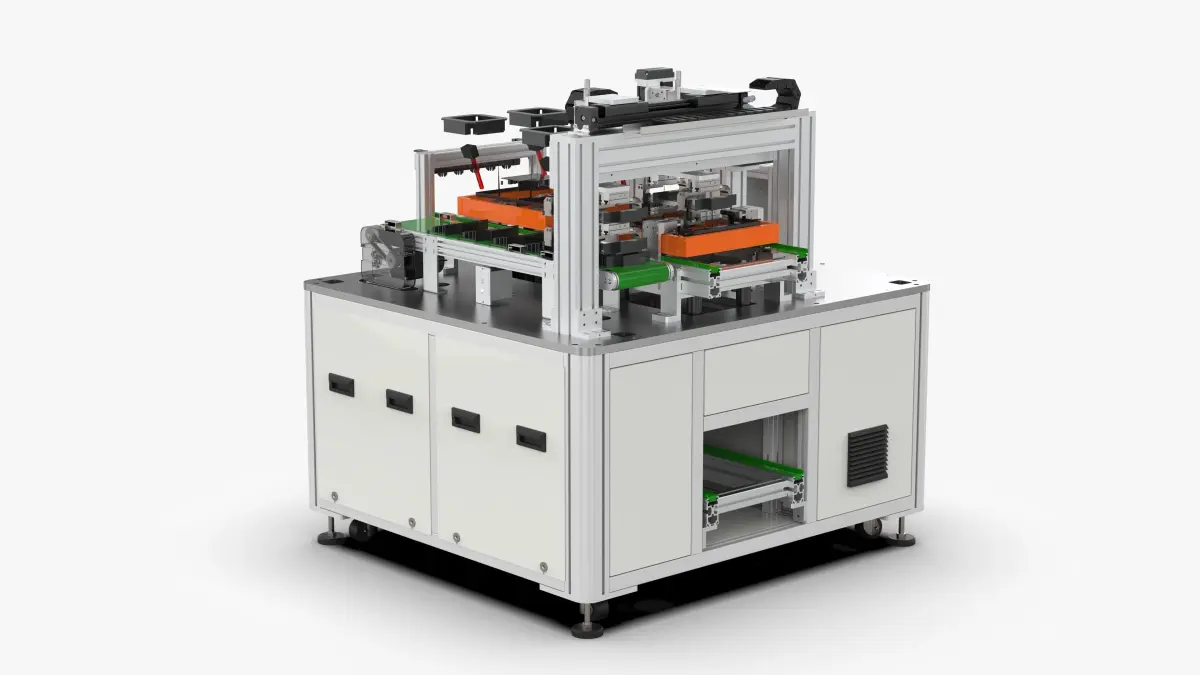

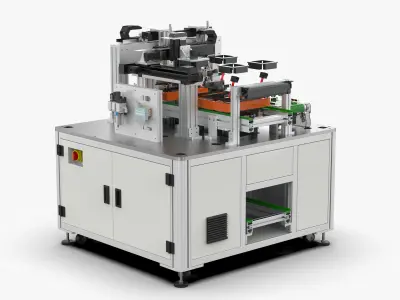

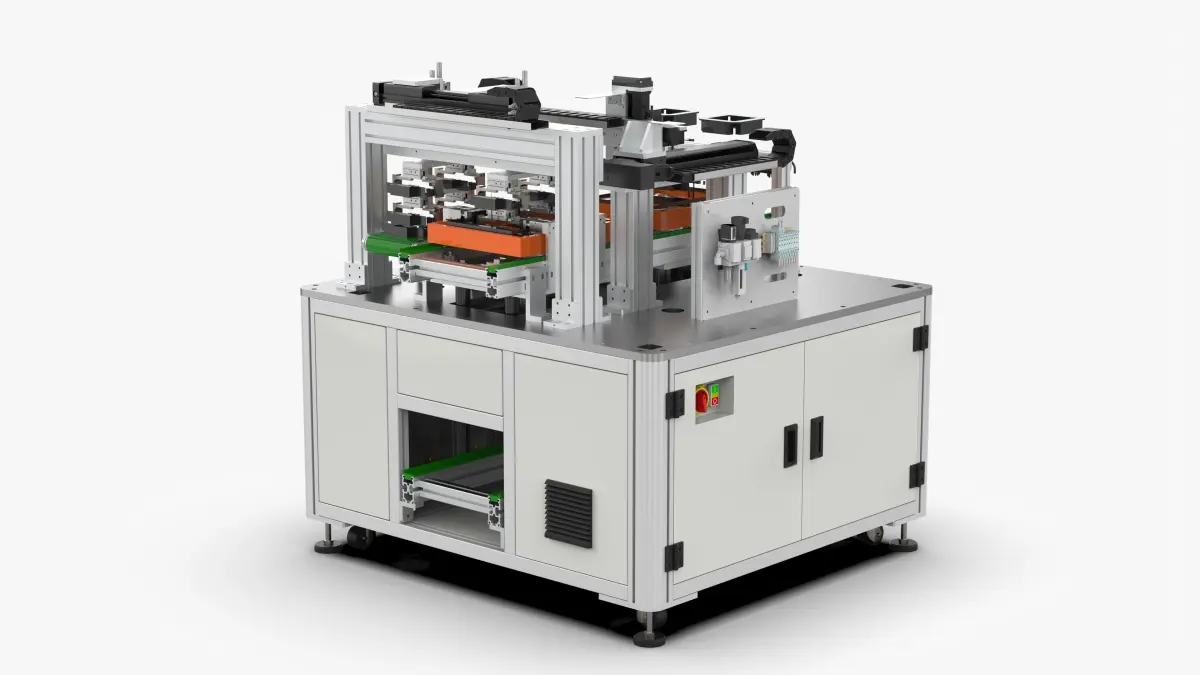

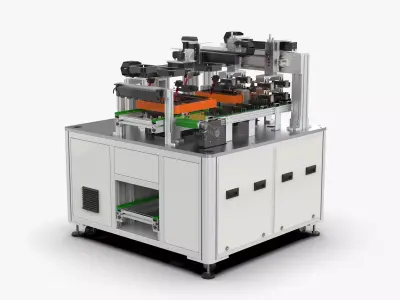

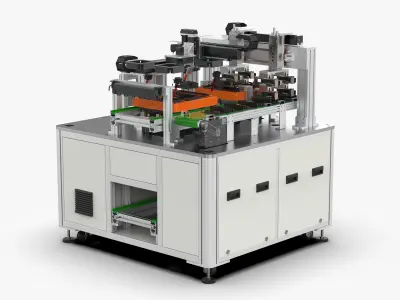

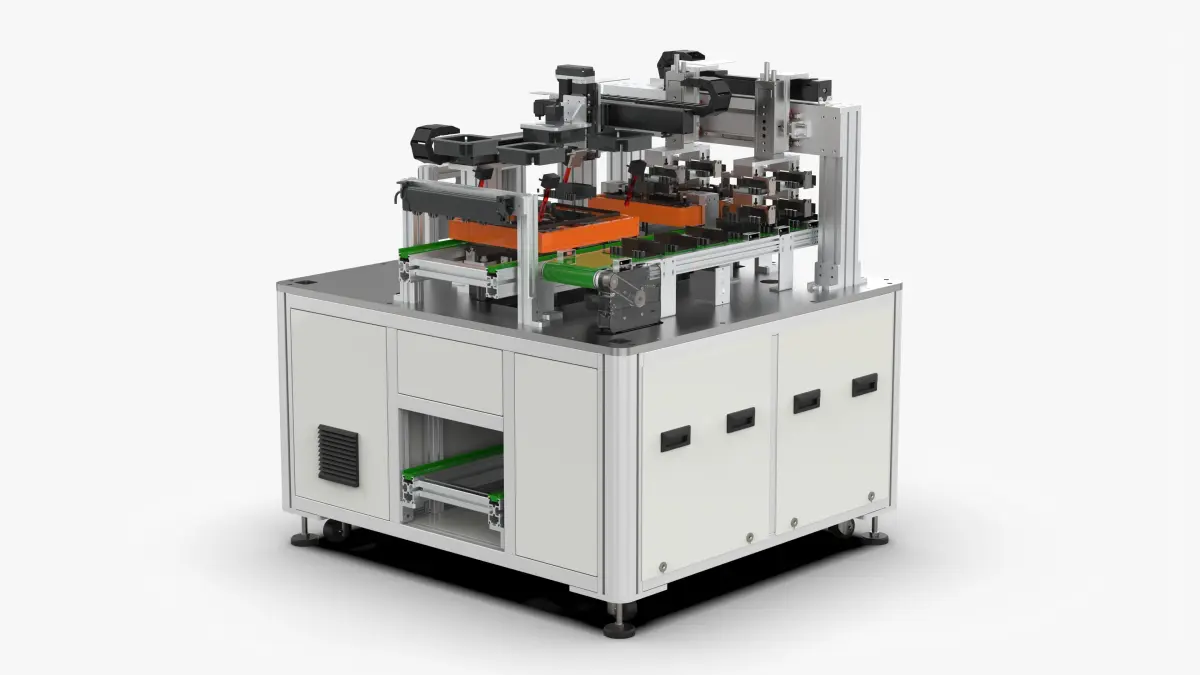

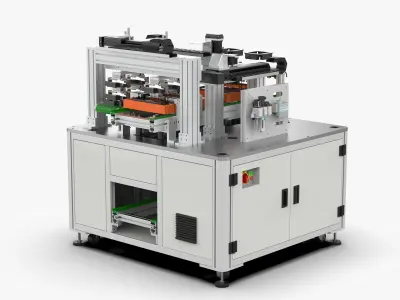

Automatic Glue Detection Stringing Machine

Introduction

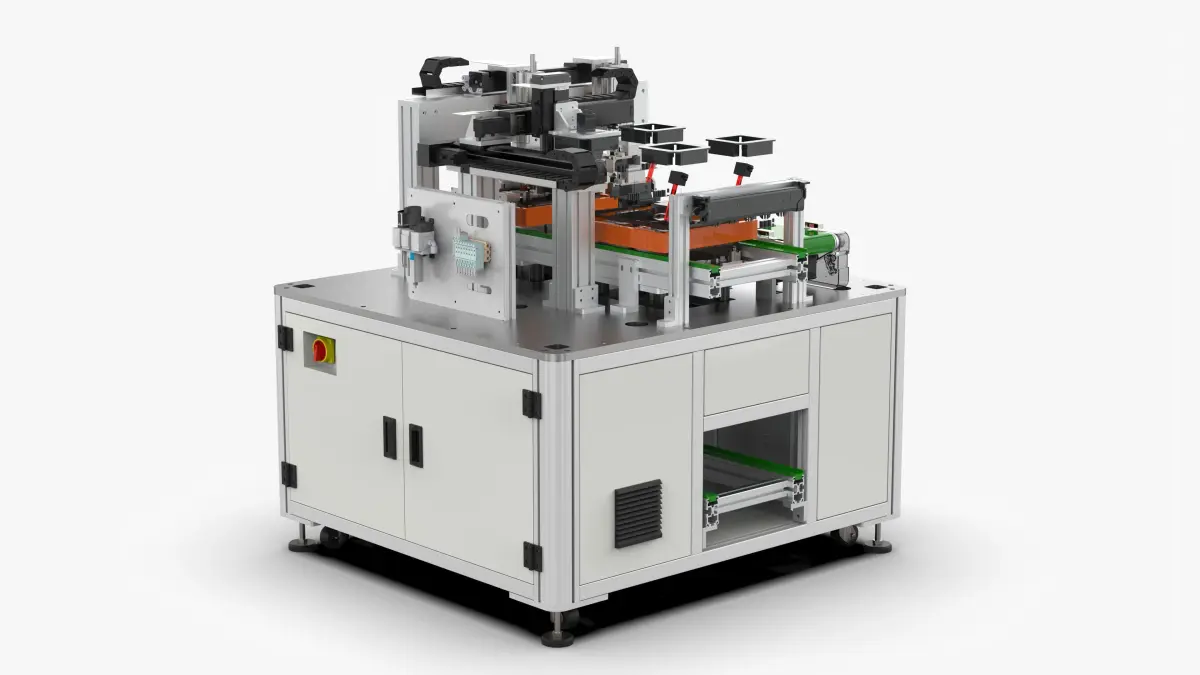

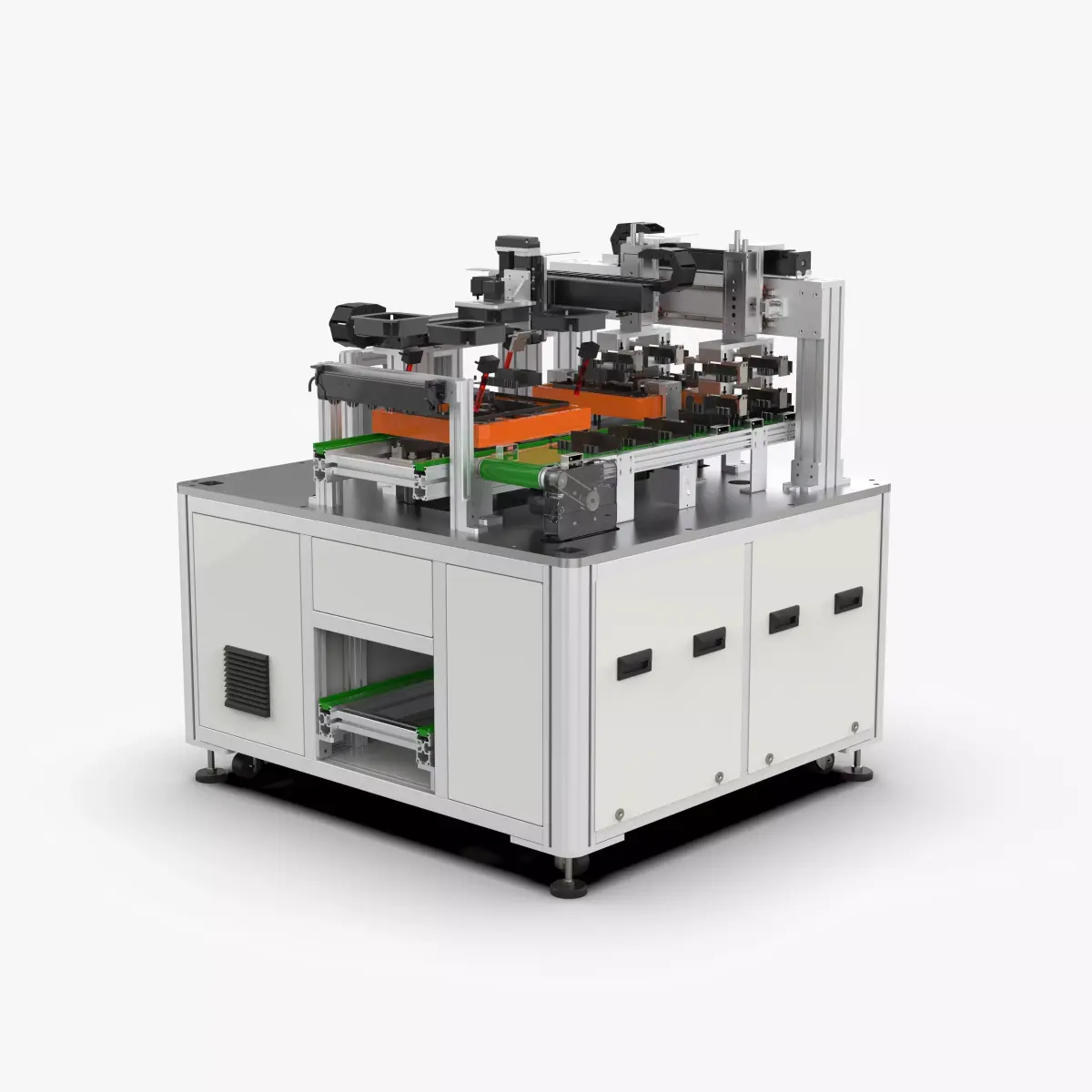

M016-Glue coating detection assembly diagram stringing equipment is conveyed and supplied by the line body, the servo plus screw module type loading and unloading method is machine positioned, and the fixture transportation adopts the side positioning method. After the dispensing is completed, UV curing, detection, unloading, The whole machine is controlled by PLC and can be opened with SOLIDWORKS2017 version, which will be a very good learning material. All parts of the complete set of equipment including XT general format are complete, and the equipment has been produced and operated stably.
