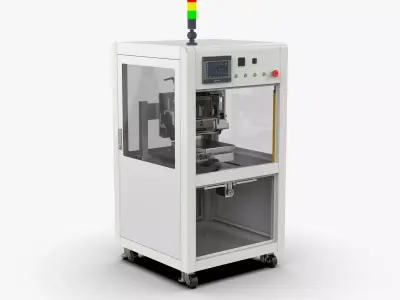

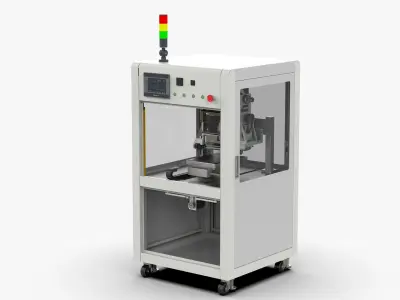

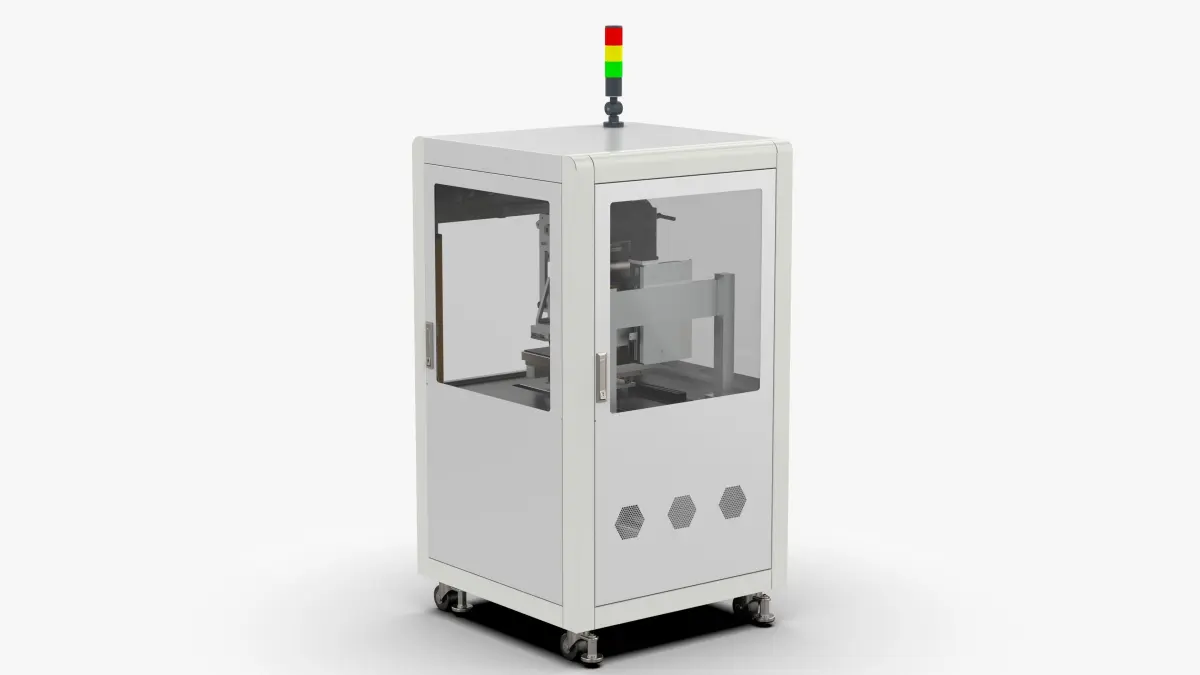

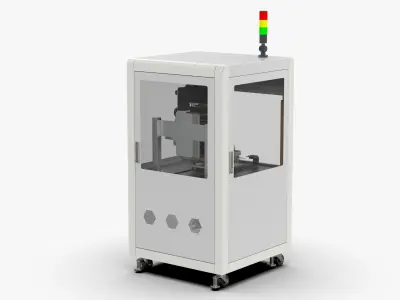

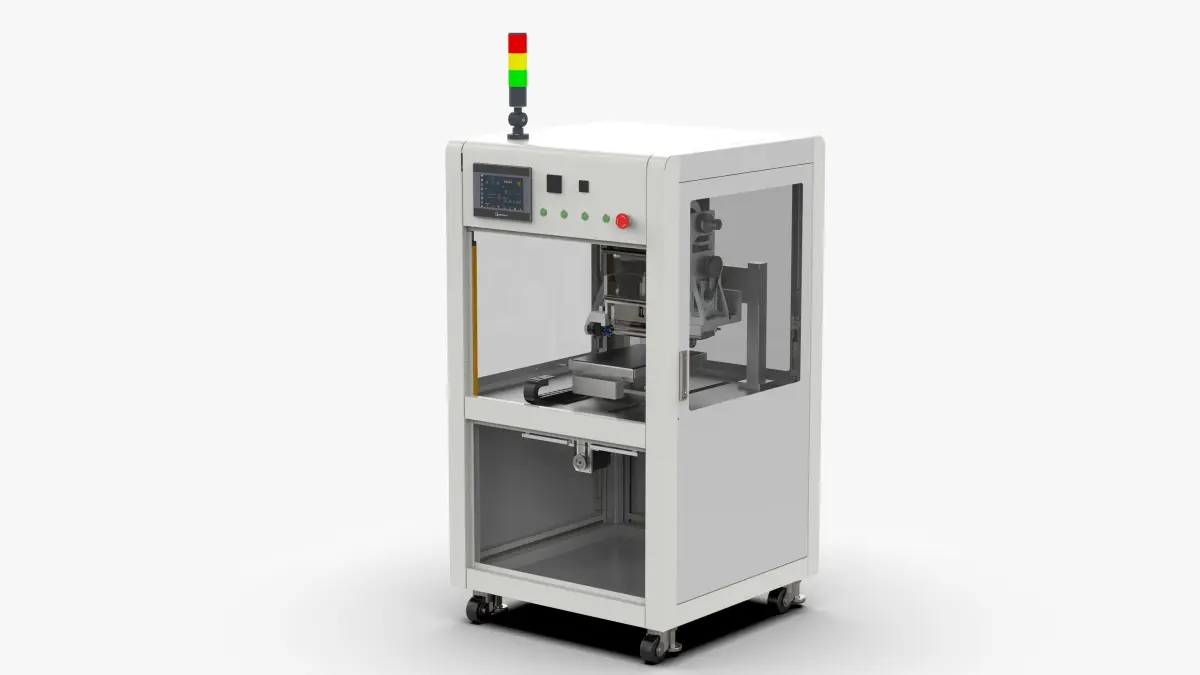

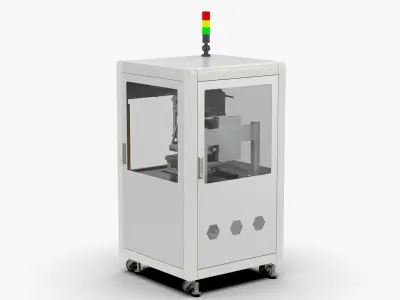

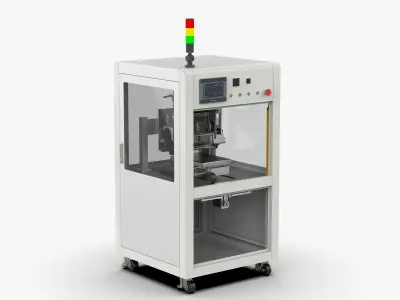

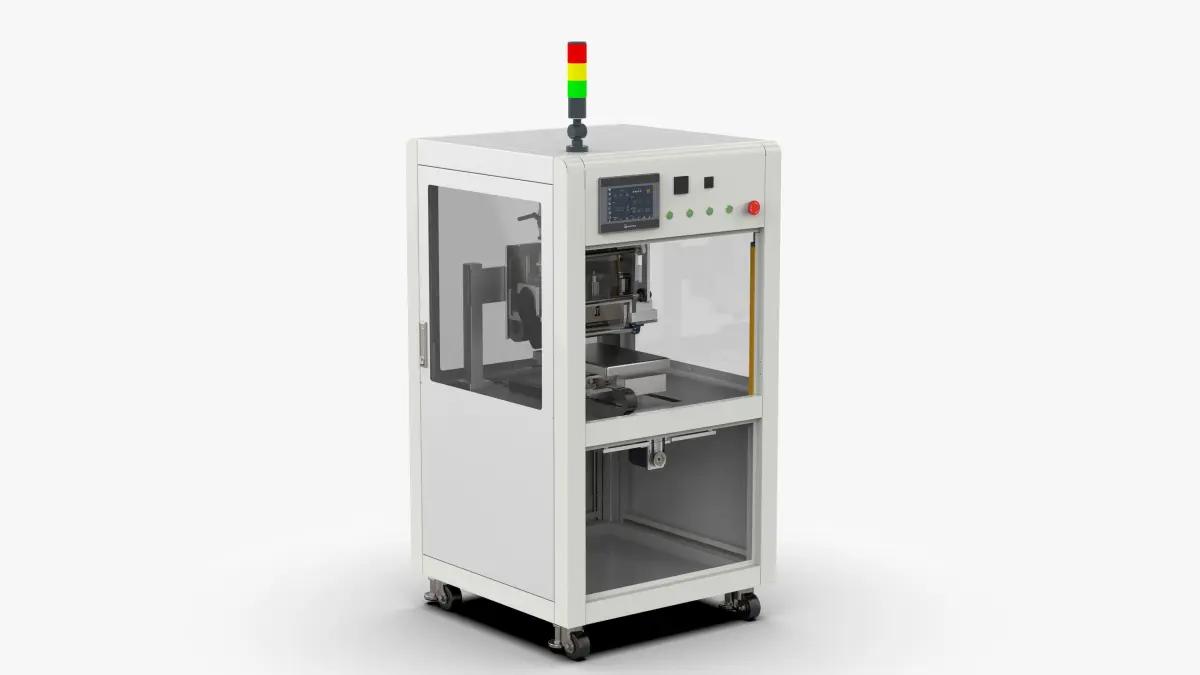

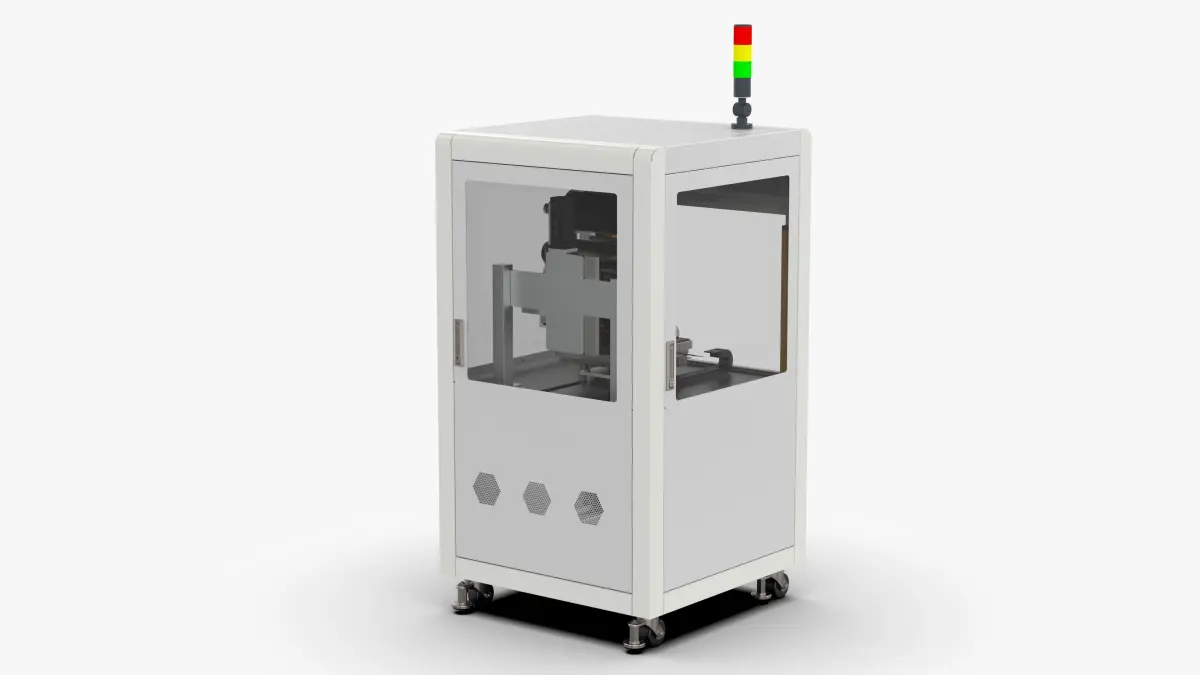

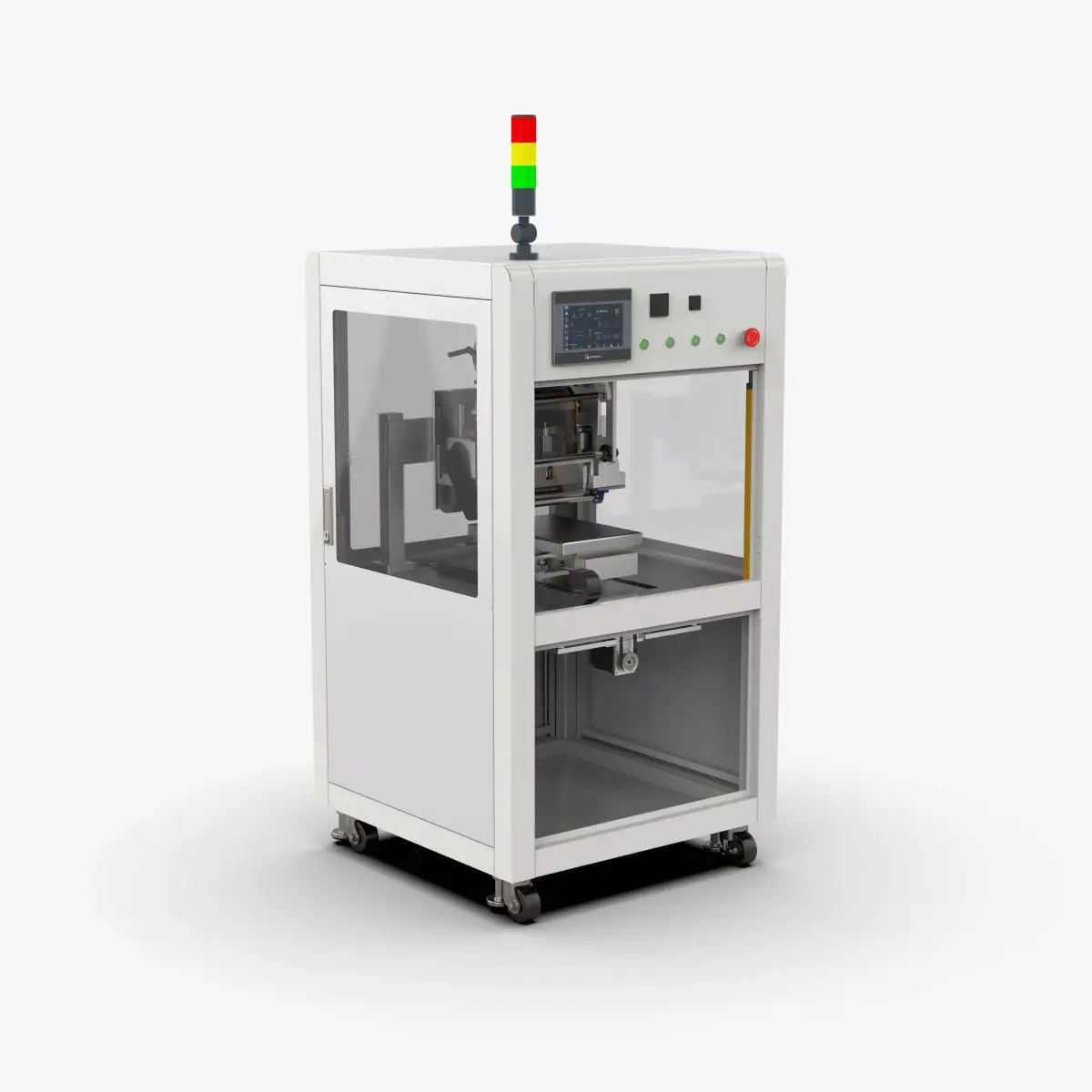

Automatic Glue Removal Machine 3D model

$39

License: Royalty Free License

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Description

Automatic Glue Removal Machine

Introduction

Applicable product specifications for glue removal: 3.5?~13?
Tact timeCG/TP=20s, LCD=40s (calculated based on 6.0-inch products)
Removable thickness: meet 60um~300um
Degumming temperature: Max 90°
Panel/TP/CG is adsorbed by the platform
Vacuum in the factory can be used, and a vacuum pump (small) is required.
Panel/TP/CG is adsorbed by the platform, and the size of the vacuum adsorption area of ??the platform can be controlled. The moving speed of the platform can be quantitatively adjusted
The temperature of the platform can be set, and it will automatically alarm when it exceeds the set temperature
The height of the roller can be set quantitatively
Relative humidity: 30% ~ 80%
Environmental noise: below 80dB
Voltage: 3 phase, AC208V±5%, 50Hz±2Hz
Air pressure: 5kg/cm²

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 1,200,426
Vertice: 3,601,278

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 1200426
Vertices: 3,601,278
Plugins used

Tags

Automatic Glue Removal Machine Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Line Production Robot Manufacture Drawing Industrial Industrial machine
