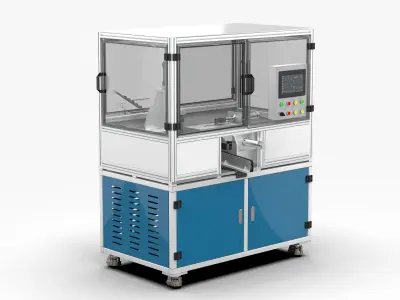

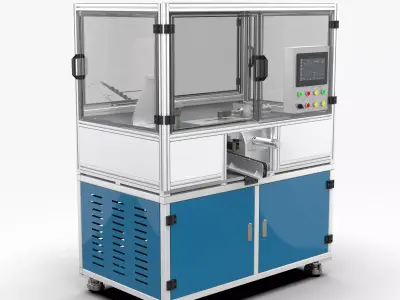

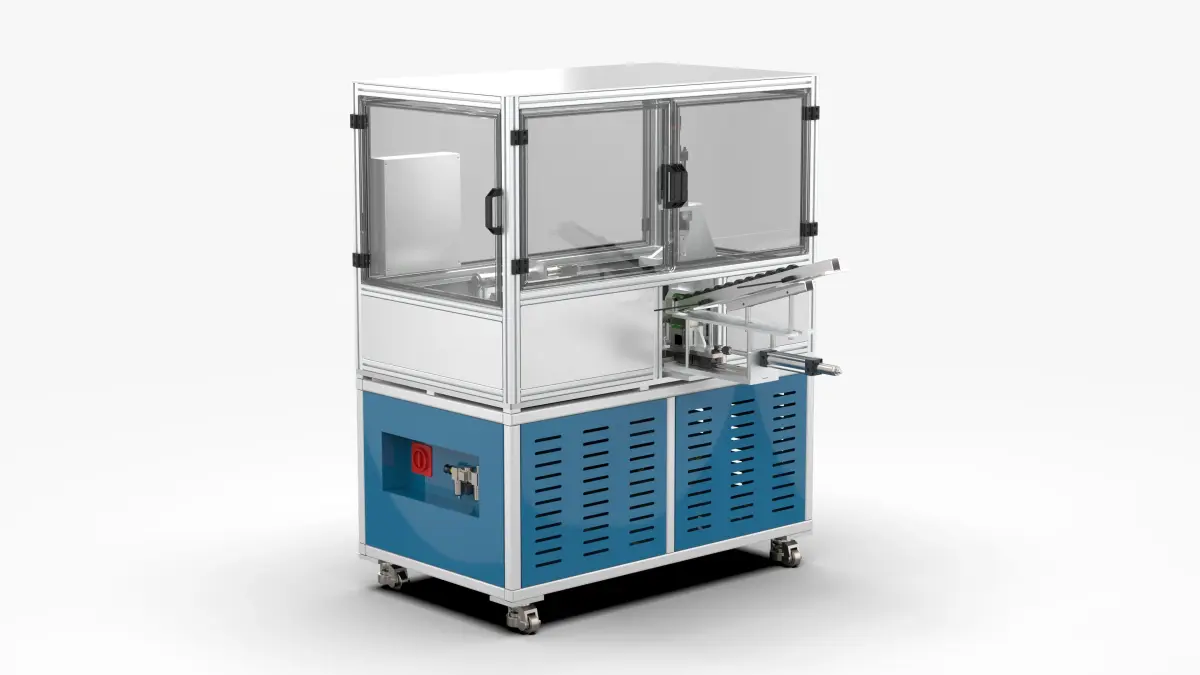

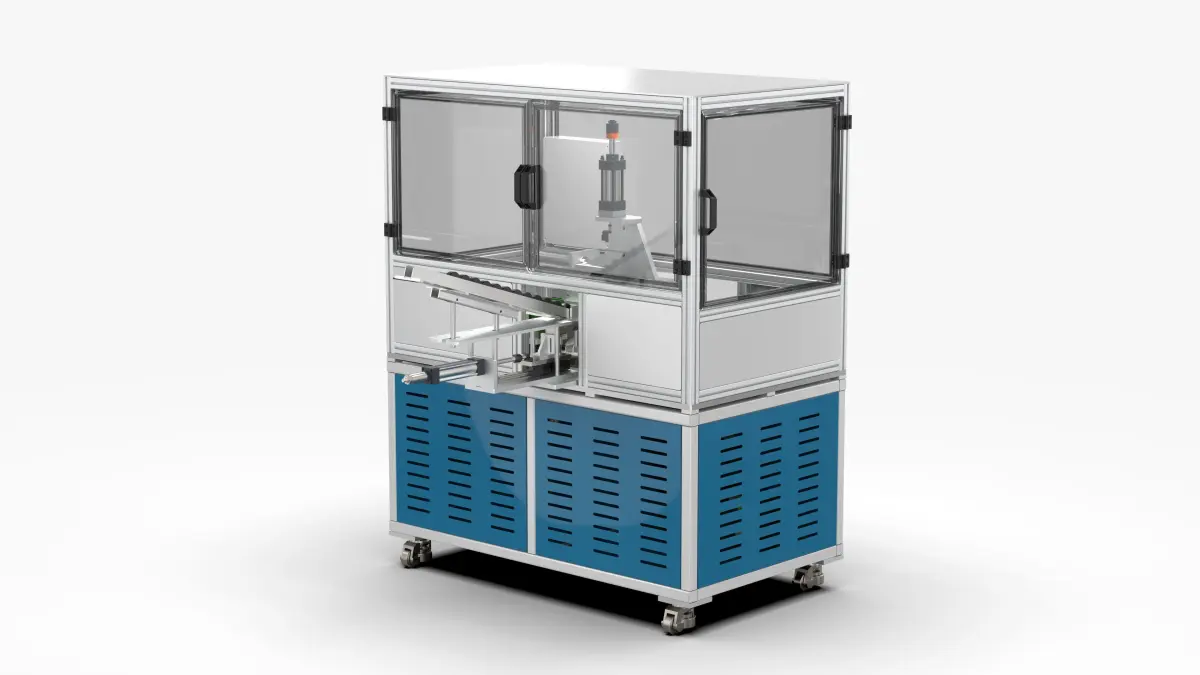

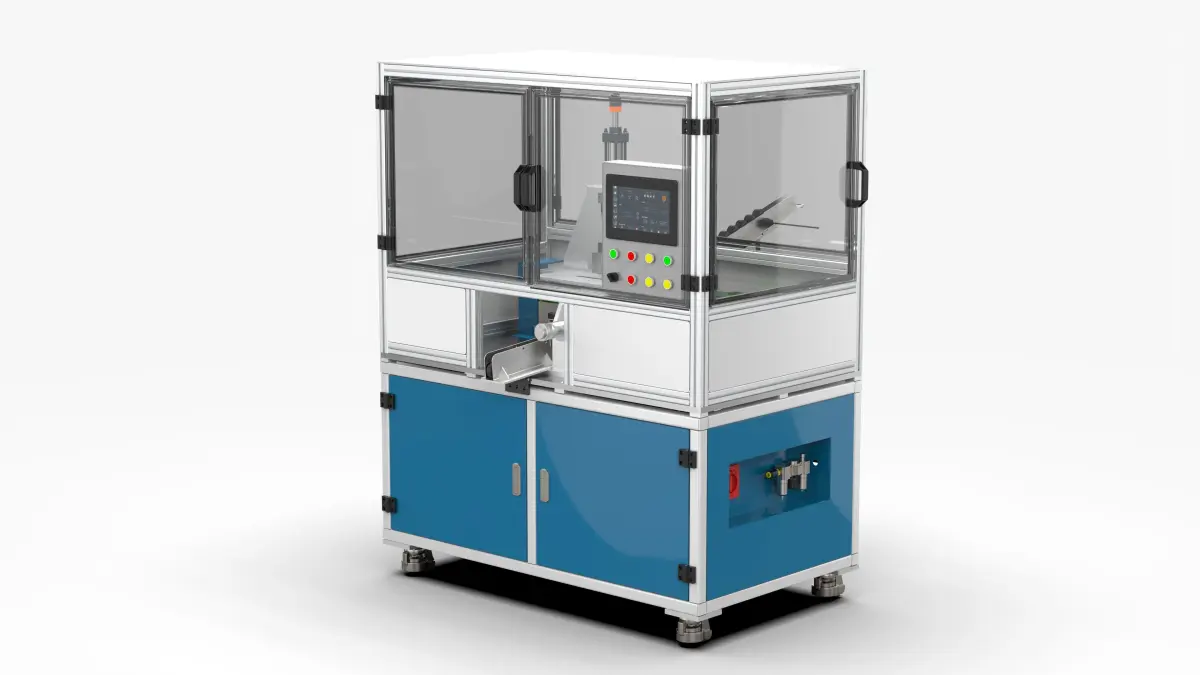

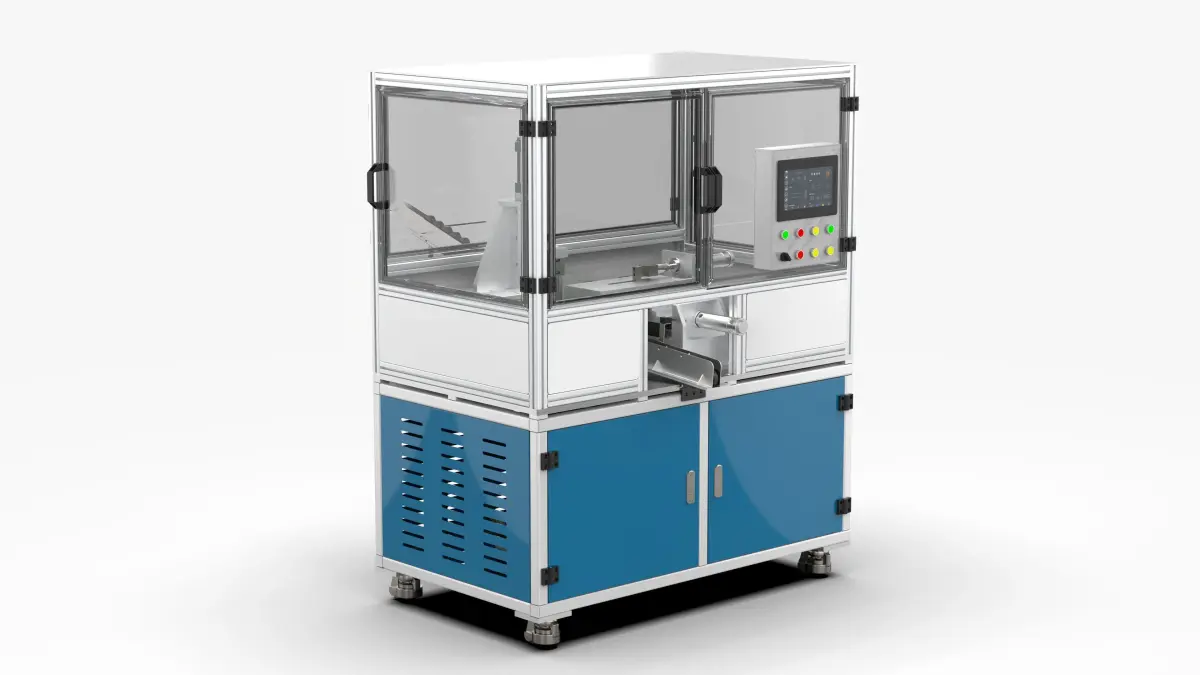

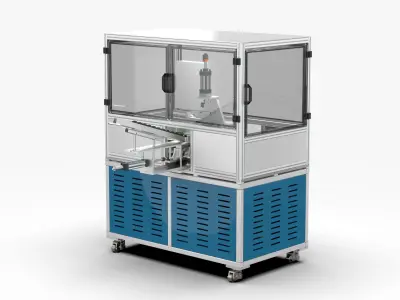

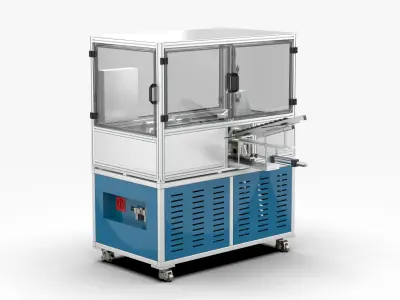

Automatic Horizontal Chamfering Rough Turning Machine

Introduction

This set of drawing models is an all-in-one machine for rough turning of the outer circle of the squirrel cage rotor aluminum ring, which is mainly used for the rough turning and end chamfering of the outer circle of the cast aluminum rotor of the motor manufacturer. The mechanism removes foreign matter such as burrs produced during the die-casting of the squirrel cage rotor, and adopts a power head mechanism. The rotor is transferred by a non-powered slideway mechanism.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 866,932
  • Vertice: 2,600,796

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 866,932
  • Vertices: 2,600,796
  • Plugins used

Tags

Automatic Horizontal Chamfering Rough Turning Machine Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Line Production Robot Manufacture Drawing Industrial Industrial machine
