Automatic IGBT Radiator Assembly Machine 3D model
Automatic IGBT Radiator Assembly Machine 3D model
Automatic IGBT Radiator Assembly Machine 3D model
Automatic IGBT Radiator Assembly Machine 3D model
Automatic IGBT Radiator Assembly Machine 3D model

Publication date: 2024-02-01

Automatic IGBT Radiator Assembly Machine 3D model

$129

License: Royalty Free License

author:

Lovano

Buy at www.cgtrader.com - $129 Add to Wishlist
  • Description
  • Formats
Description

Automatic IGBT Radiator Assembly Machine

Introduction

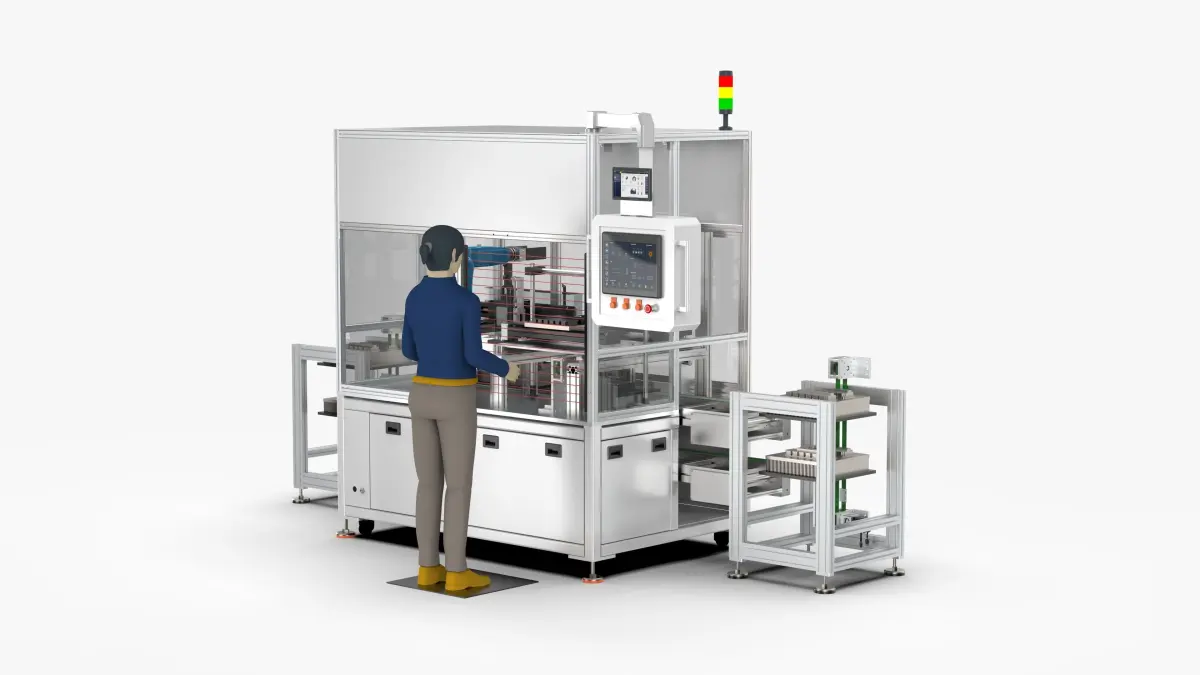

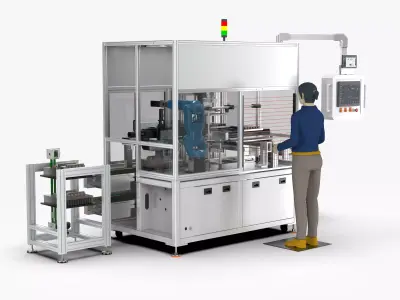

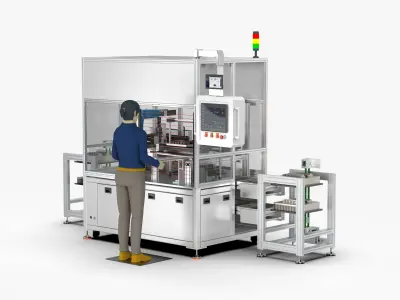

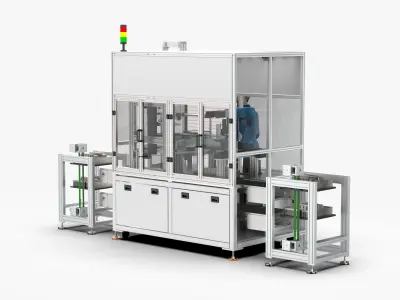

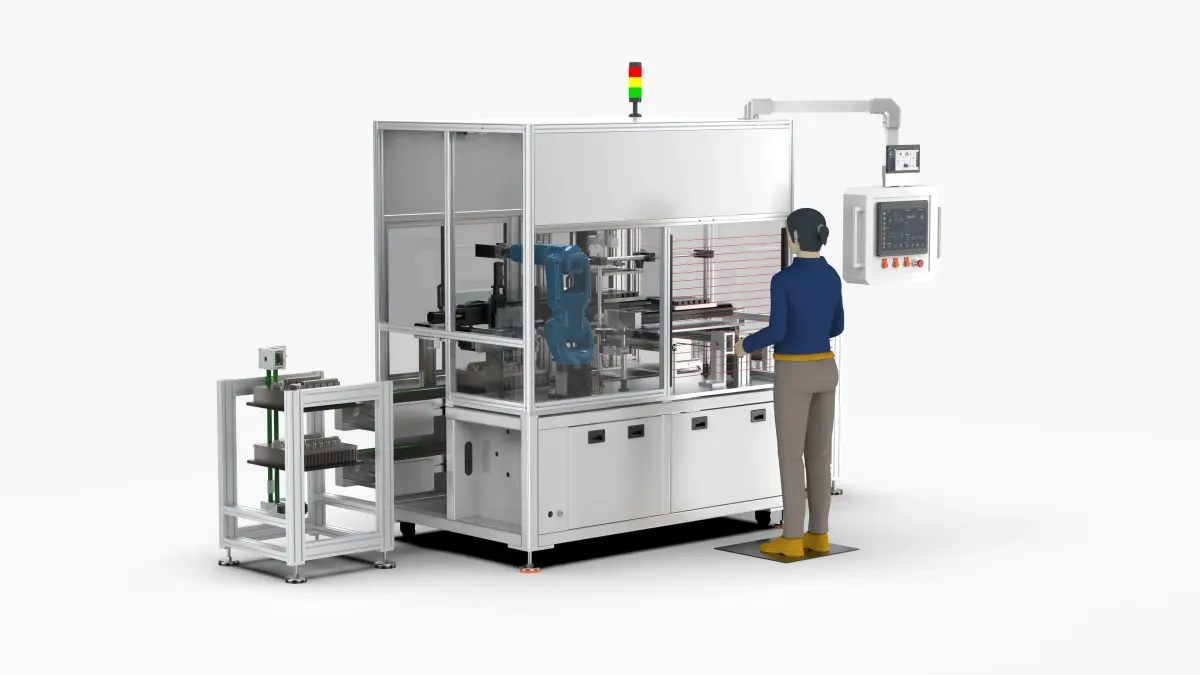

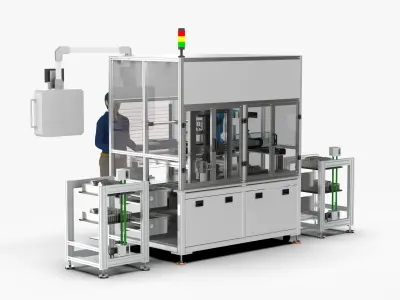

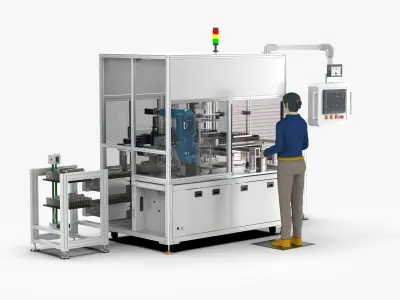

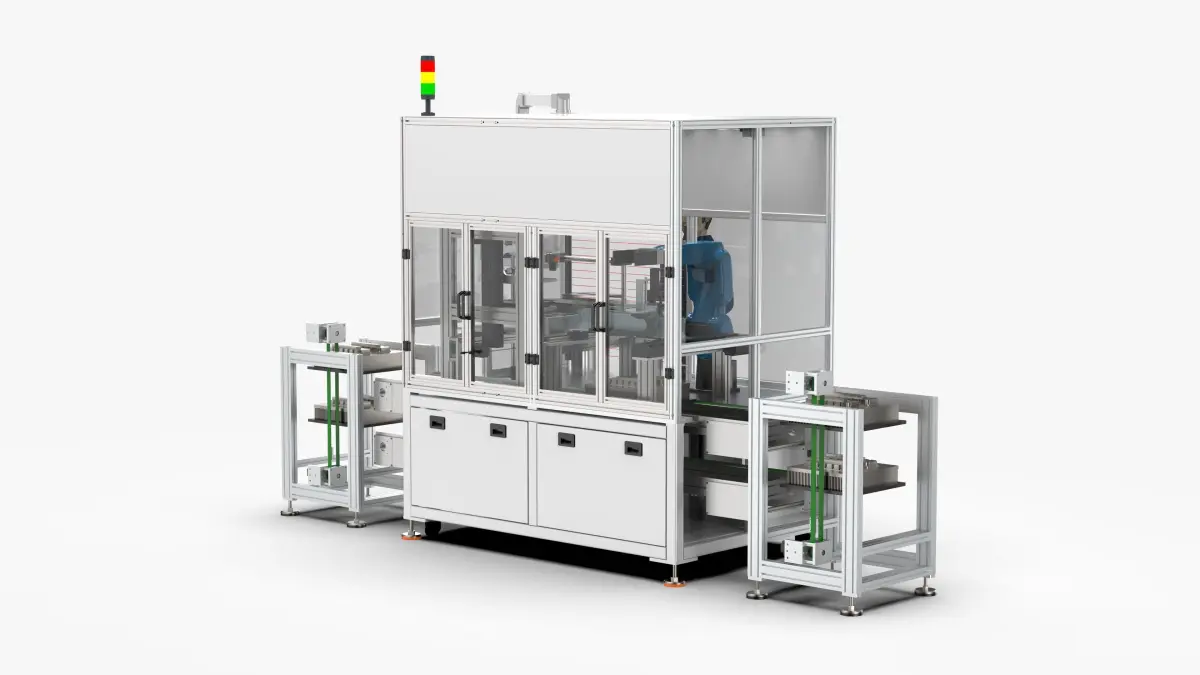

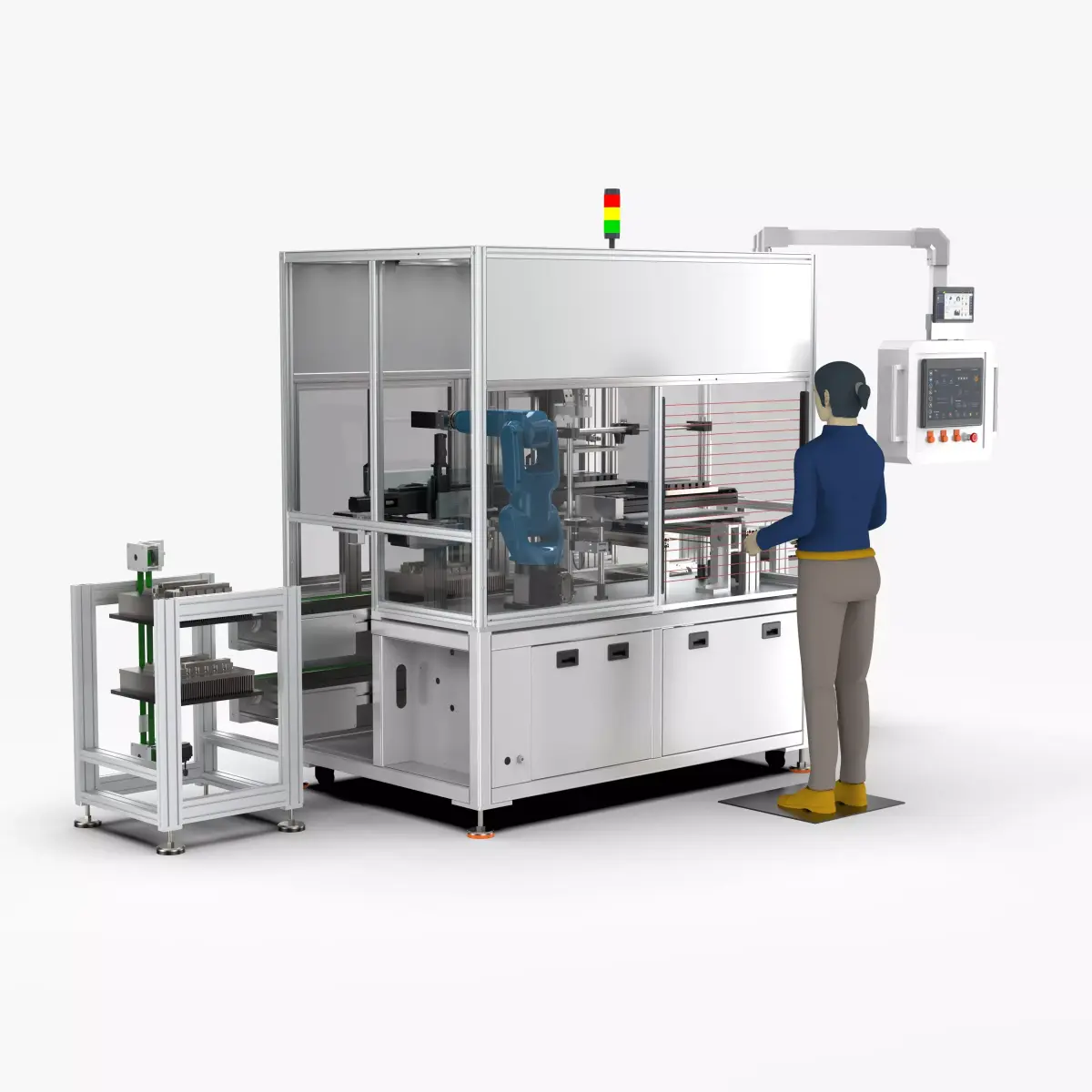

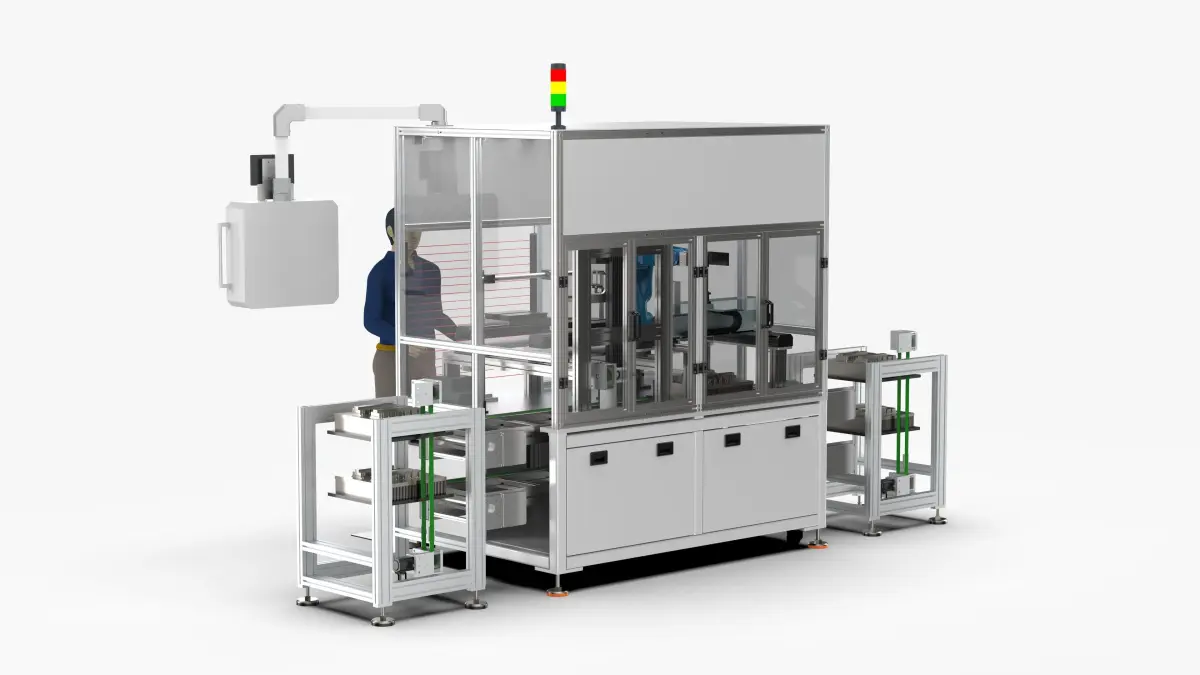

3D scheme of automatic assembly equipment for IGBT radiators. The equipment completes automatic screwing and printing of IGBT radiators, including double-speed chain double-layer return mechanism, XYZ automatic screwing mechanism, synchronous belt transmission mechanism, and automatic printing mechanism.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 4,700,195
  • Vertice: 14,100,585

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 4,700,195
  • Vertices: 14,100,585
  • Plugins used

Tags

Automatic Radiator Assembly Machine Industrial Solidwork Design Modeling Automation Machinery Part Mechanism Line Production Robot Manufacture Drawing Industrial machine
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
Native
  • SolidWorks 2018 ()149 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
  • OBJ ()380 MB
  • IGES ()277 MB
  • Parasolid ()127 MB
  • STEP ()97.9 MB
  • Stereolithography ()224 MB
  • KeyShot ()754 MB
